Imaging & Optics

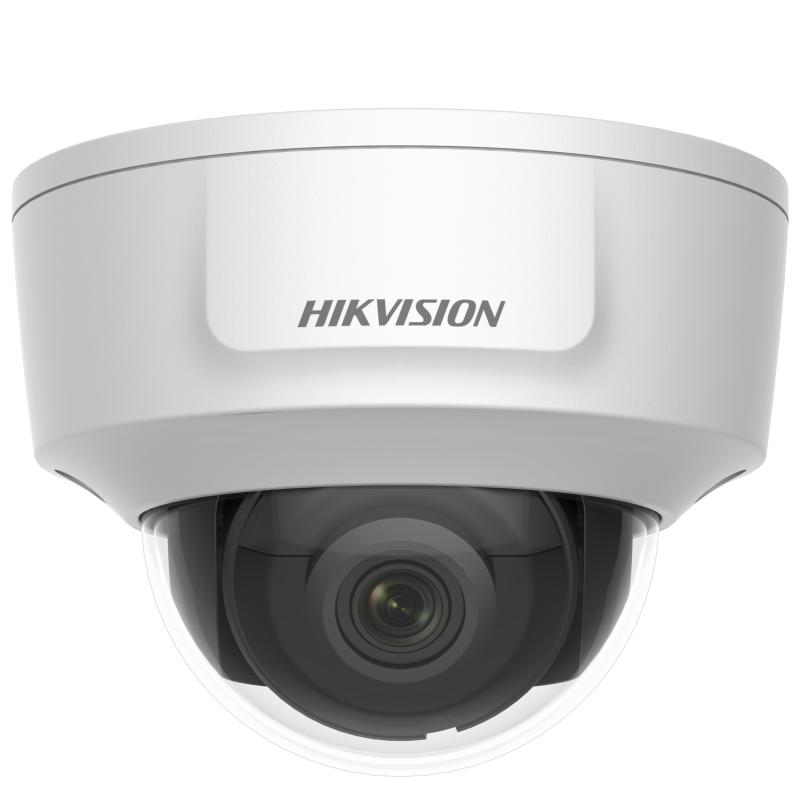

Equipped with a 1/1.8″ progressive-scan CMOS sensor, this camera outputs a high-definition 8MP image. The fixed 2.8 mm lens offers a wide field of view—horizontal ~108°, vertical ~58°, diagonal ~133°—perfect for covering larger areas with minimal blind spots.
Video Performance
Its 120 dB true wide dynamic range (WDR) optimizes image clarity in scenes with strong lighting contrasts, such as entries or storefronts. H.265+ compression ensures efficient storage and bandwidth usage, supporting high-resolution streaming without compromising quality.
Live Monitoring
A convenient HDMI port enables real-time video monitoring, eliminating the need for external monitors or video encoders—ideal for quick on-site checks or security room integration.
Build & Integration
With an IK10-rated metal housing, the camera is resilient to vandalism and tampering. It includes audio and alarm I/O, enabling integration into security systems and triggering auxiliary alerts.
Recording & Intelligence
The camera supports onboard storage via microSD/microSDHC/microSDXC cards up to 512 GB, and can trigger actions like recording or alerts using motion detection, tampering alarms, and scene change detection. Deep learning features include face capture and perimeter protection with human/vehicle differentiation.
Power & Environmental Specs
Operates on 12 VDC (max 8.4 W) or PoE (802.3af, max 10 W). Functions reliably in -10 °C to 40 °C ambient conditions and up to 95% non-condensing humidity.
FAQs
Does it support onboard storage?
Yes, it supports microSD cards up to 512 GB for local recording.
Can it alert when motion is detected?
Yes—features include motion detection, tampering alerts, and scene change detection, with linkage options like recording or alarm triggers.
Is it suitable for rough environments?
Yes, the IK10 metal casing ensures robustness against vandalism; however, it lacks enhanced anti-corrosion protection (standard grade).
Can I monitor footage directly on a screen?
Yes, it includes an HDMI output for direct live viewing.
Does it recognise faces or detect intrusions?
Yes, it supports deep-learning face capture and perimeter protection with human/vehicle differentiation.
Technical Specifications Summary
Feature | Specification |
---|---|
Image Sensor | 1/1.8″ Progressive Scan CMOS, 8MP resolution (3840 × 2160) |
Lens | Fixed 2.8 mm (F1.6), ~108° horizontal FOV |
Wide Dynamic Range | 120 dB true WDR |
Live Output | HDMI live view (HD via HDMI port) |
Housing | Full-metal construction, IK10 vandal-proof design |
Storage | MicroSD up to 512 GB |
Smart Features | Face capture, perimeter protection (human/vehicle), motion tampering detection |
Power Options | 12 VDC (max. 8.4 W) or PoE (802.3af, max. 10 W) |
Environmental Range | -10 °C to 40 °C; humidity up to 95% non-condensing |
Image | Name | Price | Buy |
---|---|---|---|
![]() | Hikvision DS-1280ZJ-DM46 Junction box White | $23.00 inc GST +3 Year Warranty & Support |
Sample 8MP Hikvision Videos
NOTE If you’d like to experience full 8MP, you may have to click the gear icon and change the resolution to 4K, otherwise youtube may stream at a lower quality resolution.
