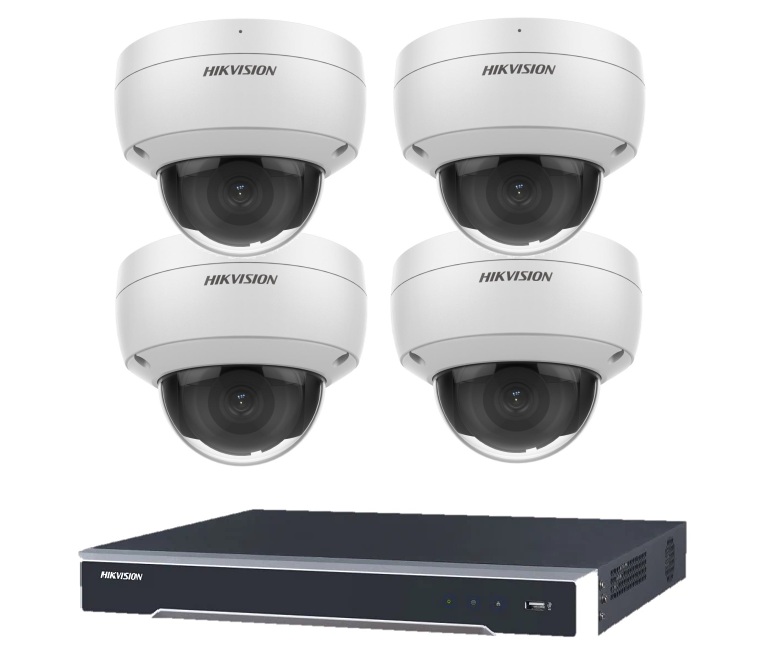

8MP 4CH Hikvision CCTV Kit: 4 x Outdoor Vandalproof Domes + 4CH NVR

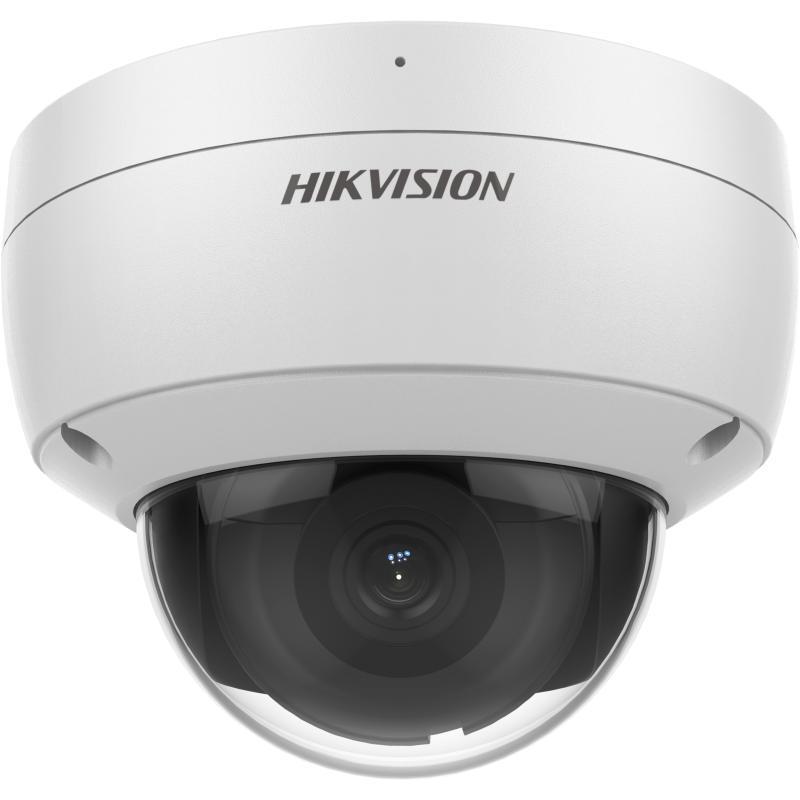

4 x  8 MP Hikvision Outdoor Vandalproof Domes

Code/SKU: HIK-2CD2185FWDI or DS-2CD2185FWDI

Quick Specs: H.265+, 30m IR, 120dB WDR, IP67, IK10

Lens Options: 2.8mm / 4mm / 6mm / 12mm     Colours: White / Black

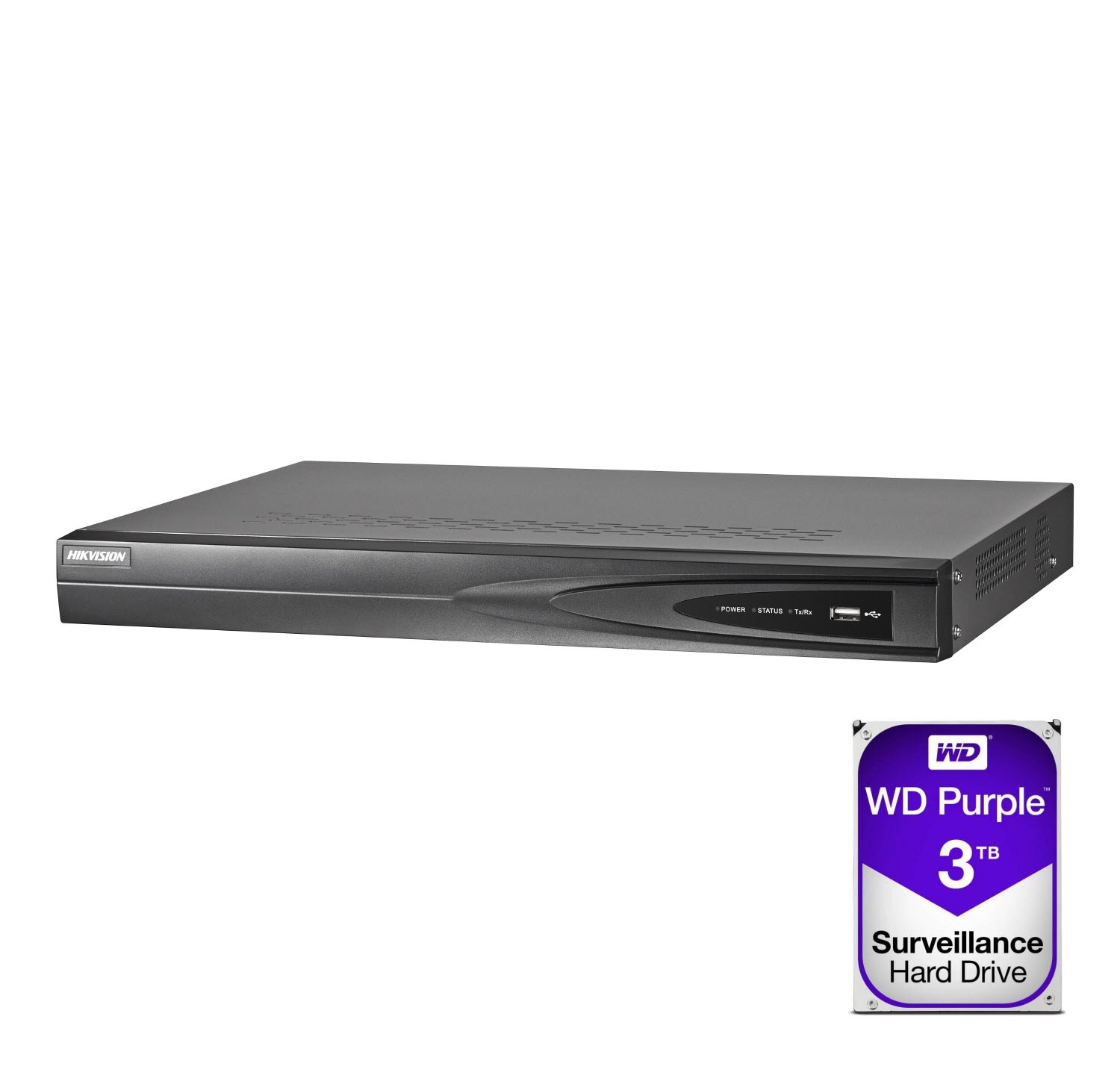

1 x 4 CH Hikvision PoE NVR

Code/SKU: HIK-7604NI-K1-4P or DS-7604NI-K1-4P

Quick Specs: 4ch PoE NVR, 40Mbps, 4 PnP Ports, 4K, VGA / HDMI, 1 HDD Bay + 3TB







Upgrades available:

+ $200 Upgrade to 8 CH NVR

+ $245 per additional camera

If you require different lens or IR range for each camera in this kit (if the camera has options for it), please specify in the comments upon checkout. We will ship the right cameras to you.

$1,510.00 $1,803.08 inc GST +3 Year Warranty & Support

Optional Upgrades

Select Lens Size Options *

Upgrade each to VF camera

Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2185FWDI2 or DS-2CD2185FWDI2 is a vandal proof outdoor IR dome camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8mm lens, this camera provides a horizontal field of view of 102 degrees. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Key Features:

  • 1/2.5″ progressive scan CMOS
  • 8MP resolution (3840 x 2160) at 20fps
  • 2.8mm lens (HVOF – 102 degrees)
  • H.265, H.265+, H.264+, H.264
  • Third stream
  • 120dB wide dynamic range (WDR)
  • Backlight compensation, 3D digital noise reduction
  • Up to 30m infrared
  • IP67, IK10
  • Line crossing, intrusion, object abandoned, object removed and face detection
  • Supports on-board storage, up to 128 GB
  • 802.3af PoE or 12VDC

Sample 8MP Hikvision Videos

NOTE If you’d like to experience full 8MP, you may have to click the gear icon and change the resolution to 4K, otherwise youtube may stream at a lower quality resolution.


Like this camera? Easily add to cart with your preferred mount or bracket below:

ImageNamePriceBuy
Hikvision DS-1272ZJ-110 Aluminium Wall Mount Bracket$25.50 inc GST +3 Year Warranty & Support

Hikvision DS-1280ZJ−DM18 Junction Box$15.00 $28.50 inc GST +3 Year Warranty & Support

Colour

Hikvision DS-2CD2185FWD-I 8MP Outdoor Dome CCTV Camera, 30m IR, 2.8mm$270.00 $350.00 inc GST +3 Year Warranty & Support

Select Other Lens Size Options:

Hikvision DS-1250ZJ CCTV Camera Rain Shade$18.00 $25.00 inc GST +3 Year Warranty & Support
Hikvision DS-1259ZJ Box Junction box, for 21XX/21XX fixed Vandal Domes$7.45 $13.00 inc GST +3 Year Warranty & Support
Hikvision DS-1272ZJ-110B Wall Mount Bracket with Junction Box$38.20 $43.00 inc GST +3 Year Warranty & Support
Hikvision DS-1275ZJ Pole Mount Bracket$29.12 inc GST +3 Year Warranty & Support
Hikvision DS-1271ZJ-110 Bracket suit for HIK−2CD21xx$47.00 $56.00 inc GST +3 Year Warranty & Support
Hikvision DS-1276ZJ Corner Bracket$22.00 $28.00 inc GST +3 Year Warranty & Support
Camera
Image Sensor: | 1/2.5″ Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 2.8 mm, horizontal field of view: 102°
4 mm, horizontal field of view: 79°
6 mm, horizontal field of view: 50°
12 mm, horizontal field of view: 23°
Lens Mount: | M12
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: | 32Kbps~16Mbps
Triple Streams: | Yes
Max. Image Resolution: | 3840 × 2160
Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: | 50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240)
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: | BLC/3D DNR
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping: | Support
ROI: | Support 1 fixed region for each stream
Day/Night Switch: | Auto/Scheduled
Network
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: | Cross a pre-defined virtual line
Intrusion Detection: | Enter and loiter in a pre-defined virtual region
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: | Face Detection
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | 12 VDC ± 25%, 6.2W
PoE(802.3af, class 3), 9W
Impact Protection: | IK10
Weather Proof: | IP67
IR Range: | Up to 30m
Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight: | 500 g (1.1 lb.)
