Product Overview

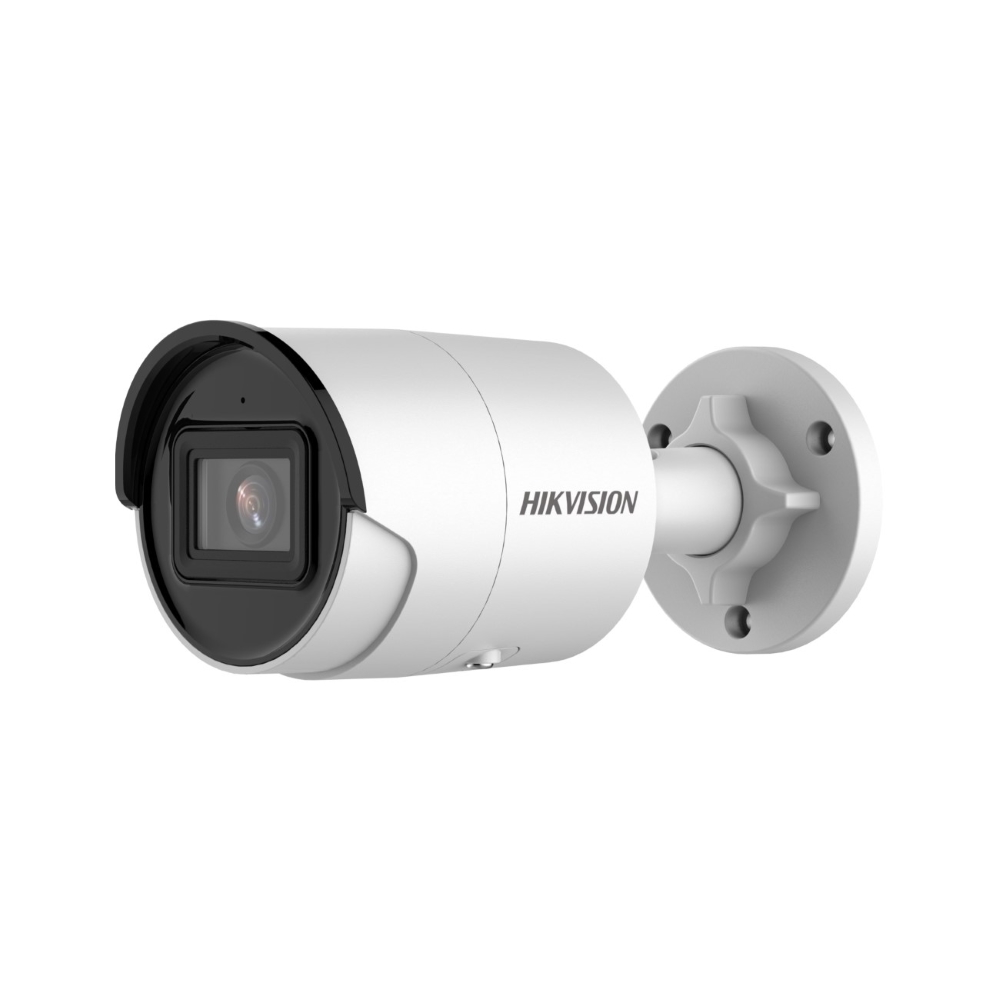

Built for outdoor wall and eave mounting where visible deterrence matters, the DS-2CD2066G2-I is a 6MP mini bullet camera supplied in white and designed to cover driveways, car parks, perimeter fence lines, and building exteriors. Featuring Hikvision’s AcuSense technology, it uses deep learning algorithms to classify human and vehicle targets separately from background motion such as animals or foliage, reducing nuisance alerts and generating searchable alarm events directly within recorded footage. This makes incident review far more efficient on sites where staff time is limited. Equipped with 40-metre IR illumination, 120dB true WDR, and DarkFighter low-light capability, the camera maintains usable image detail across challenging lighting conditions. A 1/2.4-inch CMOS sensor delivers a maximum resolution of 3200 x 1800 pixels, with lens options across 2.8mm, 4mm, and 6mm to match specific coverage distances. IP67 weatherproofing ensures reliable outdoor operation across Australian conditions.
Key Capabilities
AcuSense Human and Vehicle Classification
Deep learning algorithms distinguish people and vehicles from other movement, triggering alerts only for relevant targets. This reduces false alarms from animals or environmental motion and creates searchable alarm events in recorded footage, cutting down incident review time considerably.
6MP Resolution with 3200 x 1800 Output
The 6MP sensor captures wide outdoor scenes with enough detail to identify individuals or read number plates at useful distances. H.265+ compression keeps file sizes manageable without reducing image quality, which is important for extended on-board or NVR storage.
DarkFighter Low-Light Performance
DarkFighter technology allows the sensor to produce usable colour or greyscale footage in environments with very little ambient light, before the IR illuminators engage. This is particularly relevant for poorly lit car parks, rear access points, and perimeter areas where streetlight coverage is inconsistent.
40-Metre IR Illumination
The built-in IR LEDs extend nighttime visibility up to 40 metres along driveways, approach paths, or fence lines. The compact mini bullet housing keeps the IR projection directional and consistent, with no spill beyond the camera’s field of view.
120dB True Wide Dynamic Range
With 120dB true WDR, the camera handles scenes where bright sunlight and deep shadow appear in the same frame, such as building entrances facing direct morning sun or car parks with mixed canopy and open sky coverage. Detail is retained across both zones simultaneously.
Best For
- Outdoor Perimeter Monitoring: The mini bullet housing is designed for wall or bracket mounting along fence lines, building perimeters, and loading dock entrances where a directional camera profile suits the coverage geometry.
- Car Parks and Driveways: 40-metre IR reach combined with 6MP resolution gives useful identification detail along straight vehicle approach paths and open parking areas at night.
- Sites Prone to Nuisance Alerts: AcuSense classification reduces alert fatigue on sites with passing animals, wind-blown foliage, or road traffic near the camera’s field of view, keeping notifications relevant and actionable.
- Installations Requiring Edge Storage: The microSD slot supports up to 256GB of local storage, useful for remote sites or installations where continuous NVR connection cannot be guaranteed.
Why Choose the DS-2CD2066G2-I
The DS-2CD2066G2-I delivers a combination of features that separate it from entry-level 6MP bullet cameras. AcuSense gen 2 does more than suppress false alarms: it tags alarm events with target classification metadata so that searching recorded footage for a specific person or vehicle is a direct query rather than a manual review of hours of footage. That capability matters on commercial sites and multi-camera installs where incident investigation is a real operational cost. The 120dB WDR and DarkFighter sensor address the lighting challenges common to Australian outdoor environments, including sun-exposed driveways in the morning and shadowed rear yards at night. The white finish suits residential and light commercial exteriors where a black housing would stand out against rendered or painted walls. Available through Security Wholesalers, the DS-2CD2066G2-I offers a practical combination of analytics, image quality, and weatherproofing for outdoor bullet installations.
Buyer Decision Tips
Lens Selection: The 2.8mm lens provides a 105.1-degree horizontal field of view, best suited to wide entrances or shorter-range scenes. The 4mm lens narrows to 83.9 degrees for moderate-distance coverage of driveways and access roads. The 6mm lens at 47.5 degrees is the right choice when the camera is mounted at height or at distance and the priority is identification detail rather than wide coverage. Confirm the mounting height and distance to the target area before selecting the lens variant.
Key Features & Technical Specifications
| Resolution |
6MP (3200 x 1800) |
| Image Sensor |
1/2.4-inch CMOS progressive scan |
| Lens Options |
2.8mm (105.1° HFOV), 4mm (83.9° HFOV), 6mm (47.5° HFOV) |
| IR Range |
Up to 40 metres |
| WDR |
120dB true WDR |
| Video Analytics |
AcuSense – human and vehicle target classification via deep learning |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Weather Rating |
IP67 |
| Audio |
Built-in microphone |
| Local Storage |
MicroSD/SDHC/SDXC slot, up to 256GB |
| Power Supply |
12VDC / PoE (IEEE 802.3af, Class 3) |
| Dimensions |
70mm x 161.7mm |
| Colour |
White |
| Low-Light Technology |
DarkFighter |
Ideal Use Cases
Residential Driveways
The white mini bullet housing blends with rendered or light-coloured walls, while the 40-metre IR range covers long driveways at night. AcuSense ensures only human or vehicle movement triggers alerts, not passing cats or wind-blown branches.
Commercial Car Parks
6MP resolution provides the detail needed to distinguish individuals and read partial number plates at distance. DarkFighter low-light performance handles the variable lighting conditions typical of open-air and undercover car parks.
Building Perimeter and Fence Lines
The directional bullet form factor is suited to covering long, narrow perimeter runs from a fixed wall or pole mount. IP67 weatherproofing handles rain and humidity exposure without additional enclosure requirements.
Retail Shopfronts and Loading Docks
The 120dB WDR manages the contrast between bright daylight at an open loading dock entrance and the darker interior beyond. AcuSense event tagging makes reviewing footage for specific delivery or access incidents more efficient.
Remote or Standalone Sites
The onboard microSD slot supporting up to 256GB provides local storage capacity for sites where network connectivity is limited or intermittent. PoE powering simplifies installation by eliminating a separate power run.
Choosing the Right Model
- Choose this model if: You need a 6MP outdoor mini bullet camera with AcuSense human and vehicle classification in a white finish, and your mounting location suits a fixed lens in 2.8mm, 4mm, or 6mm for the coverage distance required.
- Choose a different model if: You need active deterrence capabilities such as a built-in siren or strobe light, require full-colour night imaging without IR, need a motorised varifocal lens for post-installation framing adjustment, or prefer a dome or turret housing to reduce the profile on a ceiling mount.
FAQs
- What does AcuSense actually do on the DS-2CD2066G2-I?
AcuSense uses deep learning to classify detected motion as either a human or vehicle target, or to dismiss it as an irrelevant object such as an animal or foliage movement. This means alarm events are tagged with classification data, so when reviewing footage you can search for human or vehicle events directly rather than scrubbing through hours of continuous recording.
- Is the white finish suitable for outdoor use in Australian conditions?
Yes. The IP67 rating confirms the camera is protected against dust ingress and sustained water exposure, making the white housing appropriate for outdoor installation across Australian climates including coastal and high-humidity environments. The white finish also reduces heat absorption compared to black housings in direct sun exposure.
- Which lens option should I choose for a residential driveway?
For a standard residential driveway of up to 15 metres in length, the 2.8mm lens at 105.1 degrees horizontal FOV gives wide coverage from a single mounting point. If the driveway is longer or the camera will be mounted at height, the 4mm lens narrows coverage to 83.9 degrees and keeps usable detail at greater distances. The 6mm lens suits longer-range scenes where identification detail at 20 metres or beyond is the priority.
- Does this camera support two-way audio?
No. The DS-2CD2066G2-I includes a built-in microphone for one-way audio capture, allowing ambient sound to be recorded alongside video. A built-in speaker is not included, so two-way voice communication is not supported by this camera.
- Can I use a microSD card for local recording without an NVR?
Yes. The camera accepts microSD, SDHC, and SDXC cards up to 256GB, allowing continuous or event-triggered local recording independent of a network recorder. This is useful for standalone installations or as a backup recording layer in networked systems where NVR connectivity may be interrupted.
- What power options are available for this camera?
The DS-2CD2066G2-I supports IEEE 802.3af Class 3 PoE, which allows a single Cat5e or Cat6 cable to carry both data and power from a compatible PoE switch or injector. It also accepts 12VDC via a separate power supply for installations where PoE infrastructure is not available. Available through Security Wholesalers, it is compatible with standard Hikvision NVRs and third-party ONVIF-compliant recorders.
Product Video Samples
