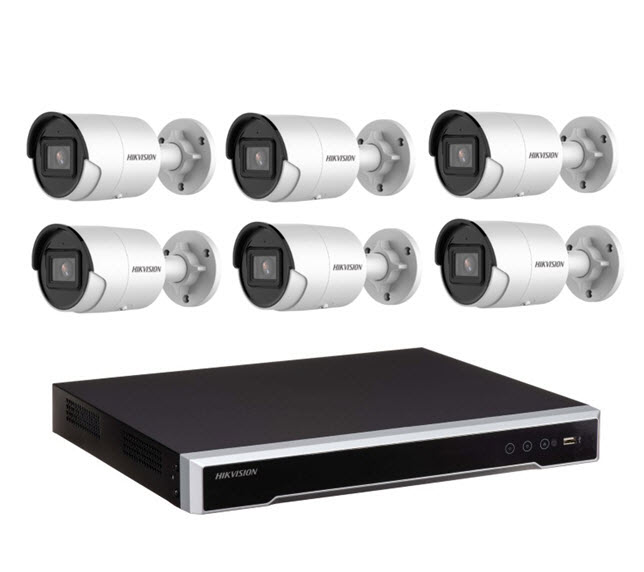

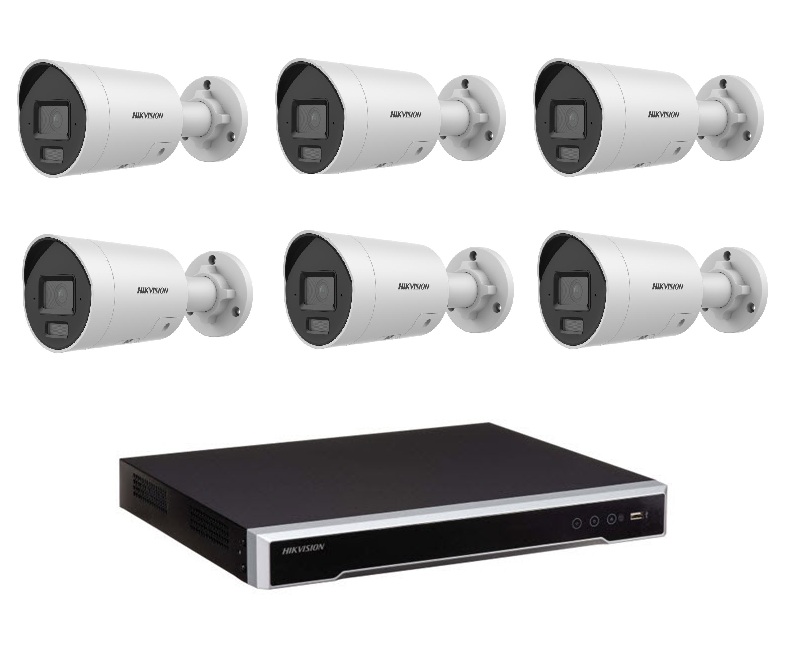

Product SKU: DS-2CD2066G2H-IU / DS-7608NI-M2/8P
Product Overview
Building a complete outdoor camera system from scratch involves matching camera resolution, detection intelligence, recorder capacity, and cabling into a single coherent setup. This Hikvision 6MP AcuSense CCTV kit simplifies that process by pairing 6 DS-2CD2066G2H-IU mini bullet cameras with the DS-7608NI-M2/8P 8-channel PoE NVR and a pre-installed 4TB HDD. Each camera delivers 3072 x 2048 resolution with AcuSense deep learning that distinguishes people and vehicles from background movement, reducing nuisance alerts significantly. The mini bullet housing is compact and directional, suited to eaves, garage fascias, front fences, driveway approaches, and shopfront mounting. With 30m IR range, 120dB WDR, IP67 weatherproofing, and a built-in microphone, each camera is well equipped for demanding outdoor locations. The NVR supports plug-and-play PoE connection, dual 4K outputs, and 2 HDD bays for future storage expansion.
Key Capabilities
AcuSense Human and Vehicle Detection
Deep learning algorithms classify targets as people or vehicles rather than triggering on animals, tree movement, or passing headlights. This makes alert notifications genuinely actionable, particularly for driveways, yards, and entry points that experience regular environmental activity.
6MP Resolution Across All 6 Cameras
Each camera captures 3072 x 2048 resolution, producing enough detail to identify faces, licence plates, and clothing at practical distances. With DORI detection reaching 54m and identification at 10.8m, coverage zones can be planned with confidence.
Mini Bullet Housing for Directional Outdoor Mounting
The compact mini bullet form factor mounts easily under eaves, on fascia boards, or on wall brackets. Its low profile reduces wind load and vandal temptation while still providing a clearly directional field of view suited to driveways, gates, and perimeter fence lines.
8-Channel PoE NVR with 4TB HDD Included
The DS-7608NI-M2/8P connects cameras via a single Cat5e or Cat6 cable per port, eliminating separate power runs. With 128Mbps throughput, 8 PoE ports, and a 4TB hard drive already installed, the system records all 6 cameras continuously from day one with 2 expansion ports remaining.
30m IR Night Vision and 120dB WDR
Infrared illumination reaches 30 metres in complete darkness, while 120dB wide dynamic range handles challenging lighting conditions such as backlit doorways, bright headlights against dark backgrounds, and sunrise or sunset exposure changes common in outdoor environments.
H.265+ Compression and microSD Backup
H.265+ reduces file sizes substantially compared to H.264, stretching the 4TB HDD further without sacrificing image quality. Each camera also supports up to 256GB microSD storage as an independent local backup, useful for sites where network reliability is a consideration.
Best For
- Residential Perimeter Coverage: 6 cameras provide enough positions to cover front and rear yards, side gates, driveway approaches, and garage entries across a typical house block, with 2 spare NVR ports for future additions.
- Small Commercial Properties: The AcuSense detection and Hik-Connect remote access make this kit practical for shopfronts, small warehouses, and light industrial units where the owner or manager monitors the site remotely.
- Eave and Fascia Installations: The mini bullet housing suits standard residential fascia mounting without requiring large wall brackets or heavy conduit runs, keeping the installation clean and low-profile.
- Sites Requiring Intelligent Alert Filtering: Properties in areas with heavy foliage, traffic, or animal activity benefit from AcuSense classification, which limits false alerts to genuine human or vehicle intrusions.
- Complete Plug-and-Play Setups: The included 4TB HDD and 8 PoE ports mean no additional hardware purchases are needed to get the full 6-camera system recording immediately after installation.
Why Choose the DS-2CD2066G2H-IU + DS-7608NI-M2/8P Kit
Buying cameras and a recorder separately requires compatibility checking, separate freight, and sourcing a hard drive independently. This kit removes those steps by combining 6 matched DS-2CD2066G2H-IU cameras with the DS-7608NI-M2/8P NVR and a 4TB HDD in a single tested package. The 6MP AcuSense cameras operate at 3072 x 2048 resolution with deep learning detection that a basic motion-detection camera simply cannot replicate. The NVR delivers 128Mbps input bandwidth, dual 4K HDMI/VGA outputs for monitor connection, and 2 HDD bays so storage can be doubled later without replacing the recorder. Each camera ships with IP67 weatherproofing and a built-in microphone, adding audio context to recorded events at no extra cost. Available through Security Wholesalers, this kit is a straightforward choice for installers and homeowners who want a full-featured 6-camera AcuSense system without piecing together individual components.
Package Inclusions
Buyer Decision Tips
Lens Selection – 2.8mm vs 4mm: The 2.8mm lens covers approximately 102 degrees horizontally, making it the better choice for wide entry points, carports, and areas where you need broad coverage from a single mounting position. The 4mm lens provides a narrower field of view with slightly greater reach, which suits longer driveways, gates at distance, or corridors where width is not the priority. If your site has a mix of both, note in the order comments at checkout and each camera can be shipped with the appropriate lens.
Storage Planning with H.265+: The included 4TB HDD with H.265+ compression across 6 cameras at 6MP resolution will typically provide several weeks of continuous recording, though the exact duration depends on motion activity, bitrate settings, and the recording schedule configured in the NVR. If you need longer retention, the DS-7608NI-M2/8P has a second HDD bay that accepts an additional drive without replacing the recorder. Plan your retention requirements before installation to avoid disruption later.
Key Features & Technical Specifications
| Camera Model |
DS-2CD2066G2H-IU |
| NVR Model |
DS-7608NI-M2/8P |
| Camera Quantity |
6 |
| Image Sensor |
1/2.4″ Progressive Scan CMOS |
| Resolution |
3072 x 2048 (6MP) |
| Lens Options |
Fixed 2.8mm or Fixed 4mm |
| Horizontal FOV (2.8mm) |
Approximately 102 degrees |
| IR Night Vision Range |
Up to 30m |
| Minimum Illumination |
0.003 Lux (F1.6, AGC ON), 0 Lux with IR |
| Wide Dynamic Range |
120dB WDR |
| Video Intelligence |
AcuSense human and vehicle detection |
| Audio |
Built-in microphone |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Onboard Storage (per camera) |
Up to 256GB microSD |
| Camera Ingress Protection |
IP67 |
| Camera Power |
12VDC / PoE (802.3af) |
| DORI Distances (2.8mm) |
Detect: 54m, Recognise: 21.6m, Identify: 10.8m |
| NVR Channels / PoE Ports |
8 channels / 8 PoE ports |
| NVR Input Bandwidth |
128Mbps |
| NVR Video Output |
Dual HDMI and VGA (4K resolution) |
| HDD Included |
4TB (2 HDD bays total) |
| Remote Access |
Hik-Connect mobile app |
Ideal Use Cases
Residential Homes
Six cameras cover the typical coverage zones of a residential property including front entry, driveway, rear yard, side access, and garage. The AcuSense detection limits false alerts from pets or foliage movement, while Hik-Connect provides remote monitoring from a smartphone.
Retail Shopfronts and Car Parks
The 6MP resolution and DORI identification distance of 10.8m make these cameras useful for shopfronts where facial detail matters. The IP67 rating handles weather exposure on open car park mounting positions, and the NVR’s dual outputs allow a display monitor at the counter.
Small Warehouses and Yards
Mini bullet cameras mount directly on warehouse wall fascias or fence posts without requiring heavy brackets. The 30m IR range covers loading and unloading areas at night, and vehicle detection via AcuSense means arrivals and departures trigger specific alerts rather than general motion events.
Strata and Multi-Unit Properties
A single 8-channel NVR centralises recording for shared areas including basement car parks, foyer approaches, bin areas, and communal entries. The 2 spare PoE ports allow coverage to expand if the strata committee adds a new camera point without requiring a recorder replacement.
Construction Site Perimeters
The IP67-rated mini bullet housing tolerates dust, rain, and site conditions. With onboard microSD support of up to 256GB per camera, footage is preserved locally even if the network connection to the NVR is interrupted. The AcuSense human detection is useful for after-hours intruder alerts on active sites.
Choosing the Right Model
- Choose this kit if: You need a complete 6-camera AcuSense system with a recorder and hard drive included, and you want plug-and-play PoE cabling with intelligent human and vehicle detection across all outdoor positions.
- Choose a different model if: Your site requires more than 8 cameras total, as the NVR’s channel limit means a 16-channel recorder would be the more appropriate starting point. Alternatively, if your application involves indoor-only coverage where weatherproofing is not a requirement, a dome or turret camera may be a better fit than a mini bullet housing.
- Choose a different model if: You require active deterrence features such as an integrated siren or strobe light on the camera itself, which are not part of the DS-2CD2066G2H-IU specification.
FAQs
- What is the difference between AcuSense and standard motion detection on the DS-2CD2066G2H-IU cameras?
Standard motion detection triggers on any pixel change in the frame, including wind-blown branches, insects near the lens, or passing vehicle headlights. AcuSense uses deep learning to classify what caused the motion as either a person or a vehicle, and only sends an alert for those targets. This reduces the volume of irrelevant notifications considerably on busy outdoor sites.
- Does the 4TB HDD in the NVR support all 6 cameras recording continuously?
Yes. With H.265+ compression active on all 6 cameras at 6MP resolution, the 4TB HDD supports continuous recording across all channels simultaneously. The actual retention period depends on the bitrate settings, recording schedule, and how much motion activity occurs. Higher bitrates or constant motion will reduce retention duration, so configuring motion-triggered or scheduled recording where possible will extend it further.
- Can I add more cameras to this kit later?
Yes. The DS-7608NI-M2/8P has 8 PoE ports, and this kit uses 6 of them. The 2 remaining ports can accept additional compatible IP cameras without any hardware change to the NVR. The NVR can record up to 8 cameras in total.
- What cable is required to connect the cameras to the NVR?
Each camera connects to the NVR via a single Cat5e or Cat6 Ethernet cable, which carries both network data and PoE power in one run. No separate power cable is required. Maximum recommended cable length per run is 100 metres for reliable PoE delivery.
- Can I choose between the 2.8mm and 4mm lens for each camera in the kit?
Yes. The DS-2CD2066G2H-IU is available in both focal lengths. If you need different lenses for different camera positions in this kit, note your requirements in the order comments at checkout and the cameras will be shipped accordingly. The 2.8mm lens is wider at approximately 102 degrees horizontal, while the 4mm lens provides a narrower field of view with slightly more reach.
- Does the built-in microphone on the cameras record audio to the NVR?
The DS-2CD2066G2H-IU includes a built-in microphone that captures audio alongside the video stream. The DS-7608NI-M2/8P NVR supports audio recording from connected cameras, so audio from the microphone can be recorded and played back alongside the video footage, subject to NVR audio recording settings being enabled.
- How does Hik-Connect remote access work with this system?
The DS-7608NI-M2/8P connects to your local network via its Ethernet port. Once registered on the Hik-Connect platform, the NVR can be accessed from the Hik-Connect mobile app or web interface to view live footage, review playback, and receive push notifications for AcuSense events from any of the 6 cameras. This kit is available through Security Wholesalers and comes pre-configured for straightforward network setup.
