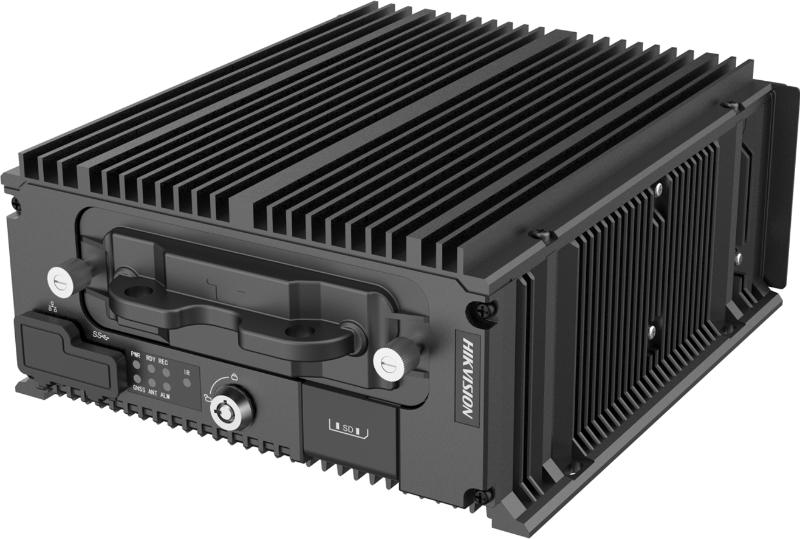

Product Overview
Fleet operators and transport managers fitting out larger vehicles need a recorder that can handle vibration, voltage swings, and extreme cabin temperatures without skipping frames. The Hikvision AE-MN7083 is an 8-channel mobile NVR built specifically for onboard vehicle installation, supporting IP cameras up to 5MP resolution with H.265 compression for efficient storage use. Featuring integrated PoE ports, it simplifies in-vehicle wiring by powering cameras directly from the recorder over a single cable run. A 9 to 36V DC input range covers the full span of 12V and 24V vehicle electrical systems, while a rated operating temperature of -25°C to +70°C suits everything from refrigerated trucks to mine-site vehicles in Australian summer conditions. GNSS positioning support enables location data logging, and optional 4G and WiFi modules allow remote live view and playback access when the vehicle is in range. A 1TB 2.5-inch HDD is included, with support for up to 4TB SSD if higher capacity storage is needed.
Key Capabilities
8-Channel IP Recording at Up to 5MP
With 8 independent IP camera channels and support for resolutions up to 5MP, the AE-MN7083 suits larger vehicles such as buses and prime movers where multiple coverage angles are needed, including driver-facing, passenger cabin, door, and external views.
Integrated PoE Camera Ports
Built-in PoE ports supply both data and power to connected cameras through a single Ethernet cable. This reduces the number of cable runs inside a vehicle, lowers install time, and removes the need for separate DC power taps to each camera position.
Wide Voltage Input: 9 to 36V DC
Compatibility with 9 to 36V DC input means the AE-MN7083 works with standard 12V light vehicle systems and 24V heavy vehicle systems without modification. This is a critical requirement for fleet deployments spanning mixed vehicle types.
GNSS Positioning Support
Built-in GNSS support allows location data to be embedded with recorded footage when a compatible antenna is connected. This is useful for fleet operators who need to correlate incidents with GPS coordinates or route data during post-event review.
Optional 4G and WiFi Connectivity
While not built in, optional 4G and WiFi modules can be added to enable real-time remote access via Hikvision software platforms. This allows fleet managers to pull live video, review recent footage, or track vehicle location without waiting for the vehicle to return to base.
Pluggable 2.5-Inch HDD/SSD Storage
The AE-MN7083 ships with a 1TB 2.5-inch HDD pre-installed and supports swapping or upgrading to a drive up to 2TB HDD or 4TB SSD. The pluggable design allows rapid storage replacement in the field without specialised tools, which simplifies maintenance schedules for larger fleets.
Best For
- School and Charter Buses: 8 camera channels cover driver-facing, cabin, door, and external zones, supporting both duty-of-care obligations and incident documentation.
- Heavy Freight and Logistics Vehicles: The 9 to 36V DC input range and -25°C to +70°C operating temperature make this unit suited to prime movers and refrigerated trucks operating across varied climates.
- Security Patrol and Response Vehicles: GNSS positioning combined with optional 4G connectivity supports route verification, incident timestamping, and remote evidence retrieval for security contractors.
- Mining and Construction Site Vehicles: The rugged mobile-rated design tolerates the vibration and temperature extremes common in resource sector environments where standard NVRs would fail prematurely.
- Corporate and Government Fleet Operators: Multi-channel 5MP recording and remote access capability via optional 4G module supports compliance, risk management, and post-incident review across large mixed fleets.
Why Choose the AE-MN7083
A standard fixed-site NVR cannot tolerate the voltage fluctuations, vibration, or temperature ranges a vehicle recorder encounters daily. The Hikvision AE-MN7083 is built from the ground up for mobile deployment, with a 9 to 36V DC input, a rated operating temperature span from -25°C to +70°C, and a rugged enclosure designed to withstand ongoing vehicle movement. At 8 channels with 5MP support and integrated PoE, it delivers higher resolution coverage across more camera positions than entry-level mobile recorders, which typically cap at 4 channels or lower resolutions. GNSS support adds location context to recorded footage, and the pluggable 2.5-inch storage bay means drives can be swapped quickly during vehicle inspections. H.265 compression reduces storage consumption compared to H.264, extending the usable recording window on a single 1TB drive. Available at Security Wholesalers, the AE-MN7083 suits operators who need a capable, professionally graded mobile recorder rather than a repurposed office unit.
Buyer Decision Tips
Connectivity Planning: The AE-MN7083 does not include built-in 4G or WiFi. If remote live view, GPS tracking over cellular, or over-the-air footage retrieval is required, budget for the optional 4G or WiFi module at the time of purchase. Without a connectivity module, access is limited to local network connection via the RJ45 port when the vehicle is parked and connected to a site LAN.
Storage Duration vs. Camera Count: Running 8 cameras continuously at 5MP will consume storage faster than lower-resolution or fewer-channel configurations. With the included 1TB HDD, calculate your expected retention period against your camera count, resolution, and frame rate settings before deployment. Upgrading to a 2TB HDD or 4TB SSD at installation avoids an early drive swap during the vehicle’s first service cycle.
Key Features & Technical Specifications
| Model |
Hikvision AE-MN7083 |
| Camera Channels |
8 IP camera inputs |
| Maximum Recording Resolution |
Up to 5MP |
| Video Compression |
H.264 / H.265 |
| Integrated PoE Ports |
Yes |
| Network Interface |
RJ45, 10/100 Mbps |
| Wireless Connectivity |
Optional 4G and WiFi module support |
| GNSS Positioning |
Supported (compatible antenna required) |
| Storage Bay |
1 x 2.5-inch HDD/SSD (1TB HDD included) |
| Maximum Storage Capacity |
Up to 2TB HDD / 4TB SSD |
| Power Input |
9 to 36V DC |
| Operating Temperature |
-25°C to +70°C |
| Dimensions |
202 x 267.6 x 93.9 mm |
| Weight (without HDD) |
Approx. 3.13 kg |
Ideal Use Cases
School Bus and Student Transport
8 channels allow simultaneous coverage of the driver, entry doors, and full cabin length. GNSS support adds route verification, and the rugged enclosure handles the daily vibration of road transport without impacting recording continuity.
Long-Haul Freight and Logistics
The 9 to 36V DC input covers 24V heavy vehicle systems, and the -25°C to +70°C operating range handles both cold-chain refrigerated trucks and vehicles operating in remote outback environments where cabin temperatures can spike significantly.
Mining and Resource Sector Vehicles
Underground haul trucks and surface site vehicles experience high vibration levels and extreme temperatures. The AE-MN7083’s mobile-rated design and wide thermal range suit these conditions where standard fixed-site equipment would not last.
Security Patrol and Armoured Vehicles
GNSS positioning combined with optional 4G module support enables real-time location tracking and remote footage access. 5MP recording provides the image quality needed for post-incident review and evidence submission.
Public Transport and Government Fleets
For councils, transit authorities, and government agencies operating mixed fleets, the AE-MN7083’s 8-channel capacity and H.265 compression support higher camera counts per vehicle while keeping storage consumption manageable across the fleet.
Choosing the Right Model
- Choose this model if: You are fitting out a vehicle that requires 8 camera positions, need integrated PoE to simplify in-vehicle wiring, and require a recorder rated for 12V or 24V systems operating across a wide temperature range.
- Choose a different model if: Your vehicle only requires 4 camera positions, as a 4-channel mobile NVR will be more cost-effective and physically smaller for compact vehicle installations. Equally, if your application requires built-in 4G connectivity without purchasing a separate module, review mobile NVR options that include integrated cellular hardware as standard.
FAQs
- Does the AE-MN7083 work with standard 12V and 24V vehicle electrical systems?
Yes. The 9 to 36V DC input range covers both 12V light vehicle systems and 24V heavy vehicle systems without requiring a voltage converter. This makes it suitable for use across a mixed fleet without needing separate hardware configurations for different vehicle types.
- Is 4G connectivity built into the unit?
No. The AE-MN7083 does not include built-in 4G or WiFi. These are available as optional modules that can be added to enable remote live view, GPS tracking over cellular networks, and remote footage retrieval. Without a module installed, network access is via the RJ45 port only.
- What hard drive comes installed, and can it be upgraded?
The unit ships with a 1TB 2.5-inch HDD pre-installed. The pluggable storage bay supports upgrades to a 2TB HDD or up to a 4TB SSD. For fleets recording at higher resolutions or across all 8 channels continuously, upgrading storage at the point of installation is advisable.
- Can I mount this unit inside any vehicle, or does it need special mounting brackets?
The AE-MN7083 is designed for vehicle installation and its dimensions are 202 x 267.6 x 93.9 mm. Mounting requirements will depend on the available space within your specific vehicle. Confirm mounting provisions and ventilation clearance before installation, particularly in enclosed under-seat or instrument bays.
- How does GNSS work with this recorder?
The AE-MN7083 supports GNSS positioning when a compatible external antenna is connected. Location data can be logged alongside recorded footage, allowing fleet managers to correlate video incidents with vehicle position and route data during playback review.
- Is this recorder suitable for a static installation such as a fixed building or office?
No. The AE-MN7083 is engineered specifically for vehicle use, with design choices around vehicle voltage input, vibration tolerance, and mobile operating temperatures. For fixed site installations, a standard IP NVR is the appropriate product category.
- Where can I purchase the AE-MN7083 and is local support available?
The AE-MN7083 is part of the Security Wholesalers range, supplied with a 3-year warranty and local technical support. This is important for fleet operators who need confidence that warranty claims and technical queries can be resolved in Australia without being directed offshore.
