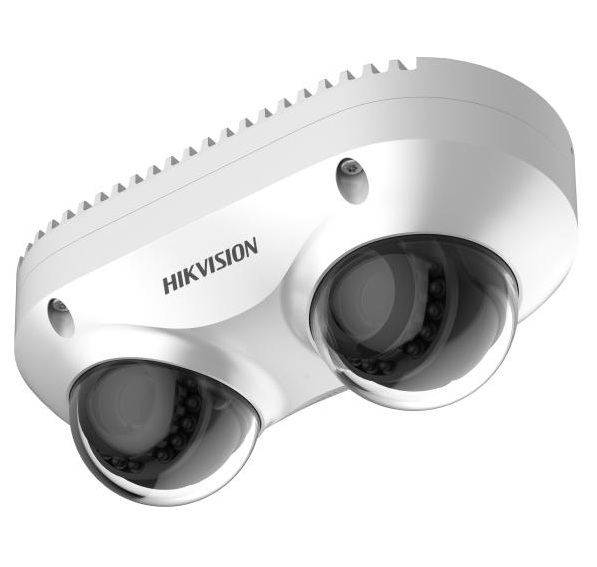

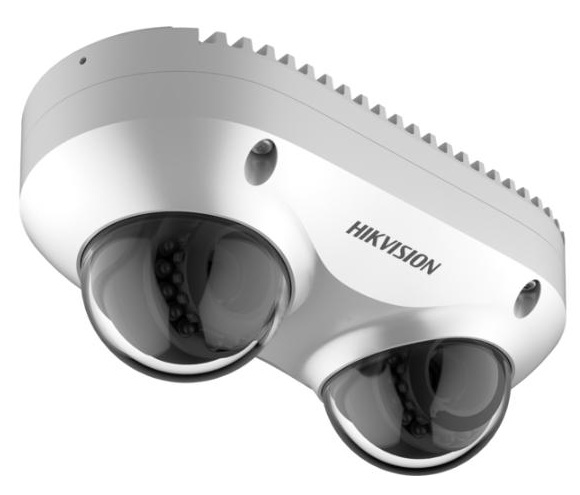

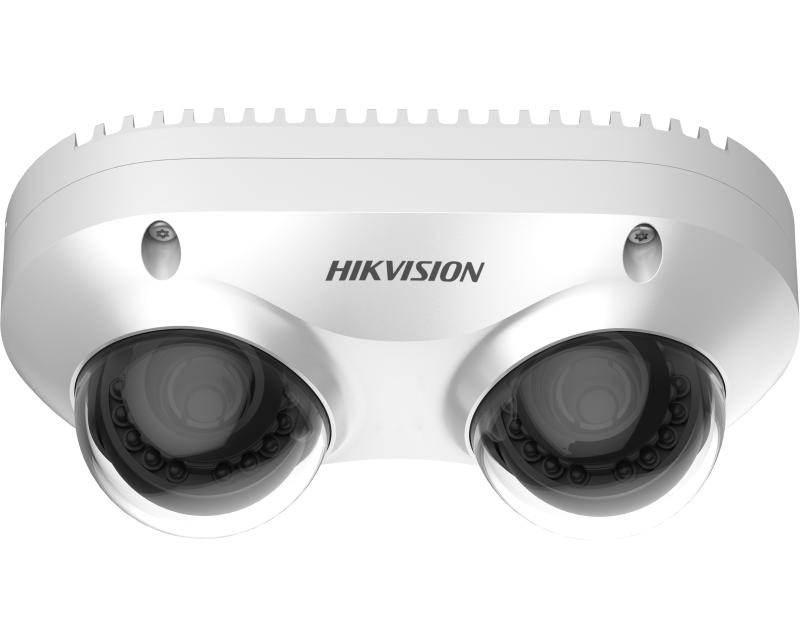

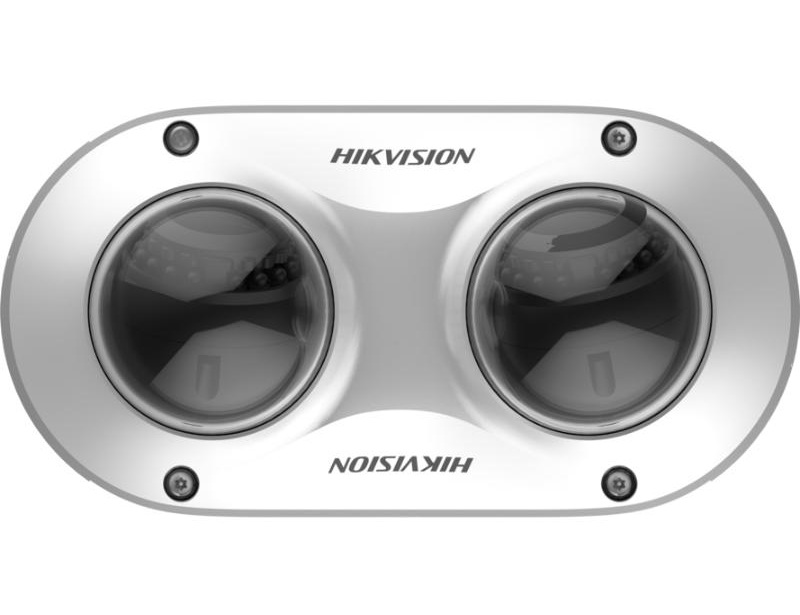

Hikvision 4MP PanoVu DS-2CD6D42G2-IS Dual-Directional Camera with Dual 2.8mm Lenses, Built-In Microphone, 15m IR

$890.00
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Hikvision 4MP PanoVu Dual-Directional Camera | DS-2CD6D42G2-IS | Dual 2.8mm Lenses | Built-In Microphone | 15m IR | Panoramic Monitoring

The Hikvision DS-2CD6D42G2-IS delivers a 4MP PanoVu dual-directional network camera solution designed for entrances, corridors, retail spaces, offices, warehouses and other areas requiring simultaneous monitoring across two directions. Featuring dual fixed 2.8mm lenses and infrared illumination up to 15m, it provides broad scene coverage while reducing the need for multiple separate cameras.

It also includes a built-in microphone for scene audio capture, making this camera available at Security Wholesalers practical for installations requiring wider visual coverage with added situational awareness. With its compact multi-sensor design and panoramic monitoring capability, the DS-2CD6D42G2-IS suits indoor and sheltered surveillance applications where efficient coverage, clear imaging and simplified camera placement are important.

Key Features

  • 4MP Image Resolution: Captures detailed surveillance video for clear monitoring and visual verification.
  • Dual-Directional Monitoring: Uses two imaging channels to cover separate viewing directions from one camera location.
  • Dual 2.8mm Lenses: Provides wide-angle coverage suitable for corridors, entrances and open monitored areas.
  • 15m IR Night Vision: Supports low-light and night-time monitoring with infrared illumination up to 15m.
  • Built-In Microphone: Enables scene audio capture alongside video for improved situational awareness.
  • PanoVu Camera Design: Helps simplify installation where broader multi-directional coverage is required.

Built-In Microphone Icon

Additional Information

Hikvision DS-2CD6D42G2-IS_Datasheet

$890.00 inc GST +3 Year Warranty & Support

Product SKU: DS-2CD6D42G2-IS

Product Overview

The Hikvision DS-2CD6D42G2-IS 4MP PanoVu Dual-Directional Camera combines two independently adjustable imaging channels in one compact housing, helping cover two different directions without installing separate cameras. Each channel uses a 1/1.8-inch progressive scan CMOS sensor and a fixed 2.8mm lens, delivering up to 2688 × 1520 resolution with a wide 110.4° horizontal field of view. Built-in microphones provide real-time audio capture, while infrared illumination reaches up to 15m for low-light monitoring. Human and vehicle classification, two-channel WDR, audio and alarm interfaces, MicroSD storage, PoE+, IP67 weather protection and IK10 impact resistance support demanding commercial and public-area surveillance installations.

Key Capabilities

Dual-Directional Coverage

Two independently adjustable camera channels can monitor different directions from a single network camera installation point.

4MP Imaging per Channel

Each imaging channel captures video at up to 2688 × 1520 resolution for detailed monitoring and playback.

Dual 2.8mm Wide-Angle Lenses

Each fixed lens provides a wide 110.4° horizontal view for entrances, corridors, façades and opposing directions.

Human and Vehicle Classification

Deep-learning analytics classify human and vehicle targets for supported events to help reduce irrelevant alerts.

Built-In Audio Capture

Integrated microphones provide real-time audio security without requiring separate external microphones for basic recording.

IP67 and IK10 Protection

The weather-resistant and vandal-resistant housing suits exposed outdoor and high-traffic installations.

Best For

  • Building Corners: Monitor two sides of a building from one camera position without installing two separate housings.
  • Corridor Intersections: Cover opposing hallways, entrances or branching passageways with independently aimed channels.
  • Retail Entrances: Monitor the approach and departure directions while capturing audio and smart event data.
  • Warehouses and Loading Areas: View separate doors, aisles, vehicle lanes or loading zones from one network connection.
  • Schools and Public Facilities: Suitable for entrances, pathways, foyers and shared external areas requiring broad coverage.

Why Choose the DS-2CD6D42G2-IS

Choose the Hikvision DS-2CD6D42G2-IS when an installation requires two separate viewing directions but available network ports, cable routes or mounting locations are limited. Its dual-channel design can reduce hardware duplication while still providing independently adjustable coverage and separate high-resolution video streams. Wide-angle 2.8mm lenses suit close and medium-range monitoring, while two-channel WDR and 15m infrared illumination support challenging daytime and night-time conditions. Built-in microphones, audio output, alarm connections, RS-485 and edge storage provide additional integration options. Security Wholesalers supplies this PanoVu model for professional multi-directional surveillance applications.

Buyer Decision Tips

Buyer Tip: Choose this model where two wide views are required from one mounting point, such as a corner, T-intersection, dual doorway or opposing corridor.

Buyer Tip: Confirm that the NVR licence, channel count and bandwidth capacity can accommodate both video channels generated by the camera.

Lens Note: The fixed 2.8mm lenses provide broad coverage but do not offer optical zoom. Check the required identification distance before installation.

Key Features & Technical Specifications

Product Type Dual-directional PanoVu network camera.
Model DS-2CD6D42G2-IS.
Brand Hikvision.
Product Series PanoVu Panoramic Series.
Imaging Channels 2 independently adjustable camera channels.
Image Sensor 1/1.8-inch progressive scan CMOS per imaging channel.
Maximum Resolution 4MP, 2688 × 1520 per channel.
Minimum Illumination Colour: 0.002 lux at F1.6 with AGC enabled; black and white: 0.001 lux at F1.6; 0 lux with infrared illumination.
Shutter Speed 1 second to 1/100,000 second.
Day and Night IR-cut filter.
Lens Quantity 2 fixed lenses.
Focal Length 2.8mm per lens.
Maximum Aperture F1.6.
Horizontal Field of View 110.4° per 2.8mm imaging channel.
Vertical Field of View 54.4° per 2.8mm imaging channel.
Diagonal Field of View 136.8° per 2.8mm imaging channel.
Pan Adjustment -90° to 90°.
Tilt Adjustment 0° to 60° with the 2.8mm lens version.
Rotation Adjustment 0° to 355°.
Infrared Range Up to 15m.
Wide Dynamic Range 120dB WDR supported across both imaging channels.
Video Compression H.265+, H.265, H.264+ and H.264.
Image Enhancement 3D digital noise reduction, backlight compensation, highlight compensation, defog and regional exposure controls.
Target Classification Human and vehicle classification based on deep learning for supported events.
Smart Events Line crossing, intrusion, region entrance and region exit detection with supported target classification.
Additional Events Motion detection, video tampering, unattended baggage, object removal, loitering, people gathering, fast movement and parking detection.
Built-In Microphones 2 built-in microphones for real-time audio capture.
Audio Output 1 line-level output through a 3.5mm connector.
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3 and AAC-LC.
Environmental Noise Filtering Supported.
Alarm Input / Output 2 alarm inputs and 2 alarm outputs.
RS-485 1 half-duplex RS-485 interface supporting Hikvision, Pelco-P and Pelco-D protocols.
Edge Storage MicroSD, MicroSDHC or MicroSDXC storage up to 1TB.
Network Interface RJ45 Ethernet network connection.
Interoperability ONVIF and Hikvision network integration support.
Power Supply 12V DC or PoE+.
PoE Standard IEEE 802.3at.
Maximum DC Current 12V DC, up to 1.2A.
Weather Protection IP67.
Vandal Resistance IK10.
Construction Aluminium alloy body.
Dimensions 164.3mm × 84.6mm × 67.4mm.
Reset Button Supported.
Camera Package Dual-directional network camera only; NVR, PoE switch, MicroSD card, network cabling and mounting accessories are supplied separately unless included in another package.

Ideal Use Cases

External Building Corners

Aim each imaging channel along a different wall to monitor both sides of a building from one location.

Opposing Corridors

Cover two hallway directions or both sides of a corridor intersection using one camera housing.

Dual Entrances

Monitor adjacent doors, separate access points or both entry and exit directions.

Warehouse Loading Zones

Position the channels toward separate roller doors, loading bays or vehicle movement areas.

Retail and Public Facilities

Use wide-angle imaging, audio capture and target classification around entrances, foyers and shared areas.

Space-Limited Installations

Useful where available cable pathways, network ports or mounting surfaces make two separate cameras impractical.

Choosing the Right Model

  • Choose this model if: You need two independently aimed 4MP views from one network camera and mounting location.
  • Choose the 2.8mm version for: Wide coverage of corridors, entrances, building corners, façades and nearby activity areas.
  • Choose a 4mm version for: A narrower view with greater pixel density on targets positioned further from the camera.
  • Check recorder capacity: Treat the device as a multi-channel camera when calculating NVR channels, licences, storage and network bandwidth.
  • Check night coverage: The 15m IR range suits nearby and medium-distance areas rather than long perimeter approaches.

FAQs

  1. What does dual-directional mean on the DS-2CD6D42G2-IS?
    The camera contains two separate imaging channels that can be aimed in different directions. This allows one housing and network connection to monitor two scenes, such as both sides of a building corner or opposing corridors.
  2. Does each lens record at 4MP?
    Yes. Each camera channel supports up to 2688 × 1520 resolution. Recorder channel usage, frame rates and storage requirements should be confirmed with the intended NVR or video management platform.
  3. How wide is the view from each 2.8mm lens?
    Each 2.8mm lens provides an approximately 110.4° horizontal, 54.4° vertical and 136.8° diagonal field of view. This is suited to broad nearby coverage rather than tightly focused distant detail.
  4. Does the camera include built-in microphones?
    Yes. The DS-2CD6D42G2-IS includes two built-in microphones for real-time audio capture. Audio recording must be used in accordance with applicable privacy and surveillance requirements.
  5. How far does the infrared illumination reach?
    The infrared illumination is rated for up to 15m. Actual performance depends on the mounting angle, scene reflectivity, target size, environmental conditions and available ambient light.
  6. Can the two camera channels be adjusted independently?
    Yes. The imaging modules provide independent physical adjustment within the supported pan, tilt and rotation ranges, allowing each lens to be directed toward a separate monitoring area.
  7. Is the DS-2CD6D42G2-IS suitable for outdoor use?
    Yes. The camera has IP67 weather protection and IK10 impact resistance. Correct cable sealing, surge protection, PoE capacity and weather-resistant mounting practices are still required.
  8. What should I check before buying the DS-2CD6D42G2-IS?
    Confirm the two required viewing directions, identification distances, NVR channel and bandwidth capacity, PoE+ availability, audio requirements, alarm integration and storage needs. Security Wholesalers can supply this camera for compatible professional Hikvision surveillance systems.
