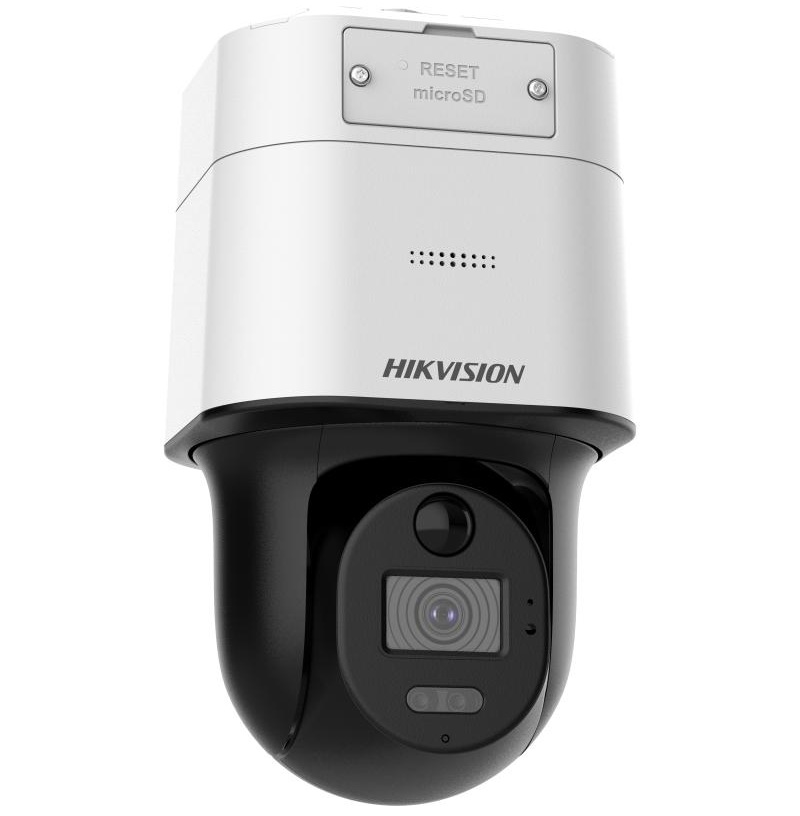

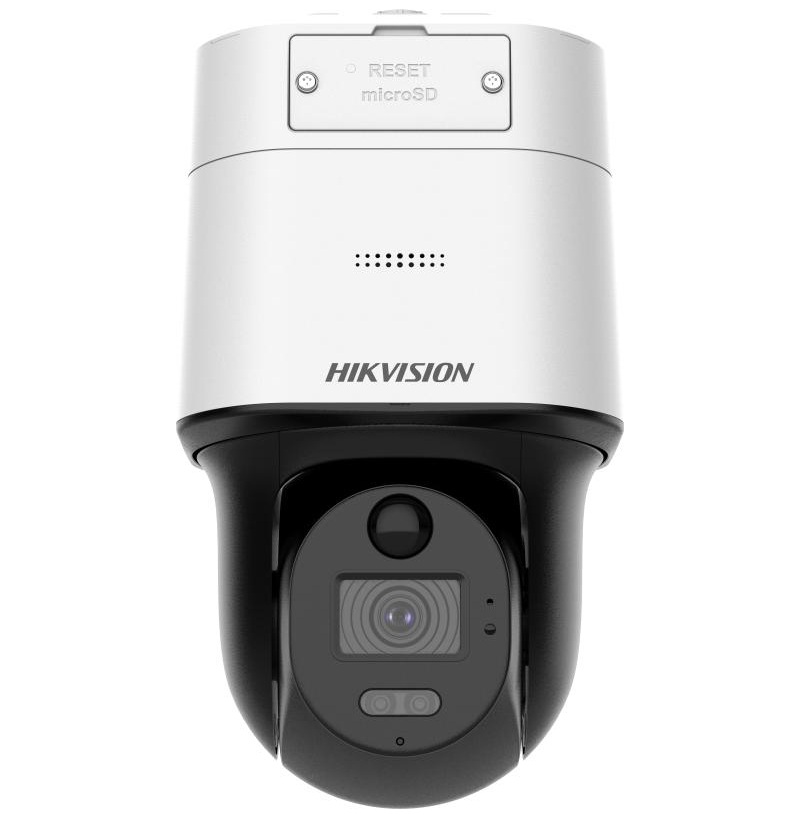

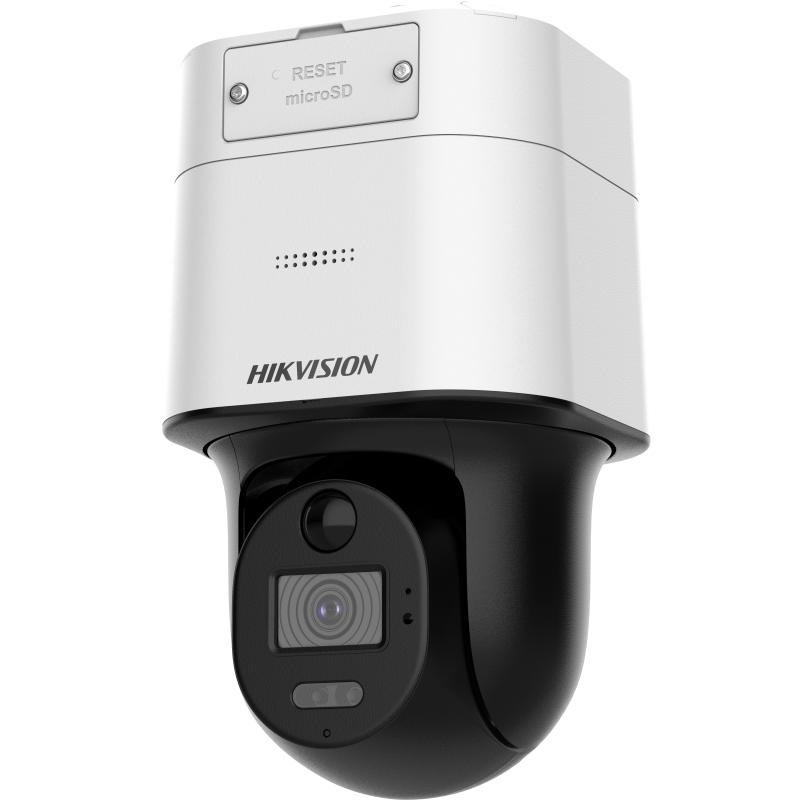

Hikvision 4MP ColorVu DS-2XS3Q47G1-LDWH-C18S40-B Solar PT Camera Bundle Kit with SMA-ADAPTER, AF003-100 Waterproof Sealing Tape & Two-Way Audio

Product SKU: Hikvision DS-2XS3Q47G1-LDWH-C18S40-B

Product Overview

The Hikvision 4MP ColorVu DS-2XS3Q47G1-LDWH-C18S40-B Solar PT Camera Bundle Kit with SMA-ADAPTER, AF003-100 Waterproof Sealing Tape and Two-Way Audio is a standalone surveillance package designed for remote and difficult-to-wire locations. It combines a 4MP ColorVu solar-powered PT camera kit, built-in battery, solar panel, Network Bridge P2P communication, white light illumination, two-way audio and essential installation accessories for remote security deployments. The camera provides 2560 × 1440 maximum resolution, 24/7 colour imaging, efficient H.265+ compression, pan movement from 0° to 340°, tilt movement from -5° to 105° and flexible solar panel adjustment. This bundle is ideal for farms, construction sites, remote gates, yards, compounds, estates, outdoor storage areas and temporary worksites where fixed power or network cabling is difficult to install.

Why Choose This Hikvision Solar PT Camera Bundle Kit

This Hikvision bundle is ideal for sites that need reliable monitoring without the cost or disruption of running mains power and network cabling. The solar panel and built-in battery support standalone operation, while Network Bridge P2P communication helps connect the camera setup for remote monitoring workflows. ColorVu technology provides vivid colour imaging around the clock, making low-light footage more useful than standard black-and-white night vision in many situations. Built-in two-way audio allows users to listen and speak through the camera, while PT movement gives more viewing flexibility than a fixed camera from the same installation point. The included SMA-ADAPTER and AF003-100 Waterproof Sealing Tape help support a cleaner, more practical installation bundle.

Package / Kit Inclusions

• 1 x Hikvision DS-2XS3Q47G1-LDW(H)/C18S40 Solar PT Camera Kit – 4MP ColorVu Solar-Powered PT Camera Kit with Built-In Battery, Solar Panel, Network Bridge P2P Communication and Two-Way Audio
• 1 x SMA-ADAPTER
• 1 x AF003-100 Waterproof Sealing Tape

Key Capabilities

Key Features

• 4MP High-Quality Imaging: The camera captures up to 2560 × 1440 resolution, providing clear video for remote entrances, farms, temporary sites, gates, yards and off-grid security applications.

• Solar Panel and Built-In Battery: Standalone solar and battery operation helps reduce reliance on fixed power infrastructure, making the camera suitable for remote or temporary installations where power cabling is difficult.

• 24/7 ColorVu Imaging: ColorVu technology helps deliver colourful video in low-light environments, supporting better night-time detail compared with standard black-and-white night footage.

• White Light Illumination: Built-in white light provides supplemental illumination for low-light colour imaging, helping improve visibility around remote entrances, yards, compounds and outdoor areas after dark.

• Pan and Tilt Control: The camera can pan from 0° to 340° and tilt from -5° to 105°, giving users flexible viewing control across different directions from a single installation point.

• Two-Way Audio: Built-in two-way audio allows real-time communication through the camera, supporting remote warnings, visitor interaction, staff communication or site management workflows.

• Efficient H.265+ Compression: H.265+ compression helps reduce bandwidth and storage requirements, which is valuable for remote camera deployments where connection and storage resources may be limited.

• Network Bridge P2P Support: Network Bridge P2P communication helps support practical deployment where traditional network cabling is not available or not cost-effective.

• SMA-ADAPTER Included: The included SMA-ADAPTER supports compatible antenna/adaptor installation requirements for this bundle, helping simplify setup where the adaptor is required.

• AF003-100 Waterproof Sealing Tape Included: The included AF003-100 Waterproof Sealing Tape helps support cable sealing and weather-resistant installation practices when used correctly during deployment.

Specifications Summary

Available Lens and Viewing Options

• Available in 2.8mm lens – 96° horizontal field of view, 52° vertical field of view, 113° diagonal field of view
• Available in 4mm lens – 76° horizontal field of view, 41° vertical field of view, 89° diagonal field of view
• Available in 6mm lens – narrower view option for longer reach applications where supported by the selected variant
• Camera movement – 0° to 340° pan and -5° to 105° tilt for flexible viewing direction
• Solar panel movement – 0° to 358° pan and -40° to 0° tilt for sun-position adjustment

Power and Battery Operating Modes

• Performance Mode: Listed battery working time of approximately 3.6 days under specified conditions.
• Proactive Mode: Listed battery working time of approximately 6 days under specified conditions.
• Standby Mode: Listed battery working time of approximately 30 days under specified conditions.
• Battery Configuration: Lithium battery design listed as 9 V to 12.6 V, 8.4 Ah × 2 packs.
• Solar Charging: Actual performance depends on sunlight exposure, panel orientation, weather, recording settings, event frequency and installation location.

Bundle Accessory Notes

• SMA-ADAPTER: Included as part of the bundle for compatible adaptor/antenna connection requirements.
• AF003-100 Waterproof Sealing Tape: Included to support cable sealing and weather-resistant installation practices when applied correctly.
• Installation Reminder: Confirm antenna position, bridge communication path, solar panel orientation and cable sealing before final commissioning.

Ideal Use Cases

• Farms and Rural Properties – Suitable for remote gates, sheds, paddock entries, machinery areas and rural driveways where power and fixed networking are difficult to install.
• Construction Sites – Useful for temporary site monitoring, equipment storage, after-hours security and locations where camera placement may change as the project progresses.
• Remote Gates and Entrances – Practical for monitoring site access points, rural roads, private entrances, temporary access tracks and compounds using a solar-powered PT camera setup.
• Car Parks and Outdoor Yards – Ideal for standalone monitoring of vehicle areas, storage yards, depots, laydown areas and outdoor commercial sites.
• Temporary Events and Worksites – Suitable for short-term surveillance where wired power, network infrastructure or permanent camera installation is not practical.

Understanding Solar-Powered PT Monitoring

The DS-2XS3Q47G1-LDW(H)/C18S40 is designed for locations where conventional CCTV infrastructure is difficult to install. Instead of relying on mains power and wired networking, it uses a solar panel, built-in battery and Network Bridge P2P communication support for remote monitoring workflows. The PT function allows users to adjust the camera direction from a single installation point, while ColorVu and white light illumination help maintain colour image detail in low-light scenes. For best results, the installation should consider solar exposure, bridge placement, antenna placement, battery performance, lens choice, recording needs, waterproof sealing and power mode settings.

Tip:
Use the Hikvision DS-2XS3Q47G1-LDWH-C18S40-B Solar PT Camera Bundle Kit where fixed power and network cabling are unavailable but solar exposure and bridge communication are suitable. Confirm bridge placement, line-of-sight, antenna/adaptor requirements, solar panel orientation, battery performance, lens option, cable sealing, local recording settings and audio privacy requirements before installation.

FAQs

1. What is included in this Hikvision Solar PT Camera Bundle Kit?
   This bundle includes the Hikvision DS-2XS3Q47G1-LDW(H)/C18S40 4MP ColorVu Solar-powered Security PT Camera Kit, 1 x SMA-ADAPTER and 1 x AF003-100 Waterproof Sealing Tape. The camera kit includes solar power, built-in battery support, PT movement, ColorVu imaging and two-way audio.
2. Does this camera need mains power?
   No, the camera kit is designed as a solar-powered setup with a built-in battery. It is intended for standalone operation where fixed power cabling is difficult, although performance depends on solar exposure, battery condition, power mode, recording settings and local weather conditions.
3. Does the DS-2XS3Q47G1-LDW(H)/C18S40 support 4G?
   This C18S40 version is listed with Network Bridge P2P communication support, not 4G communication. For 4G mobile-network deployment, the DS-2XS3Q47G1-LDH/4G version is the more relevant model to compare.
4. What resolution does the camera provide?
   The camera provides 4MP resolution with a maximum image size of 2560 × 1440. This gives detailed video suitable for entrances, gates, yards, temporary sites and remote property monitoring.
5. Does it support two-way audio?
   Yes, the DS-2XS3Q47G1-LDW(H)/C18S40 includes a built-in microphone and speaker for two-way audio. This allows users to listen and speak through the camera when configured correctly, subject to local privacy and surveillance requirements.
6. What lens options are available?
   This model is listed with 2.8mm, 4mm and 6mm fixed lens options. The 2.8mm lens provides a wider view, while 4mm and 6mm options provide progressively narrower views for applications where greater reach is preferred.
7. How long can the battery operate?
   The listed battery working time is approximately 3.6 days in Performance mode, 6 days in Proactive mode and 30 days in Standby mode under specified conditions. Actual runtime depends on sunlight, event frequency, recording mode, camera settings and battery condition.
8. Why is waterproof sealing tape included?
   The AF003-100 Waterproof Sealing Tape is included to support cable sealing and weather-resistant installation practices. It should be applied correctly around suitable cable or connection areas according to the installation design to help reduce water ingress risk.

Additional Information

DS-2XS3Q47G1-LDWH_C18S40_Datasheet_20240422
