Product SKU: Hikvision DS-2CD2386G2H-IU/DS-7616NI-M2/16P NVR-NO-HDD-10-CAM-KIT
Product Overview
The Hikvision 10 Camera 8MP AcuSense DS-2CD2386G2H-IU Turret Kit with DS-7616NI-M2/16P 16CH PoE 8K NVR is a professional 4K IP surveillance package designed for high-detail monitoring, intelligent event detection and reliable multi-camera recording. It includes 10 x 8MP AcuSense turret cameras and a 16-channel PoE M Series NVR, giving users strong coverage now with room for future expansion. The cameras provide 8MP resolution, Powered-by-DarkFighter low-light performance, 120dB WDR, H.265+ compression, human and vehicle classification, built-in microphone audio security and IP67 outdoor protection. The included 16-channel PoE NVR supports high-resolution IP camera recording, integrated PoE ports, 8K HDMI output and strong bandwidth capacity for residential and commercial CCTV installations.
Why Choose This Hikvision 10 Camera 8MP AcuSense Kit
This Hikvision kit is ideal for larger homes, warehouses, retail stores, schools, offices, workshops, commercial buildings, car parks and perimeter surveillance where users need detailed 4K video and smarter event alerts. The 10 included 8MP turret cameras provide wide multi-area coverage, while the 16-channel NVR leaves room to add extra compatible IP cameras later. AcuSense technology helps focus alerts on humans and vehicles, reducing unnecessary notifications from irrelevant motion. Powered-by-DarkFighter performance, 120dB WDR and built-in microphone support also make the system practical for entrances, driveways, loading docks, shopfronts, yards and other areas where video and audio context are important.

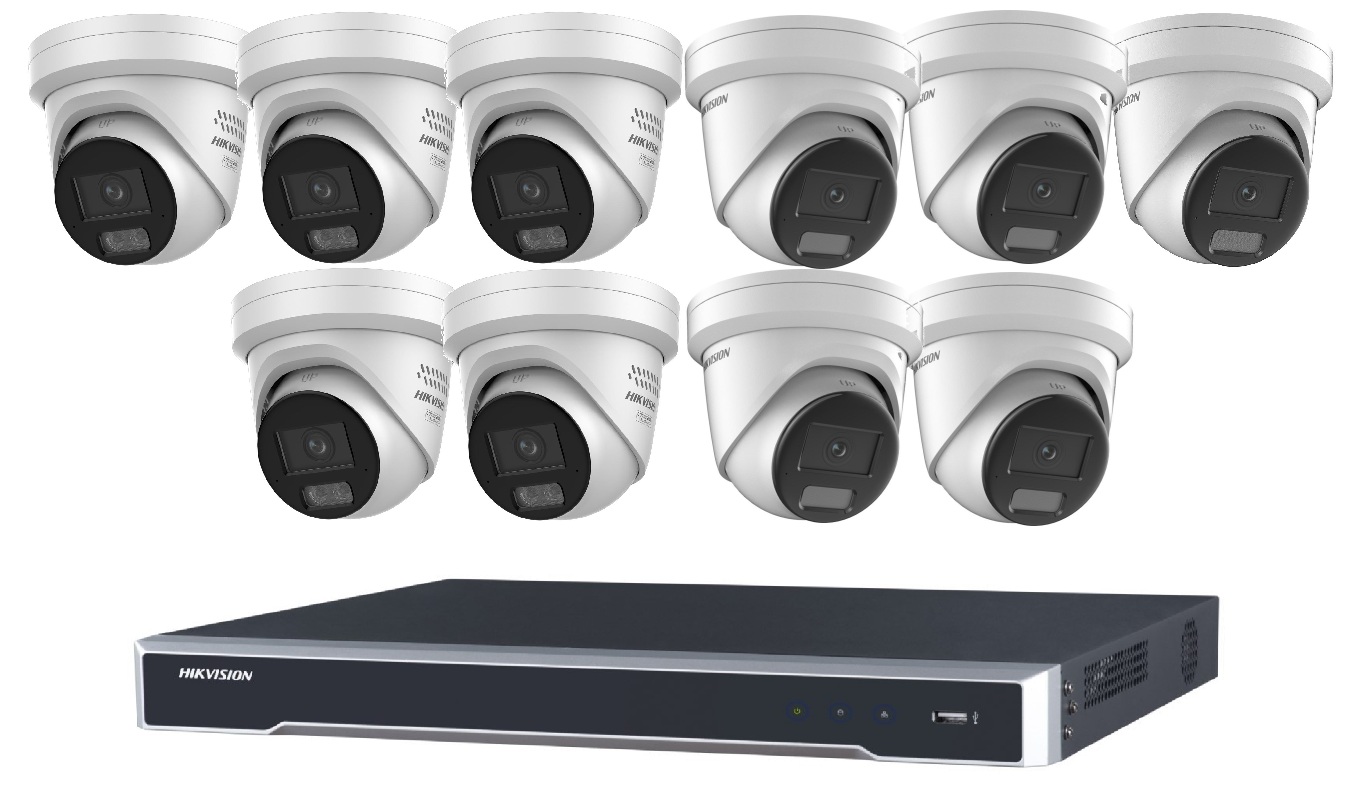

Package / Kit Inclusions

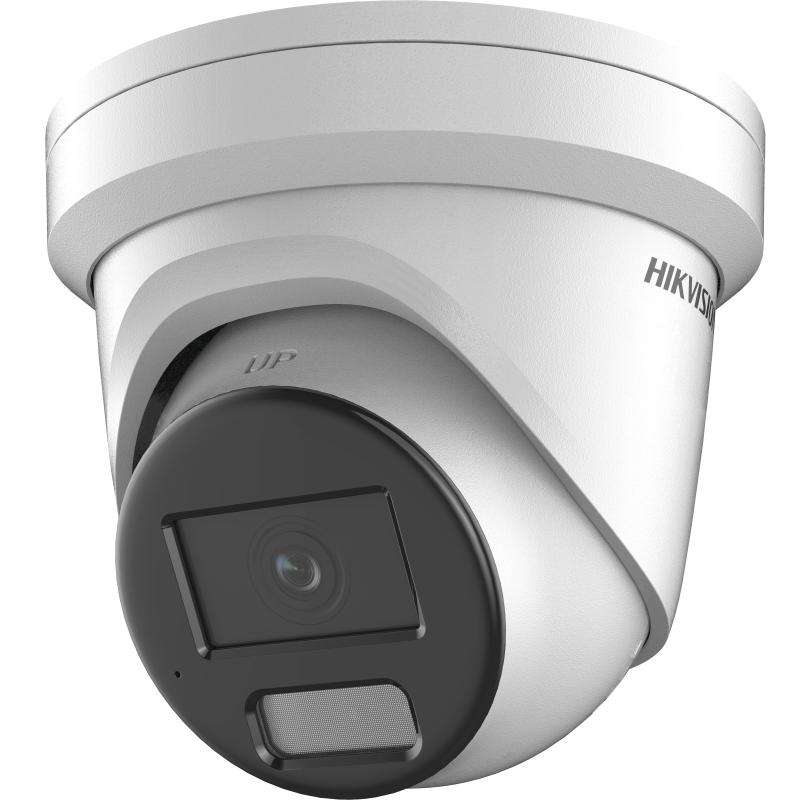

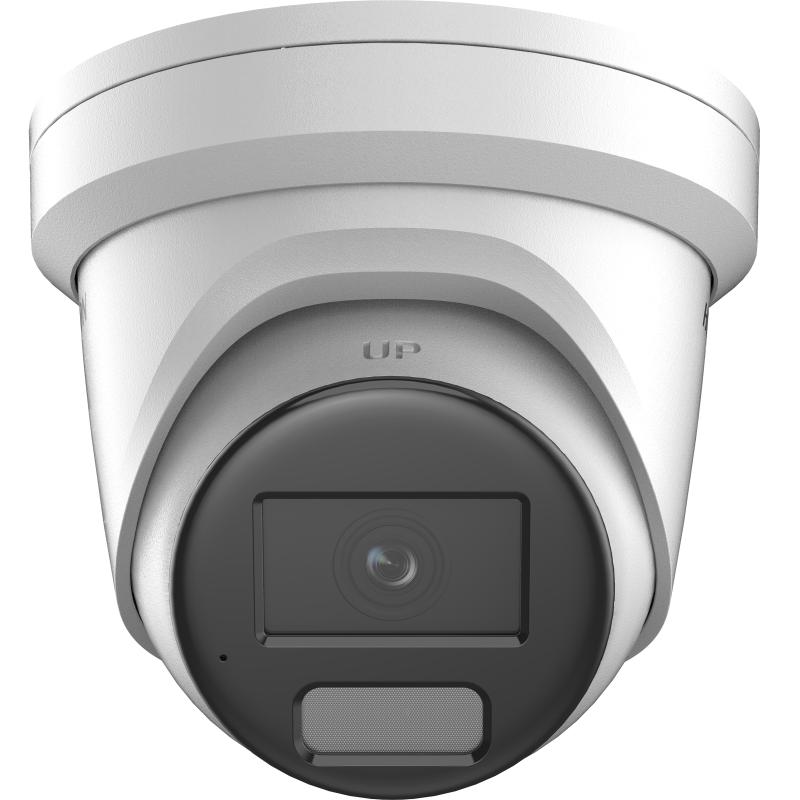

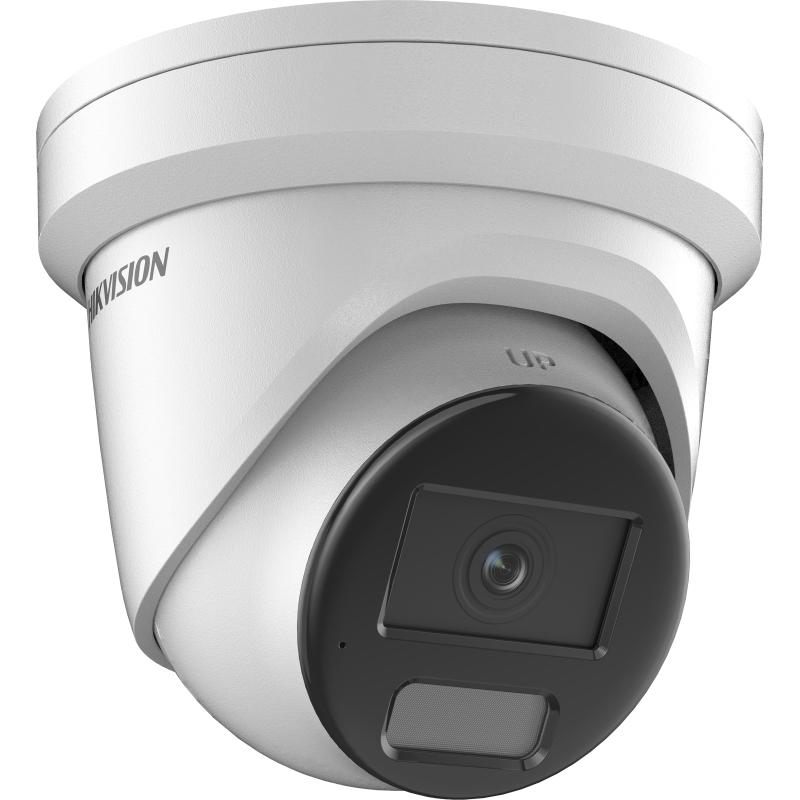

- 10 x Hikvision DS-2CD2386G2H-IU Turret Camera – 8MP AcuSense Turret Camera with Powered-by-DarkFighter, Built-in Microphone and IP67 Rating
- 1 x Hikvision DS-7616NI-M2/16P NVR – 16CH PoE M Series 8K Network Video Recorder
- NO HDD INCLUDED
Key Capabilities
10 Camera 8MP 4K Coverage
The kit includes 10 Hikvision 8MP turret cameras for detailed multi-area CCTV coverage. This makes it suitable for entrances, driveways, warehouses, shop floors, car parks, loading zones, offices, yards and perimeter areas where clear image detail is important.
AcuSense Human and Vehicle Detection
AcuSense technology uses deep learning to focus on human and vehicle events. This helps reduce false alarms caused by irrelevant movement such as animals, leaves, shadows or general environmental motion, making alerts more useful for everyday security monitoring.
Powered-by-DarkFighter Low-Light Performance
Powered-by-DarkFighter technology helps the cameras perform better in low-light scenes, supporting more usable footage in challenging lighting conditions. This is useful for after-hours monitoring around driveways, entrances, yards, car parks and commercial exterior areas.
Built-In Microphone Audio Security
The DS-2CD2386G2H-IU camera includes a built-in microphone for real-time audio security. Audio can add useful context to video evidence at entrances, loading areas, retail counters, public-facing spaces and other monitored locations where sound may help explain an event.
16CH PoE 8K NVR
The included DS-7616NI-M2/16P NVR supports 16 IP camera channels, integrated PoE ports, high-resolution recording, up to 256Mbps incoming bandwidth and 8K HDMI output, giving the system room to expand beyond the 10 included cameras.
Key Features
-
8MP 4K High-Resolution Video: Each DS-2CD2386G2H-IU camera captures 8MP video, providing detailed image quality for entrances, driveways, paths, warehouses, shop floors, loading areas, offices and perimeter zones.
-
AcuSense Smart Detection: Deep learning-based human and vehicle classification helps reduce unwanted alerts from non-security movement, improving alarm accuracy and making playback searches more efficient.
-
Powered-by-DarkFighter: Hikvision Powered-by-DarkFighter technology helps improve low-light performance, making the camera suitable for sites that need more usable footage in darker scenes.
-
120dB WDR: Wide Dynamic Range helps improve image clarity in high-contrast scenes, such as doorways, roller doors, shopfronts, driveways and entrances with bright backlighting.
-
Efficient H.265+ Compression: H.265+ helps reduce bandwidth and storage use while maintaining useful image quality, making it practical for multi-camera recording systems.
-
Built-In Microphone: The -IU model includes a built-in microphone for real-time audio security, helping add sound context to video footage when installed and used in accordance with local privacy requirements.
-
IP67 Outdoor Protection: The camera is water and dust resistant with an IP67 rating, making it suitable for indoor and outdoor CCTV installations when correctly installed.
-
16CH PoE NVR Expansion: The DS-7616NI-M2/16P includes 16 PoE channels, allowing the 10-camera kit to be expanded with up to six additional compatible IP cameras later.
-
8K HDMI Output: The NVR supports high-resolution display output up to 8K, allowing compatible monitor setups to display detailed surveillance footage.
-
No HDD Included: This kit is supplied with no hard drive installed, allowing customers to select their preferred surveillance-grade HDD capacity separately.
Specifications Summary
| Feature |
Specification |
| Kit Name |
Hikvision 10 Camera 8MP AcuSense Turret Kit with 16CH PoE 8K NVR |
| Camera Model |
DS-2CD2386G2H-IU |
| Camera Quantity |
10 cameras |
| Camera Type |
Fixed Turret Network Camera |
| Camera Resolution |
8MP / 4K |
| Low-Light Technology |
Powered-by-DarkFighter |
| AI Technology |
AcuSense human and vehicle classification based on deep learning |
| Wide Dynamic Range |
120dB WDR |
| Video Compression |
H.265+ supported |
| Audio |
Built-in microphone for real-time audio security |
| Camera Protection |
IP67 water and dust resistant |
| NVR Model |
DS-7616NI-M2/16P |
| NVR Type |
M Series 8K Network Video Recorder with PoE |
| NVR Channels |
16 IP camera channels |
| PoE Ports |
16 PoE ports |
| Maximum IP Camera Input Resolution |
Up to 32MP |
| Incoming Bandwidth |
Up to 256Mbps |
| Outgoing Bandwidth |
Up to 256Mbps |
| Video Formats |
H.265+, H.265, H.264+ and H.264 support |
| HDMI Output |
Up to 8K output |
| Hard Drive |
NO HDD INCLUDED |
| Best Use |
Residential, commercial, retail, warehouse, school, office, car park and perimeter CCTV installations |
Ideal Use Cases
- Large Homes and Villas – Suitable for covering driveways, entrances, garages, side paths, backyards, outdoor living areas and perimeter points with detailed 8MP footage.
- Retail Stores – Useful for shopfronts, entry doors, aisles, stock rooms, loading areas and cash-handling points where clear footage and person or vehicle event filtering are important.
- Warehouses and Industrial Sites – Ideal for loading docks, roller doors, storage areas, dispatch zones, yards, gates and vehicle movement areas requiring high-resolution CCTV coverage.
- Schools and Offices – Practical for entrances, corridors, car parks, reception areas, staff-only zones and external walkways where reliable multi-camera monitoring is required.
- Commercial Perimeter Security – Suitable for monitoring fences, gates, driveways, building edges and after-hours intrusion points using AcuSense smart detection and 4K video detail.
Understanding This 10 Camera 8MP AcuSense Kit
This kit combines 10 intelligent 8MP AcuSense turret cameras with a 16-channel PoE NVR, giving users a high-detail surveillance system with room to expand. The cameras handle image capture, low-light performance, audio capture and smart human or vehicle classification, while the NVR provides recording, PoE power, camera management, playback and display output. Because the recorder has 16 channels, six additional compatible IP cameras can be added later if more areas need coverage. Storage is not included, so a compatible surveillance hard drive must be added separately before recording can be retained.
| Kit Component |
What It Provides |
Best For |
| 10 x 8MP AcuSense Turret Cameras |
4K video detail, smart detection, low-light performance and built-in microphone audio |
Entrances, driveways, shopfronts, warehouses, yards, offices and perimeter zones |
| AcuSense Analytics |
Human and vehicle classification to reduce irrelevant alerts |
Motion event filtering, smarter search, perimeter alerts and intrusion monitoring |
| Powered-by-DarkFighter |
Enhanced low-light image performance |
After-hours surveillance, darker entrances, driveways, yards and commercial exterior areas |
| 16CH PoE 8K NVR |
Recording, playback, PoE camera power and display output |
Multi-camera CCTV systems with expansion capacity and high-resolution recording |
| NO HDD INCLUDED |
Storage must be added separately for recording retention |
Customers selecting their preferred surveillance HDD capacity |
Tip:
Use this kit when a site needs detailed 4K CCTV coverage, intelligent human and vehicle detection, low-light performance and audio context across multiple areas. Confirm lens option, HDD capacity, cable runs, PoE budget, monitor resolution and camera installation positions before deployment.
FAQs
- What is included in this Hikvision 10 Camera 8MP Kit?
This kit includes 10 x Hikvision DS-2CD2386G2H-IU 8MP AcuSense turret cameras and 1 x Hikvision DS-7616NI-M2/16P 16-channel PoE 8K NVR. The NVR has 16 channels, so the system can support additional compatible IP cameras later if required.
- Does this kit include a hard drive?
No. This kit is supplied with NO HDD INCLUDED. A compatible surveillance hard drive must be purchased and installed separately before the system can retain recorded footage.
- What resolution are the cameras?
The included DS-2CD2386G2H-IU cameras are 8MP models, commonly used for 4K surveillance applications. This provides high image detail for entrances, driveways, retail spaces, warehouses, offices and perimeter monitoring.
- What does AcuSense do?
AcuSense uses deep learning to classify humans and vehicles, helping reduce false alarms from irrelevant motion. This is useful for perimeter protection, driveway alerts, shopfront monitoring and after-hours surveillance where users want more meaningful event notifications.
- What does Powered-by-DarkFighter mean?
Powered-by-DarkFighter technology helps improve image performance in low-light environments. This can make footage more usable around darker entrances, car parks, driveways, yards and commercial exterior areas where lighting is not always ideal.
- Does this kit support audio recording?
Yes, the included DS-2CD2386G2H-IU cameras include a built-in microphone for real-time audio security. Audio recording should always be used in line with local privacy and surveillance requirements.
- How many cameras can the NVR support?
The included DS-7616NI-M2/16P NVR supports up to 16 IP camera channels and includes 16 PoE ports. Since this kit includes 10 cameras, there is room to add up to six more compatible IP cameras later.
- Is this kit suitable for commercial installations?
Yes, this kit is suitable for commercial installations such as shops, offices, warehouses, schools, workshops and small industrial sites. The combination of 8MP video, AcuSense detection, built-in microphone audio and 16-channel NVR capacity makes it suitable for larger CCTV layouts.
