Product SKU: DS-2280ZJ-WA140
Product Overview

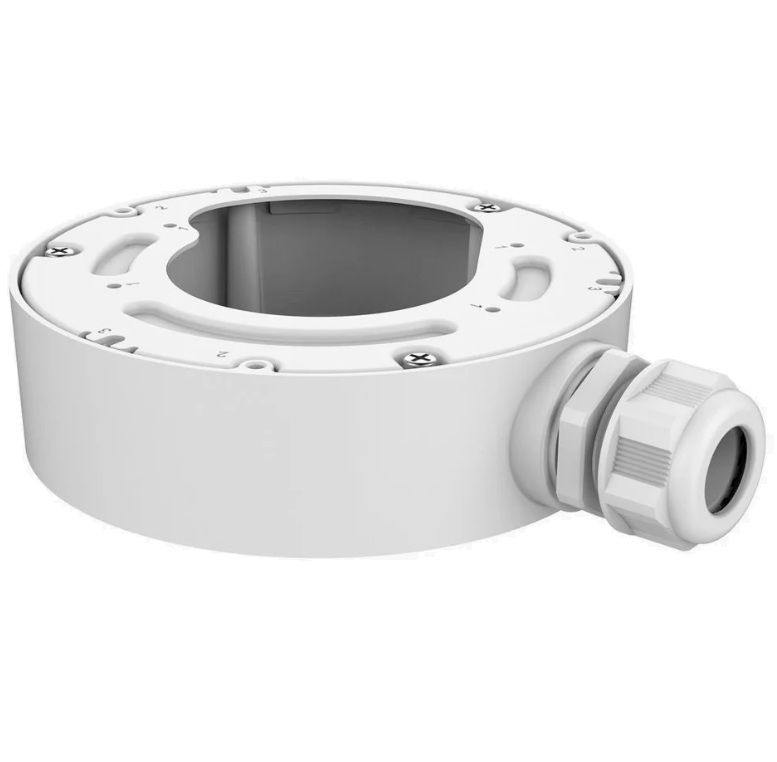

The Hikvision DS-2280ZJ-WA140 is a compact white junction box designed for compatible CCTV camera installations where cabling and connections need to be housed neatly behind the camera mounting point. Measuring approximately Ø140 × 40.5 mm and weighing around 359.4 g, it provides a low-profile mounting platform without the bulk of a larger enclosure. The junction box is constructed from aluminium, stainless steel, silicone and EVA, combining structural and supporting materials within the complete assembly. Its face incorporates several published M4 camera mounting patterns, including double-gang, Ø130 mm and Ø128 mm arrangements. Because the supplied datasheet does not state a maximum load capacity, IP rating or explicit indoor/outdoor classification, these values should not be assumed when specifying the installation.
Key Capabilities
Ø140 mm Junction Box
The DS-2280ZJ-WA140 provides a compact enclosure behind compatible CCTV cameras, helping organise supported cable connections while creating a dedicated camera mounting interface.
Multiple Camera Mounting Patterns
Ten M4 camera mounting holes are distributed across several published patterns, providing physical flexibility for compatible camera bases with matching fixing dimensions.
Mixed-Material Construction
Aluminium and stainless steel are combined with silicone and EVA components within the junction-box assembly, providing the material combination specified by Hikvision for this accessory.
Low-Profile 40.5 mm Body
The 40.5 mm housing depth provides useful connection space behind the camera while keeping the completed mounting arrangement comparatively compact.
Best For
- Camera Cable Management: Helps contain compatible camera connections behind the mounting point for a cleaner finished installation.
- Wall or Ceiling Mounting: Provides a compact intermediate mounting enclosure where the camera uses one of the supported fixing patterns.
- Multi-Pattern Camera Bases: Useful where a compatible camera matches the double-gang, Ø130 mm or Ø128 mm M4 fixing arrangements.
- Replacement Installations: Suitable where an existing supported camera system is already confirmed to use the DS-2280ZJ-WA140 interface.
Why Choose the DS-2280ZJ-WA140
The DS-2280ZJ-WA140 is useful when a compatible CCTV camera needs a compact junction enclosure with more mounting flexibility than a simple flat plate. Its Ø140 mm body provides additional room behind the camera for supported connections, while the multiple M4 fixing patterns can accommodate several compatible camera-base layouts. The mixed aluminium, stainless-steel, silicone and EVA construction matches the materials specified for the complete accessory. Available through Security Wholesalers, the DS-2280ZJ-WA140 should still be selected by checking the exact camera interface and installation requirements because the supplied datasheet does not publish a universal compatibility list, structural load rating or environmental protection rating.
Buyer Decision Tips
Buyer Tip: Confirm the camera’s mounting-hole pattern before ordering. The DS-2280ZJ-WA140 provides several M4 arrangements, but matching the hole spacing does not automatically confirm full camera compatibility.
Buyer Tip: Do not infer a maximum load, IP rating or outdoor classification from the product materials alone. These specifications are not stated in the supplied datasheet and should be confirmed separately if they are important to the project.
Key Features & Technical Specifications
| Product Type |
Junction box for compatible CCTV cameras. |
| Model |
DS-2280ZJ-WA140. |
| Colour |
White. |
| Materials |
Aluminium + stainless steel + silicone + EVA. |
| Dimensions |
Ø140 × 40.5 mm. |
| Weight |
Approximately 359.4 g. |
| Camera Mounting Holes |
10 × M4 holes across the published mounting patterns. |
| Camera Mounting Pattern 1 |
Double-gang pattern with 4 × M4 holes. |
| Camera Mounting Pattern 2 |
Ø130 mm pattern with 3 × M4 holes. |
| Camera Mounting Pattern 3 |
Ø128 mm pattern with 3 × M4 holes. |
| Rear Mounting Holes |
4 × Ø4.5 mm. |
| Rear Mounting Pattern |
Approximately Ø88.5 mm circle. |
| Side Cable Entry |
Integrated side cable-entry fitting shown in the dimensional drawing. |
| Published Load Capacity |
Not stated in the supplied datasheet. |
| Published IP Rating |
Not stated in the supplied datasheet. |
| Published Indoor/Outdoor Classification |
Not stated in the supplied datasheet. |
Ideal Use Cases
Commercial Camera Installations
Provides a compact connection enclosure behind compatible CCTV cameras used around offices, retail sites and commercial buildings.
Ceiling-Mounted Cameras
Useful where a compatible camera needs additional cable space between the camera base and the overhead mounting surface.
Wall-Mounted Cameras
Provides a neat intermediate enclosure for supported wall installations where the camera mounting pattern matches the junction box.
Existing Hikvision Systems
Suitable as a replacement where an existing supported installation is already confirmed to use the DS-2280ZJ-WA140 mounting interface.
Choosing the Right Model
- Choose this model if: Your compatible CCTV camera uses one of the published DS-2280ZJ-WA140 mounting patterns and requires a compact Ø140 mm junction box.
- Choose the WA120 version if: The exact camera supports the smaller Ø120 mm DS-2280ZJ-WA120 and the additional diameter of this WA140 model is unnecessary.
- Confirm additional specifications if: The project requires a particular load capacity, IP rating or indoor/outdoor classification, as those values are not stated in the supplied datasheet.
FAQs
- What is the Hikvision DS-2280ZJ-WA140 used for?
The Hikvision DS-2280ZJ-WA140 is a junction box for compatible CCTV camera installations. It provides a compact enclosure behind the camera for supported cable connections and offers several published camera mounting patterns on its circular face. Exact camera compatibility should still be confirmed before installation because the supplied datasheet does not provide a model-by-model compatibility list.
- What are the dimensions and weight of the DS-2280ZJ-WA140?
The DS-2280ZJ-WA140 measures approximately Ø140 mm × 40.5 mm and weighs about 359.4 g. These measurements refer to the junction box itself. The dimensional drawing also shows the side cable entry extending beyond the circular body, so installers should allow additional clearance for cabling, connectors and the attached camera when planning the finished installation.
- What materials are used in the DS-2280ZJ-WA140?
The datasheet specifies aluminium, stainless steel, silicone and EVA as the materials used in the DS-2280ZJ-WA140. These materials are used across the structural enclosure and associated sealing or cushioning components. The junction box is supplied in white to coordinate with many compatible white CCTV camera housings.
- What camera mounting patterns are provided on the DS-2280ZJ-WA140?
The dimensional drawing shows ten M4 camera mounting holes arranged across several patterns. These include a double-gang four-hole M4 pattern, a Ø130 mm three-hole M4 pattern and a Ø128 mm three-hole M4 pattern. These options provide physical mounting flexibility, but the exact camera should still be checked for compatibility before installation.
- What wall mounting pattern does the DS-2280ZJ-WA140 use?
The rear mounting pattern uses four Ø4.5 mm holes positioned on an approximately Ø88.5 mm circle. Installers should select fixings suited to the actual wall or ceiling construction and the complete camera-and-junction-box assembly. For Security Wholesalers installations, the supporting surface and fasteners should be assessed before installation rather than selected from hole dimensions alone.
- Does the DS-2280ZJ-WA140 have a published load rating or IP rating?
The supplied datasheet lists the DS-2280ZJ-WA140 as a junction box and provides its colour, weight, materials and dimensions, but it does not state a maximum load capacity, IP rating or explicit indoor/outdoor classification. Those values should therefore not be assumed. If a project depends on a particular environmental or structural rating, confirm it separately for the complete camera installation.
