Product SKU: HCO-7070R
Product Overview

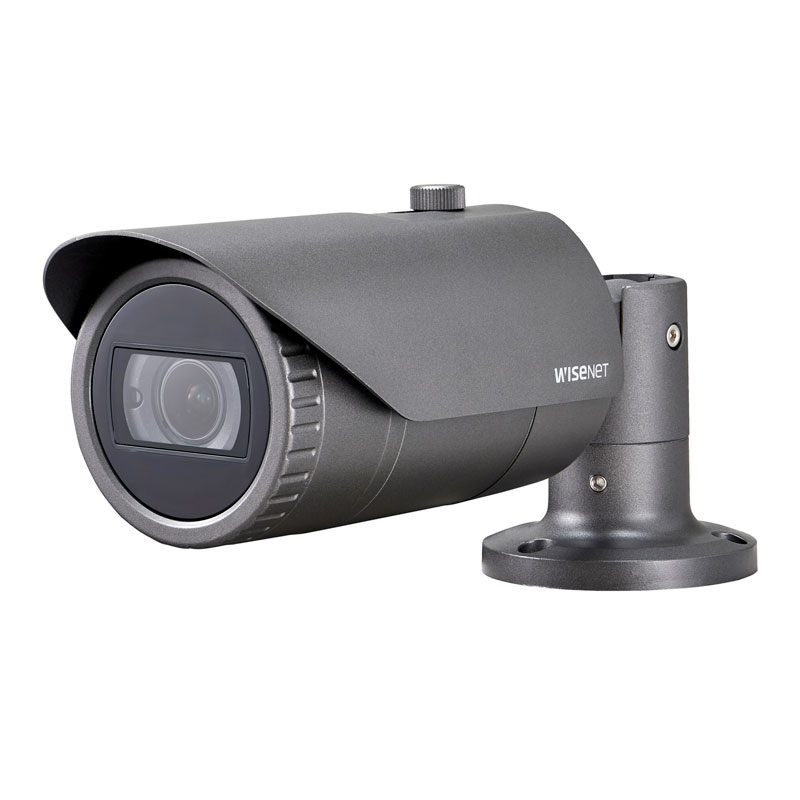

Built for outdoor perimeter coverage over coaxial cable infrastructure, the HCO-7070R is a 4MP AHD bullet camera from Hanwha Wisenet suited to industrial yards, car parks, loading docks, and commercial building exteriors. Featuring a 3.2-10mm varifocal lens, the camera can be adjusted on-site to match the coverage angle required, whether that is a wide entry point or a long, narrow approach. Equipped with a 30m IR range, ICR day/night switching, and DWDR, it maintains usable image quality across varying light conditions without relying on IP network infrastructure. Built with dual 24V AC and 12V DC power inputs, it integrates into both new and existing analogue installations without rewiring. IP66 weather sealing and an IK10 impact rating make it appropriate for exposed mounting positions where environmental and physical durability are priorities. The AHD signal supports coax runs of up to 500m, keeping it practical for large sites.
Key Capabilities
QHD 4MP Resolution at 30fps
The 2560 x 1440 sensor delivers quad HD imagery at a full 30 frames per second, providing enough detail to identify individuals, vehicles, or number plate characters across the camera’s coverage zone without dropping frame rate.
3.2-10mm Varifocal Lens
The varifocal lens allows installers to adjust the field of view on-site to suit the specific approach, gate, driveway, or yard being monitored, avoiding the fixed coverage limitations of single focal length bullet cameras.
30m Infrared Night Vision
The built-in IR LEDs provide 30m of illumination in complete darkness, with the ICR filter switching automatically between colour and monochrome modes to maintain image quality through the transition between day and night.
Dual Power Input
Accepting both 24V AC and 12V DC, the HCO-7070R works with the power supply already on-site, whether that is a legacy analogue DVR installation or a purpose-built analogue system with AC distribution, reducing the need for additional power hardware.
IP66 and IK10 Rated Housing
The aluminium housing carries full IP66 weatherproofing against dust and heavy rain, plus an IK10 impact rating, making it appropriate for exposed wall or soffit positions at industrial sites, car parks, or external building corners where physical interference is a consideration.
Best For
- Coax-Based Upgrades: The AHD signal travels up to 500m over standard coaxial cable, making this camera well suited to sites upgrading from older analogue systems without relaying new cable infrastructure.
- Industrial Perimeter Monitoring: The IK10 and IP66 ratings, combined with the directional bullet housing, suit wall-mounted coverage of yards, loading bays, and fence lines where environmental resilience is required.
- Variable Coverage Distances: The 3.2-10mm varifocal range allows a single camera model to be deployed across multiple positions on a site where coverage distances differ between mounting points.
- Sites with Existing AC Power Runs: The dual 24V AC and 12V DC input means this camera can draw power from existing distribution without requiring additional converters or rewiring.
Why Choose the HCO-7070R
The HCO-7070R stands out among coax-based outdoor cameras by combining a genuine QHD 4MP sensor with a varifocal lens and dual power compatibility in a single, impact-rated housing. A fixed-lens analogue bullet camera at a lower price point cannot offer the on-site framing flexibility of the 3.2-10mm varifocal range, and a lower-resolution sensor will not capture the same level of scene detail across the 30m IR range this camera provides. The aluminium IK10 body is purpose-built for exposed positions rather than sheltered eave mounting. The 500m coax transmission distance is a practical advantage on large industrial or commercial sites where long cable runs between the camera and DVR are unavoidable. Available through Security Wholesalers, the HCO-7070R is a practical choice for installers working on coax infrastructure who need 4MP performance without moving to IP.
Buyer Decision Tips
Coax System Compatibility: The HCO-7070R is an AHD camera designed for coaxial cable systems. Confirm that your DVR or XVR supports AHD 4MP input before purchasing. It is not an IP camera and cannot connect to an NVR or PoE switch. If your site uses Cat5e or Cat6 cabling with a PoE network, you will need an IP camera instead.
Varifocal Lens Adjustment: The 3.2-10mm varifocal lens on the HCO-7070R requires physical manual adjustment during installation. This is not a motorised zoom lens controlled remotely through software. Plan for access to the camera head at commissioning time to set the focal length correctly before finalising the mount position.
Key Features & Technical Specifications
| Resolution |
QHD 2560 x 1440 at 30fps |
| Image Sensor |
1/3″ 4M CMOS progressive scan |
| Lens |
3.2-10mm varifocal |
| Minimum Illumination (Colour) |
0.16 lux (F1.6) |
| Minimum Illumination (B/W) |
0 lux (IR LED on) |
| IR Range |
30m |
| Day/Night |
ICR (auto day/night switching) |
| Wide Dynamic Range |
DWDR |
| Noise Reduction |
2D DNR |
| Pan / Tilt / Rotate |
Pan 0-350° / Tilt 0-67° / Rotate 0-355° |
| Power Supply |
24V AC / 12V DC dual input |
| Power Consumption |
Max 5.8W |
| Transmission Distance |
Max 500m (coaxial) |
| Weather Rating |
IP66 |
| Impact Rating |
IK10 |
| Housing Material |
Aluminium, ivory finish |
| Dimensions |
137 x 106.1mm |
| Weight |
715g |
Ideal Use Cases
Industrial Yards and Loading Docks
The IK10-rated aluminium housing withstands impacts from equipment or machinery in busy industrial environments, while the varifocal lens can be set to frame long dock approaches or tighter bay entrances as needed.
Car Parks and Driveways
The 30m IR range and QHD resolution combine to cover extended vehicle approach paths, with enough detail to distinguish vehicle types and occupants across the IR zone at night.
Perimeter Fence Lines
Wall or pole mounting along a perimeter fence takes advantage of the bullet housing’s directional coverage and the 500m coax transmission range, keeping cable infrastructure manageable across a large site boundary.
Analogue System Upgrades
Sites already cabled with coaxial infrastructure can add QHD 4MP resolution to their existing DVR setup using the HCO-7070R without relaying cable, provided the recorder supports AHD 4MP input.
External Building Corners and Eaves
IP66 weatherproofing makes the HCO-7070R suitable for exposed external mounting positions, including corners, soffits, and wall brackets on commercial and industrial buildings where rain ingress is a routine concern.
Choosing the Right Model
- Choose this model if: You are working on a coaxial AHD system and need 4MP outdoor coverage with a varifocal lens, dual power input flexibility, and a physically robust housing for exposed industrial or commercial mounting positions.
- Choose a different model if: Your site uses Cat5e or Cat6 cabling with a PoE NVR setup, as you will need an IP camera rather than an AHD coax camera. Similarly, if you require onboard AI analytics such as line crossing alerts or object classification, consider an IP camera with confirmed smart detection features, as none are listed for this model.
FAQs
- What type of recorder does the HCO-7070R connect to?
The HCO-7070R is an AHD coaxial camera. It requires a DVR or XVR that supports AHD input at 4MP (QHD) resolution. It cannot connect to an NVR using a network cable or PoE switch. Check your recorder’s supported signal formats and resolution tiers before purchasing.
- How far can the HCO-7070R transmit its signal over coax cable?
The camera supports a maximum coaxial transmission distance of 500m. This makes it well suited to large sites such as industrial estates or commercial yards where the DVR is located in a central building and cameras are spread across the perimeter.
- Is the varifocal lens on the HCO-7070R motorised or manually adjusted?
The 3.2-10mm varifocal lens is manually adjusted on-site during installation. It is not a motorised lens and cannot be focused or zoomed remotely through a DVR interface. Physical access to the camera is required to set the zoom and focus before locking off the mount.
- Can the HCO-7070R be used outdoors in wet conditions?
Yes. The camera carries an IP66 rating, which covers full protection against dust and against heavy jets of water from any direction. This makes it appropriate for exposed outdoor positions including eaves, wall corners, and mounting positions without additional shelter overhead.
- What does the IK10 rating mean for the HCO-7070R?
IK10 is the highest impact protection rating under the international IK scale. It indicates the camera housing can withstand up to 20 joules of direct impact energy, equivalent to a 5kg object dropped from approximately 400mm. This is relevant at industrial sites or externally mounted positions where accidental or deliberate physical contact with the camera is a possibility.
- Which power supply should I use with the HCO-7070R?
The HCO-7070R accepts both 24V AC and 12V DC, with a maximum power draw of 5.8W. This dual input allows integration with most existing analogue camera power infrastructure. Use whichever supply voltage is already in place on-site. The HCO-7070R is available through Security Wholesalers and is compatible with standard analogue camera power distribution equipment commonly found in commercial installations.
