Product SKU: HAN-QND-8020R
Product Overview

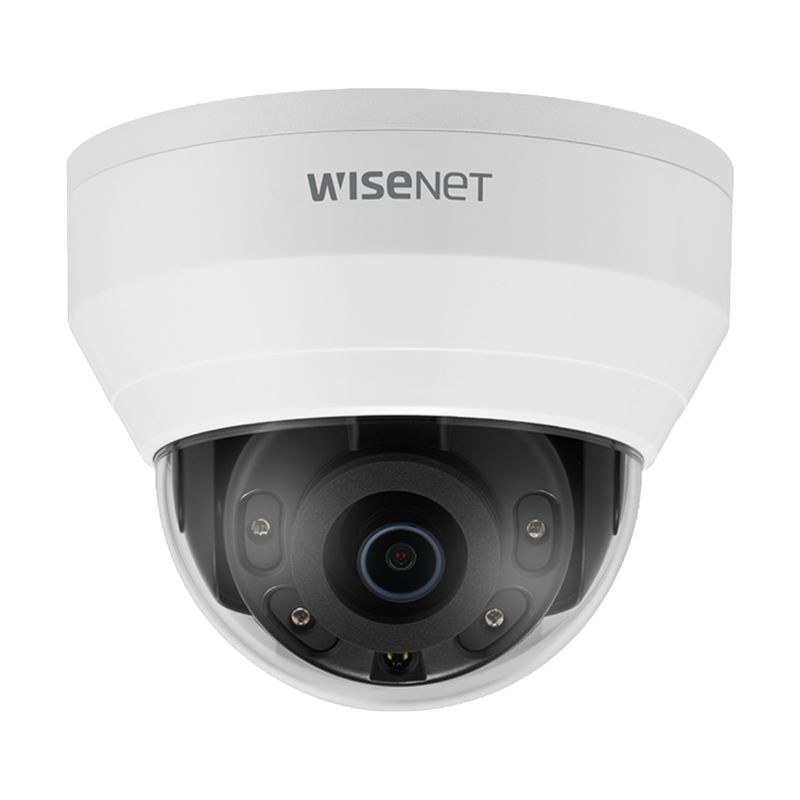

For small to medium-sized commercial interiors needing dependable 5MP coverage, the Hanwha QND-8020R is a compact indoor dome camera from the Wisenet Q Series, designed for ceiling-mounted installation in retail, banking, offices, and similar environments. Featuring a fixed 4mm lens and 5MP sensor delivering up to 30fps under H.265 or H.264, it provides detailed image capture across a broad field of view without the cost of a motorised or variable lens. The 120dB Wide Dynamic Range allows the camera to handle mixed lighting conditions such as areas near windows, entry foyers, or sales floors where bright and shadowed zones coexist. WiseStream II compression can reduce bandwidth consumption by up to 75% when combined with H.265, making it a practical choice for bandwidth-conscious network deployments. Defocus detection and hallway view mode are also included, adding operational value on corridors, aisles, and passage-style layouts.
Key Capabilities
5MP Resolution at 30fps
At 5 megapixels and up to 30 frames per second, the QND-8020R captures fine detail across retail floors, cash counters, and office reception areas, providing footage that can be reviewed for incidents without sacrificing frame rate.
120dB Wide Dynamic Range
The 120dB WDR handles scenes where bright natural light from windows or entry doors creates harsh contrast against shadowed interiors, allowing both highlights and dark areas to remain visible and usable in a single frame.
WiseStream II Compression
WiseStream II dynamically adjusts the bitrate in real time based on scene complexity. Combined with H.265, bandwidth usage can be reduced by up to 75% compared to standard H.264, reducing storage requirements and easing network load across multi-camera deployments.
Hallway View Mode
The hallway view feature rotates the image to a portrait-style 9:16 aspect ratio, making it well suited to long, narrow indoor spaces such as corridors, aisles, and passageways where a standard widescreen frame leaves wasted vertical space.
Defocus Detection
Defocus detection identifies when the camera image has become blurred, whether through tampering, deliberate obstruction, or lens movement, and triggers an alert so operators can respond before the camera becomes ineffective for monitoring purposes.
Best For
- Retail and Banking Interiors: The 5MP fixed 4mm lens and 120dB WDR suit open indoor environments such as shop floors, teller counters, and service desks where contrast from overhead lighting or street-facing windows is a practical challenge.
- Corridor and Aisle Monitoring: Hallway view mode makes this camera a practical option for long narrow indoor runs such as office corridors, storage aisles, or passage areas where a standard wide aspect ratio wastes resolution on blank walls.
- Bandwidth-Limited Installations: Sites running shared or constrained networks benefit from WiseStream II combined with H.265, which can reduce bandwidth consumption by up to 75% compared to H.264 without reducing image resolution.
Why Choose the Hanwha QND-8020R
The QND-8020R stands out within the Q Series entry tier by combining a genuine 120dB WDR rating with WiseStream II compression, a pairing that addresses two of the most common complaints in budget indoor surveillance: washed-out images near windows and excessive storage consumption. At 5MP with 30fps output, it delivers more usable detail than many standard 2MP or 4MP fixed dome cameras deployed in comparable commercial settings. The 20m IR night performance and defocus detection round out a feature set that goes beyond basic motion recording. The hallway view mode removes the need to over-specify or reposition cameras in corridor-heavy layouts. Available through Security Wholesalers as part of the Hanwha Wisenet Q Series range, the QND-8020R suits installers and end users seeking capable indoor coverage without the cost of AI-driven analytics or motorised lens options.
Buyer Decision Tips
Note on Product Status: The HAN-QND-8020R is listed as obsolete and has been replaced by the QNV-8020R. If you are planning a new installation, review the replacement model before purchasing. The QND-8020R is suitable for like-for-like replacements in existing indoor Q Series deployments where the original camera specifications are needed to maintain consistency, but it should not be specified as the primary option for new projects.
Key Features & Technical Specifications
| Model |
Hanwha Wisenet QND-8020R |
| Series |
Wisenet Q Series |
| Resolution |
5MP |
| Lens Type |
Fixed |
| Focal Length |
4mm |
| Maximum Frame Rate |
30fps at 5MP |
| Video Compression |
H.265, H.264, MJPEG |
| Multiple Streaming |
Supported |
| Wide Dynamic Range |
120dB WDR |
| Day/Night |
True day/night |
| IR Range |
20m |
| Smart Compression |
WiseStream II |
| Video Analytics |
Motion detection, tampering detection, defocus detection |
| Hallway View |
Supported |
| Housing Type |
Indoor dome |
| Product Status |
Obsolete – replaced by QNV-8020R |
Ideal Use Cases
Retail Shop Floors
The 5MP resolution and 4mm lens provide broad coverage across open retail areas, while the 120dB WDR manages the contrast created by front windows or overhead lighting. Defocus detection adds a layer of camera health monitoring in unattended overnight environments.
Bank and Financial Premises
Indoor domes are a standard choice for teller counters and service areas where a low-profile camera profile is expected. The 5MP detail and WDR performance support the image quality requirements typical of financial venue monitoring.
Office Corridors and Hallways
Hallway view mode allows the image to be rotated to a vertical 9:16 aspect ratio, maximising coverage along narrow indoor corridors and reducing the number of cameras needed to cover passage areas end to end.
Like-for-Like Replacement Deployments
Existing Q Series indoor installations that require a matching unit to maintain system consistency can use the QND-8020R to replace a failed or damaged camera while preserving the original resolution, lens angle, and compression settings already configured on the recorder.
Choosing the Right Model
- Choose this model if: You are replacing an existing QND-8020R in a current indoor Q Series installation and need to maintain the same 5MP, 4mm fixed lens, and WiseStream II configuration already in use across your system.
- Choose a different model if: You are specifying a new installation. This model is obsolete and its replacement should be reviewed before committing to a new indoor dome deployment. Additionally, if outdoor coverage is required, this indoor dome does not carry an ingress protection or vandal resistance rating suitable for exterior use.
FAQs
- Is the HAN-QND-8020R still available for purchase?
The QND-8020R has been listed as obsolete and replaced by the QNV-8020R. Stock availability may be limited. If you are planning a new installation rather than a like-for-like replacement, it is strongly recommended to review the current replacement model before purchasing. The team at Security Wholesalers can confirm current stock status and advise on the most appropriate option for your project.
- Can this camera be installed outdoors?
No. The QND-8020R is an indoor dome camera and does not carry an IP or IK rating confirmed for outdoor or exposed installations. It is designed for ceiling-mounted use inside buildings such as retail stores, offices, and banking premises. For outdoor or semi-exposed locations, an appropriately rated outdoor dome or turret camera should be specified instead.
- What does 120dB WDR mean in a practical indoor setting?
Wide Dynamic Range at 120dB allows the camera to process scenes that contain both very bright and very dark areas simultaneously. In an indoor context, this is useful in areas near shopfront windows, glass entrance doors, or mixed artificial and natural lighting where a standard camera would produce either a blown-out background or an underexposed subject.
- How does WiseStream II affect storage requirements?
WiseStream II is a dynamic compression technology that reduces the bitrate during scenes with low motion or uniform backgrounds, while preserving image quality during activity. When combined with H.265, total bandwidth and storage consumption can be reduced by up to 75% compared to H.264 alone. This directly reduces the storage capacity required on the connected NVR or recording system.
- What is hallway view mode and when is it useful?
Hallway view rotates the camera’s output to a portrait 9:16 aspect ratio rather than the standard 16:9 widescreen format. This maximises the usable field of view in long, narrow spaces such as corridors, aisles, and passageways, where a standard widescreen frame captures mostly wall rather than the length of the passage being monitored.
- What does defocus detection do on the QND-8020R?
Defocus detection monitors the sharpness of the camera image and generates an alert when the image becomes blurred beyond a set threshold. This can occur as a result of deliberate tampering, accidental lens movement, or moisture on a dome cover. The alert allows system operators to identify a compromised camera before it creates a gap in recorded coverage.
