Does the HCV-7010R work with an IP NVR or PoE switch?

No. The HCV-7010R is an AHD coaxial camera and requires an AHD-compatible DVR or XVR to operate. It does not connect to a PoE NVR or PoE switch. If your current or planned recorder uses Ethernet inputs only, this camera is not compatible without additional conversion hardware.

What does the IK10 rating mean for outdoor dome installation?

IK10 is the highest impact protection classification under the IEC 62262 standard, indicating the housing can withstand a 20 joule impact. For dome cameras mounted in accessible outdoor positions such as low eaves, stairwells, or building perimeters, this provides meaningful protection against both deliberate tampering and accidental contact.

What is the maximum cable distance for this camera?

The HCV-7010R supports AHD coaxial transmission up to 500m from the recording device. This makes it suitable for large sites where camera positions are far from the central DVR or XVR location, provided the cable is standard RG59 or equivalent coaxial.

What resolution does this camera record at?

The HCV-7010R records at QHD resolution, 2560 x 1440 pixels, at up to 30 frames per second. This is a confirmed hardware specification from the 1/3-inch 4MP CMOS progressive scan sensor, not an interpolated or upscaled value.

Can the camera be adjusted after installation to change the viewing direction?

Yes. The HCV-7010R dome supports pan adjustment from 0 to 350 degrees, tilt from 0 to 67 degrees, and rotation from 0 to 355 degrees. This allows the lens direction to be set during installation to frame the intended coverage area before the dome cover is secured.

Is this camera available with a longer IR range or a varifocal lens?

The HCV-7010R is specified with a fixed 2.8mm lens and 20m IR. The Hanwha Wisenet AHD camera range available through Security Wholesalers includes other models in the HCV series with different lens and IR configurations. Check the product datasheet or contact the team to confirm which variant suits your installation requirements.

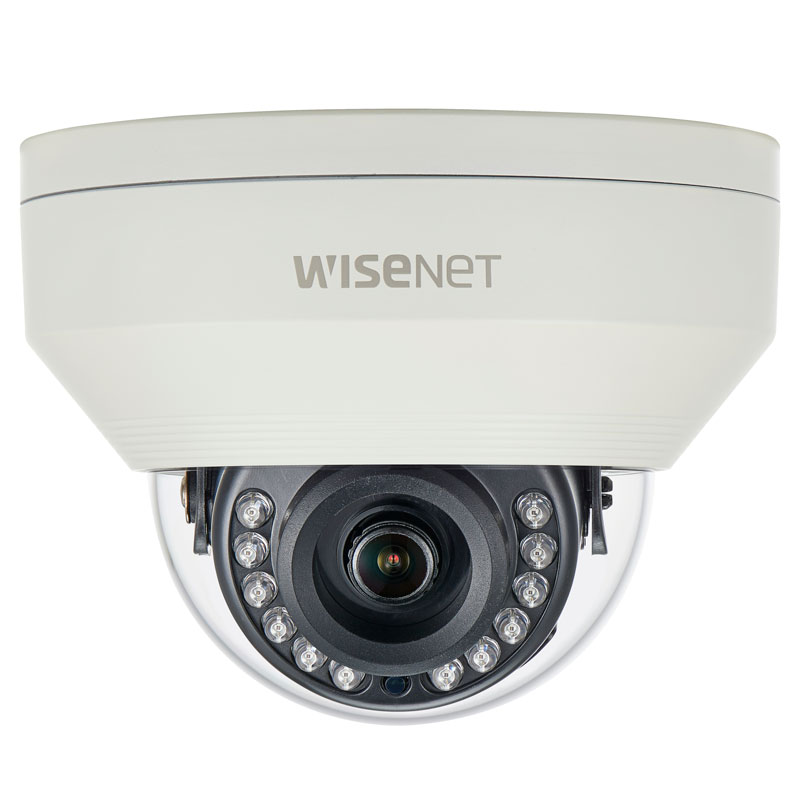

Hanwha Wisenet HAN-HCV-7010R HD+ 4MP AHD Outdoor Dome, DWDR, 20m IR, IP66, IK10, 12VDC, 2.8mm

$322.00

FREE DELIVERYWARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

Hanwha Wisenet HCV-7010R | 4MP AHD Outdoor Dome | 2.8mm | IP66 | IK10

The Hanwha Wisenet HCV-7010R delivers a 4MP HD+ analogue dome camera designed for outdoor surveillance in demanding environments. Featuring QHD resolution at 2560 x 1440 at 30fps, it provides sharp, detailed footage across a wide range of conditions. Built with a 2.8mm fixed lens and 20m IR night vision with day/night ICR switching, it maintains reliable visibility in low-light settings. It also includes DWDR for improved image clarity in high-contrast scenes, along with IP66 weatherproofing and IK10 impact resistance for robust outdoor use.

Key Features

4MP QHD Resolution: Captures footage at 2560 x 1440 at 30fps for sharp, detailed images.
20m IR Night Vision: Day/night ICR switching ensures consistent visibility in low-light conditions.
DWDR: Digital Wide Dynamic Range reduces overexposure and improves clarity in high-contrast scenes.
AHD Analogue Transmission: Supports transmission distances of up to 500m over coaxial cable.
IP66 & IK10 Rated: Weatherproof and impact-resistant construction suited to tough outdoor installations.
Plug and Play: Straightforward installation with no complex configuration required.

Additional Information

Hanwha HCV-7010R Datasheet

$322.00 inc GST +3 Year Warranty & Support

Description
Specifications

Product SKU: HCV-7010R

Product Overview

Built for outdoor ceiling and wall mounting where both weathering and physical impact are daily concerns, the Hanwha Wisenet HCV-7010R is a 4MP AHD dome camera rated IP66 for weather resistance and IK10 for vandal protection. Featuring a 2560 x 1440 QHD resolution at 30fps from a 1/3-inch CMOS progressive scan sensor, it captures sharp wide-area detail through a fixed 2.8mm lens. The built-in IR illumination reaches 20m, supported by true day and night switching via an ICR filter, bringing minimum colour sensitivity down to 0.26 lux and zero-lux performance in full IR mode. DWDR handles scenes with mixed lighting, and 2D DNR keeps footage clean in low-light conditions. Operating on 12V DC at up to 5W, the HCV-7010R connects over coaxial cable with a maximum transmission distance of 500m, making it well suited to upgrading or extending existing coax infrastructure at commercial or industrial sites.

Key Capabilities

QHD 4MP Resolution at 30fps

The 2560 x 1440 sensor delivers quad HD clarity at a full 30 frames per second, capturing usable detail across wide entry points, car parks, and outdoor walkways without dropping frame rate in recording.

IK10 Vandal-Resistant Dome Housing

The aluminium dome housing carries an IK10 impact rating, the highest standard classification for vandal resistance. This makes the HCV-7010R appropriate for mounting in exposed locations where tampering or accidental impact is a realistic risk.

IP66 All-Weather Protection

Rated IP66, the camera is fully sealed against dust ingress and protected from powerful water jets, supporting permanent outdoor installation under eaves, on soffits, or on external walls exposed to Australian weather conditions.

20m IR with ICR Day-Night Switching

A built-in IR array illuminates up to 20m in complete darkness, combined with a mechanical ICR filter that switches between colour and monochrome modes automatically. Colour sensitivity of 0.26 lux (F1.8) handles poorly lit conditions before IR activates.

500m Coax Transmission Range

AHD signal transmission over coaxial cable extends up to 500m from the recorder, enabling long cable runs across large sites without signal degradation. This allows straightforward integration into existing coax-based systems or new long-run installations.

Best For

Coax Infrastructure Upgrades: Sites running existing coaxial cable can adopt the HCV-7010R without rewiring, with AHD transmission supporting cable runs up to 500m.
Outdoor Dome Mounting Where Tampering is a Concern: The IK10-rated aluminium dome body withstands direct physical impact, making it appropriate for accessible outdoor mounting positions such as low eaves, stairwells, and building perimeters.
Wide-Angle Entry and Corridor Coverage: The 2.8mm fixed lens captures a broad field of view suited to entry points, doorways, and short-to-medium distance corridor monitoring where wider coverage is preferred over long-range zoom.
Low-Light Outdoor Areas: With 0 lux performance in IR mode and 20m IR range, the HCV-7010R covers carpark entries, loading areas, and yard perimeters after dark without relying on ambient lighting.

Why Choose the HCV-7010R

The HCV-7010R stands apart from basic AHD dome cameras through the combination of genuine QHD 4MP resolution, confirmed IK10 vandal resistance, and IP66 weatherproofing in a compact 120.3 x 91.7mm aluminium housing. Lower-cost AHD domes often carry only IK08 or lower ratings and operate at 1080p, meaning they cannot match the image detail or physical robustness this model provides. The 500m coax transmission distance is a practical advantage on large commercial or industrial sites where long cable runs are unavoidable. DWDR handles backlit scenes at entrances and windows that would otherwise wash out on simpler units. DWDR, 2D DNR, and ICR are all confirmed hardware-level features rather than software approximations. Available through Security Wholesalers, the HCV-7010R suits installers who need a durable, high-resolution AHD dome that performs reliably in exposed outdoor positions without requiring a shift to IP infrastructure.

Buyer Decision Tips

AHD vs IP: The HCV-7010R transmits over coaxial cable using the AHD standard, not Ethernet. It requires an AHD-compatible DVR or XVR, not a PoE NVR. If your site runs Cat5e or Cat6 cabling and uses a PoE switch or NVR, this camera will not connect directly. Confirm your recorder’s input types before purchasing.

Fixed 2.8mm Lens: The 2.8mm lens provides a wide field of view well suited to close and medium-distance coverage of entrances, corridors, and open areas. It is not adjustable. If your installation requires tighter framing of a distant subject or a specific narrow zone, a varifocal lens model would be more appropriate.

Key Features & Technical Specifications

Model	HCV-7010R
Resolution	QHD 2560 x 1440 at 30fps
Image Sensor	1/3-inch 4MP CMOS progressive scan
Lens	Fixed 2.8mm
Minimum Illumination (Colour)	0.26 lux at F1.8
Minimum Illumination (B/W)	0 lux (IR LED on)
IR Range	20m
Day/Night	ICR (mechanical IR cut filter)
Wide Dynamic Range	DWDR
Noise Reduction	2D DNR
Signal Format	AHD (coaxial)
Transmission Distance	Up to 500m (max)
Pan / Tilt / Rotate	0-350 degrees pan / 0-67 degrees tilt / 0-355 degrees rotate
Power Supply	12V DC
Power Consumption	Max 5W
Ingress Protection	IP66
Impact Rating	IK10
Housing Material	Aluminium, ivory finish
Dimensions	120.3 x 91.7mm
Weight	510g

Ideal Use Cases

Commercial Building Entries

The 2.8mm wide-angle lens and QHD 4MP resolution make the HCV-7010R effective at recording activity across building entries and reception approaches, capturing broad scene detail without blind spots close to the camera.

Exposed Outdoor Mounting Positions

With both IP66 and IK10 ratings confirmed, this dome camera is suited to low eave, stairwell, and external wall mounting where the camera is accessible to weather and potential contact, unlike housing grades that only achieve IK08.

AHD System Expansions and Upgrades

Sites running existing DVR or XVR infrastructure over coaxial cable can add the HCV-7010R as a plug-and-play upgrade, gaining 4MP QHD resolution on existing wiring without replacing cabling or recorders.

Car Parks and Loading Areas After Dark

The 20m IR range and 0 lux capability in IR mode allow the HCV-7010R to maintain usable footage in unlit or poorly lit outdoor areas such as car parks, yard entries, and loading dock approaches through the night.

Choosing the Right Model

Choose this model if: You are operating an AHD or analog HD coax system and need a 4MP QHD dome with confirmed IK10 vandal resistance, IP66 weather protection, and up to 500m cable run capability in a compact dome form factor.
Choose a different model if: Your site uses PoE NVR infrastructure over Cat5e or Cat6 – this camera requires a coax-compatible DVR or XVR and cannot connect to a PoE switch. Similarly, if your scene requires zoomed framing of a specific distant subject, a varifocal lens dome would provide better adjustability than this fixed 2.8mm unit.

FAQs

Does the HCV-7010R work with an IP NVR or PoE switch?
No. The HCV-7010R is an AHD coaxial camera and requires an AHD-compatible DVR or XVR to operate. It does not connect to a PoE NVR or PoE switch. If your current or planned recorder uses Ethernet inputs only, this camera is not compatible without additional conversion hardware.
What does the IK10 rating mean for outdoor dome installation?
IK10 is the highest impact protection classification under the IEC 62262 standard, indicating the housing can withstand a 20 joule impact. For dome cameras mounted in accessible outdoor positions such as low eaves, stairwells, or building perimeters, this provides meaningful protection against both deliberate tampering and accidental contact.
What is the maximum cable distance for this camera?
The HCV-7010R supports AHD coaxial transmission up to 500m from the recording device. This makes it suitable for large sites where camera positions are far from the central DVR or XVR location, provided the cable is standard RG59 or equivalent coaxial.
What resolution does this camera record at?
The HCV-7010R records at QHD resolution, 2560 x 1440 pixels, at up to 30 frames per second. This is a confirmed hardware specification from the 1/3-inch 4MP CMOS progressive scan sensor, not an interpolated or upscaled value.
Can the camera be adjusted after installation to change the viewing direction?
Yes. The HCV-7010R dome supports pan adjustment from 0 to 350 degrees, tilt from 0 to 67 degrees, and rotation from 0 to 355 degrees. This allows the lens direction to be set during installation to frame the intended coverage area before the dome cover is secured.
Is this camera available with a longer IR range or a varifocal lens?
The HCV-7010R is specified with a fixed 2.8mm lens and 20m IR. The Hanwha Wisenet AHD camera range available through Security Wholesalers includes other models in the HCV series with different lens and IR configurations. Check the product datasheet or contact the team to confirm which variant suits your installation requirements.

Additional Information

HCV-7010R / HCV-7020R / HCV-7030R Datasheet

SKU: HCV-7‌010R Categories: Hanwha 4MP Cameras, Hanwha Coax, Hanwha Vision CCTV Cameras & Security Systems
