Product SKU: PNM-9084QZ
Product Overview

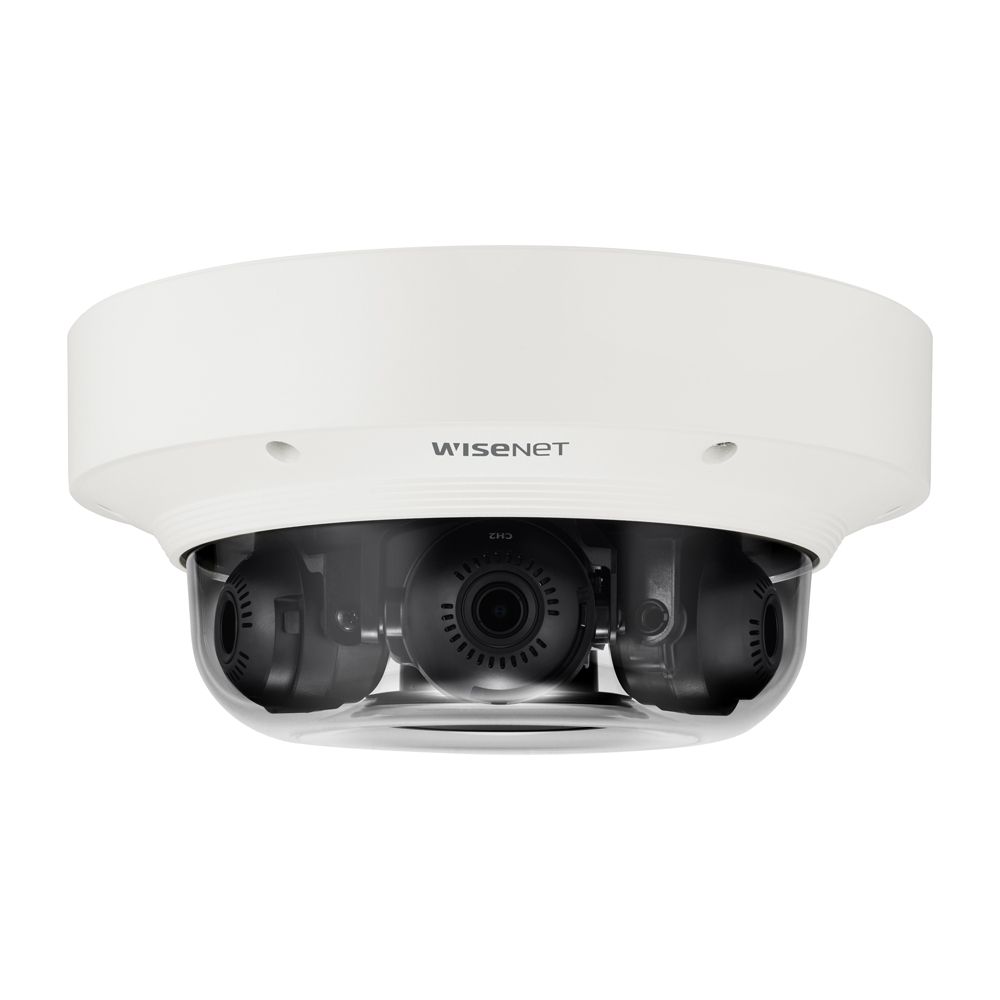

Wide-area coverage across a campus perimeter, transport hub, or critical infrastructure site typically demands multiple cameras, multiple cable runs, and multiple IP addresses. The Hanwha Vision PNM-9084QZ changes that equation by housing four independent 2MP sensors in a single unit, delivering a combined 8MP resolution at up to 60fps and covering multiple directions simultaneously under one network address. Each sensor is fitted with a motorised vari-focal 3.0 to 6.0mm lens, giving installers remote pan, tilt, rotate, and zoom (PTRZ) adjustment after mounting, including a full 90-degree look-down tilt for high or corner installations. Equipped with onboard analytics covering loitering, directional detection, fog detection, tampering, and enter/exit zone detection, the PNM-9084QZ operates as an intelligent edge device rather than a passive image source. Built to IP66, IK10, and NEMA4X standards, it is suited to demanding outdoor environments where weather exposure and vandal risk are ongoing concerns.
Key Capabilities
4-Sensor Multi-Directional Coverage
Four independent 2MP sensors deliver 8MP of combined resolution across multiple directions from a single housing and a single IP address. This eliminates the need for separate cameras at complex intersections, corners, or open-area perimeters where coverage from multiple angles is required simultaneously.
Full Remote PTRZ Adjustment
Pan, tilt, rotate, and zoom can all be adjusted remotely after the camera is physically mounted. With a full 90-degree look-down tilt capability, installers can achieve precise framing even at height or in hard-to-reach locations, significantly reducing the need for return visits to adjust a mounted unit.
Motorised Vari-Focal Lenses (3.0-6.0mm)
Each sensor carries a motorised vari-focal lens with a 3.0 to 6.0mm range, producing a field of view from approximately 107 degrees down to 56.3 degrees per sensor. This gives each channel its own independent framing control, allowing the camera to cover both wide overview and tighter detail zones in the same installation.
Embedded Intelligent Analytics
Onboard analytics include loitering detection, directional detection, enter/exit zone detection, fog detection, and tampering alerts. These run directly on the camera without requiring an external VMS to process events, making the PNM-9084QZ a self-contained intelligent monitoring platform at the edge.
WiseStream II Compression
Hanwha’s WiseStream II variable bit-rate technology works alongside H.265 encoding to reduce bandwidth and storage demands without degrading image quality during active scenes. For a multi-sensor camera streaming 4 channels simultaneously, this compression efficiency has a direct impact on NVR storage sizing and network load.
IP66, IK10 and NEMA4X Rated Housing
The housing carries IP66 dust and water ingress protection, IK10 impact resistance, and NEMA4X certification for harsh outdoor environments. This combination makes the PNM-9084QZ suitable for exposed outdoor mounting where dust, driving rain, extreme temperature variation, and incidental physical contact are all realistic operating conditions.
Best For
- Large Campus Perimeters: The 4-sensor design covers multiple approach directions simultaneously from a single pole or wall mount, reducing the number of camera positions and cable runs across a wide site.
- Transport and Transit Hubs: Simultaneous multi-directional monitoring at 8MP combined resolution suits busy environments such as bus terminals, rail stations, and airport landside areas where coverage gaps are not acceptable.
- Critical Infrastructure Sites: Embedded loitering, directional, and enter/exit analytics provide event-driven alerting at the edge, suited to substations, water facilities, and similar sites where staffing monitoring resources is a challenge.
- High or Difficult Mounting Positions: Full remote PTRZ adjustment with 90-degree look-down tilt means installers can mount the unit and fine-tune every sensor’s framing from a laptop, avoiding repeated physical access to elevated or confined mounting locations.
- Projects Requiring Per-Channel Edge Recording: Four individual microSD card slots allow each sensor’s footage to be recorded independently to local storage, providing resilience if network or NVR connectivity is interrupted.
Why Choose the PNM-9084QZ
The PNM-9084QZ is not a simple wide-angle camera. It is a four-channel intelligent platform that replaces what would otherwise require 4 separate cameras, 4 cable runs, and 4 IP address allocations. Each of the four 2MP sensors has its own independently adjustable motorised vari-focal lens and can be aimed via remote PTRZ, including the 90-degree look-down function that most fixed multi-sensor cameras cannot match. The embedded analytics suite, including loitering, directional detection, fog detection, and enter/exit zone logic, means the camera contributes active intelligence rather than passive pixels. WiseStream II compression reduces the storage and bandwidth penalty of running 4 simultaneous streams. For system designers and project specifiers sourcing this camera through Security Wholesalers, the HPoE (IEEE802.3bt) single-cable power and ONVIF Profile S/T compatibility simplify integration into existing infrastructure without proprietary constraints.
Buyer Decision Tips
Coverage Planning: Each of the 4 sensors covers a field of view between approximately 56.3 degrees (at 6mm) and 107 degrees (at 3mm). Before specifying this camera, map out which directions each sensor will need to cover and whether the mounting position allows the PTRZ range to reach each target zone. The 90-degree look-down tilt is an asset for elevated mounting, but horizontal pan range per sensor should still be confirmed against your site layout to avoid coverage gaps.
Storage and NVR Capacity: The PNM-9084QZ streams 4 independent channels simultaneously, which means your NVR must support multi-sensor camera input and have sufficient channel capacity for all 4 streams. Factor HPoE (IEEE802.3bt) switch or injector availability into your infrastructure plan, as standard PoE (802.3af/at) will not provide adequate power for this camera. Use Hanwha’s WiseStream II-aware recording platforms to take full advantage of the compression efficiency built into this unit.
Key Features & Technical Specifications
| Model |
Hanwha Vision PNM-9084QZ |
| Total Resolution |
8MP combined (4 x 2MP sensors) |
| Number of Sensors |
4 independent sensors |
| Lens Type |
Motorised vari-focal, 3.0-6.0mm per sensor |
| Field of View (per sensor) |
Approximately 107 degrees (at 3mm) to 56.3 degrees (at 6mm) |
| PTRZ |
Full remote pan, tilt, rotate, zoom adjustment including 90-degree look-down tilt |
| Maximum Frame Rate |
Up to 60fps |
| Video Compression |
H.265, H.264, MJPEG with WiseStream II |
| Onboard Analytics |
Loitering detection, directional detection, enter/exit zone detection, fog detection, tampering detection |
| Ingress Protection |
IP66, IK10, NEMA4X |
| Power Input |
HPoE (IEEE802.3bt) |
| Edge Storage |
4 x microSD/SDHC/SDXC slots (one per sensor channel) |
| Audio I/O |
Audio input/output supported |
| Alarm I/O |
Alarm input and output supported |
| Network Protocol |
IPv4/IPv6, SSL/TLS, 802.1X |
| ONVIF Compliance |
ONVIF Profile S, Profile T |
| IP Addresses Required |
1 (single address covers all 4 sensors) |
Ideal Use Cases
University and Hospital Campuses
Large grounds with multiple pedestrian approaches benefit from the PNM-9084QZ’s 4-sensor simultaneous coverage, reducing the number of mounting positions needed at building corners and open plaza areas while maintaining 8MP combined detail for incident review.
Transport Interchanges and Rail Stations
Platforms, concourses, and kiss-and-ride zones all require multi-directional oversight. The PNM-9084QZ covers multiple directions under a single IP address with embedded loitering and directional detection, supporting both passive monitoring and active alerting in high-throughput public environments.
Critical Infrastructure Perimeters
Power substations, water treatment facilities, and telecommunications sites require perimeter coverage with intelligent event detection. The embedded enter/exit zone and loitering analytics reduce the operator burden of monitoring continuous footage by triggering alerts only when defined behaviour thresholds are crossed.
Elevated or Hard-to-Access Mounting Points
The full remote PTRZ adjustment with 90-degree look-down tilt means a camera installed on a high pole, rooftop parapet, or underbridge structure can be aimed precisely after physical mounting, without scaffolding or elevated work platform access for fine-tuning.
Retail Centre Car Parks and Entry Plazas
Corner positions at car park entry ramps or pedestrian plaza intersections suit the multi-directional sensor layout, covering vehicle flow and pedestrian movement simultaneously. The IK10 rating provides a level of impact resistance appropriate for publicly accessible outdoor locations.
Projects with Network Address Constraints
Managed networks, air-gapped systems, and infrastructure projects with tight IP address allocation policies benefit from the PNM-9084QZ delivering 4 independent video channels under a single network address, simplifying network design and switch port planning.
Choosing the Right Model
- Choose this model if: You need multi-directional coverage from a single mounting point, require remote PTRZ lens adjustment post-installation (including 90-degree look-down), and want embedded analytics running at the edge across all 4 sensor channels without dependence on a VMS for basic event detection.
- Choose a different model if: Your site requires continuous optical zoom tracking of moving subjects across a large area, which is better served by a true PTZ camera with a long-range motorised zoom and auto-tracking capability. The PNM-9084QZ uses PTRZ for installation framing, not for dynamic live tracking of moving targets.
- Choose a different model if: Your application is a straightforward single-direction corridor or doorway where a single-sensor camera would cover the required zone without the added cost and complexity of a multi-sensor platform.
- Choose a different model if: Your switching and power infrastructure cannot support HPoE (IEEE802.3bt), as standard PoE will not power this unit and an HPoE-capable switch or injector will need to be factored into the project budget.
FAQs
- What does PTRZ mean on the PNM-9084QZ, and how is it different from a standard PTZ camera?
PTRZ stands for Pan, Tilt, Rotate, and Zoom. On the PNM-9084QZ, these adjustments are used during installation to remotely aim and focus each of the 4 sensors after the camera is physically mounted. It is not a dynamic live-tracking function. A standard PTZ camera moves continuously to follow subjects or respond to operator commands in real time. The PNM-9084QZ’s PTRZ is a commissioning and setup tool, not a live patrol mechanism.
- How many video streams does the PNM-9084QZ produce, and how does that affect NVR setup?
The camera produces 4 independent video streams, one from each 2MP sensor. Your NVR must support multi-sensor camera input and allocate 4 recording channels to this single unit. When planning storage, calculate retention based on 4 simultaneous streams. WiseStream II compression reduces the per-stream bit rate significantly, particularly during low-motion periods, which helps manage the overall storage requirement across all 4 channels.
- Does the 90-degree look-down tilt mean I can mount this camera directly overhead and aim downward?
Yes. The 90-degree tilt range allows each sensor to be aimed straight down, which is useful for overhead mounting on ceilings, high poles, or canopy structures where downward-facing coverage is needed. Combined with remote PTRZ adjustment, this allows precise positioning of each sensor from a laptop after the camera is secured, without requiring the installer to physically reposition the unit.
- What analytics are built into the PNM-9084QZ, and do they require a separate licence or VMS?
The confirmed onboard analytics include loitering detection, directional detection, enter/exit zone detection, fog detection, and tampering detection. These run on the camera itself and do not require an external VMS engine or additional licence to function. They generate alerts that can be sent to compatible recording platforms or monitoring systems via alarm output or network event notifications.
- What type of power does the PNM-9084QZ require, and will a standard PoE switch work?
The PNM-9084QZ requires HPoE, which is defined by the IEEE802.3bt standard and delivers up to 90W per port. Standard PoE (802.3af, up to 15.4W) and PoE+ (802.3at, up to 30W) will not supply sufficient power to operate this camera. An HPoE-capable switch or a dedicated HPoE injector is required as part of the installation infrastructure.
- Can each sensor record to its own storage card independently?
Yes. The PNM-9084QZ includes 4 microSD/SDHC/SDXC slots, one corresponding to each sensor channel. This allows channel-specific edge recording, meaning each sensor’s footage can be written to its own local card independently of the NVR connection. This provides a fallback recording layer if network connectivity to the recorder is disrupted.
- Is the PNM-9084QZ compatible with third-party VMS platforms?
Yes. The camera supports ONVIF Profile S and Profile T, which provides compatibility with a wide range of third-party video management systems. It also supports standard network protocols including IPv4/IPv6, SSL/TLS, and 802.1X for secure network integration. For native feature access including full WiseStream II efficiency and embedded analytics integration, a Hanwha-native VMS platform will provide the deepest compatibility.
- Where can I purchase the PNM-9084QZ in Australia, and is it available as part of a larger project supply?
The PNM-9084QZ is available through Security Wholesalers, which supplies Hanwha Vision cameras to installers and integrators across Australia. For project-scale orders or system design support, contact the Security Wholesalers team directly to discuss volume requirements and compatibility with your chosen NVR and switching infrastructure.
