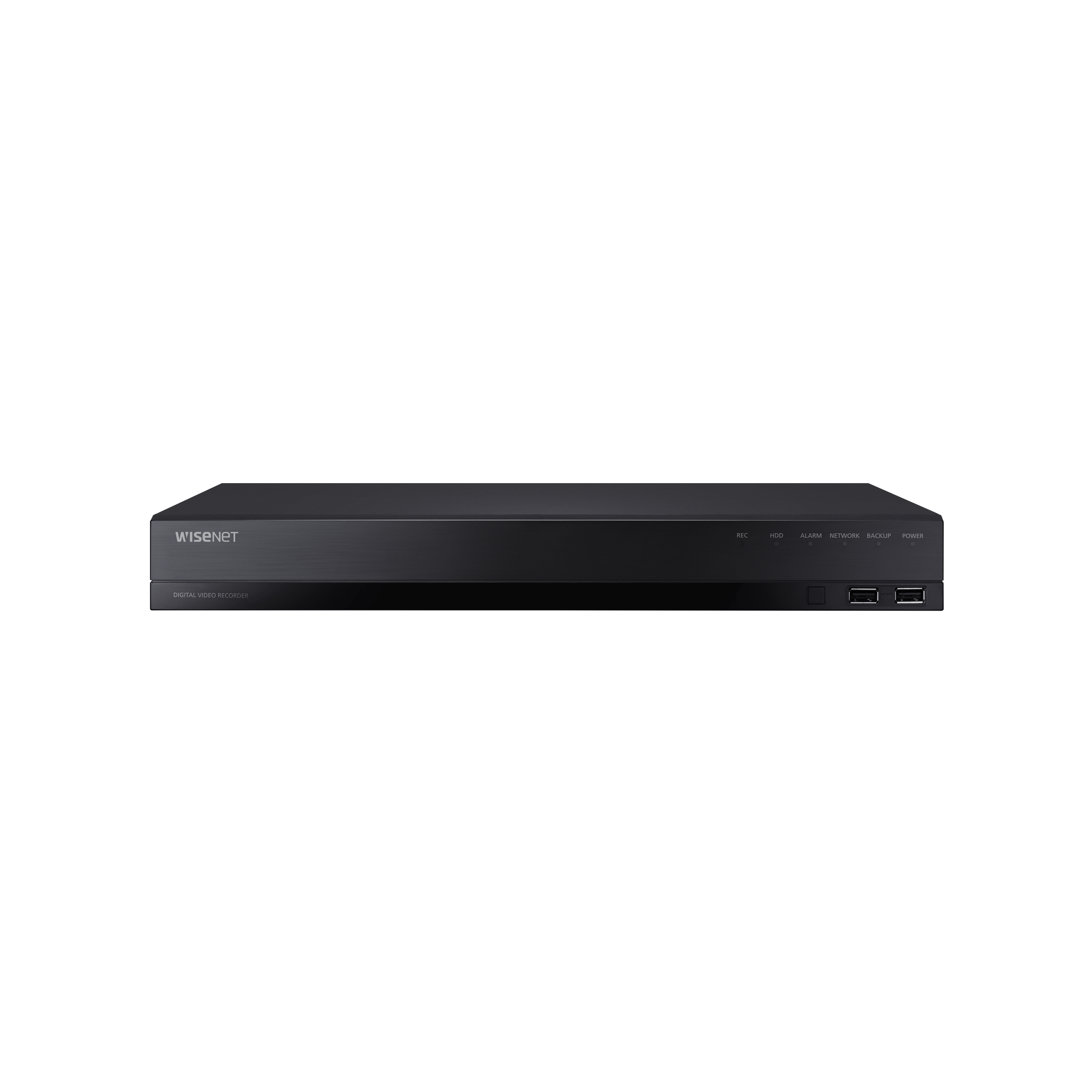

Hanwha Wisenet 16ch Pentabrid DVR, AHD/TVI/CVI/CVBS/IP H.265, 2x SATA, No HDD

Product SKU: HRX-1634

Product Overview

For installers managing sites with a mix of legacy analog cameras and newer IP devices, the Hanwha HRX-1634 offers a practical path forward without requiring a full camera replacement. This 16-channel Pentabrid DVR accepts AHD, HDTVI, HDCVI, CVBS, and IP inputs simultaneously, allowing existing coax-connected cameras to operate alongside network cameras on a single recorder. Featuring H.265 compression alongside H.264 and MJPEG support, it records analog channels at resolutions up to 8MP and manages a maximum recording bandwidth of 128Mbps. Equipped with 2 SATA HDD bays supporting up to 6TB per drive, the HRX-1634 provides up to 12TB of onsite storage capacity. It also integrates coaxial control for PTZ and camera settings over coax, dual HDMI/VGA monitor outputs, a spot monitor output, and P2P connectivity via QR code for remote access through the Wisenet Mobile app. NDAA and FCC compliance makes it suitable for projects with procurement requirements around supply chain integrity.

Key Capabilities

Best For

• Analog System Upgrades: Sites with existing coax infrastructure can retain current cameras while adding higher-resolution analog or IP cameras, all managed through the HRX-1634’s Pentabrid inputs.
• Commercial and Retail Installations: The 16-channel capacity, dual monitor outputs, and spot monitor output suit retail chains, warehouses, and commercial buildings where operators need multi-screen viewing at a central point.
• NDAA-Compliant Projects: Government, education, and enterprise projects with procurement policies requiring NDAA compliance can specify the HRX-1634 with confidence.
• Mixed-Technology Environments: Installers managing sites where camera types vary across locations or stages of upgrade will benefit from the ability to run AHD, TVI, CVI, CVBS, and IP cameras simultaneously on one recorder.

Why Choose the HRX-1634

The HRX-1634 stands apart from basic 16-channel DVRs through its genuine 5-in-1 Pentabrid input compatibility, which means a single recorder can handle a site’s full camera mix as it transitions from older CVBS cameras through to 8MP analog and IP devices. A simpler analog-only DVR cannot accept IP cameras, and a basic NVR cannot accept coax-connected analog cameras. The HRX-1634 bridges both worlds while supporting H.265 compression to keep storage requirements in check across the 2 SATA bays. The inclusion of 4 audio inputs, 16 alarm inputs, 4 relay outputs, and coaxial camera control adds integration capability that lower-cost recorders omit. NDAA and FCC compliance addresses procurement requirements on regulated projects. Available at Security Wholesalers, the HRX-1634 suits installers who need a recorder that can grow with a site without requiring a second recorder or a full system overhaul.

Buyer Decision Tips

Key Features & Technical Specifications

Model	HRX-1634
Recorder Type	5-in-1 Pentabrid DVR
Analog Input Types	AHD, HDTVI, HDCVI, CVBS, IP
Analog Channels	Maximum 16 channels
Network (IP) Channels	2 to 18 channels (depending on number of active analog channels), maximum 18 total
Maximum Camera Resolution	8MP
Recording Frame Rates	8MP: 15fps, 5MP: 20fps, 4MP: 30fps, 2MP: 30fps, 1MP: 30fps, 960H/720H: 30fps (per channel)
Video Compression	H.265, H.264, MJPEG
Recording Bandwidth	Maximum 128Mbps recording, 32Mbps playback
Storage	2 x SATA HDD bays, maximum 6TB per drive, maximum 12TB total (no HDD included)
Video Output	HDMI, VGA, and 1 x spot monitor output
Audio	4 x audio input, 1 x audio output
Alarm I/O	16 alarm inputs, 4 relay outputs
Coaxial Control	Supported
Network Protocol	Wisenet ONVIF
Remote Access	P2P via QR code (Wisenet Mobile app, Wisenet Viewer)
Power Supply	DC 12V
Dimensions	370 x 44 x 320mm
Weight	4.5kg
Compliance	NDAA compliant, FCC compliant

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your site uses a combination of analog and IP cameras, you need NDAA compliance, and 16 analog channels with expandable IP capacity meets your current and near-term channel requirements.
• Choose a different model if: You need more than 12TB of onsite storage, as the 2 SATA bay limit is a hard ceiling. A recorder with 4 or more HDD bays would be a better fit for sites requiring extended retention at high channel counts or high resolutions.
• Choose a different model if: Your installation is entirely IP-based with no analog cameras. A dedicated NVR would offer more IP channel density, broader IP camera compatibility, and PoE switching options that a Pentabrid DVR is not designed to provide.

FAQs

1. Can I mix different analog camera types on the same HRX-1634?
   Yes. The Pentabrid design allows AHD, HDTVI, HDCVI, and CVBS cameras to be connected simultaneously across the 16 analog inputs. You are not restricted to a single analog format, which is useful on sites where cameras from different brands or installation eras coexist on the same coax infrastructure.
2. How does the channel expansion from 16 to 18 work?
   The HRX-1634 supports a maximum of 18 total channels, shared between analog and IP inputs. When all 16 analog channels are in use, up to 2 IP channels can be added. If you reduce the number of active analog channels, the remaining capacity becomes available for additional IP cameras, up to a combined maximum of 18. The trade-off is always between analog and IP slots.
3. Does the HRX-1634 come with a hard drive?
   No. The HRX-1634 ships without a hard drive. It has 2 SATA bays, each supporting up to 6TB, for a maximum total of 12TB. Surveillance-grade drives such as WD Purple or Seagate SkyHawk are recommended for continuous recording workloads.
4. What does coaxial control allow me to do?
   Coaxial control lets you send PTZ commands and adjust camera settings over the same coax cable used for video, without running separate RS-485 control cabling. This is compatible with cameras that support coaxial control protocols (such as UTC over HDCVI or TVI). Not all analog cameras support coaxial control, so check camera compatibility before relying on this feature.
5. How does remote access work on the HRX-1634?
   The HRX-1634 uses Hanwha’s P2P service, which lets users connect remotely by scanning a QR code displayed on the recorder’s interface. This opens a connection through the Wisenet Mobile app on smartphones or through the Wisenet Viewer software on a PC, without requiring port forwarding or static IP configuration in most standard network setups.
6. What does NDAA compliance mean for this recorder?
   NDAA Section 889 compliance confirms that the HRX-1634 does not contain components from manufacturers listed under the relevant US federal procurement restrictions. For Australian government agencies, educational institutions, or enterprise customers with supply chain security policies, this compliance status simplifies procurement approval without requiring additional vendor assessments. Security Wholesalers can provide documentation to support compliance verification on request.
7. Can the HRX-1634 connect to a second monitor independently?
   Yes. The recorder includes both HDMI and VGA outputs for a standard dual-monitor setup, plus a dedicated spot monitor output. The spot monitor can display a single camera channel or cycle through selected channels on a separate screen, which is commonly used at reception desks or security stations that need a live single-channel view separate from the main operator display.

Additional Information

• DataSheet HRX-1634
