Dahua VTH5341G-W Android 10-inch digital indoor monitor

· Android 8.1
· More User-Friendly UI
· Ethernet and Wi-Fi
· 10” TFT Capacitive touch Screen, 1024×600
· Micro-SD Card optional, max 256GB

DHI-VTH5341G-W_datasheet



THIS IS A SPECIAL ORDER ITEM – Lead time is 6-8 weeks

$450.00 inc GST +3 Year Warranty & Support

> Android 8.1
> More User-Friendly UI
> Ethernet and Wi-Fi
> 10” TFT Capacitive touch Screen, 1024×600
> Micro-SD Card optional, max 256GB
System
Main Processor Embedded processor
Operating System Android 8.1
Network Protocol IPv4, TCP, SIP, UDP, RTSP
Basic
Screen Type Capacitive screen
Display Screen 10 inch TFT LCD
Resolution 1024×600
Video Compression H.264
Audio Compression PCM
Audio Input 1 omnidirectional microphone
Audio Output Built-in 1.5W speaker
Audio Mode Two-way voice call
Audio Enhancement Echo suppression/DNR
Audio Bit Rate 16KHz, 16Bit
Function
Information Release Text announcements released by the management center can be viewed
Communication Mode Full digital
Elevator Control You can control the elevator through the indoor monitor
Leave Videos or Text Messages Yes (SD card is needed)
DND Mode Do not disturb period can be set.
Extension Number Villa: 4

Apartment: 9
Wi-Fi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.4GHz
Wireless Security-Encryption 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Storage Micro SD storage, the maximum space is 256GB
Port
RS-485 1
Alarm Input 8
Alarm Output 1
Power Output 1 12V/100mA
Door Bell Yes, use alarm input port
Network Port 1 10M/100M Ethernet
Alarm
SOS Yes
Performance
Housing Material PC+ABS
Regular
Color Black
Power Supply 12V DC 1A
Standard POE
Installation Surface mount
Certifications CE
FCC
Accessory Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided
Product Dimensions 260 mm×170 mm×15 mm (10.24″×6.69″×0.59″) (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24″×6.69″×1″) (ports are counted)
Operating Temperature -10°C to +55°C (+14°F to +131°F)
Operating Humidity 10%RH–95%RH (Non-condensing)
Operating Altitude Less than 3,000 meters (9842.52 ft)
Power Consumption ≤1.5W (standby), ≤7W (working)
Net Weight 770g (1.70lb)
Gross Weight 1.1kg (2.43lb)
ImageNamePriceBuy
Dahua DH-PFS3006-4ET-60 Dahua 4 Port POE Switch (unmanaged)
Dahua DH-PFS3006-4ET-60 Dahua 4 Port POE Switch (unmanaged)$85.00 inc GST +3 Year Warranty & Support
Read more
Dahua DHI-VTO2101E-P 2MP IP Vandalproof Outdoor Station, Viewing Wide Angle 100 degrees
Dahua DHI-VTO2101E-P 2MP IP Vandalproof Outdoor Station, Viewing Wide Angle 100 degrees$275.00 inc GST +3 Year Warranty & Support

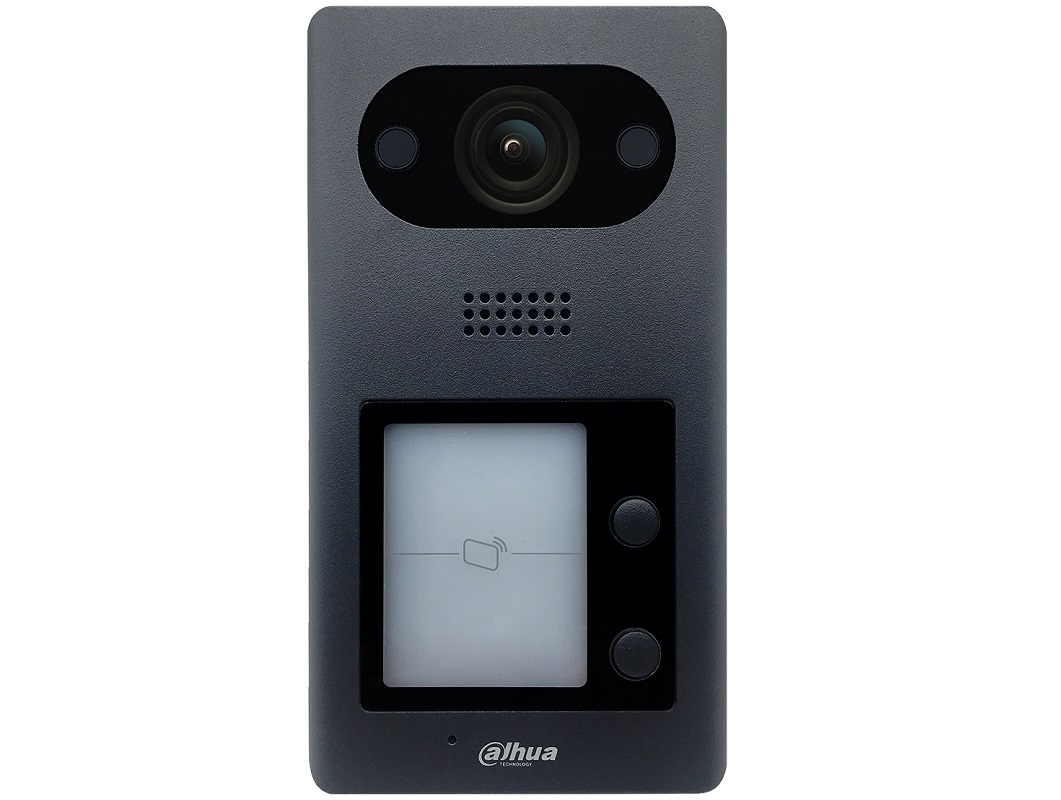

Dahua DHI-VTO3211D-P2, Dahua 2MP IP Villa 2 button Outdoor Station
