Product SKU: DH-CS4006-4ET-60
Product Overview

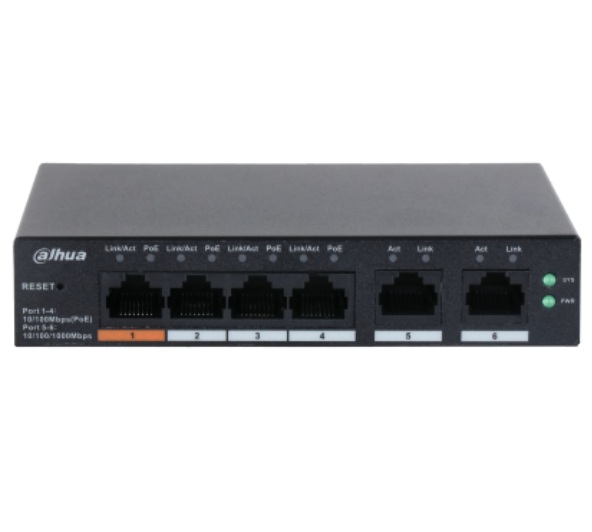

The Dahua DH-CS4006-4ET-60 is a compact six-port cloud-managed Layer 2 switch designed for small IP surveillance and business networks. Ports 1–4 provide 10/100Mbps PoE connections for cameras and other compatible powered devices, while two 10/100/1000Mbps Gigabit uplinks connect to an NVR, router or core network. The switch delivers a shared PoE budget of up to 60W, with Port 1 supporting Hi-PoE output up to 60W and Ports 2–4 supporting up to 30W each. DoLynk Care cloud management, web configuration, network-topology visualisation, PoE Watchdog and loop protection support remote maintenance and troubleshooting. Long-distance PoE transmission can reach up to 250 metres with bandwidth reduced to 10Mbps. The included 53V DC power adapter, compact sheet-metal enclosure and desktop or wall-mount installation make the unit suitable for homes, offices, shops, cafés, factories and other small network installations.
Key Capabilities
Four PoE Camera Ports
Four 10/100Mbps PoE ports provide network data and power for compatible IP cameras, intercom devices and other supported equipment through suitable Ethernet cabling.
Two Gigabit Uplinks
Two 10/100/1000Mbps RJ45 uplinks provide higher-bandwidth connections to a compatible NVR, router, server or upstream network switch.
60W Shared PoE Budget
The four powered ports share a total budget of up to 60W. Port 1 supports Hi-PoE output up to 60W for a compatible higher-power device.
DoLynk Care Cloud Management
App-based cloud management supports remote network monitoring, device-status information, fault alarms, notifications and topology visualisation for supported connected equipment.
250-Metre Long-Distance PoE
The PoE ports can transmit power and data up to 250 metres in extended mode, with the port bandwidth reduced to 10Mbps.
PoE Watchdog and Loop Protection
PoE Watchdog can restart an unresponsive powered-device port, while loop protection helps detect and eliminate network loops that could cause broadcast storms.
Best For
- Small CCTV Systems: Powers up to four compatible IP cameras while providing two Gigabit connections for the recorder and broader network.
- Home and Small-Business Networks: Combines compact dimensions with desktop or wall mounting for homes, offices, cafés and retail sites.
- Remote Maintenance: DoLynk Care cloud management and topology visualisation assist technicians with monitoring and fault identification.
- Long Cable Runs: Extended PoE mode supports compatible devices installed up to 250 metres away where 10Mbps bandwidth is sufficient.
- Higher-Power PoE Devices: Port 1 can supply up to 60W through Hi-PoE while remaining within the switch’s total 60W power budget.
Why Choose the DH-CS4006-4ET-60
The DH-CS4006-4ET-60 provides more control than an unmanaged four-port PoE switch while remaining compact enough for small surveillance installations. Its two Gigabit uplinks avoid restricting the NVR or upstream network to the 100Mbps speed of the camera ports, while the 60W budget suits several standard PoE cameras or one compatible high-power device on Port 1. DoLynk Care management, LLDP topology discovery, PoE Watchdog, loop protection and port-based VLAN functions support easier maintenance and network organisation. Available through Security Wholesalers, this switch should be selected after calculating every device’s maximum power demand and confirming that the access-port speeds, uplink arrangement and environmental limits suit the installation.
Buyer Decision Tips
PoE Budget Tip: Port 1 can supply up to 60W and Ports 2–4 can each supply up to 30W, but all four ports share one 60W total budget. Calculate each device at its maximum stated consumption rather than its normal daytime load.
Distance and Bandwidth Tip: Extended PoE transmission can reach up to 250 metres, but the port speed falls to 10Mbps. Confirm that the connected camera’s configured bit rate and management traffic remain within this limit.
Key Features & Technical Specifications
| Model |
DH-CS4006-4ET-60 |
| Product Type |
Six-port cloud-managed desktop PoE switch |
| Network Layer |
Layer 2 |
| PoE Access Ports |
Ports 1–4: four RJ45 10/100Mbps PoE ports |
| Uplink Ports |
Ports 5–6: two RJ45 10/100/1000Mbps Gigabit uplinks |
| PoE Standards |
IEEE 802.3af, IEEE 802.3at and Hi-PoE |
| Total PoE Budget |
Up to 60W shared across Ports 1–4 |
| Individual Port Output |
Port 1 up to 60W; Ports 2–4 up to 30W each, subject to the 60W total budget |
| PoE Pin Assignment |
Pins 1, 2, 4 and 5 positive; Pins 3, 6, 7 and 8 negative |
| Long-Distance PoE |
Up to 250m with bandwidth reduced to 10Mbps |
| Cloud Management |
DoLynk Care app management with network monitoring, alerts, notifications and supported topology visualisation |
| Local Management |
Web management |
| Network Discovery |
LLDP topology support |
| PoE Management |
PoE power-consumption monitoring, PoE power on/off control, Intelligent PoE and PoE Watchdog |
| VLAN |
Port-based VLAN with support for up to 32 VLANs |
| Additional Network Functions |
Loop protection, IEEE 802.3x flow control and DHCP client |
| Switching Capacity |
4.8Gbps |
| Packet Forwarding Rate |
3.57Mpps |
| Packet Buffer |
4Mbit |
| Jumbo Frame |
9216 bytes |
| MAC Address Table |
8K entries |
| Communication Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab |
| Power Supply |
External 53V DC, 1.226A power adapter |
| Power Adapter Included |
Yes |
| Power Consumption |
No more than 3W while idling and up to 65W at full load |
| Electrostatic Protection |
8kV air discharge and 6kV contact discharge |
| Lightning Protection |
4kV common mode and 2kV differential mode |
| Operating Conditions |
−10°C to +55°C at 5%–95% non-condensing relative humidity |
| Storage Conditions |
−40°C to +70°C at 5%–95% non-condensing relative humidity |
| Casing Material |
Sheet metal |
| Installation |
Desktop or wall mount |
| Dimensions and Weight |
130 × 90 × 26mm; net weight 0.28kg |
| MTBF |
232.62 years |
Ideal Use Cases
Home CCTV Systems
Powers up to four compatible cameras while connecting the recorder and home network through the Gigabit uplinks.
Retail Shops
Supports a compact camera network with cloud monitoring, VLAN organisation and remote fault notifications.
Small Offices
Provides four powered access ports, two Gigabit uplinks and manageable network functions in a compact enclosure.
Factories and Workshops
Long-distance PoE can support remote cameras where standard Ethernet distance would be insufficient and 10Mbps is acceptable.
Cafés and Restaurants
Suitable for a small managed surveillance network covering entrances, counters, kitchens and customer areas.
Remote Service Locations
DoLynk Care monitoring and PoE Watchdog can reduce routine site visits for basic device and port recovery.
Choosing the Right Model
- Choose this switch if: You need four PoE access ports, two Gigabit uplinks, a 60W budget and cloud-based monitoring in a compact managed switch.
- Choose a higher-budget model if: The combined maximum consumption of the four powered devices exceeds 60W.
- Choose Gigabit PoE access ports if: Individual connected devices require more than 100Mbps rather than only Gigabit uplinks.
- Choose a larger switch if: The installation requires more than four powered devices, additional uplinks or future camera expansion.
FAQs
- How many network ports does the Dahua DH-CS4006-4ET-60 provide?
The DH-CS4006-4ET-60 has six RJ45 network ports. Ports 1–4 are 10/100Mbps PoE access ports for compatible powered devices, while ports 5–6 are 10/100/1000Mbps Gigabit uplinks. The Gigabit ports are intended for connections to an NVR, router, core switch or other upstream network equipment. Check the expected camera traffic and uplink design before installation, particularly where several high-resolution cameras will operate simultaneously.
- What is the PoE budget of the DH-CS4006-4ET-60?
The switch provides a total PoE budget of up to 60W across ports 1–4. Port 1 supports up to 60W using Hi-PoE, while ports 2–4 each support up to 30W. The total combined output must still remain within the 60W budget. Add the maximum power requirement of every connected device and allow suitable headroom for infrared illumination, heaters, motors or other peak-load functions.
- Can the DH-CS4006-4ET-60 transmit PoE over 250 metres?
Yes. The switch supports long-distance PoE transmission of up to 250 metres on its PoE ports when the extended mode is used. Bandwidth is reduced to 10Mbps in this mode, so it is intended for compatible devices whose data requirements remain within that limit. Cable quality, conductor material, joins, environmental conditions and device power consumption can affect performance, so the full cable run should be tested during commissioning.
- How is the DH-CS4006-4ET-60 managed remotely?
The switch supports web management and app-based cloud management through the DoLynk Care platform. Administrators can monitor network status, view device information, receive fault alarms and notifications, and use topology visualisation for supported connected equipment. LLDP assists with topology discovery. Remote management depends on correct internet access, account permissions and secure configuration, so the local network and cloud connection should be commissioned before relying on remote maintenance.
- What does PoE Watchdog do on this switch?
PoE Watchdog monitors the status of connected powered devices and can restart a failed PoE port when an IP camera connection becomes abnormal. This can restore communication without requiring an immediate site visit or manual power cycle. The function must be enabled through the switch settings. It improves maintenance efficiency but does not replace correct cabling, suitable power budgeting, compatible equipment or investigation of repeated connection failures.
- Does the DH-CS4006-4ET-60 support VLAN and loop protection?
Yes. The switch supports port-based VLAN, allowing selected ports to be isolated according to the configured network design. It also provides loop protection, which triggers an alarm and activates an elimination mechanism when a network loop is detected, helping prevent broadcast storms. The switch supports up to 32 VLANs and IEEE 802.3x flow control. Configuration should be planned carefully to avoid unintentionally blocking required camera, recorder or management traffic.
- Is a power adapter included with the DH-CS4006-4ET-60?

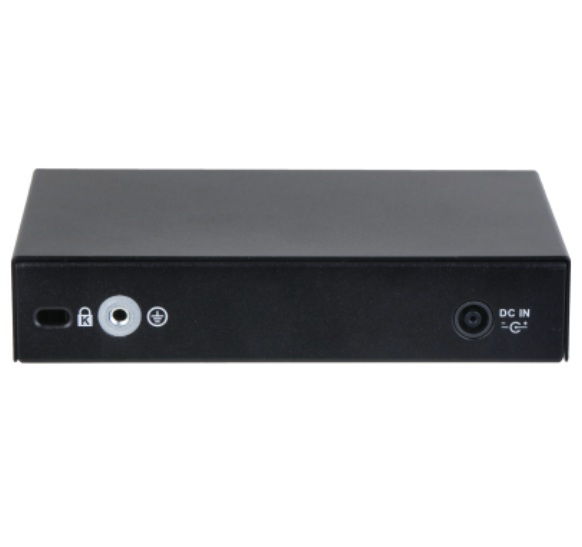

Yes. An external 53V DC, 1.226A power supply is listed as included. The switch consumes no more than 3W while idling and up to 65W at full load. It can be placed on a desktop or mounted to a wall, and its compact metal enclosure measures 130 × 90 × 26mm. Install it in a ventilated location within the specified operating temperature and humidity limits.
- What should be checked before ordering the DH-CS4006-4ET-60?
Confirm that four 10/100Mbps PoE ports and two Gigabit uplinks suit the network, then total the maximum wattage of all powered devices against the shared 60W budget. Check whether any device needs Port 1’s 60W Hi-PoE output, whether 250-metre mode is required, and whether 10Mbps is sufficient at that distance. Security Wholesalers can help verify the switch, cameras, uplink arrangement and power calculations before purchase.
Additional Information
Dahua DH-CS4006-4ET-60 Datasheet
