Product Overview

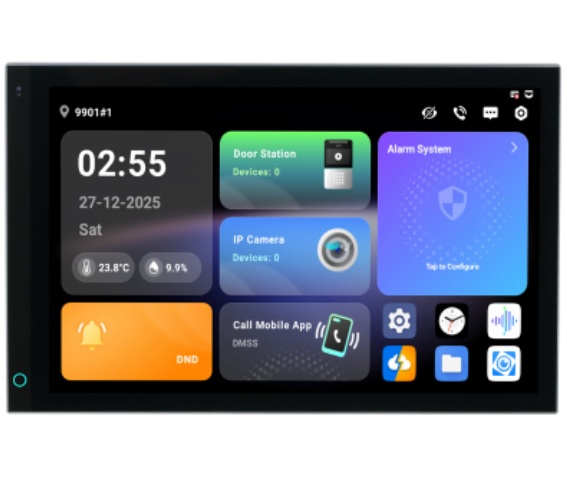

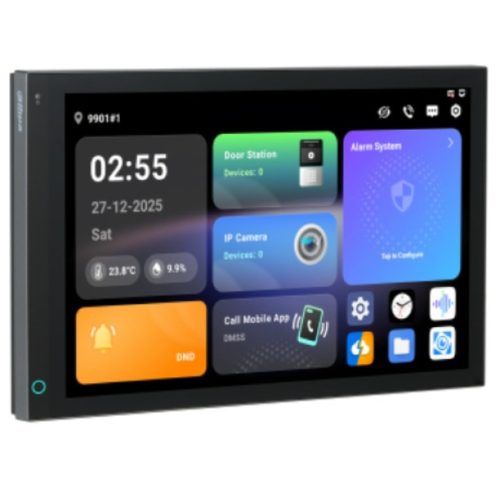

The Dahua Ultra Series SCP3042A-BZ-S 2-Wire IP Smart Control Panel with 10.1-Inch Touchscreen, Android 14, Wi-Fi and PoE is a premium indoor smart control panel designed for modern video intercom and connected home control applications. It uses Android 14 with 4GB RAM and 16GB ROM, providing a responsive interface for communication, monitoring and daily operation. The 10.1-inch IPS capacitive touchscreen offers 1280 × 800 resolution, multi-touch operation and a sleek full-screen design with an ultra-narrow black border. With full digital and digital 2-wire communication, Wi-Fi 6, Bluetooth, Zigbee 3.0 reserved access, two-way audio, alarm input, RS-485, Ethernet, standard PoE, microSD storage up to 512GB, built-in light sensor, proximity wake-up, temperature and humidity detection, elevator control and information release support, the SCP3042A-BZ-S suits apartments, villas, premium residential projects and smart building intercom installations.
Key Capabilities
10.1-Inch Touchscreen
Large IPS capacitive touchscreen with 1280 × 800 resolution and multi-touch operation for clear control.
Android 14 Platform
Android 14 with 4GB RAM and 16GB ROM supports smooth operation and a modern user experience.
2-Wire IP Communication
Supports full digital and digital 2-wire communication for flexible intercom system deployment.
Wi-Fi, Bluetooth and Zigbee
Includes dual-band Wi-Fi, Bluetooth and Zigbee 3.0 reserved access for supported smart system connectivity.
Smart Environmental Sensing
Built-in temperature, humidity and light sensors support more comfortable and informative home operation.
PoE and Surface Mounting
Supports standard PoE and surface mount installation for tidy indoor smart control panel deployment.
Best For
- Premium Video Intercom Systems: Suitable for indoor smart control and video intercom operation in high-end residential or apartment projects.
- Apartment and Villa Installations: Supports extension layouts for villa and apartment scenarios, depending on system design.
- Smart Building Control: Temperature, humidity, light sensing, elevator control and information release support connected building workflows.
- 2-Wire Upgrade Projects: Useful for systems requiring digital 2-wire communication while retaining modern IP smart control features.
- Modern Indoor Touchscreen Control: The 10.1-inch touchscreen, slim design and grey finish suit contemporary interiors and premium wall-mounted installations.
Why Choose the SCP3042A-BZ-S
Choose the Dahua SCP3042A-BZ-S when the project needs a premium 10.1-inch smart control panel with modern Android performance, flexible intercom communication and integrated smart building functions. Its Android 14 platform, 4GB RAM, 16GB ROM, IPS capacitive touchscreen, dual-band Wi-Fi, Bluetooth and standard PoE support make it well suited to premium indoor installations. Built-in temperature and humidity detectors, a light sensor, proximity wake-up, multi-colour indicators, two-way audio, elevator control, alarm input and microSD storage up to 512GB add everyday convenience for residents and building managers. This model, supplied by Security Wholesalers, is a strong Dahua Ultra Series option for smart intercom projects needing a polished indoor control panel with 2-wire IP capability.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a premium indoor Dahua smart control panel with a 10.1-inch touchscreen, Android 14, Wi-Fi, Bluetooth, digital 2-wire communication and standard PoE.
Buyer Tip: Confirm door station compatibility, 2-wire or full digital system design, PoE availability, Wi-Fi coverage, elevator control requirements, alarm input use and microSD storage needs before installation.
Key Features & Technical Specifications
| Product Type |
2-Wire IP smart control panel. |
| Model |
SCP3042A-BZ-S. |
| Brand |
Dahua. |
| Series |
Android Series, Ultra Series. |
| Main Processor |
Embedded processor. |
| Operating System |
Android 14. |
| Memory and Storage |
4GB RAM and 16GB ROM. |
| Network Protocols |
IPv4, RTSP, UDP, DNS, FTP, RTP, TCP and SIP. |
| Screen Type |
Capacitive touchscreen. |
| Display Screen |
10.1-inch display screen. |
| Screen Resolution |
1280 (H) × 800 (V). |
| Touch Operation |
IPS capacitive touchscreen with multi-touch operation. |
| Viewing Angle |
Up to 80° horizontally and vertically. |
| Communication Mode |
Full digital and digital 2-wire. |
| Information Release |
Receives and displays published information from the management centre. |
| Elevator Control |
Residents can call the elevator to their floor through the device. |
| Leave Videos |
Supported when an SD card is inserted in the indoor monitor or door station. |
| DND Mode |
Do not disturb period can be set. |
| Number of Extensions |
Villa: 1 main VTH and 9 extensions; apartment: 1 main VTH and 4 extensions. |
| MicroSD Storage |
Supports microSD card storage up to 512GB. |
| Audio Compression |
G.711a, G.711u and PCM. |
| Audio Input |
2 channels. |
| Audio Output |
Built-in speaker. |
| Audio Mode |
Two-way audio. |
| Audio Enhancement |
Echo suppression and digital noise reduction. |
| Audio Bit Rate |
16kHz, 16-bit. |
| Wi-Fi |
Supported. |
| Wi-Fi Standard |
IEEE 802.11a/b/g/n/ac/ax. |
| Wi-Fi Frequency |
2.4GHz and 5GHz. |
| Bluetooth |
Supported, with BR/EDR/BLE wireless standard. |
| Bluetooth Frequency |
2400–2483.5MHz. |
| Zigbee |
Zigbee 3.0 reserved to realise third-party access. |
| Zigbee Wireless Standard |
802.15.4. |
| Zigbee Frequency |
2400–2483.5MHz. |
| Sub 1G Frequency |
868–868.6MHz. |
| Sub 1G Modulation |
FSK / GFSK. |
| RS-485 |
1 port. |
| USB |
1 port. |
| Alarm Input |
8 channels. |
| Alarm Output |
1 channel. |
| Power Output |
1 port, 12V, 200mA. |
| Doorbell |
Supported using the alarm input port. |
| Network Port |
1 × 10/100Mbps Ethernet port. |
| Casing Material |
PC + ABS. |
| Appearance Colour |
Grey. |
| Power Supply |
48VDC, 0.5A or standard PoE. |
| Power Adapter |
Optional. |
| Installation |
Surface mount. |
| Included Accessories |
RS-485 and power output cable, bracket and alarm cable. |
| Optional Accessory |
Power cord. |
| Certification |
CE. |
| Product Dimensions |
246.5mm × 156.1mm × 19.4mm. |
| Operating Environment |
Indoor. |
| Operating Temperature |
-10°C to +55°C. |
| Operating Humidity |
10%–95% RH, non-condensing. |
| Operating Altitude |
Below 3,000m. |
| Power Consumption |
≤10W standby, ≤13W working. |
| Gross Weight |
1.44kg. |
| Storage Temperature |
0°C to +40°C. |
| Storage Humidity |
30%–75%. |
Ideal Use Cases
Apartment Intercom Systems
Use as a premium indoor control panel for apartment intercom and resident communication systems.
Villa and Home Entry Control
Suitable for villas and homes needing touchscreen indoor communication, doorbell and door station control.
Smart Residential Projects
Wi-Fi, Bluetooth, Zigbee reserved access and environmental sensing support smarter residential workflows.
Building Management Communication
Information release and elevator control support useful communication between management and residents.
2-Wire Upgrade Installations
Digital 2-wire support helps modernise compatible intercom projects where 2-wire infrastructure is required.
Premium Wall-Mounted Interiors
The slim grey full-screen design suits modern foyers, apartments, homes and smart building interiors.
Choosing the Right Model
- Choose this model if: You need a premium Dahua 10.1-inch indoor smart control panel with Android 14, digital 2-wire communication, Wi-Fi, PoE, two-way audio and smart home interface features.
- Choose a smaller monitor if: The installation needs a more compact indoor station or a lower-cost interface with fewer smart control functions.
- Choose this for 2-wire systems if: The project requires digital 2-wire communication while still needing IP-style control panel features.
- Check system compatibility: Confirm the connected door station, management platform, extensions, elevator control and alarm input requirements before purchase.
- Check power and network design: Confirm whether the installation will use standard PoE, 48VDC power, Ethernet, Wi-Fi or digital 2-wire communication.
FAQs
- What is the Dahua SCP3042A-BZ-S used for?
The Dahua SCP3042A-BZ-S is used as an indoor 2-wire IP smart control panel for video intercom and smart residential control applications. It provides touchscreen operation, two-way audio, digital 2-wire communication, Wi-Fi, PoE and smart building functions from a modern wall-mounted display.
- What screen size does this smart control panel have?
The SCP3042A-BZ-S has a 10.1-inch capacitive touchscreen with 1280 × 800 resolution. It uses an IPS display with multi-touch operation and wide viewing angles, making it suitable for everyday resident and building control use.
- What operating system does the SCP3042A-BZ-S use?
This smart control panel uses Android 14 and includes 4GB RAM with 16GB ROM. This platform gives the device modern performance for supported intercom, control and display functions.
- Does this device support Wi-Fi?
Yes. The device supports Wi-Fi using IEEE 802.11a/b/g/n/ac/ax standards across 2.4GHz and 5GHz frequency ranges. It also includes Bluetooth and Zigbee 3.0 reserved access for supported system designs.
- Can it be powered by PoE?
Yes. The SCP3042A-BZ-S supports standard PoE and 48VDC, 0.5A power. A power adapter is optional, so installers should confirm the correct power design before installation.
- Does it support two-way audio?
Yes. The panel supports two-way audio, with 2-channel audio input, a built-in speaker, G.711a, G.711u and PCM audio compression, plus echo suppression and digital noise reduction.
- Is the SCP3042A-BZ-S suitable for outdoor use?
No. The operating environment is listed as indoor. It should be installed indoors in a suitable surface-mounted location, within the specified operating temperature and humidity range.
- What should I check before buying the SCP3042A-BZ-S?
Before buying, confirm door station compatibility, digital 2-wire requirements, PoE or 48VDC power, Wi-Fi coverage, elevator control needs, extension count, microSD storage, alarm input use and installation location. Security Wholesalers can supply this Dahua smart control panel for compatible video intercom systems.
Additional Information
Dahua DHI-SCP3042A-BZ-S_S0 Datasheet
