Product SKU: DH-IPC-HDW3849H-ZAS-PV-1
Product Overview

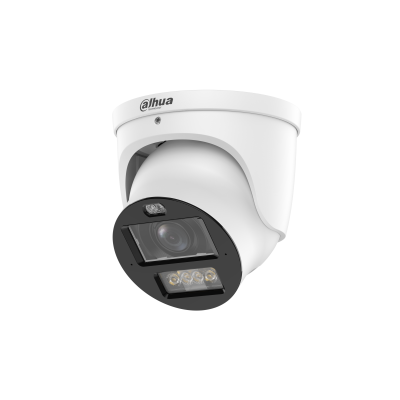

The Dahua DH-IPC-HDW3849H-ZAS-PV-PRO is an 8MP WizColor TiOC PRO vari-focal Eyeball WizSense network camera designed for demanding residential, commercial, retail, warehouse and perimeter surveillance applications. Its large 1/1.8-inch CMOS sensor records up to 3840 × 2160 resolution at 25/30 fps, while the F1.2 motorised 2.7–12 mm lens and WizColor AI-ISP imaging help preserve colour and fine detail in very low light. Smart Dual Light provides up to 50 m infrared and 50 m warm illumination. Dual built-in microphones, a built-in speaker, red and blue warning lights, SMD 4.0, AcuPick, perimeter protection and two-way talk combine intelligent detection with active visual and audible deterrence.
Key Capabilities
8MP WizColor Imaging
The large 1/1.8-inch CMOS sensor captures up to 3840 × 2160 resolution, while WizColor, AI-ISP and the F1.2 aperture help retain useful colour detail in difficult low-light scenes.
2.7–12 mm Motorised Vari-Focal Lens
The adjustable lens provides a horizontal field of view from approximately 112° to 48°, allowing the scene to be refined remotely during commissioning.
50 m IR & 50 m Warm Light
Four multi-core IR and warm-light illuminators provide up to 50 m night illumination using Smart Dual Light for flexible low-light and deterrence operation.
TiOC PRO Active Deterrence
Red and blue warning lights, warm-light response and a built-in speaker can provide visual and audible warnings when configured intelligent perimeter events occur.
SMD 4.0 & AcuPick
Deep-learning analytics classify human and vehicle targets, while AcuPick works with compatible back-end devices to help locate relevant people and vehicles in live and recorded video.
Dual Mic & Two-Way Talk
Dual built-in microphones, a built-in speaker and dedicated audio input/output provide flexible audio monitoring and two-way communication.
Best For
- Building Entrances: Vari-focal optics, two-way audio and active deterrence suit entrances where both detection and immediate response are important.
- Car Parks & Driveways: 8MP resolution, human/vehicle classification and long-range night illumination suit vehicle approaches and parking areas.
- Warehouses & Logistics: Intrusion, tripwire, stay and loitering analytics help monitor stock areas, loading points and restricted zones.
- Retail & Commercial Sites: Face detection, SMD 4.0 and AcuPick help improve incident investigation and alarm relevance.
- Outdoor Perimeters: IP67 protection, wide operating temperatures and active sound/light deterrence suit exposed surveillance locations.
Why Choose the DH-IPC-HDW3849H-ZAS-PV-PRO
The DH-IPC-HDW3849H-ZAS-PV-PRO combines high-resolution 8MP imaging, a large low-light sensor and adjustable motorised optics with Dahua’s TiOC PRO active-deterrence platform. Its 50 m IR and 50 m warm illumination provide flexible night operation, while SMD 4.0, AcuPick, face detection and intelligent perimeter rules make event handling more useful than conventional motion detection alone. Gigabit Ethernet, 512 GB microSD support, alarm I/O and audio I/O further expand integration options. Available through Security Wholesalers, it is particularly well suited to sites that need strong low-light imaging, intelligent filtering and active response from one camera.
Buyer Decision Tips
Buyer Tip: The 2.7–12 mm motorised lens provides substantially more framing flexibility than a fixed-lens camera. Use the wide end for broad scene coverage and the telephoto end when a tighter view of entrances, gates, driveways or loading areas is required.
Buyer Tip: Dahua specifies maximum consumption of 13.8 W through PoE when WDR, warm light, siren/light active deterrence and intelligent functions are operating. Use an IEEE 802.3at PoE+ source with suitable per-port and total switch power headroom.
Key Features & Technical Specifications
| Product Type | 8MP WizColor TiOC PRO vari-focal Eyeball WizSense network camera. |
| Model | DH-IPC-HDW3849H-ZAS-PV-PRO. |
| Image Sensor | 1/1.8-inch CMOS. |
| Maximum Resolution | 3840 × 2160. |
| Main Stream | 3840 × 2160 at 1–25/30 fps. |
| Stream Capability | 3 streams. |
| ROM | 256 MB. |
| RAM | 1 GB. |
| Scanning System | Progressive scan. |
| Electronic Shutter | Auto/manual, 1/3 s to 1/100,000 s. |
| Minimum Illumination – Colour | 0.0006 lux at F1.2, 30 IRE. |
| Minimum Illumination – B/W | 0.0003 lux at F1.2, 30 IRE. |
| Minimum Illumination with Light | 0 lux with illuminator on. |
| Signal-to-Noise Ratio | Greater than 56 dB. |
| IR Distance | Up to 50 m. |
| Warm Light Distance | Up to 50 m. |
| Illuminators | 4 × multi-core IR + warm light. |
| Smart Dual Light | Supported. |
| Lens Type | Motorised vari-focal. |
| Focal Length | 2.7–12 mm. |
| Maximum Aperture | F1.2. |
| Iris Control | Fixed. |
| Horizontal Field of View | 112°–48°. |
| Vertical Field of View | 58°–27°. |
| Diagonal Field of View | 137°–55°. |
| Close Focus Distance | 1.75 m wide / 5.21 m tele. |
| DORI – Wide | Detect 87.6 m, Observe 35.0 m, Recognise 17.5 m, Identify 8.8 m. |
| DORI – Tele | Detect 186.6 m, Observe 74.6 m, Recognise 37.3 m, Identify 18.7 m. |
| Angle Adjustment | Pan 0°–360°, tilt 0°–78°, rotation 0°–360°. |
| WDR | 120 dB. |
| Noise Reduction | 3D NR. |
| Image Stabilisation | Electronic Image Stabilisation. |
| Defog | Supported. |
| AI SSA | Supported. |
| IVS Perimeter Protection | Intrusion and tripwire with human/vehicle classification, plus stay detection and loitering detection. |
| SMD | SMD 4.0. |
| AcuPick | Supported with compatible back-end devices for people and motor-vehicle search. |
| Face Detection | Full-image face detection with snapshot optimisation and face enhancement. |
| Smart Search | Supported with compatible Smart NVR. |
| Video Compression | H.265, H.264, H.264H, H.264B and MJPEG on sub stream. |
| Smart Coding | Smart H.265+, Smart H.264+, AI H.265 and AI H.264. |
| Built-In Microphones | Dual built-in microphones. |
| Built-In Speaker | Yes; maximum laboratory sound level 110 dB at 10 cm. |
| Two-Way Talk | Supported. |
| Audio Input / Output | 1 input / 1 output. |
| Audio Compression | PCM, G.711a, G.711Mu, G.726 and G.723. |
| Active Deterrence | Sound and light alarm with red and blue warning lights and selectable/customisable voice prompts. |
| Alarm Input / Output | 1 input / 1 output. |
| Network Port | 1 × RJ45 10/100/1000BASE-T Gigabit Ethernet. |
| ONVIF | Profiles S, G, T and M. |
| Local Storage | microSD card up to 512 GB. |
| Other Storage | FTP, SFTP and NAS. |
| Management Software | Smart PSS Lite, DSS, DMSS and DoLynk Care. |
| Power Supply | 12 VDC or IEEE 802.3at PoE+. |
| Basic Power Consumption | 4.1 W at 12 VDC / 5.3 W via PoE. |
| Maximum Power Consumption | 11.3 W at 12 VDC / 13.8 W via PoE. |
| Weather Protection | IP67. |
| Operating Temperature | -30°C to +60°C. |
| Operating Humidity | Up to 95%. |
| Housing Material | Metal. |
| Dimensions | 127.6 mm × Ø122.0 mm. |
| Net Weight | 0.94 kg. |
| Image | Name | Price | Buy | hf:att:pa_ai-technology | hf:att:pa_audio-features | hf:att:pa_camera-count | hf:att:pa_camera-style | hf:att:pa_detection-features | hf:att:pa_deterrence-features | hf:att:pa_environmental-features | hf:att:pa_focal-length | hf:att:pa_hdd-bays | hf:att:pa_hdd-included | hf:att:pa_ik-rating | hf:att:pa_included-storage | hf:att:pa_installation-level | hf:att:pa_ip-rating | hf:att:pa_kit-camera-style | hf:att:pa_lens-type | hf:att:pa_low-light-technology | hf:att:pa_max-recording-resolution | hf:att:pa_mounting-position | hf:att:pa_night-vision-range | hf:att:pa_night-vision-type | hf:att:pa_optical-zoom | hf:att:pa_poe-ports | hf:att:pa_power-connectivity | hf:att:pa_protocol-compatibility | hf:att:pa_recorder-channels | hf:att:pa_remote-viewing | hf:att:pa_resolution | hf:att:pa_specialist-features | hf:att:pa_system-format | hf:att:pa_white-light-range | hf:att:pa_zoom-type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | Dahua DH-PFA137 Water-proof Junction Box White or Black | $13.50 | |||||||||||||||||||||||||||||||||
![]() | Dahua PFA152-E Pole Mount Bracket | $18.50 inc GST +3 Year Warranty & Support | |||||||||||||||||||||||||||||||||
![]() | Dahua DH-PFB220C Dahua Ceiling Mount Bracket | $44.00 | |||||||||||||||||||||||||||||||||
![]() | Dahua DH-AC-PFA109 Mini Dome and Turret Mount Adapter | $16.99 | |||||||||||||||||||||||||||||||||
![]() | Dahua DH-PFB2203W White Wall Mount Bracket for Security Cameras | $20.00 inc GST +3 Year Warranty & Support |
Ideal Use Cases
Building Entrances
Motorised optics, two-way audio and active warning functions suit entrances where detection and direct response are both required.
Driveways & Car Parks
8MP detail, human/vehicle classification and 50 m night illumination suit approach roads, parking zones and vehicle access points.
Warehouses & Loading Areas
Intrusion, tripwire, stay and loitering detection help monitor stock areas, loading docks and restricted zones.
Retail & Commercial Sites
Face detection, SMD 4.0 and AcuPick can improve alarm filtering and speed up investigation of relevant events.
Outdoor Perimeters
IP67 construction, wide voltage tolerance and active deterrence suit exposed boundaries and other outdoor security areas.
Choosing the Right Model
- Choose the DH-IPC-HDW3849H-ZAS-PV-PRO if: You need 8MP WizColor imaging, a 2.7–12 mm motorised lens, 50 m dual illumination, SMD 4.0 and active sound/light deterrence.
- Choose a fixed-lens model if: The required viewing angle is already known and remote focal adjustment is unnecessary.
- Choose a higher-tier WizMind model if: The project requires analytics beyond the WizSense functions provided by this camera.
- Choose this model for active deterrence if: Red/blue warning lights, warm-light alarm response, siren functions and two-way audio form part of the site’s security strategy.
FAQs
- What image quality and low-light performance does the Dahua DH-IPC-HDW3849H-ZAS-PV-PRO provide?
The Dahua DH-IPC-HDW3849H-ZAS-PV-PRO uses a 1/1.8-inch CMOS sensor and records up to 8 MP at 3840 × 2160 resolution at 25/30 fps. Dahua specifies minimum illumination of 0.0006 lux in colour and 0.0003 lux in black and white at F1.2, with 0 lux when the illuminator is on. WizColor, AI-ISP, 120 dB WDR, 3D noise reduction, EIS, defog and Smart Dual Light support clear imaging in difficult lighting conditions. - What lens does the DH-IPC-HDW3849H-ZAS-PV-PRO use?
The camera uses a motorised 2.7–12 mm vari-focal lens with a maximum F1.2 aperture. Dahua specifies a horizontal field of view from 112° at the wide end to 48° at the telephoto end, with vertical coverage from 58° to 27°. This allows installers to cover a broad scene or tighten the view onto entrances, driveways, loading areas and other priority zones without replacing the lens. - What AI analytics are supported by the DH-IPC-HDW3849H-ZAS-PV-PRO?
The DH-IPC-HDW3849H-ZAS-PV-PRO supports IVS perimeter protection with intrusion and tripwire rules for accurate human and vehicle classification, plus stay detection and loitering detection. It also supports SMD 4.0, AcuPick, full-image face detection, AI SSA and Smart Search with compatible Smart NVRs. These functions help reduce nuisance alarms and make it easier to locate relevant human and vehicle events. - Does the DH-IPC-HDW3849H-ZAS-PV-PRO support active deterrence and two-way audio?
Yes. The camera includes dual built-in microphones and a built-in speaker for two-way talk. It also supports sound and light active deterrence, including red and blue warning lights and warm-light alarm response. Dahua states that multiple built-in voice prompts can be selected and customised voice files can also be imported, allowing the camera to provide an immediate audible and visual response when configured perimeter events occur. - How much local storage does the DH-IPC-HDW3849H-ZAS-PV-PRO support?
The DH-IPC-HDW3849H-ZAS-PV-PRO supports microSD cards up to 512 GB and also supports FTP, SFTP and NAS storage. It provides three video streams and supports H.265, H.264, MJPEG on the sub stream, Smart H.265+, Smart H.264+ and AI H.265/H.264 coding. For Security Wholesalers installations, final storage should be sized around resolution, frame rate, retention period and whether recording is also being handled by a compatible NVR. - Is the DH-IPC-HDW3849H-ZAS-PV-PRO suitable for outdoor installation?
Yes. The camera uses a metal housing and carries an IP67 protection rating. Dahua specifies an operating temperature range from -30°C to +60°C and operating humidity up to 95%. It can be powered by 12 VDC or IEEE 802.3at PoE+, and maximum consumption is listed at 11.3 W on 12 VDC or 13.8 W via PoE when WDR, warm light, siren, active deterrence and intelligence functions are operating.
