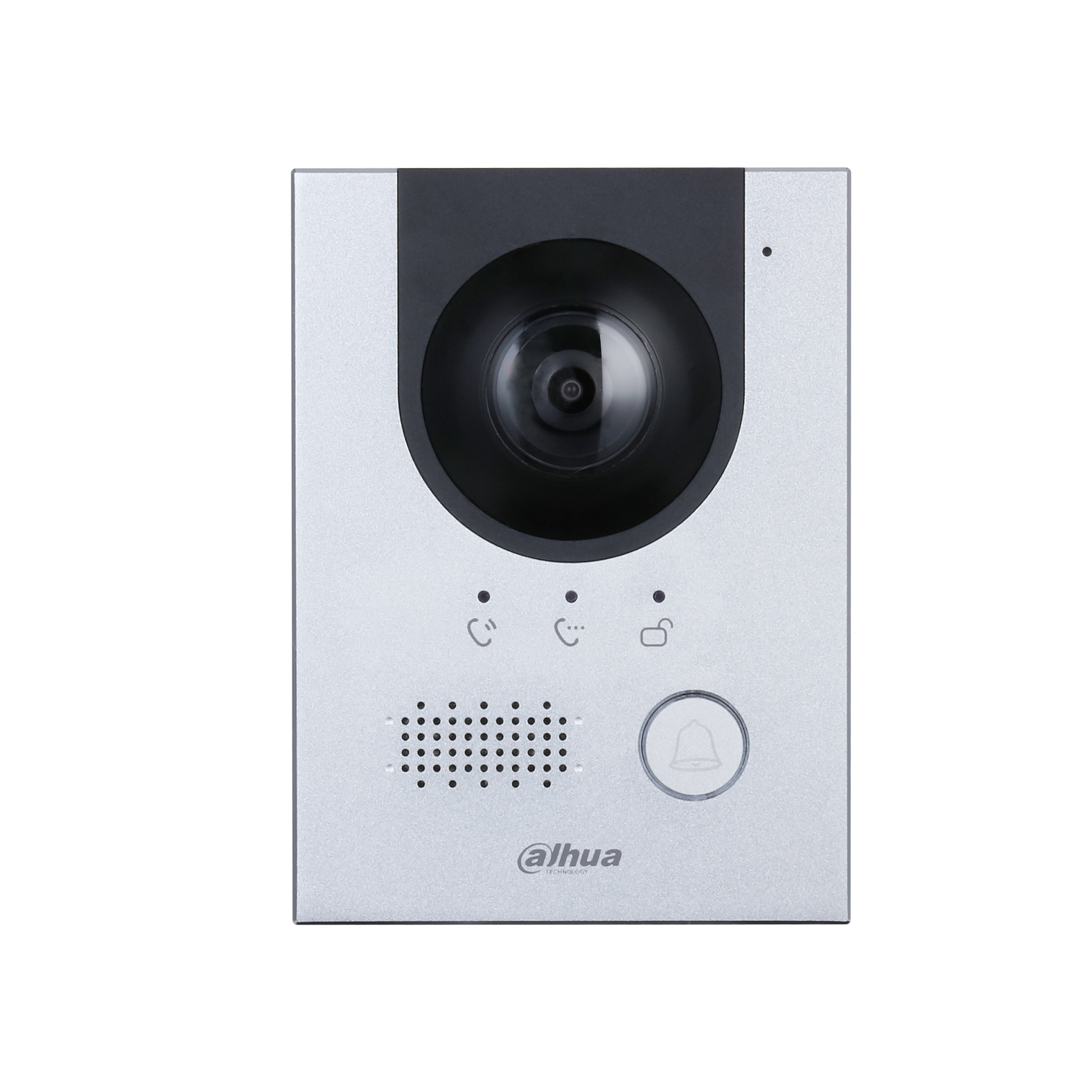

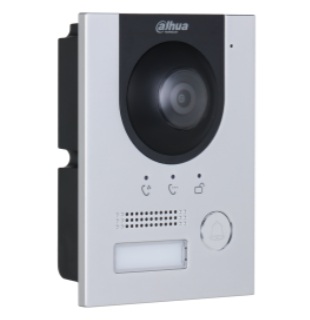

Dahua 2MP 2-Wire IP Villa Door Station | DHI-VTO2202F-P-S3 | PoE | Dual Lock Control | IP65 | IK07
The Dahua DHI-VTO2202F-P-S3 delivers a 2MP 2-wire IP villa door station designed for homes, townhouses, small offices and entry points requiring clear visitor communication with access-control support. Featuring PoE support, dual lock control, IP65 protection and IK07 impact resistance, it provides a practical outdoor entry station for compatible Dahua video intercom installations.
It also supports 2-wire IP deployment, making this door station available at Security Wholesalers useful for sites where simplified cabling, visitor viewing and controlled entry are important. Its villa door station format suits front doors, pedestrian gates and small commercial entrances where reliable communication, secure lock control and outdoor durability are required.
Key Features
2MP Video Camera: Supports clear visitor viewing for compatible Dahua video intercom systems.
2-Wire IP Support: Suits compatible intercom installations where simplified cabling may be preferred.
PoE Connectivity: Allows power and data delivery through compatible PoE network cabling.
Dual Lock Control: Supports control of two compatible locks for more flexible entry management.
IP65 & IK07 Protection: Helps support outdoor use with weather resistance and impact protection.
Villa Door Station Design: Fits homes, townhouses, gates and small commercial entry points.
The Dahua DHI-VTO2202F-P-S3 is a 2MP digital 2-wire IP villa door station designed for homes, offices, gated entrances and other properties that need visitor video, two-way communication and remote door release. Its wide-angle camera provides a 168.6° horizontal view, helping capture visitors standing close to the entrance, while 120dB WDR, infrared compensation and automatic day and night switching support changing lighting conditions. The station can connect through a compatible Dahua 2-wire switch or a 10/100Mbps Ethernet network using standard PoE. Two-lock control is supported, with one lock connected directly and a second lock requiring a compatible secure control module. The aluminium enclosure carries IP65 and IK07 ratings for correctly sealed outdoor installations. It also supports mobile app communication, visitor video messages, surface or flush mounting and microSD storage up to 256GB.
Key Capabilities
Digital 2-Wire or IP Connection
The door station supports digital 2-wire communication as well as a standard Ethernet connection. This makes it suitable for compatible retrofit cabling or new IP intercom installations using PoE.
Wide-Angle 2MP Camera
The 2MP camera provides a 168.6° horizontal field of view, helping show visitors who are positioned close to the doorway without requiring a narrow or precisely aligned entrance view.
Dual-Lock Control
The system supports control of two locks. One lock connects through the standard lock-control interface, while the second requires a compatible secure control module as part of the completed access design.
Two-Way Visitor Audio
An audio input, built-in speaker, echo suppression and digital noise reduction support clear two-way conversations through a compatible indoor monitor or configured mobile app.
Remote App Communication
When correctly connected and configured, authorised users can communicate with visitors and remotely release a connected entrance through the supported mobile application.
Outdoor and Impact Protection
The aluminium door station carries IP65 ingress protection and an IK07 impact rating. Silicone sealing around the shell is required to achieve the stated outdoor protection.
Best For
Homes and Villas: Provides entrance video, visitor communication and remote door release for a compatible residential intercom system.
Suitable Retrofit Projects: Digital 2-wire communication may allow compatible existing cabling to be reused after its condition and length are checked.
Dual-Entrance Control: Supports two-lock operation where the second lock is connected through a compatible secure control module.
Offices and Small Businesses: Provides a professional visitor call point with video, audio and controlled entrance release.
Outdoor Entry Points: The IP65 and IK07-rated enclosure suits correctly sealed external or semi-exposed entrances.
Why Choose the DHI-VTO2202F-P-S3
The DHI-VTO2202F-P-S3 provides more installation flexibility than a basic IP-only door station because it supports both digital 2-wire communication and standard Ethernet with PoE. This is useful when upgrading a compatible older intercom cable or planning a new wired network installation. Its very wide camera view helps capture visitors close to the doorway, while WDR, infrared compensation and two-way audio improve day-to-day entrance communication. Dual-lock support, an exit-button input, door-status monitoring, RS-485 and an alarm output provide options for a more complete entry system. Available through Security Wholesalers, this model should be selected with a confirmed indoor monitor, power source, secure module, lock hardware and mounting arrangement.
Buyer Decision Tips
Connection Tip: Decide whether the installation will use digital 2-wire or Ethernet with PoE before ordering. The listed maximum power-supply distance through a compatible Dahua 2-wire switch is 50 metres, but cable condition, conductor size and joins can affect performance.
Dual-Lock Tip: The second lock requires a compatible secure control module. Confirm each lock’s voltage, current draw, fail-safe or fail-secure operation and external power requirements rather than assuming both locks can be powered directly by the door station.
Key Features & Technical Specifications
Model
DHI-VTO2202F-P-S3
Product Type
2-wire IP villa door station with mechanical call button
Camera
1/2.9-inch 2MP CMOS camera
Field of View
168.6° horizontal, 87.1° vertical and 176.7° diagonal
Image Enhancement
120dB WDR, 3D noise reduction and automatic infrared compensation
Day and Night
Automatic ICR, colour or black-and-white operating modes
Video Compression
H.265 and H.264 at up to 25 fps with a 256Kbps–8Mbps video bit rate
Audio
Two-way audio with one input, built-in speaker, echo suppression and digital noise reduction
Audio Formats
G.711a, G.711u and PCM at 16kHz and 16-bit sampling
Communication Mode
Digital 2-wire and IP network communication
Network Interface
One 10/100Mbps RJ45 Ethernet port
Network Protocols
IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP and SIP
Interoperability
ONVIF and CGI support
Unlock Method
Remote unlocking through a compatible indoor monitor or configured mobile application
Lock Control
Supports two locks, with one lock requiring a compatible secure control module

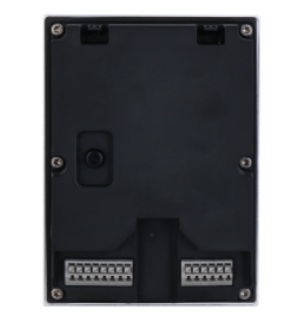

Door Interfaces
One exit-button input, one door-status input and one standard lock-control connection
Additional Interfaces
One RS-485 interface, one alarm output and one 12V DC, 600mA auxiliary power output
Storage
MicroSD card support up to 256GB for supported visitor video-message functions
Power Supply
Compatible Dahua 2-wire switch, 48V DC at 1A or IEEE 802.3af/at PoE
2-Wire Distance
Maximum listed power-supply distance of 50m through a compatible Dahua 2-wire switch
Power Consumption
Up to 4W in standby and up to 5W while operating
Protection
Aluminium IP65 and IK07 enclosure; silicone sealing is required
Operating Conditions
−30°C to +60°C at 10%–90% non-condensing relative humidity and up to 3,000m altitude
Installation

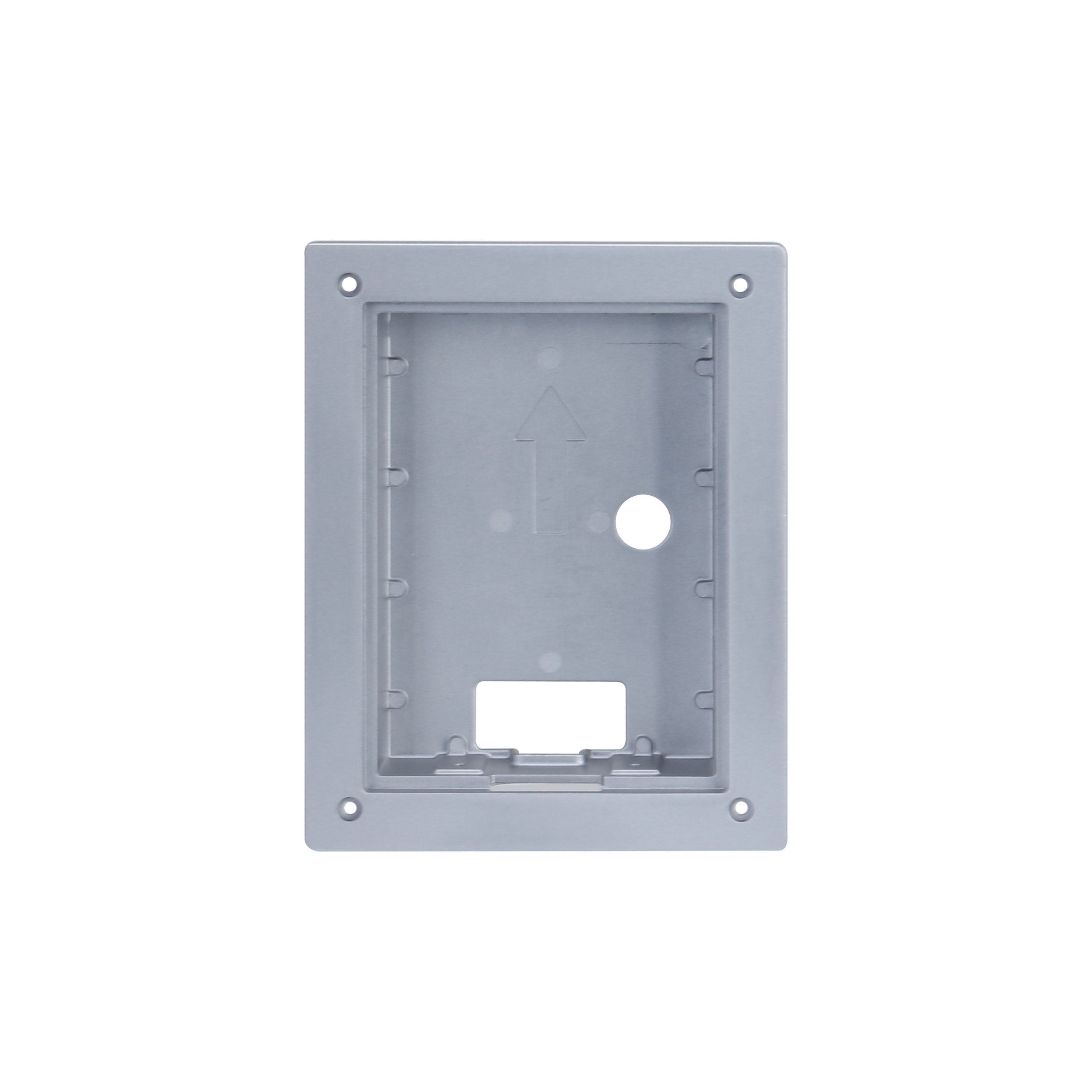

Surface or flush mounting using optional mounting accessories
Dimensions and Weight
130 × 96 × 28.5mm; gross weight 0.48kg
Ideal Use Cases
Home Entrances
Provides visitor video, two-way communication and controlled door release at a primary residential entrance.
Entry Gates
Use the wide camera view and remote communication functions at a pedestrian or vehicle-access gate.
Retrofit Intercoms
Digital 2-wire operation can suit compatible existing cabling where installing new Ethernet is difficult.
Dual-Door Entrances
Supports two-lock control where the second lock is connected through an appropriate secure control module.
Office Reception Entries
Allows staff to identify and communicate with visitors before releasing the connected entrance.
Remote Visitor Management
Authorised users can answer calls and release the entrance through the configured mobile intercom system.
Choosing the Right Model
Choose this model if: You need a 2MP villa door station with digital 2-wire, Ethernet, PoE, mobile app support and two-lock control.
Choose an IP-only model if: New Ethernet cabling is already available and digital 2-wire compatibility is unnecessary.
Choose a keypad or card-reader model if: Users need local PIN or credential-based entry rather than remote door release only.
Choose an apartment station if: One entrance must call a large number of separate residences or support a resident directory.
Is the Dahua DHI-VTO2202F-P-S3 suitable for outdoor installation?
Yes. The DHI-VTO2202F-P-S3 has an aluminium casing with IP65 ingress protection and an IK07 impact rating. It is specified for outdoor operation from −30°C to +60°C at 10%–90% non-condensing humidity. Correct sealing remains essential: Dahua states that silicone sealant is required around the shell to achieve the listed protection, so cable entries and the selected mounting box must be installed carefully.
Can the DHI-VTO2202F-P-S3 use both 2-wire and PoE connections?
Yes. The door station supports digital 2-wire communication and a 10/100Mbps RJ45 network connection. It can be powered by a compatible Dahua 2-wire switch, with a listed maximum power-supply distance of 50 metres, or through IEEE 802.3af/at PoE. A 48V DC, 1A power option is also specified. The final wiring method should be selected before installation because the network, power and mounting arrangement must work together.
Does the DHI-VTO2202F-P-S3 control two door locks?
The product supports two-lock control, with one lock connected through the standard lock-control interface and the second requiring a compatible secure control module. The station also provides an exit-button input, door-status input, RS-485 interface, alarm output and a 12V DC, 600mA auxiliary power output. Lock type, current draw, fail-safe or fail-secure operation and any required external power supply must be confirmed before wiring.
What camera and viewing angle are built into the DHI-VTO2202F-P-S3?
The door station uses a 1/2.9-inch 2MP CMOS camera with a 168.6° horizontal, 87.1° vertical and 176.7° diagonal field of view. Its wide entrance view is useful where visitors stand close to the door. The camera also supports 120dB WDR, 3D noise reduction, automatic infrared compensation and automatic day and night switching for changing entrance lighting.
Does the DHI-VTO2202F-P-S3 support two-way audio?
Yes. The DHI-VTO2202F-P-S3 provides two-way audio through one audio input and a built-in speaker. Echo suppression and digital noise reduction help improve visitor conversations, while G.711a, G.711u and PCM audio formats are supported. The available call experience depends on the compatible indoor monitor, network quality and completed intercom configuration, so audio and door-release functions should be tested during commissioning.
Can visitors be answered and the door unlocked from a mobile app?
Yes. When the door station is connected to a compatible Dahua intercom system and configured for network access, an authorised user can communicate with visitors and remotely release the connected entrance through the supported mobile app. Remote operation depends on internet connectivity, account permissions, secure configuration and compatible lock wiring. It should not be relied upon until local monitor calling and door control have been tested successfully.
Can the DHI-VTO2202F-P-S3 store visitor video messages?
Yes. The door station supports visitor video messages when a suitable microSD card is installed in the door station or compatible indoor monitor. The door station accepts a microSD card up to 256GB, but a card is not listed as a standard inclusion. Available recording duration and message behaviour depend on the intercom configuration, selected storage location, card capacity and connected devices.
What should be checked before ordering the DHI-VTO2202F-P-S3?
Confirm the intended 2-wire or PoE connection, cable distance, compatible indoor monitor, mounting method, lock type, secure module requirement, exit button, door-status contact, network access and microSD storage before ordering. The station measures 130 × 96 × 28.5mm and supports surface or flush mounting with optional accessories. Security Wholesalers can help verify whether the complete intercom, power and dual-lock arrangement suits the entrance.
