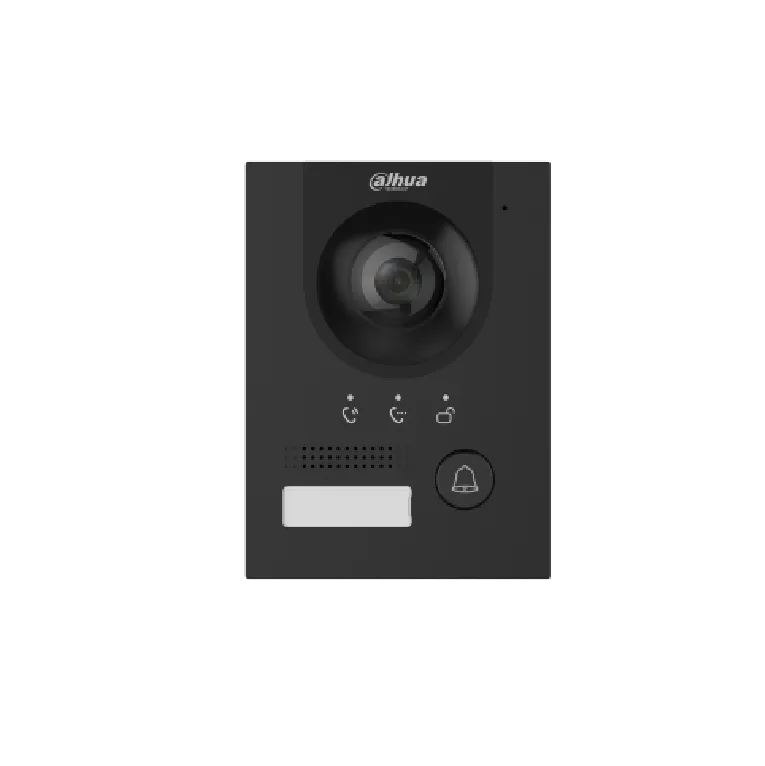

Dahua 2MP Black 2-Wire IP Villa Door Station | DHI-VTO2202FB-P-S3 | PoE | Dual Lock Control | IP65 | IK07
The Dahua DHI-VTO2202FB-P-S3 delivers a 2MP black 2-wire IP villa door station designed for homes, townhouses, small offices and entry points requiring clear visitor communication with access-control support. Featuring PoE support, dual lock control, IP65 protection and IK07 impact resistance, it provides a practical outdoor entry station for compatible Dahua video intercom installations.
It also supports 2-wire IP deployment, making this black door station available at Security Wholesalers useful for sites where simplified cabling, visitor viewing and controlled entry are important. Its villa door station format suits front doors, pedestrian gates and small commercial entrances where reliable communication, secure lock control and a modern black finish are required.
Key Features
2MP Video Camera: Supports clear visitor viewing for compatible Dahua video intercom systems.
2-Wire IP Support: Suits compatible intercom installations where simplified cabling may be preferred.
PoE Connectivity: Allows power and data delivery through compatible PoE network cabling.
Dual Lock Control: Supports control of two compatible locks for more flexible entry management.
IP65 & IK07 Protection: Helps support outdoor use with weather resistance and impact protection.
Black Villa Door Station: Provides a modern entry-station finish for homes, gates and small commercial entrances.
The Dahua DHI-VTO2202FB-P-S3 is a black 2MP digital 2-wire IP villa door station designed for homes, offices, gated entrances and other properties requiring visitor video, two-way communication and remote door release. Its wide-angle camera provides a 168.6° horizontal view, helping capture visitors positioned close to the entrance, while 120dB WDR, infrared compensation and automatic day and night switching support changing light conditions. The station can connect through a compatible Dahua 2-wire switch or a 10/100Mbps Ethernet network using standard PoE. Two-lock system support is available, with one lock connected directly and the second requiring a compatible secure control module. The black anodised aluminium enclosure carries IP65 and IK07 ratings for correctly sealed outdoor installations. Mobile app communication, visitor video messages and microSD storage up to 256GB provide further flexibility for residential and light-commercial entry systems.
Key Capabilities
Digital 2-Wire or IP Connection
The door station supports digital 2-wire communication and a standard Ethernet connection. This makes it suitable for compatible retrofit wiring or new IP intercom installations using a supported PoE network.
Ultra-Wide 2MP Entrance View
The 2MP camera provides a 168.6° horizontal field of view, helping show visitors who stand close to the doorway without requiring a narrow or precisely aligned camera position.
Two-Lock System Support
One lock can use the station’s direct lock-control interface, while a second lock requires a compatible secure control module. This suits entrances with two separately controlled locking points.
Two-Way Visitor Audio
An audio input, built-in speaker, echo suppression and digital noise reduction support clear two-way conversations through a compatible indoor monitor or configured mobile application.
Remote App Communication
When correctly connected and configured, an authorised user can communicate with visitors and remotely release the connected entrance through the supported mobile app.
Black Outdoor-Rated Housing
The black anodised aluminium front panel carries IP65 ingress protection and an IK07 impact rating. Silicone sealing around the shell is required to achieve the stated outdoor protection.
Best For
Homes and Villas: Provides visitor video, two-way communication and remote door release for a compatible residential intercom system.
Suitable Retrofit Projects: Digital 2-wire communication may allow compatible existing cabling to be reused after its condition and length are checked.
Two-Lock Entrances: Supports a second controlled lock when a compatible secure control module is included in the design.
Offices and Small Businesses: Provides a professional visitor call point with video, audio and controlled entrance release.
Dark Exterior Finishes: The black front panel suits entrances where a silver door station would not match the surrounding architecture or hardware.
Why Choose the DHI-VTO2202FB-P-S3
The DHI-VTO2202FB-P-S3 provides more installation flexibility than a basic IP-only door station because it supports digital 2-wire communication as well as Ethernet networking with standard PoE. This is useful when upgrading compatible older intercom wiring or planning a new structured network installation. Its very wide camera view helps capture visitors close to the doorway, while WDR, infrared compensation and two-way audio improve everyday entrance communication. The black aluminium finish suits darker exterior hardware, and the IP65 and IK07 ratings support correctly sealed outdoor placement. Available through Security Wholesalers, this model should be selected with a confirmed indoor monitor, power source, secure control module, lock hardware and surface-mount location.
Buyer Decision Tips
Connection Tip: Decide whether the installation will use digital 2-wire or Ethernet with PoE before ordering. The maximum listed power-supply distance through a compatible Dahua 2-wire switch is 50 metres, but cable condition, conductor size, joins and topology can affect performance.

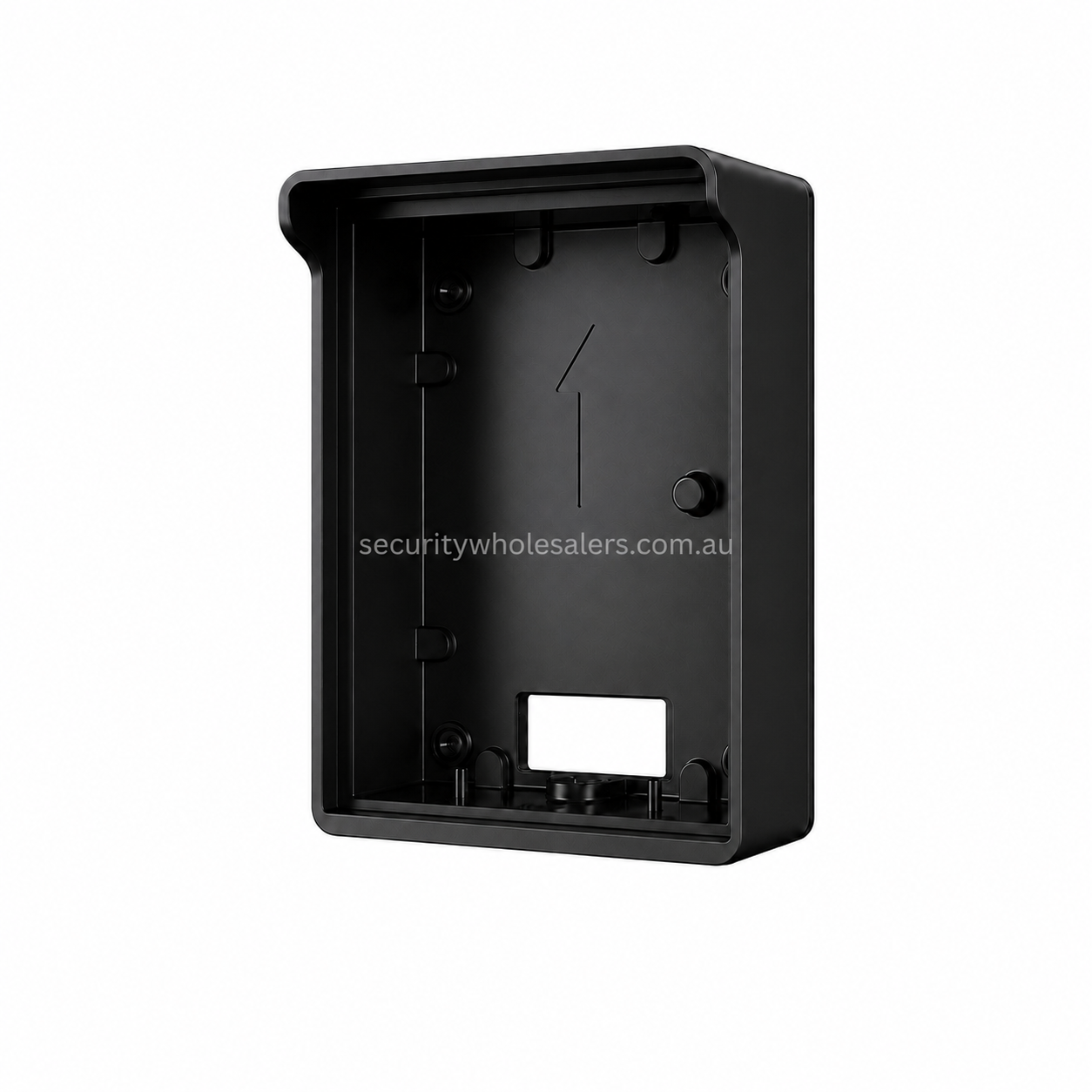

Lock and Mounting Tip: The second lock requires a compatible secure control module, and the black model’s specification lists surface mounting. Confirm the lock power requirements, mounting surface, weather sealing and optional rain cover before installation.
Key Features & Technical Specifications
Model
DHI-VTO2202FB-P-S3
Product Type
Black digital 2-wire IP villa door station with one mechanical call button
Camera
1/2.9-inch 2MP CMOS camera
Field of View
168.6° horizontal, 87.1° vertical and 176.7° diagonal
Image Enhancement
120dB WDR, 3D noise reduction and automatic infrared compensation
Day and Night
Automatic ICR with colour and black-and-white operating modes
Video Compression
H.265 and H.264 at up to 25 fps with a configurable 256Kbps–8Mbps bit rate
Video Streams
Main-stream options include 720p, WVGA, D1 and CIF; sub-stream options include 1080p, WVGA, D1, QVGA and CIF
Audio
Two-way audio with one input, built-in speaker, echo suppression and digital noise reduction
Audio Formats
G.711a, G.711u and PCM at 16kHz and 16-bit sampling
Communication Mode
Digital 2-wire and IP network communication
Network Interface
One 10/100Mbps RJ45 Ethernet port
Network Protocols
IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP and SIP
Interoperability
ONVIF and CGI support
Unlock Method
Remote unlocking through a compatible indoor monitor or configured mobile application
Lock Control
One direct lock-control connection, with two-lock system support when a compatible secure control module is used

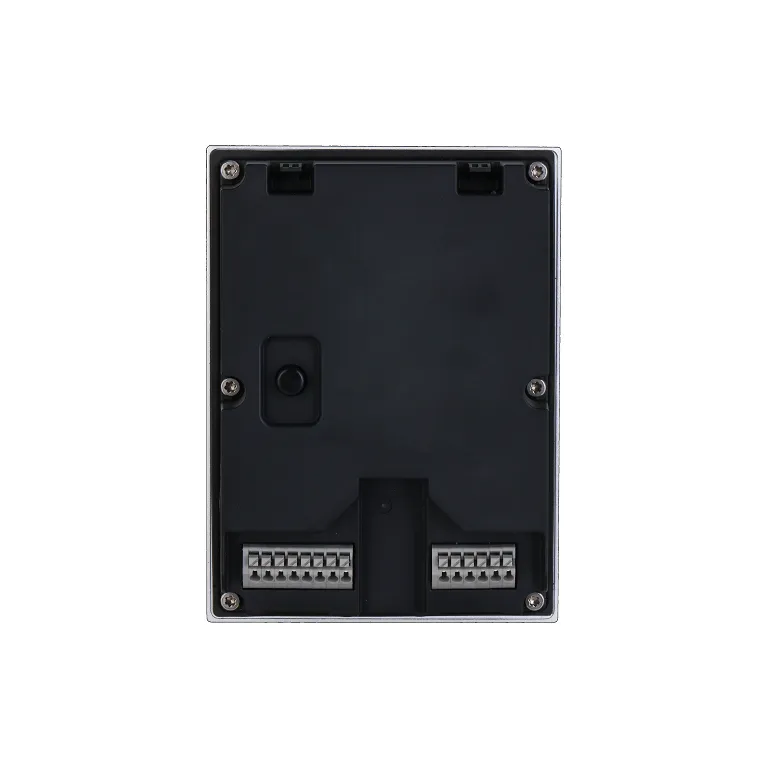

Door Interfaces
One exit-button input and one door-status detection input
Additional Interfaces
One RS-485 interface, one alarm output and one 12V DC, 600mA auxiliary power output
Storage
MicroSD card support up to 256GB for supported visitor video-message functions
Power Supply
Compatible Dahua 2-wire switch, 48V DC at 1A or IEEE 802.3af/at PoE
2-Wire Distance
Maximum listed power-supply distance of 50m through a compatible Dahua 2-wire switch
Power Consumption
Up to 4W in standby and up to 5W while operating
Construction and Colour
Black anodised aluminium front panel
Protection
IP65 and IK07; silicone sealing around the shell is required
Operating Conditions
−30°C to +60°C at 10%–90% non-condensing relative humidity and up to 3,000m altitude
Is the Dahua DHI-VTO2202FB-P-S3 suitable for outdoor installation?
Yes. The DHI-VTO2202FB-P-S3 has a black anodised aluminium front panel with IP65 ingress protection and an IK07 impact rating. It is specified for outdoor operation from −30°C to +60°C at 10%–90% non-condensing humidity. Dahua states that silicone sealant is required around the shell to achieve the listed protection, so the cable entries and mounting surface must be sealed correctly.
Can the DHI-VTO2202FB-P-S3 use both 2-wire and PoE connections?
Yes. The door station supports digital 2-wire communication and also provides a 10/100Mbps RJ45 network port. It can be powered from a compatible Dahua 2-wire switch, with a maximum listed power-supply distance of 50 metres, or through IEEE 802.3af/at PoE. A 48V DC, 1A option is also specified, so the intended connection and power method should be confirmed before installation.
Does the DHI-VTO2202FB-P-S3 support control of two door locks?
Yes, the product family supports a two-lock arrangement. One lock uses the door station’s direct lock-control connection, while the second requires a compatible secure control module. The station also provides an exit-button input, door-status input, RS-485 interface, alarm output and 12V DC, 600mA auxiliary output. Confirm each lock’s voltage, current draw and fail-safe or fail-secure operation before wiring.
What camera and viewing angle are built into the black door station?
The DHI-VTO2202FB-P-S3 uses a 1/2.9-inch 2MP CMOS camera with a 168.6° horizontal, 87.1° vertical and 176.7° diagonal field of view. This wide entrance view is useful where visitors stand close to the door. The camera also supports 120dB WDR, 3D noise reduction, automatic infrared compensation and automatic day and night switching for changing entrance lighting.
Does the DHI-VTO2202FB-P-S3 support two-way audio?
Yes. The door station supports two-way audio through one audio input and a built-in speaker. Echo suppression and digital noise reduction help improve visitor conversations, while G.711a, G.711u and PCM audio formats are supported. The available call experience depends on the compatible indoor monitor, network quality and completed intercom configuration, so audio and door-release functions should be tested during commissioning.
Can visitors be answered and the door unlocked from a mobile app?
Yes. When connected to a compatible Dahua intercom system and configured for network access, an authorised user can communicate with visitors and remotely release the connected entrance through the supported mobile app. Remote operation depends on internet connectivity, account permissions, secure configuration and compatible lock wiring. It should be tested locally and remotely before the system is relied upon for everyday access.
Can the DHI-VTO2202FB-P-S3 store visitor video messages?
Yes. The door station supports visitor video messages when a suitable microSD card is installed in the door station or compatible indoor monitor. The door station accepts a microSD card up to 256GB, but a card is not listed as a standard inclusion. Available message storage and recording behaviour depend on the intercom configuration, selected storage location, card capacity and connected devices.
What should be checked before ordering the DHI-VTO2202FB-P-S3?
Confirm the intended 2-wire or PoE connection, cable distance, compatible indoor monitor, surface-mount position, lock type, secure control module requirement, exit button, door-status contact, network access and microSD storage before ordering. The station measures 130 × 96 × 28.5mm and weighs 0.48kg gross. Security Wholesalers can help verify whether the complete black intercom, power and two-lock arrangement suits the entrance.
