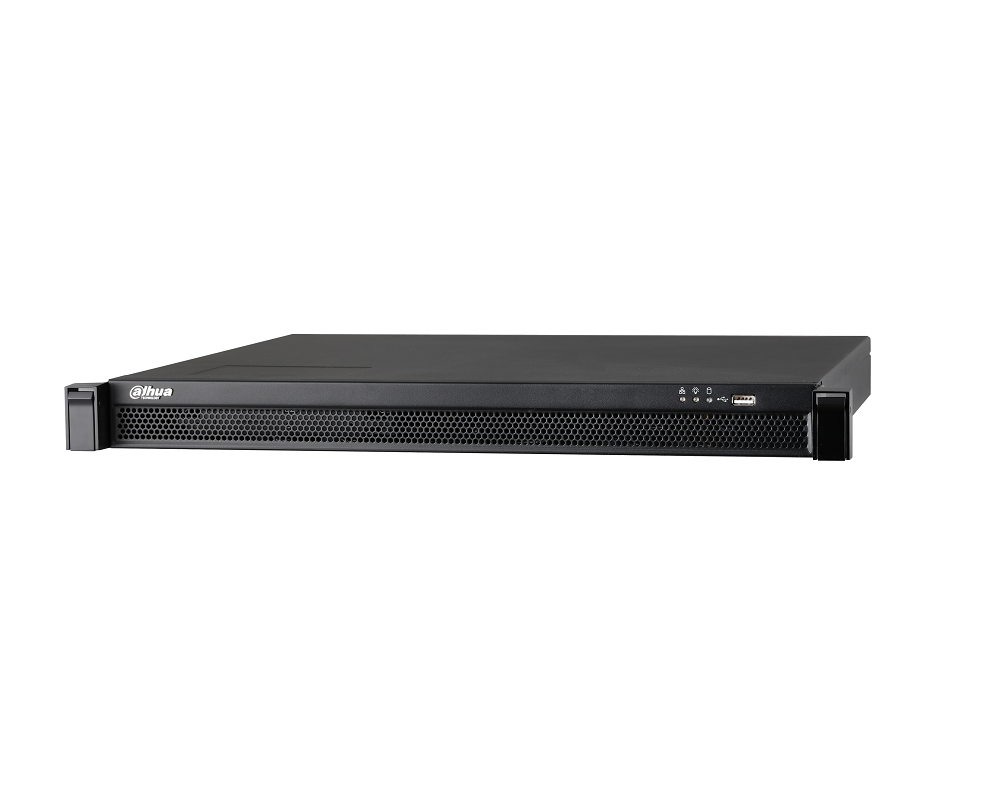

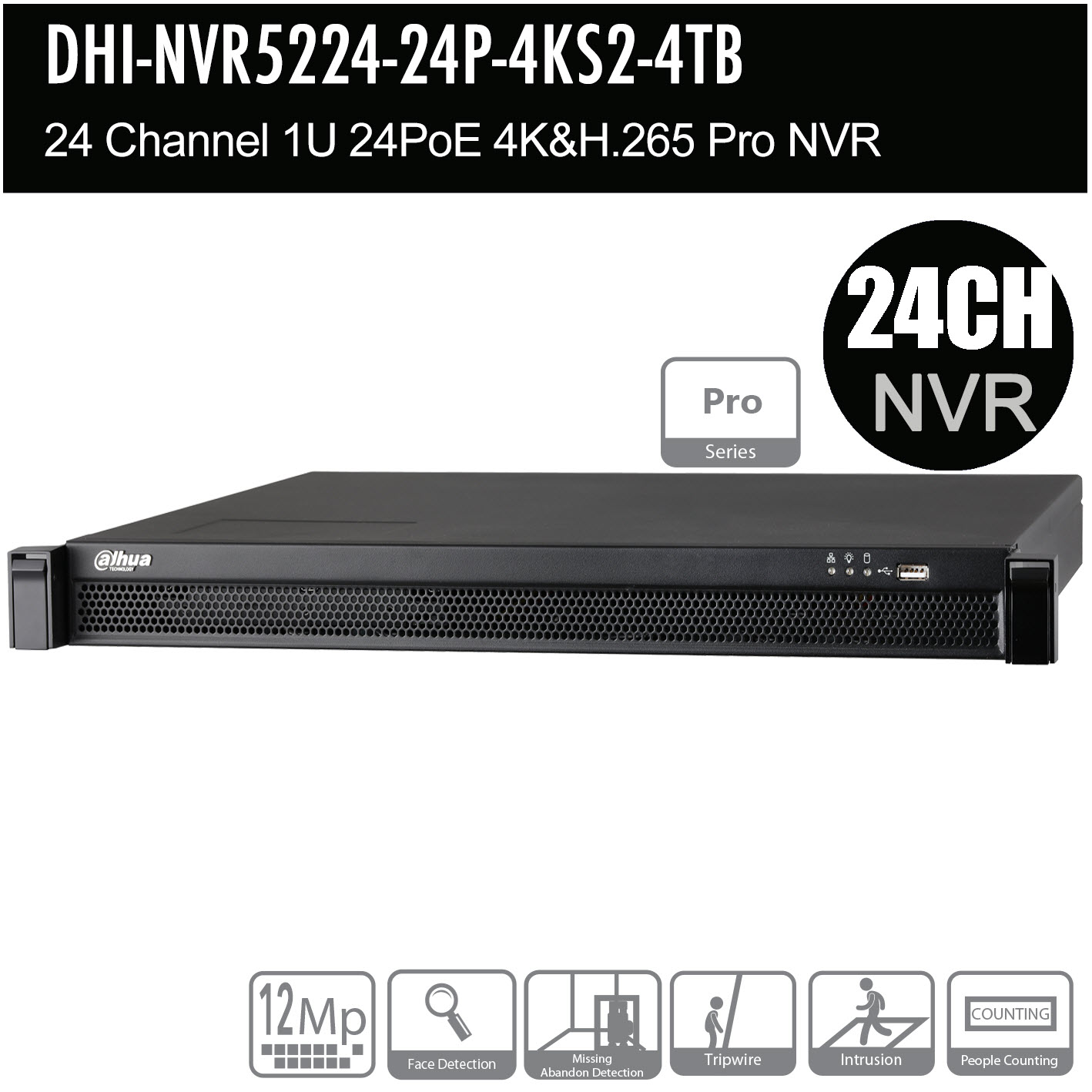

Dahua DHI-NVR5224-24P-4KS2 24 Channel 1U 4K Pro Network Video Recorder


Dahua new NVR5000-4KS2 network video recorder delivers excellent performance and high recording quality that is ideally suitable for IP video surveillance applications. This professional NVR adopts powerful processor, providing the capability of 4K resolution processing for applications where image details are highly required.

Dahua 24ch H.265+ Pro Series NVR Record Up to 12MP, 320Mbps input, 24 Port PoE, 2 x HDD space up to 10TB each HDD, 1x HDMI(4K)/VGA, Smart 2.0, Fisheye Dewarp, Face Detection, Heat Map, ANPR, POS, P2P

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Max 320Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Support IPC UPnP, 24 PoE ports
> 3D intelligent positioning with Dahua PTZ camera

$965.74 inc GST +3 Year Warranty & Support

Hard Drive Options

Dahua new NVR5000-4KS2 network video recorder delivers excellent performance and high recording quality that is ideally suitable for IP video surveillance applications. This professional NVR adopts powerful processor, providing the capability of 4K resolution processing for applications where image details are highly required.

Dahua HDD Compatibility List for Dahua Recorders

System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 24 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI (up to 3840 x 2160), 1 VGA
Resolution 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

Multi-screen Display 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Record Rate 320Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 4 Channel, Low Level Effective, Green Terminal Interface
Relay Output 2 Channel, NO/NC Programmable, Green Terminal Interface
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface 1 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port 1 Independent 1000Mbps Ethernet Ports
PoE 24 ports (IEEE802.3af/at)
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Storage
Internal HDD 2 SATA III Ports, Up to 8 TB capacity for each HDD
HDD Mode Single
eSATA N/A
SAS N/A
Auxiliary Interface
USB 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
RS232 1 Port, for PC Communication and Keyboard
RS485 N/A
Electrical
Power Supply Single, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption <16W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions 1U, 440mm x 419.96mm x 43.65mm ;

(17.3″ x 16.5″ x 1.7″)

Net Weight 4.5kg (9.9 lb) (without HDD)
Gross Weight 6.45kg (14.2 lb)
Installation Rack-mounted
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2015
UL UL 60950-1 and CAN/CSA C22.2 No.60950-1
ImageNamePriceBuy
Dahua DH-IPC-HDW4631EMP-ASE 6MP Eyeball Network Camera 50m IR 2.8mm / 3.6mm$199.00 $227.70 inc GST +3 Year Warranty & Support

Select Lens Size *

Dahua DH-IPC-HDW4831EMP-ASE 8MP IR Eyeball Network Camera WDR, Built-in Mic, 50m IR 4mm$270.00 $370.00 inc GST +3 Year Warranty & Support

Please Select Lens Size: *

(please select – the larger the number, the more narrow)

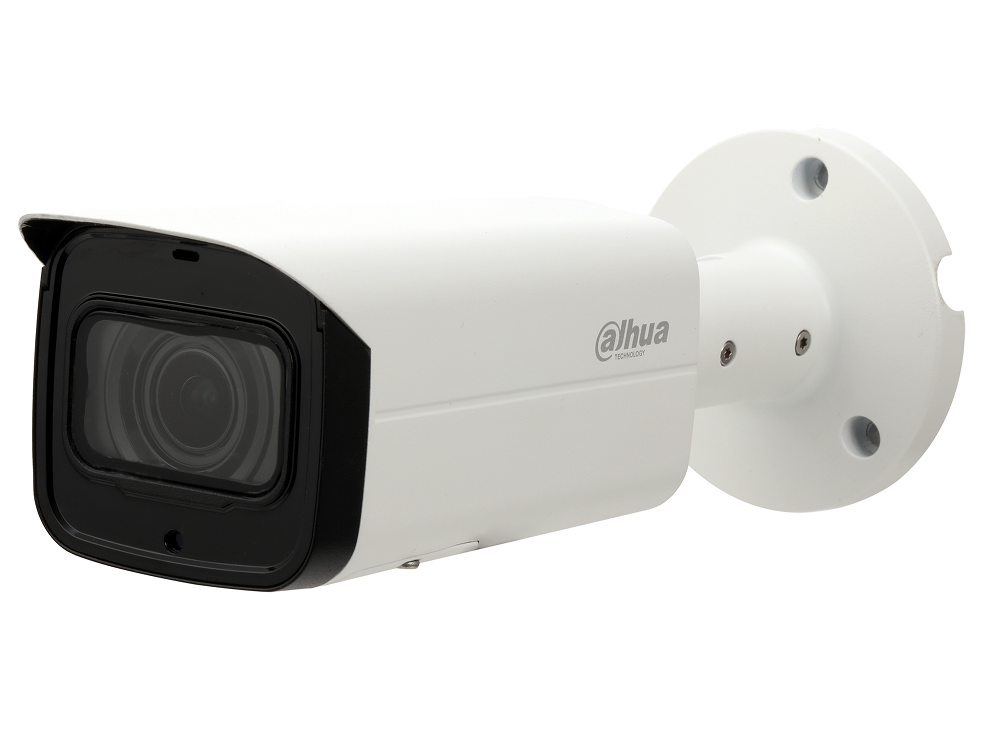

Dahua DH-IPC-HFW2831TP-ZS-27135-S2 8MP WDR IR Bullet Motorised Network Camera$306.00 $556.60 inc GST +3 Year Warranty & Support
