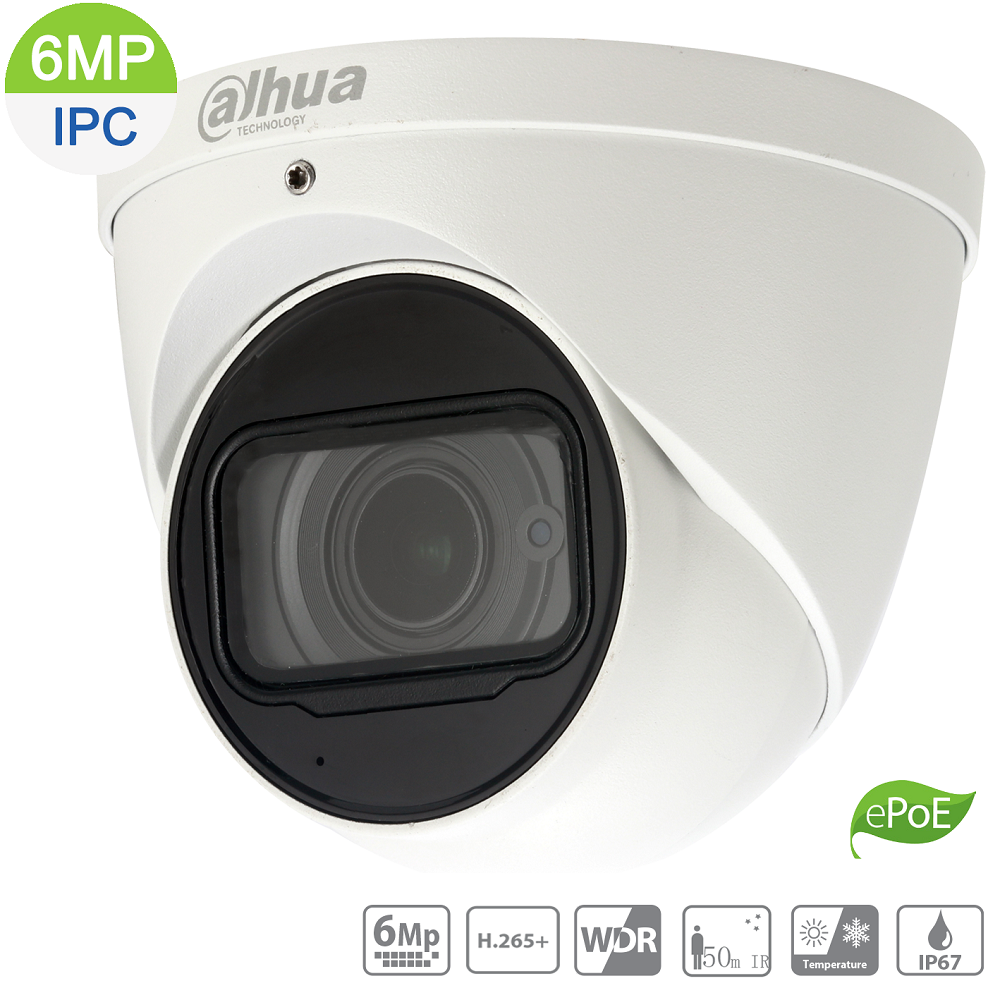

Dahua DH-IPC-HDW5631RP-ZE-27135 6MP Built-In Mic Eyeball Network Camera WDR, 50m IR, Varifocal Zoom Function

Availability:

Out of stock


With upgraded H.265 encoding technology, Eco-savvy series brings high efficient video compression capability. It can save bandwidth and storage. Meanwhile, the series features starlight, smart IR technology and intelligent image analysis techniques. This series supports reminder function, meanwhile fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.

dh-ipc-hdw5631r-ze_operation_manual__20170630

dh-ipc-hdw5631r-ze_quickstartguide_20170630

dh-ipc-hdw5631r-ze_datasheet_20181227







$455.00 inc GST +3 Year Warranty & Support

Out of stock

Eco-savvy products with H.265 encoding technology, result in high efficient video compression. It saves bandwidth and storage, energy-saving design to enhance the monitoring system. Meanwhile, the series offers features such as starlight, Smart IR technology, intelligent image analysis techniques.

Features

1/2.9” 6Megapixel progressive scan CMOS
> H.265&H.264 dual-stream encoding
> 20fps@6M(3072×2048),25/30fps@4M(2688×1520)
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~13.5mm motorized lens
> Built-in Mic
> Max. IR LEDs Length 50m
> Micro SD card memory, IP67, PoE



3 Years Warranty!

All Dahua IP cameras and recording device (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

(Note disk drives limited to 1 one year)

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories.

Consumer Law, Return, Refund and Exchange Policy:
(a) ACL: Certain legislation including the Australian Consumer Law (ACL) in the Consumer and Competition Act 2010 (Cth), and similar consumer protection laws and regulations may confer you with rights, warranties, guarantees and remedies relating to the provision of goods or services to you by us via the Site which cannot be excluded, restricted or modified. Our liability is governed solely by the ACL and these Terms.

(b) Goods: If you are a consumer as defined in the ACL, the following notice applies to you: “Our goods come with warranties and guarantees that cannot be excluded under the Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or a refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure

(c) Our warranties: To the extent permitted by law, we exclude all express and implied warranties, and all material and work is provided to you without warranties of any kind, either express or implied. We expressly disclaim all warranties including but not limited to implied warranties of merchantability and fitness for a particular purpose.

(d) Manufacturer warranties: Certain products, including particular models of IP security cameras and DVR/NVR equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is in addition to but may overlap with any rights and remedies you may have under applicable law, including any Consumer Guarantees. If you are not considered a “consumer” within the meaning of the ACL, the manufacturer’s warranty may be your sole remedy. You should check the manufacturer’s warranty, as many manufacturers’ warranties do not apply in a business or commercial setting. Please contact the manufacturer if you would like to make a claim under the manufacturer’s warranty.

(e) Repair, replacement or a refund: If you wish to seek repair, replacement or a refund for a product, please contact us and we will explain the requirements to you. This may include you providing evidence of the faulty product to us.

(f) Refund: You are not entitled to a refund for change of mind. If you are entitled to a refund, we will only give you the refund once evidence of faulty product is received by us, or we have received the product at our warehouse and inspected it and assessed whether it is eligible for a refund under these Terms. Any refund we make will be by the same payment method used to purchase the product.

(g) Installed: Subject to this clause, we will not accept for return any product that has been used, connected, installed, attempted to be connected or installed, or if your product is custom-made or is a special buy product.

(h) Packaging: You must adequately package any product you are returning for our collection to ensure that it is not damaged during return delivery to our warehouse. You are also responsible for arranging the return delivery and the costs involved.

(i) Duty of care: You have a duty of care for the product while it is in your possession. If you damage products, then subsequently return the products, you may be liable to pay to repair the product to its original condition. In these circumstances, where a repair is not economically viable, no refund will be made.

More Terms & Conditions here – https://www.securitywholesalers.com.au/terms-and-conditions/

Specifications

Camera
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H)x2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.03Lux/F1.6 (Color,1/3s,30IRE)

0.3Lux/F1.6 (Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in
Focal Length 2.7mm~13.5mm
Max. Aperture F1.6
Angle of View H:91°~27° , V:58°~18°
Optical Zoom 5x
Focus Control Motorized
Close Focus Distance 0.3m
DORI Distance Lens Detect Observe Recognize Identify
W 79m(259ft) 32m(105ft) 16m(52ft) 8m(41ft)
T 256m(840ft) 102m(334ft) 51m(167ft) 25m(84ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 6M(3072×2048)/5M(3072×1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/

VGA(640×480)/ CIF(352×288/352×240)

Frame Rate Main Stream: 6M(1~20fps)/4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE(802.3af)(Class 0)
Power Consumption <8.5W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ122mm×104mm( 4.8”×4.09”)
Net Weight 0.6Kg (1.32lb)
Gross Weight 0.76Kg (1.67lb)
