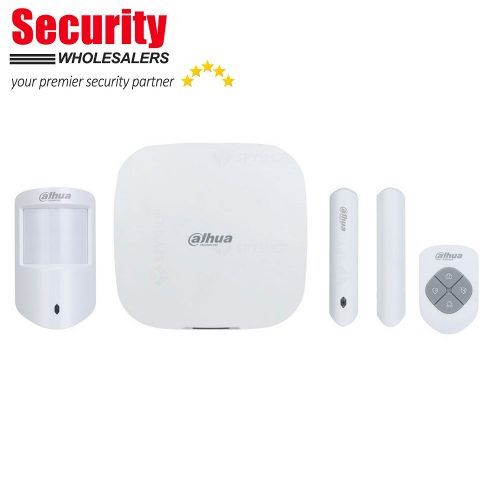

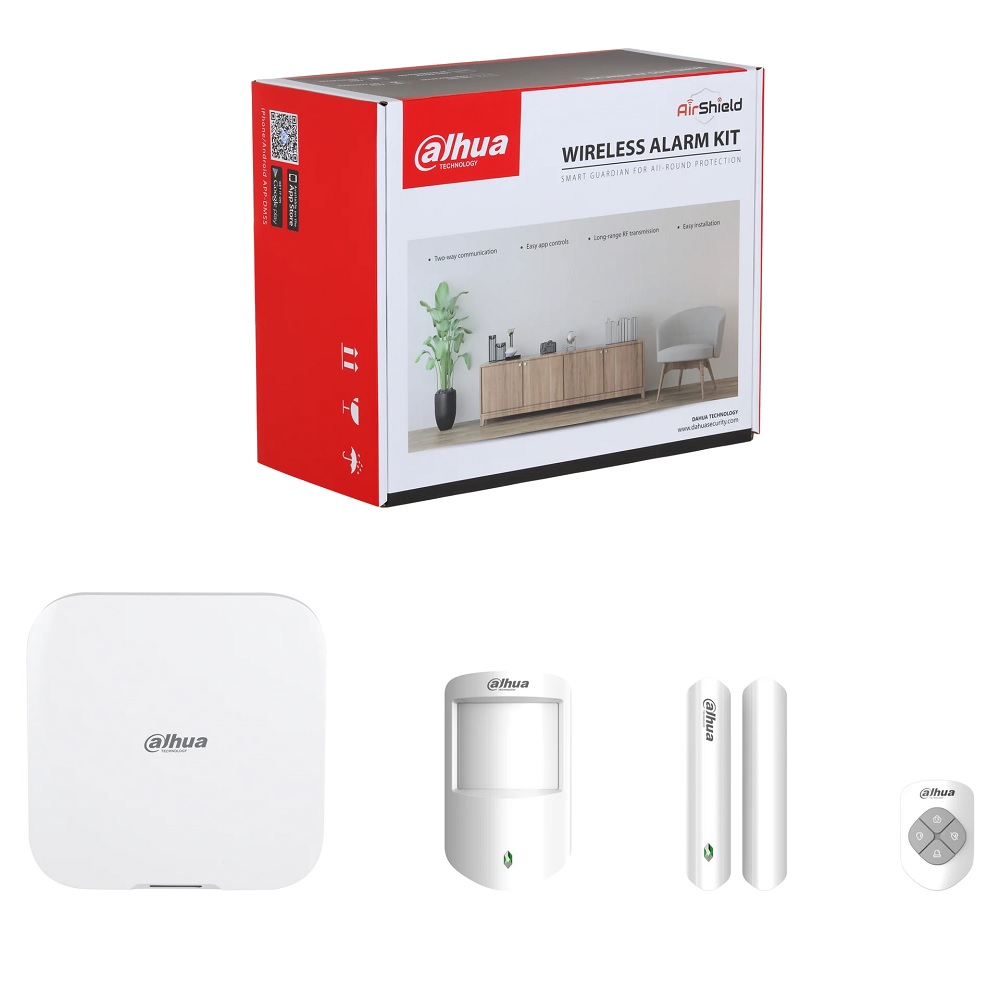

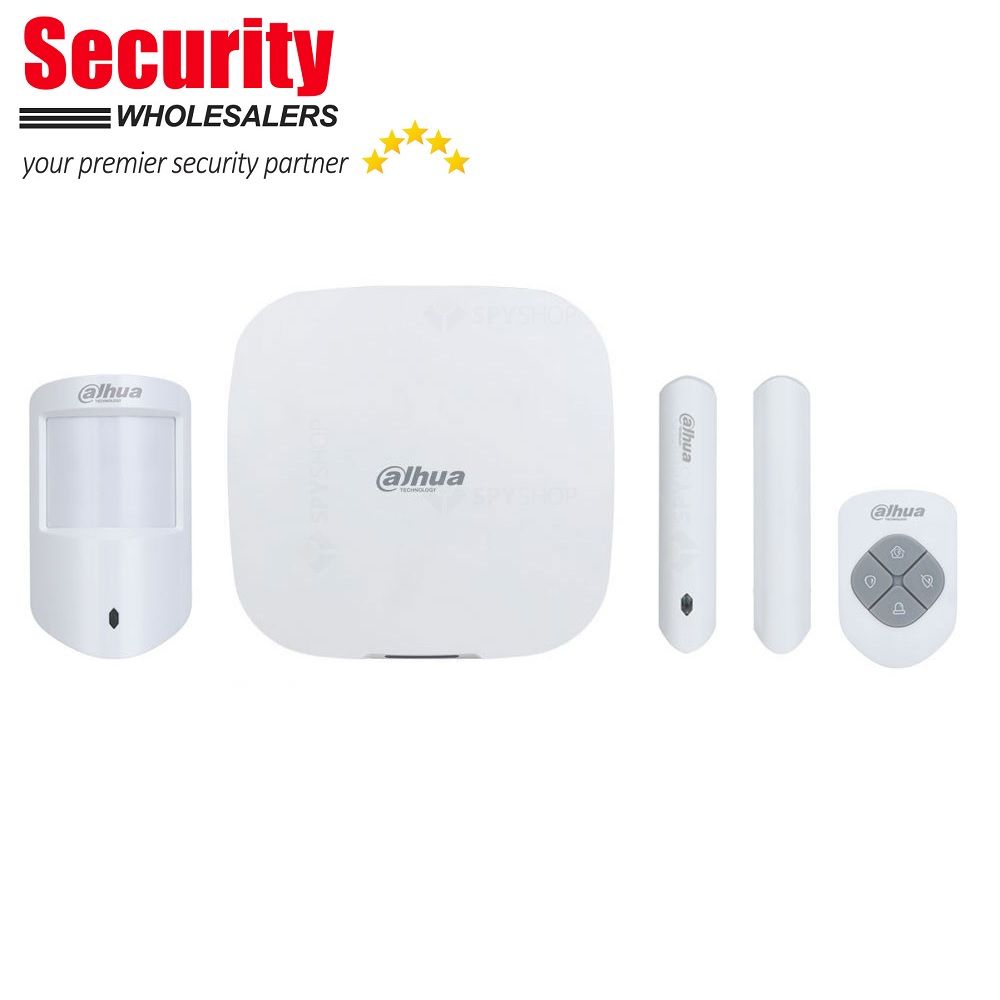

Dahua Alarm DHI-ART-ARC3000H-03-FW2 Wireless Alarm KIT (Wi-Fi, 4G LTE)


The Dahua DHI-ART-ARC3000H-03-FW2 Wireless Alarm Kit is a comprehensive security solution designed to enhance safety for residential and commercial spaces. It supports up to 150 wireless peripherals, including 6 sirens and 64 keyfobs, allowing for extensive coverage and control. The system offers multiple connection options, including Ethernet, Wi-Fi, and cellular networks (4G/3G), ensuring reliable communication even in various environments. With features like automatic network replenishment (ANR) and cloud updates, the kit ensures consistent performance and ease of maintenance. Additionally, it includes a user-friendly mobile app for real-time alerts, remote control, and video linkage capabilities. The wireless communication distance can reach up to 1,200 meters in open spaces, making it suitable for larger properties. Furthermore, it has built-in tamper alarms and low battery notifications to enhance security. This alarm kit is ideal for a range of applications, including villas, shops, and apartments, combining advanced technology with practical usability​.

Key Features

  • Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs).
  • Peripherals status display (signal strength, battery level, temperature, program version).
  • Wired, Wi-Fi, 4G, 3G, or GPRS network connection.
  • Dual SIM and Single Standby, auto-switching.
  • Automatic network replenishment (ANR).
  • Video linkage on App.
  • SOS emergency alarm.
  • Frequency hopping function and two-way communication technology ensure communication stability.
  • Cloud update and automatic recovery from update failure.

DHI-ART-ARC3000H-03-FW2 Datasheet

$440.00 inc GST +3 Year Warranty & Support

The Dahua DHI-ART-ARC3000H-03-FW2 Wireless Alarm Kit is a state-of-the-art security solution designed for various applications such as villas, shops, and apartments. This alarm hub supports up to 150 wireless peripherals, including six sirens and 64 wireless keyfobs, providing extensive coverage and flexibility. Its dual SIM capability allows for reliable communication via multiple cellular networks, ensuring that the system remains operational even during network outages. The device features advanced tamper protection and offers real-time notifications through the DMSS mobile app, enabling users to manage and control their security system remotely.

Equipped with a communication distance of up to 1,200 meters in open spaces, it also employs frequency hopping technology for stable and secure connections. Users can schedule arm and disarm functions through the app or keyfobs, enhancing convenience. The system supports cloud updates and has a built-in lithium battery that provides up to 12 hours of standby power in case of outages. Furthermore, it includes features like low battery alerts and temperature monitoring, making it a reliable choice for comprehensive security. The DHI-ARC3000H-03-FW2 is designed for easy installation, and its sleek design complements modern aesthetics, making it an ideal choice for homeowners looking to enhance their security infrastructure.

Application



ImageNamePriceBuy
Dahua DHI-ARD1233-W2 Wireless PIR Detector$65.28 inc GST +3 Year Warranty & Support
Dahua DHI-ARD324-W2(S) Wireless Door Detector Plus$46.87 inc GST +3 Year Warranty & Support
Dahua DHI-ARA24-W2 Wireless Alarm Keyfob Remote$33.48 inc GST +3 Year Warranty & Support
Dahua DHI-ARD1731-W2 Wireless PIR-Camera$144.00 $167.39 inc GST +3 Year Warranty & Support
Dahua DHI-ARK30T-W2 Wireless Keypad$120.52 inc GST +3 Year Warranty & Support

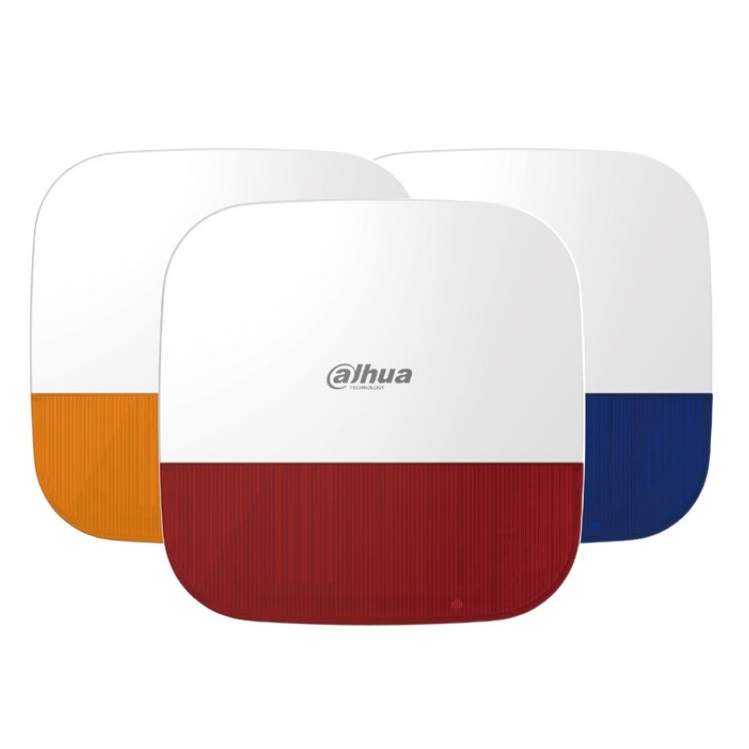

Dahua DHI-ARA13-W2 Wireless Outdoor Siren$103.78 inc GST +3 Year Warranty & Support

Dahua Alarm DHI-ART-ARC3000H-03-FW2 Wireless Alarm KIT (Wi-Fi, 4G LTE)$440.00 inc GST +3 Year Warranty & Support
Dahua DHI-ARA12-W2 Alarm Wireless Indoor Siren$50.22 inc GST +3 Year Warranty & Support
Dahua DHI-ARK30T-W2-IC Proximity IC Card$1.67 inc GST +3 Year Warranty & Support

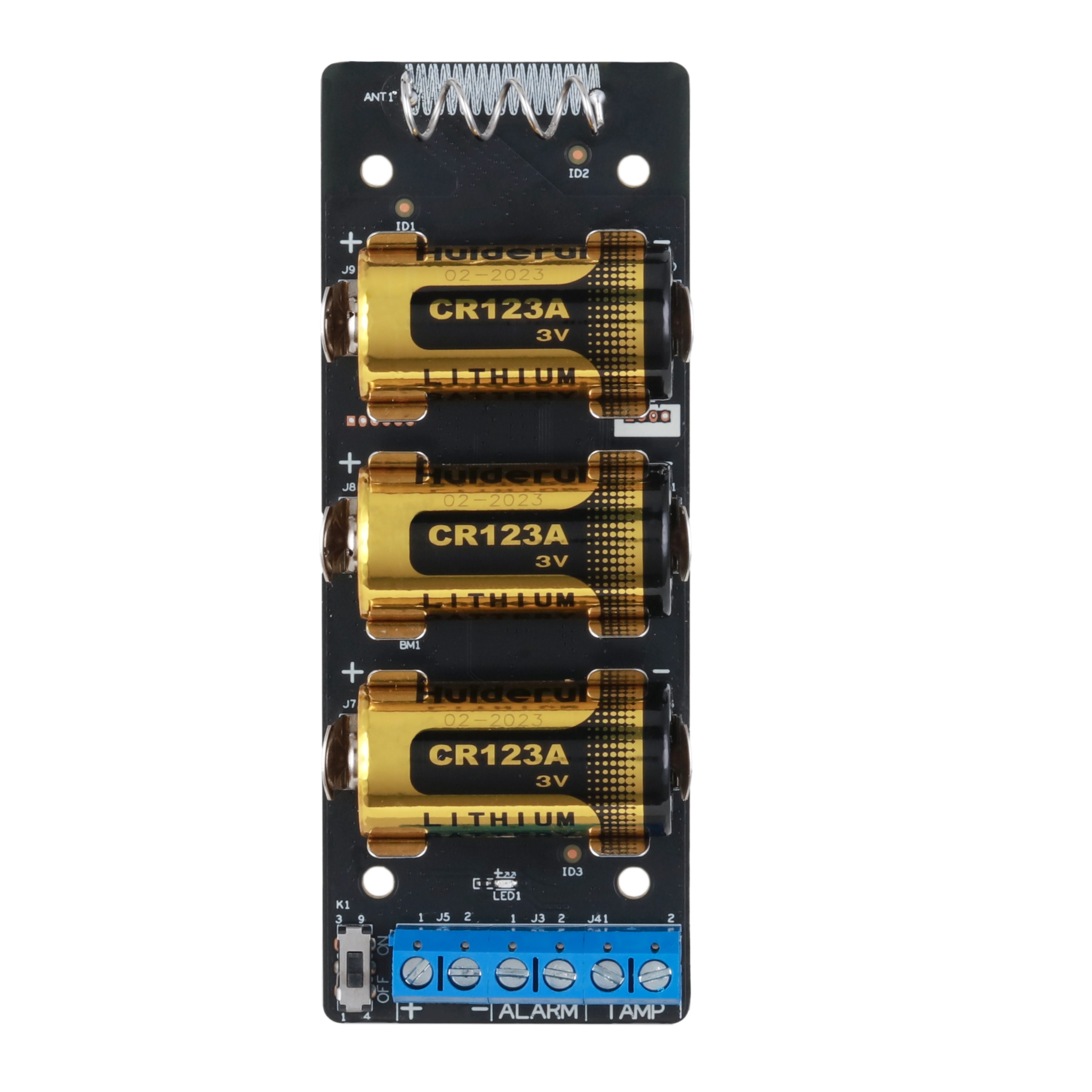

Dahua DHI-ARM320-W2 Wireless Input Expander$41.85 inc GST +3 Year Warranty & Support

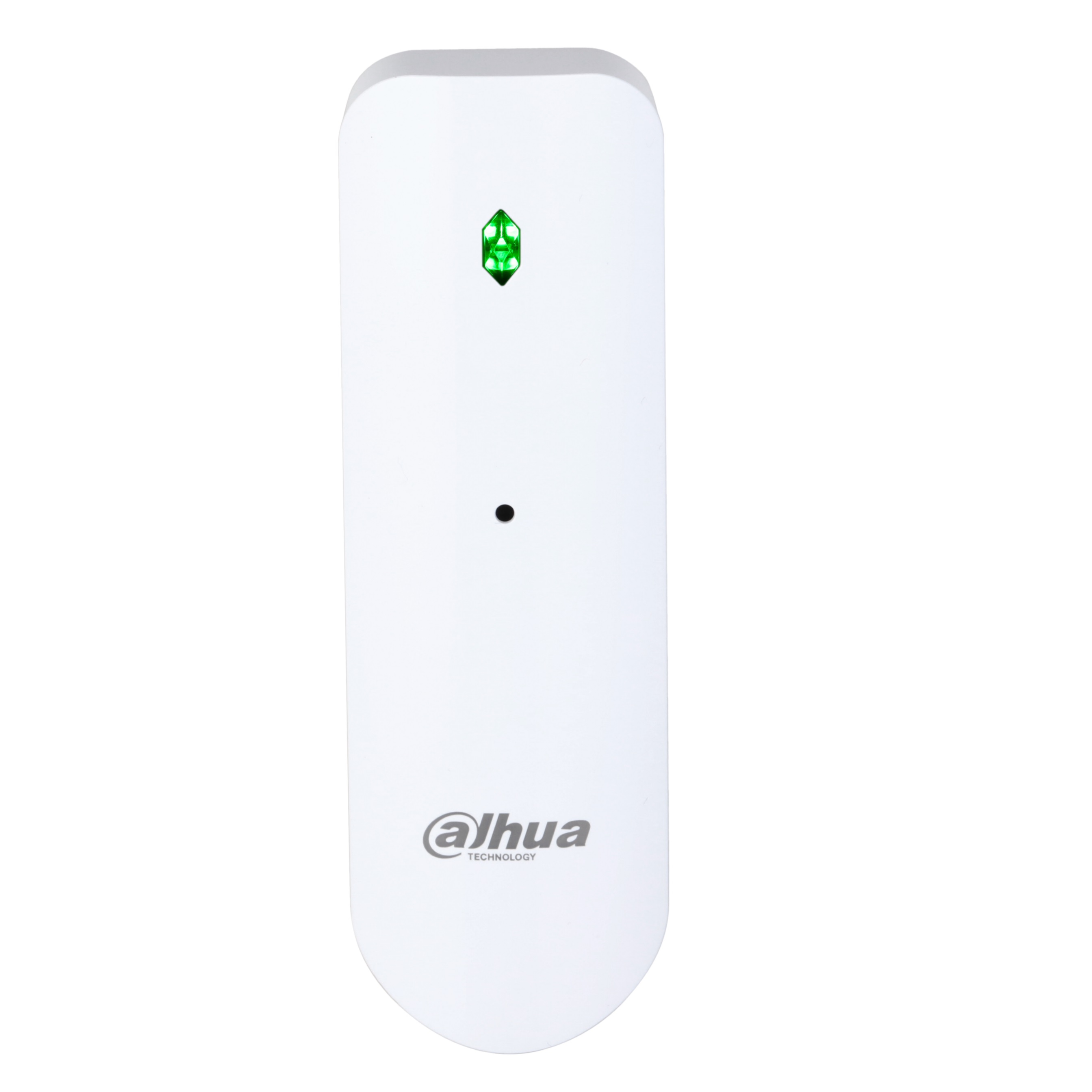

Dahua DHI-ARD512-W2 Wireless Glass Break Detector$55.24 inc GST +3 Year Warranty & Support

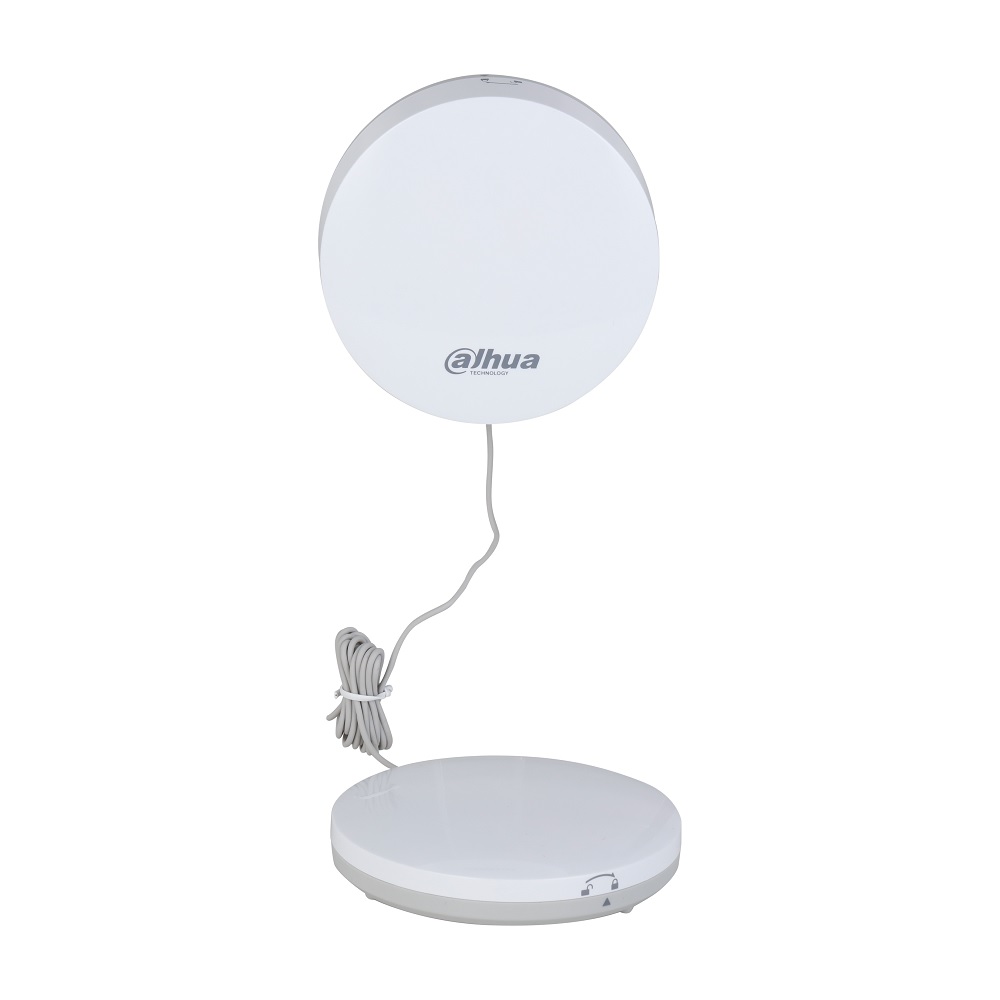

Dahua DHI-ARD912-W2(D) Wireless Water Leak Detector$75.00 inc GST +3 Year Warranty & Support

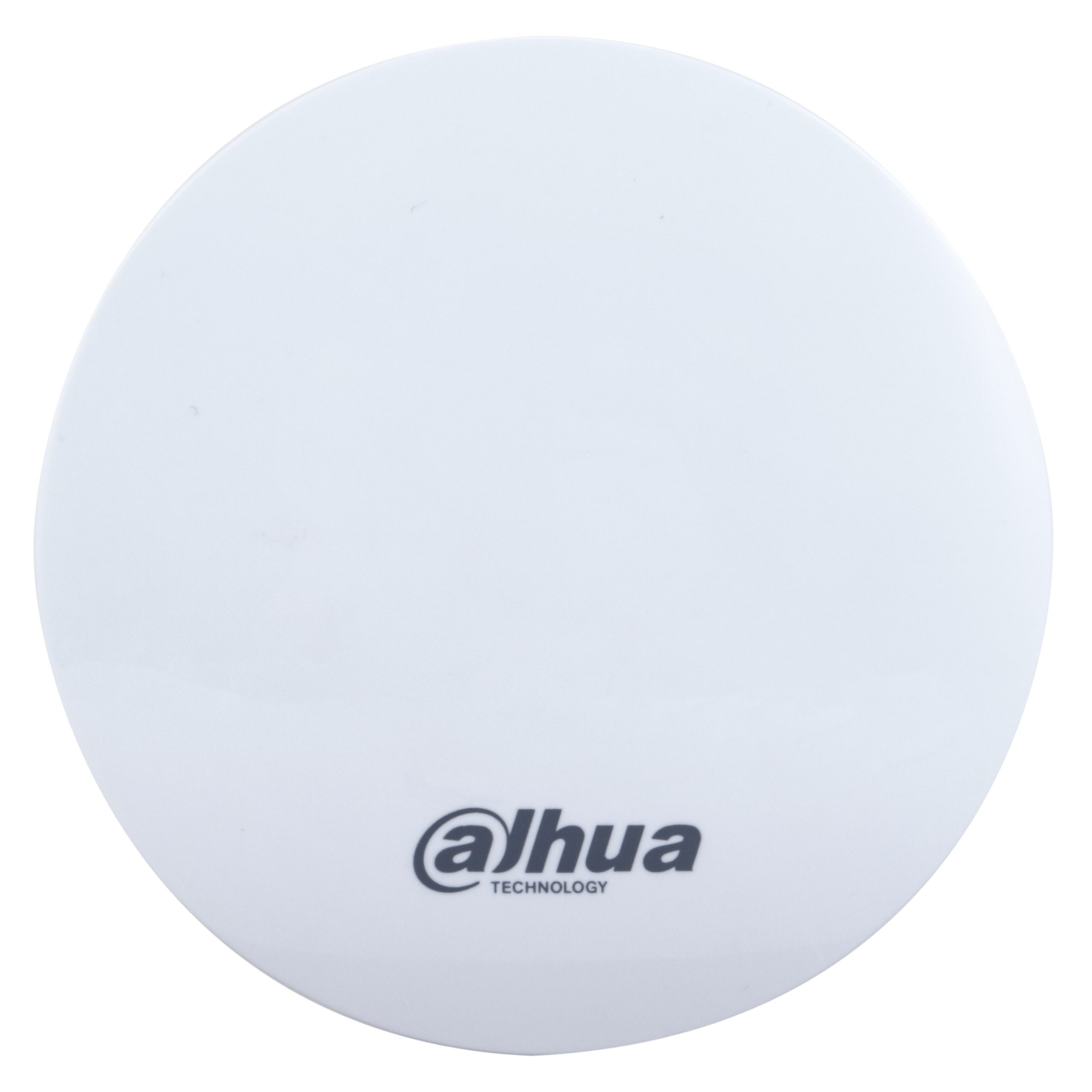

Dahua DHI-ARD912-W2 Wireless Water Leak Detector$50.22 inc GST +3 Year Warranty & Support

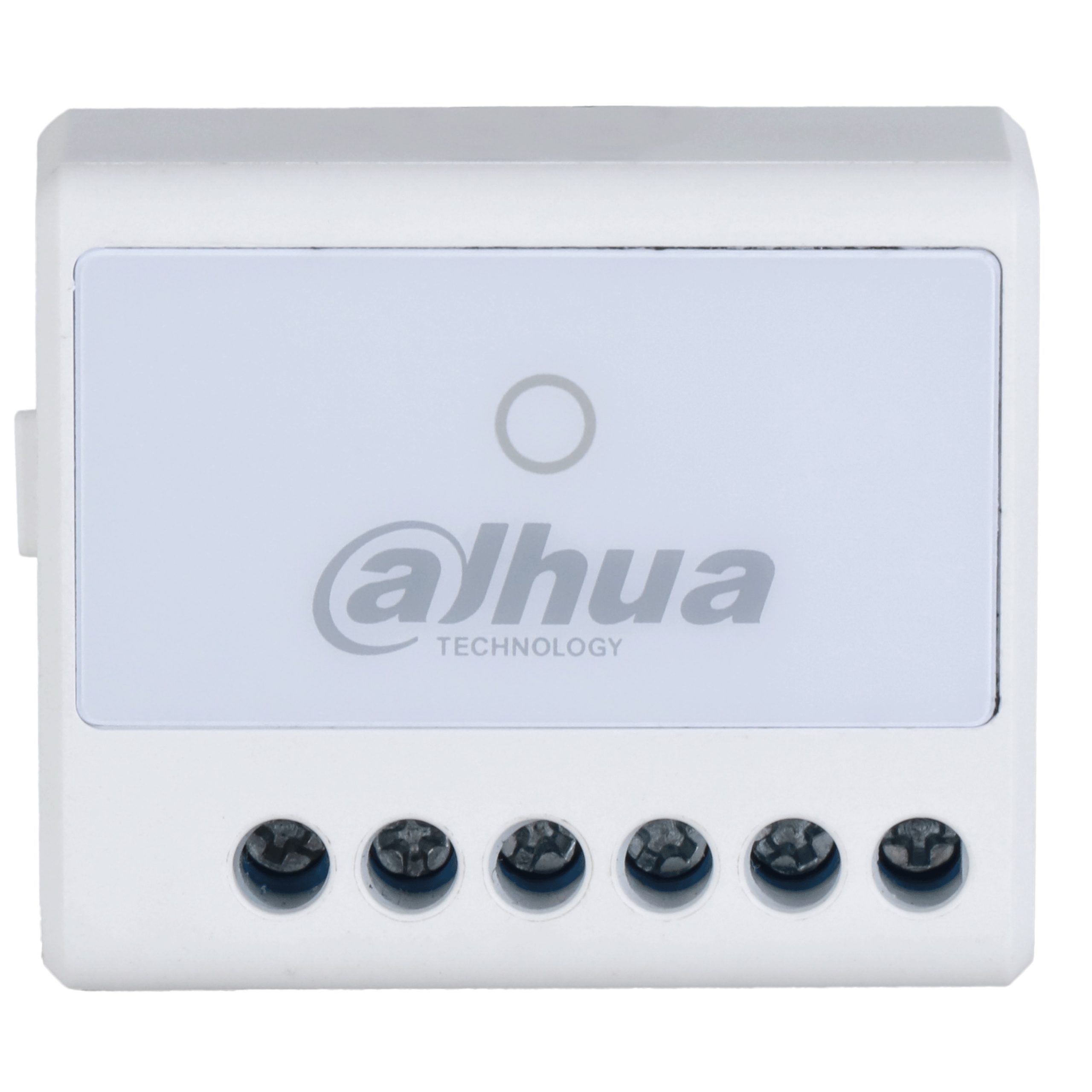

Dahua DHI-ARM7011-W2 Wireless Relay$46.87 inc GST +3 Year Warranty & Support

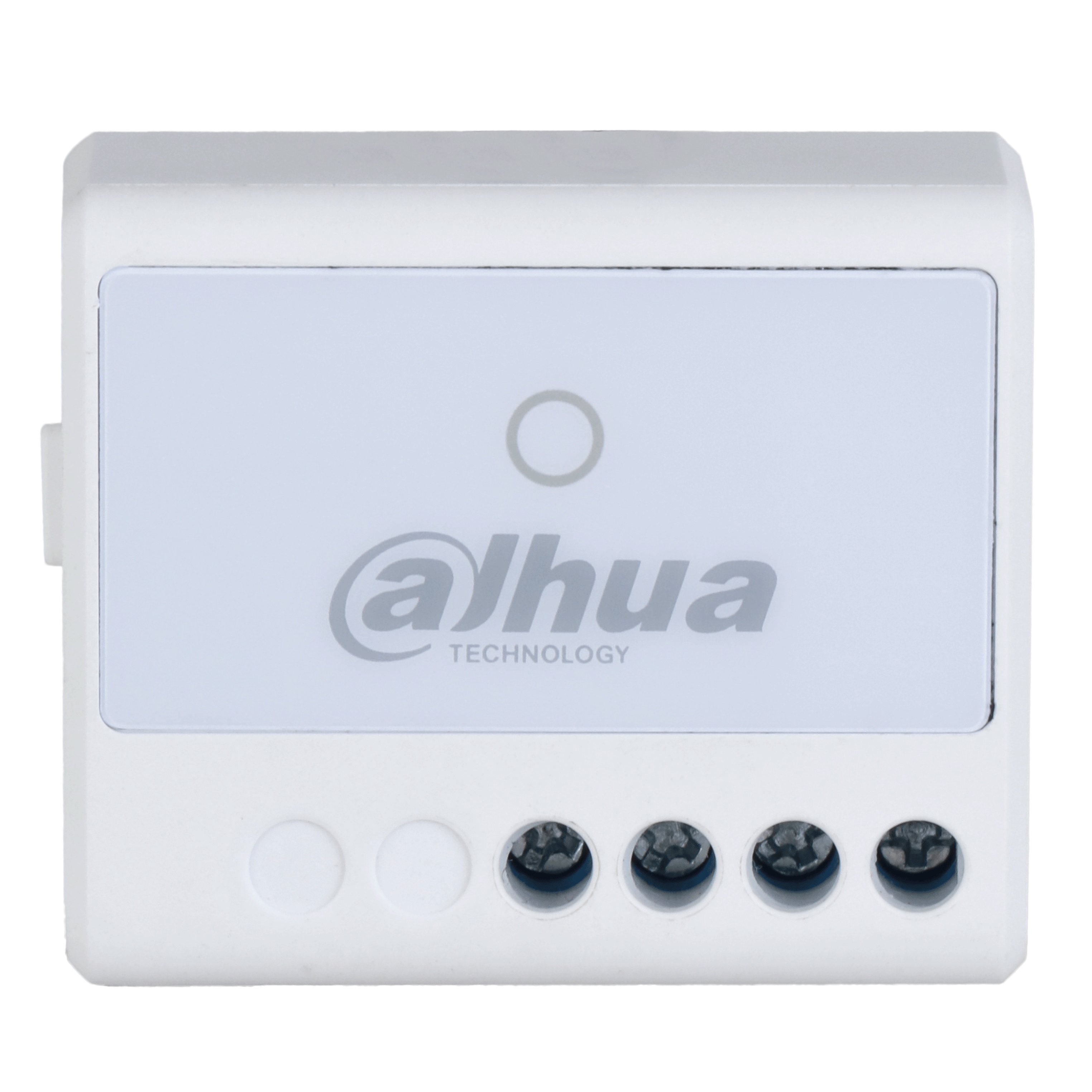

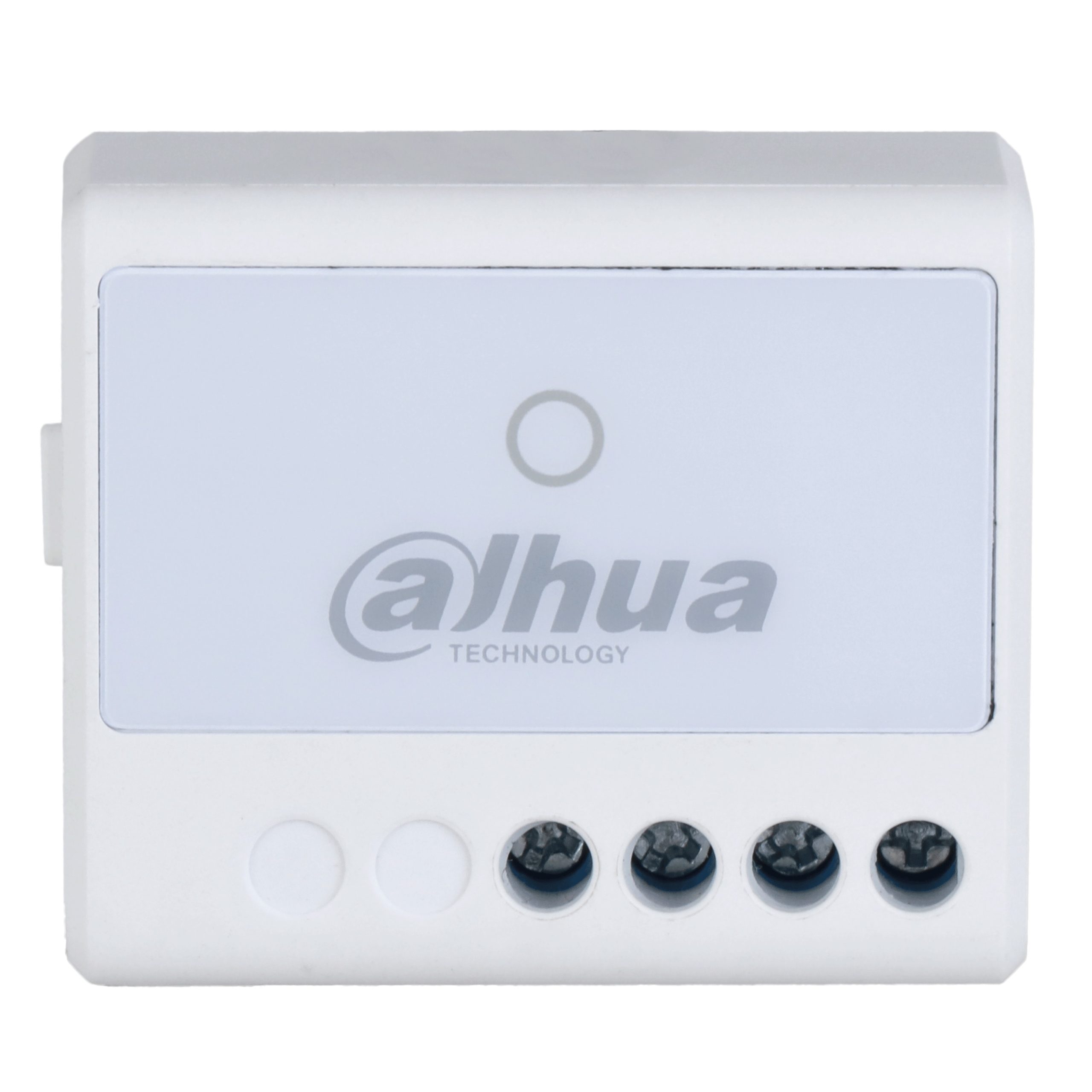

Dahua DHI-ARM7012-W2 Wireless WallSwitch$50.22 inc GST +3 Year Warranty & Support

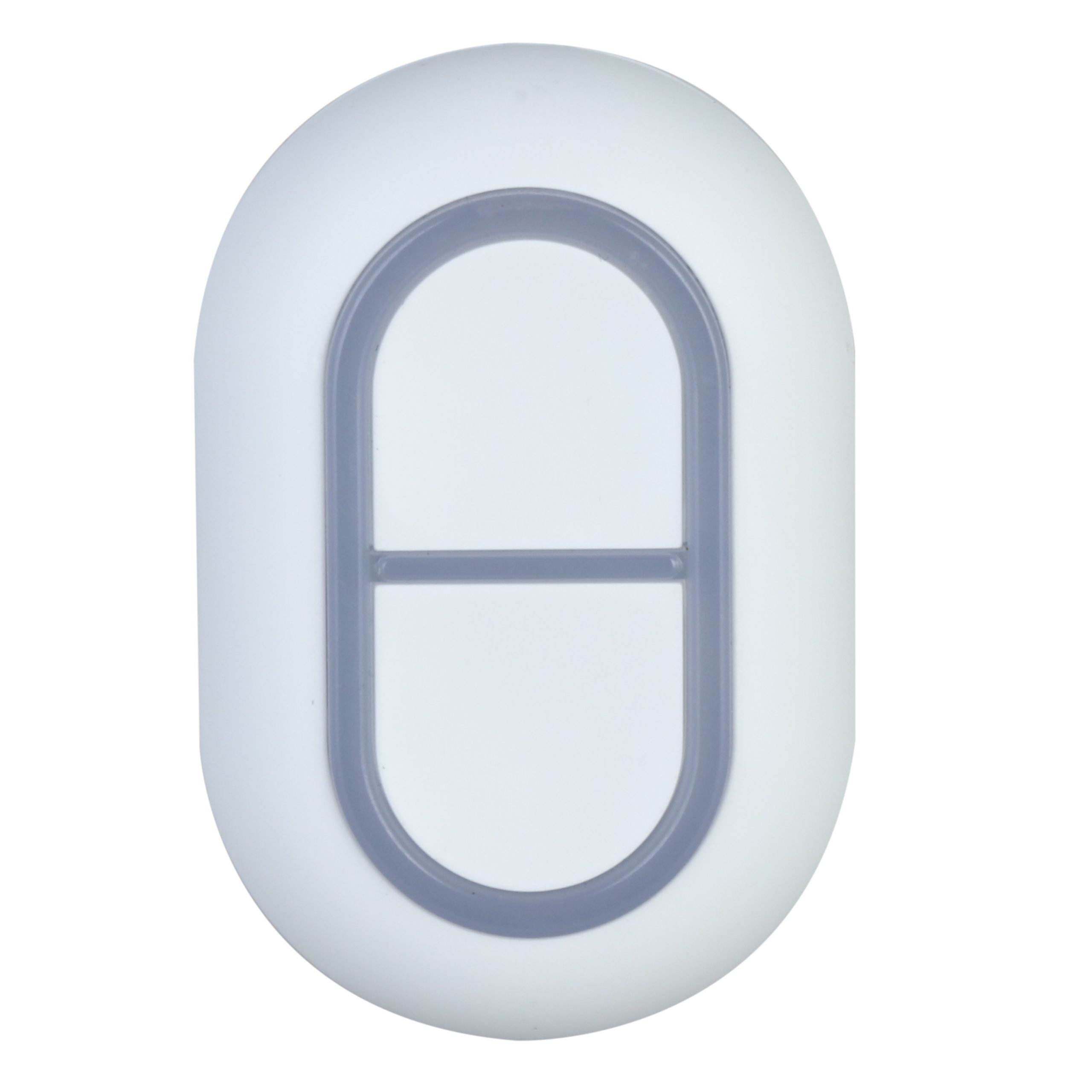

Dahua DHI-ARD822-W2 Wireless Panic Button$33.48 inc GST +3 Year Warranty & Support
Dahua DHI-ARD821-W2 Wireless Panic Button$31.80 inc GST +3 Year Warranty & Support

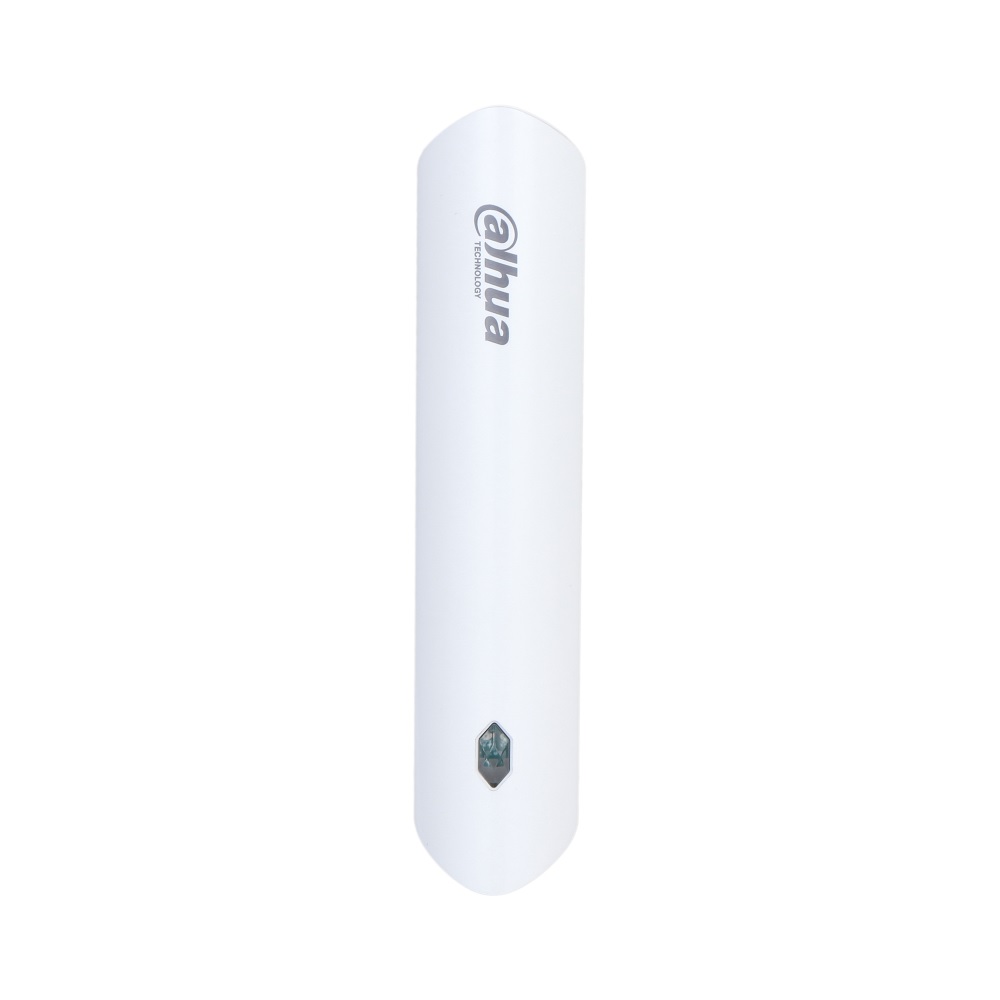

Dahua DHI-ARM310-W2 Wireless Input Expander$36.83 inc GST +3 Year Warranty & Support
Dahua DHI-ARD323-W2(S) Wireless Door Detector$46.87 inc GST +3 Year Warranty & Support

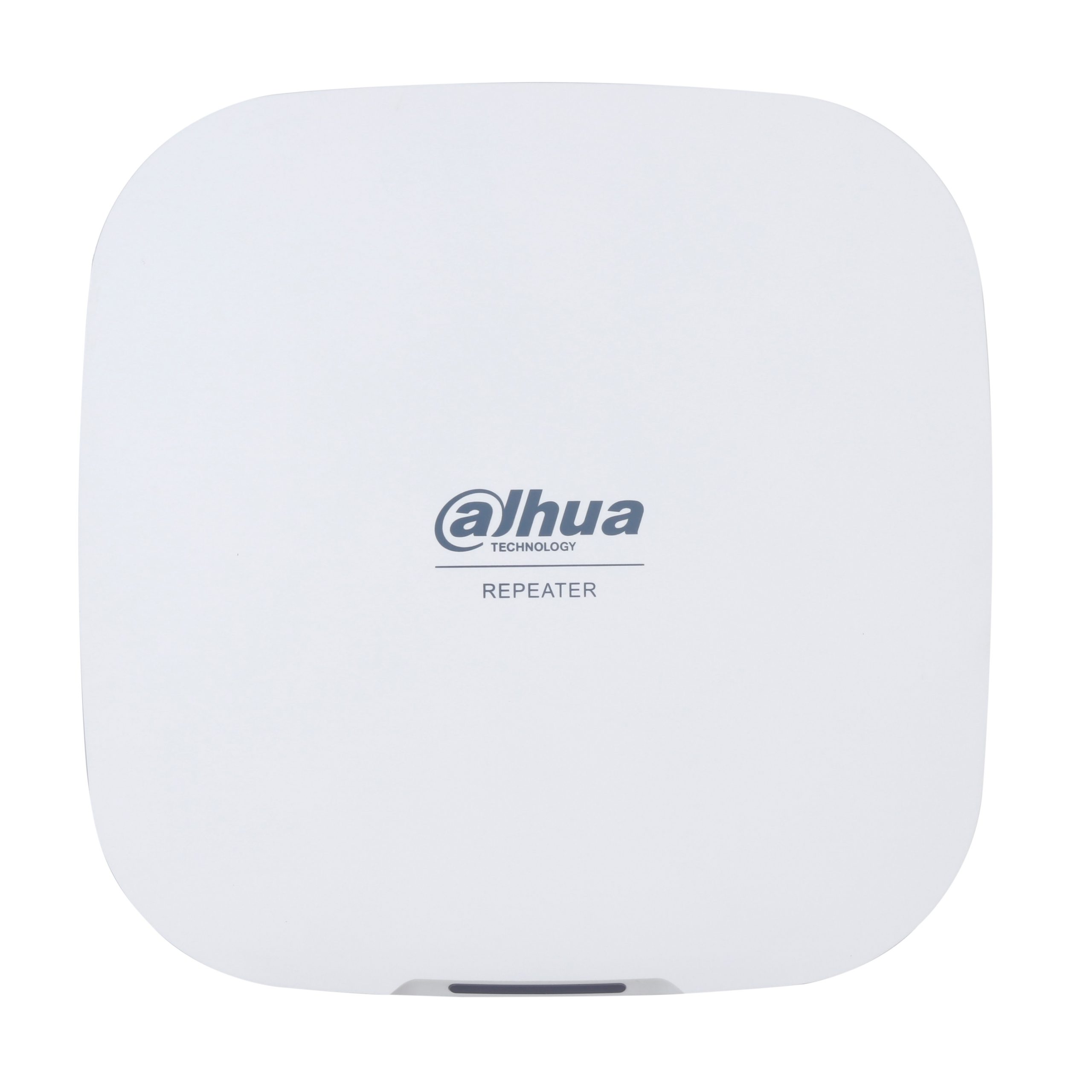

Dahua DHI-ARA43-W2 Wireless Alarm Repeater$127.22 inc GST +3 Year Warranty & Support
Dahua DHI-ARC3000H-FW2 Wireless Alarm Hub$284.57 inc GST +3 Year Warranty & Support

Technical Specifications

Input and Output
Wireless Protection Zone Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs)
Port
Buzzer Hub: Built-in
Button Hub: 1 × reset, 1 × power, 1 × AP
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 × power button
PIR Detector: 1 × power button
Indicator Light Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)
Keyfob: 1 × two-color status indicator (green: normal, red: abnormal)
Door Detector: 1 × green alarm indicator
PIR Detector: 1 × green alarm indicator
Storage battery Hub: Built-in lithium battery
Network Mode Hub: Ethernet, Wi-Fi and Cellular network (Supports installation of dual SIM cards. Only one card can be enabled at a time)
Network Port Hub: 1 × RJ-45 10 M/100 M Ethernet port
Function
Network Protocol Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP
Offline Cache Hub: Max. 50 entries (ANR)
Power Failure Protection for Configured Parameters Hub: Yes
Remote Update All: Cloud update
Video Linkage Hub: Yes
SMS Hub: Yes (up to 5 phone numbers)
Phone Call Hub: Yes (up to 5 phone numbers)
Low Battery Alarm All: Yes
Tamper Alarm Hub: Yes
Door Detector: Yes
PIR Detector: Yes
User Management Hub: Share function for App users
Search Hub: Searching push messages, device status, and program version. Detecting signal strength.
Keyfob: Signal strength detection
Door Detector: Signal strength detection
PIR Detector: Signal strength detection
Arm and Disarm Hub: App; keyfob; schedule
Wireless
Carrier Frequency All: 433.1 MHz–434.6 MHz
Transmitter Power (EIRP) All: Limit 10 mW
Communication Distance Hub: Up to 1,200 m (3,937.01 ft) in an open space
Keyfob: Up to 500 m (1,640.42 ft) in an open space
Door Detector: Up to 1,000 m (3,280.84 ft) in an open space
PIR Detector: Up to 1,200 m (3,937.01 ft) in an open space
Communication Mechanism All: Two-way
Encryption Mode All: AES128
Frequency Hopping All: Yes
Wi-Fi
Wi-Fi Standard Hub:IEEE 802.11b/g/n
Wi-Fi Frequency Range Hub:2400-2483.5 MHz
Wi-Fi Power Transmission Hub:≤20 dBm@2400-2483.5 MHz
Cellular Network
Cellular Network Standard Hub:GSM/WCDMA/LTE
Frequency Range Hub:
EU:
4G: FDD-LTE: B1/B3/B7/B8/B20; TDD-LTE: B38/B40/B41;
3G: WCDMA: B1/B5/B8;
2G: GSM: 1,800/900 MHz;
LM:
4G:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28;
TDD-LTE: B40;
3G:
WCDMA: B1/B2/B5/B8;
2G:
GSM: 850/900/1800/1900 MHz
Transmitter Power (EIRP) Hub:

EU:

4G: Power class3: 23 dBm±2 dB

3G: Power class3: 24 dBm+1/-3 dB

2G: Power class0: 30 dBm±3 dB (GSM900)

Power class5: 33 dBm±3 dB (GSM1800)

Hub:

LM:

4G: Power class3: 23 dBm±2 dB

3G: Power class3: 24 dBm+1/-3 dB

2G: Power class0: 30 dBm±3 dB (GSM850/900)

Power class5: 33 dBm±3 dB (GSM1800/1900)

Peripherals
External Zone Door Detector: 1-channel dry contact input
Temperature
Measuring Range (Temperature) Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Measuring Precision (Temperature) Door Detector: ± 1 °C (± 33.8 °F)
PIR Detector: ± 1 °C (± 33.8 °F)
Resolution (Temperature) Door Detector: 1 °C (33.8 °F)
PIR Detector: 1 °C (33.8 °F)
Specification
Sensor Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor
Test Mode Door Detector: Yes
PIR Detector: Yes
Scenario Door Detector: Non-metal doors
Movement Distance Door Detector: < 40 mm (1.57″)
Detection Mode PIR Detector: PIR
Detection Range PIR Detector: 12 m (39.37 ft) (90°) with installtion height of 2.2 m (7.21 ft)
Detection Speed PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity Level PIR Detector: ≤ 18 kg (39.68 lb)
White Light Resistance Level PIR Detector: 6500 lx
Two-way Digital Temperature Compensation PIR Detector: Yes, no attenuation of detection distance in high temperature
Sensitivity PIR Detector: 3 levels adjustable
General
Power Supply Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional)

Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery

Battery Life Hub: Storage battery standby for 12 Hours
Keyfob: 5 years
Door Detector: 5 years
PIR Detector: 4 years
Power Consumption Keyfob: Max. 85 mW
Door Detector: Max. 70 mW
PIR Detector: Max. 75 mW
Operating environment Hub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity All: 10%–90% (RH)
Product Dimensions Hub: 163.0 mm × 163.0 mm × 32.0 mm (6.42″” × 6.42″” × 1.26″”) (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36″” × 1.56″” × 0.59″”) (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94″” × 0.82″” × 0.80″”) (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09″” × 2.36″” × 1.97″”) (L × W × H)
Packaging Dimensions Hub: 219.0 mm × 187.0 mm × 91.0 mm (8.62″” × 7.36″” × 3.58″”) (L × W × H)
Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31″” × 3.88″” × 1.09″”) (L × W × H)
Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31″” × 3.88″” × 1.09″”) (L × W × H)
PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31″” × 3.88″” × 2.24″”) (L × W × H)
Installation Hub: Wall mount; Desktop
Door Detector: Bracket mount
PIR Detector: Wall mount
Net Weight Hub: 0.38 Kg (0.84 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)
Gross Weight Hub: 0.8 Kg (1.76 lb)
Keyfob: 65 g (0.14 lb)
Door Detector: 115 g (0.25 lb)
PIR Detector: 170 g (0.37 lb)
Casing All: PC + ABS
Certifications All: CE
