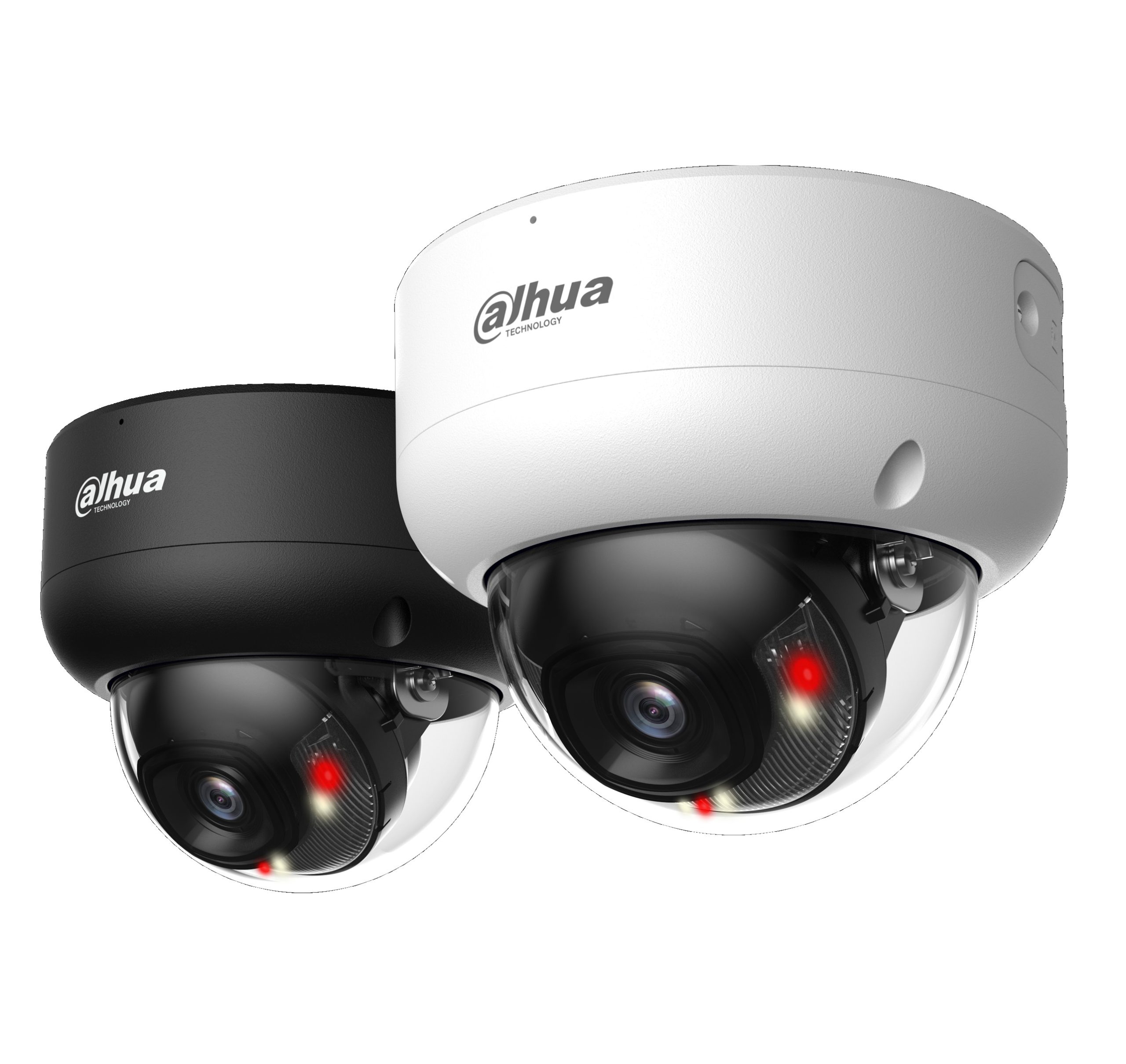

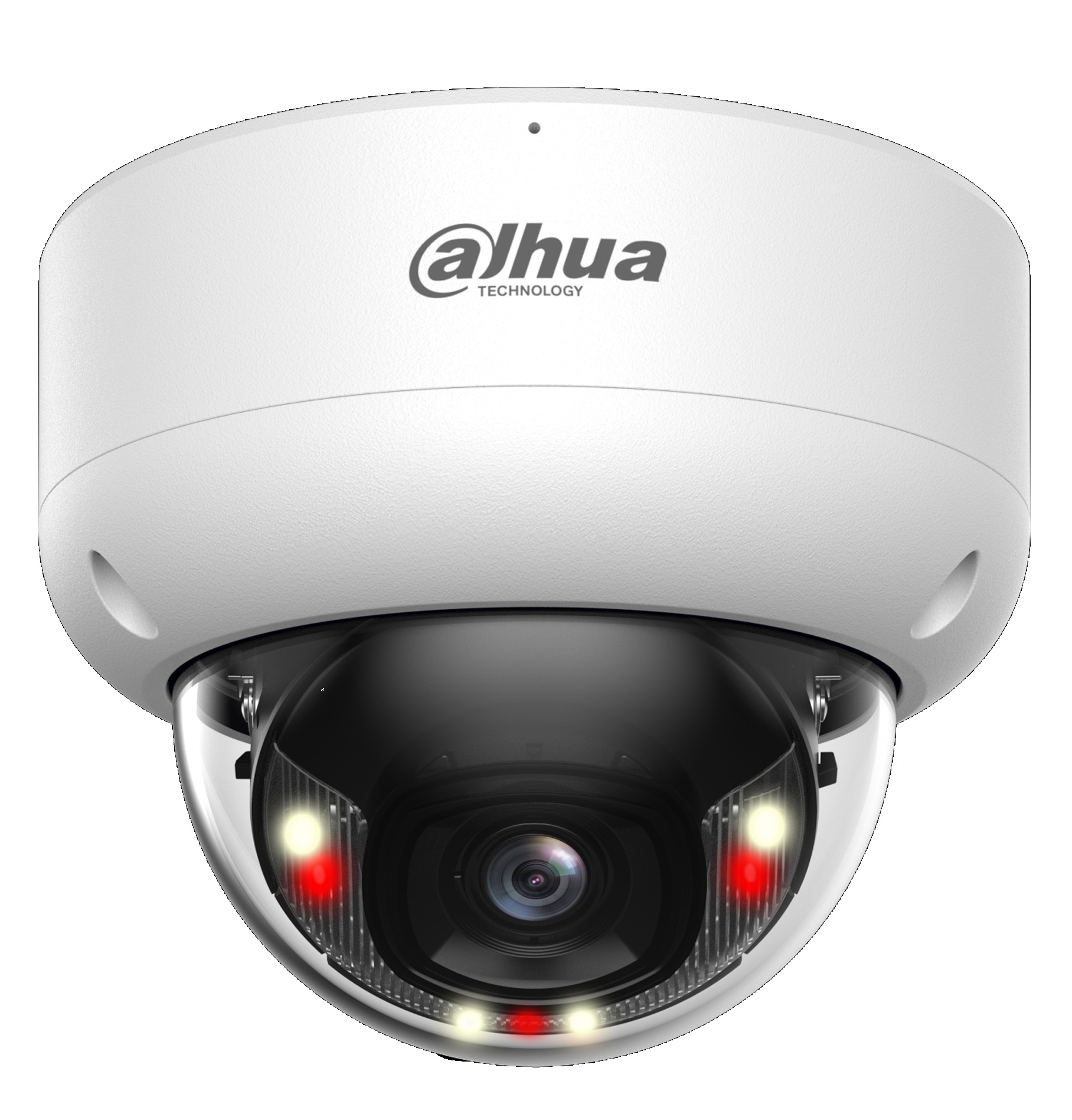

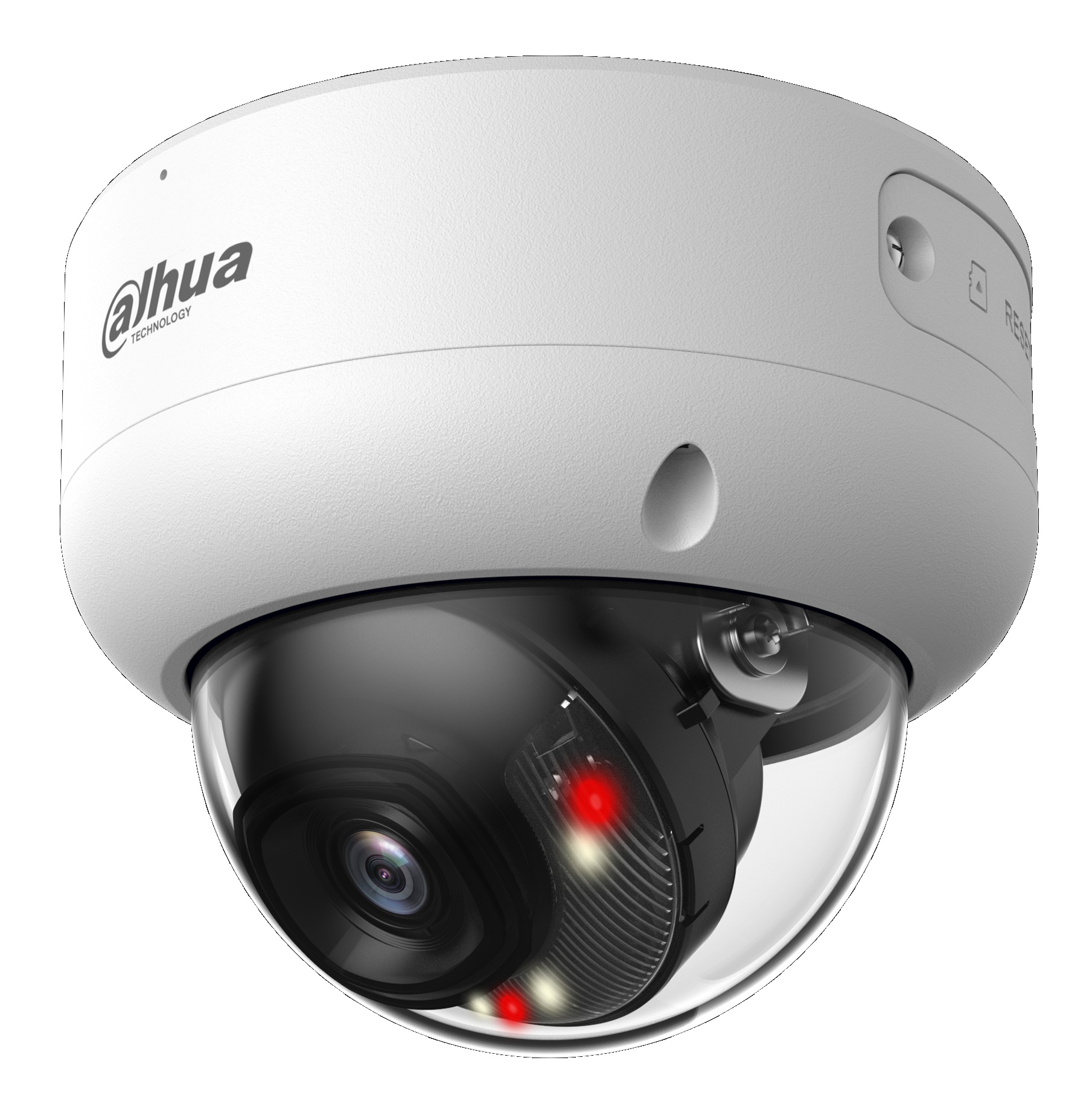

Dahua 6MP WizSense IPC-HDBW3667E-AS-IL-ANZ Dome Camera with Smart Dual Light, 2.8mm Lens, 30m IR

$192.00
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Dahua 6MP WizSense Dome Camera | IPC-HDBW3667E | Smart Dual Light | Fixed 2.8mm Lens | 30m IR | AI Detection

The Dahua IPC-HDBW3667E delivers a 6MP WizSense dome network camera solution designed for homes, offices, retail spaces, entrances and commercial premises requiring intelligent high-detail surveillance. Featuring a fixed 2.8mm lens and Smart Dual Light technology, it provides wide-angle monitoring with infrared illumination up to 30m and adaptable night-time scene visibility.

Its WizSense intelligence makes this camera available at Security Wholesalers practical for installations requiring more focused human and vehicle event detection. With its compact dome housing, detailed imaging and flexible illumination modes, the IPC-HDBW3667E suits indoor and outdoor CCTV projects where reliable monitoring, reduced irrelevant alerts and clear day-and-night footage are important.

Key Features

  • 6MP Image Resolution: Captures detailed surveillance video for clear monitoring and reliable visual verification.
  • WizSense Intelligence: Supports intelligent human and vehicle classification to help reduce irrelevant event alerts.
  • Fixed 2.8mm Lens: Provides wide-angle coverage suitable for entrances, rooms and general monitored areas.
  • Smart Dual Light: Combines infrared and white-light illumination modes for flexible night-time monitoring.
  • 30m IR Night Vision: Supports low-light and night surveillance with infrared illumination up to 30m.
  • Dome Camera Design: Provides a compact professional housing for discreet residential and commercial installations.
WizSense Human and Vehicle Filtering Icon
Smart Dual Light Icon

Additional Information

Dahua DH-IPC-HDBW3667E-Datasheet

$192.00 inc GST +3 Year Warranty & Support

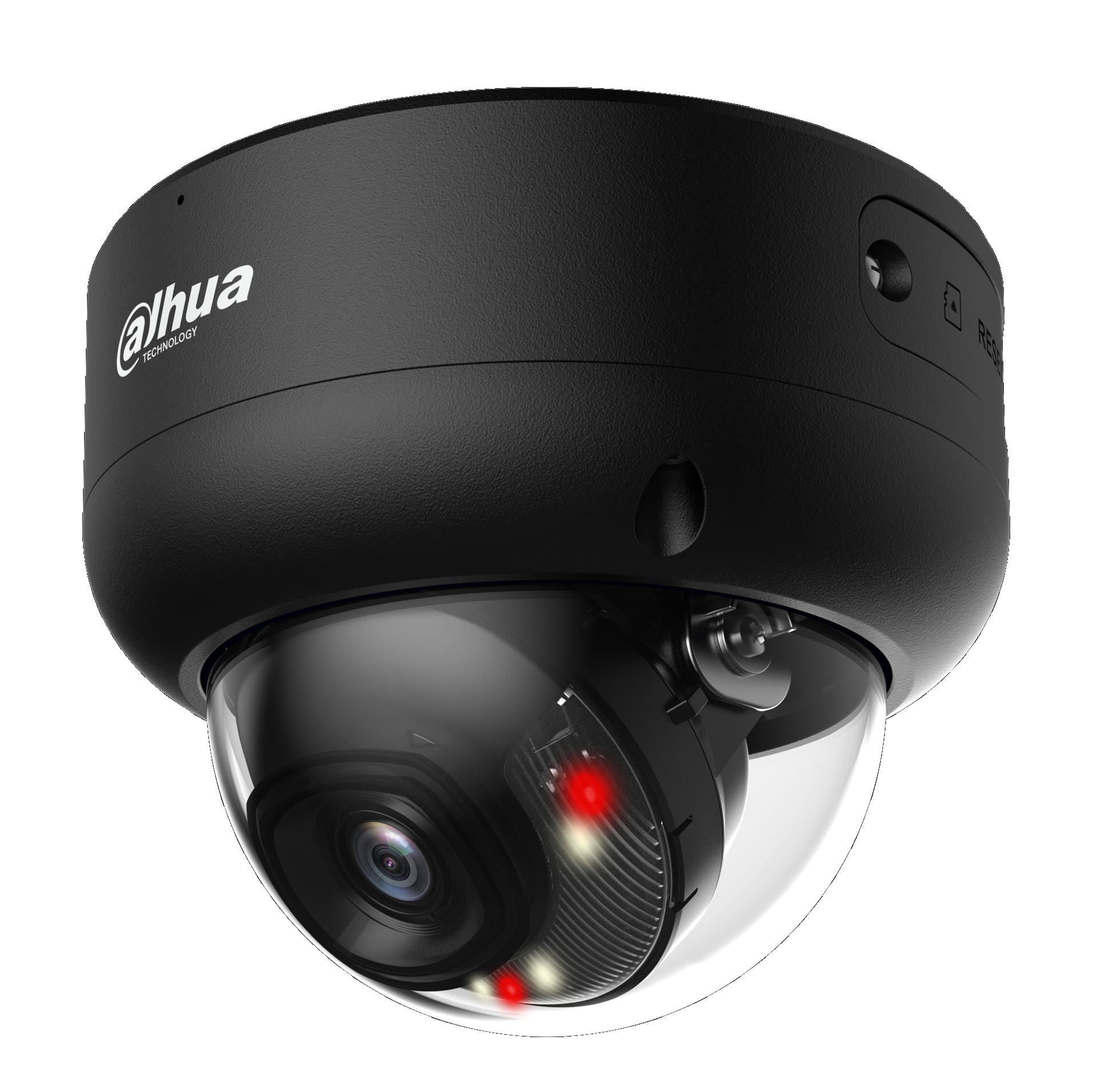

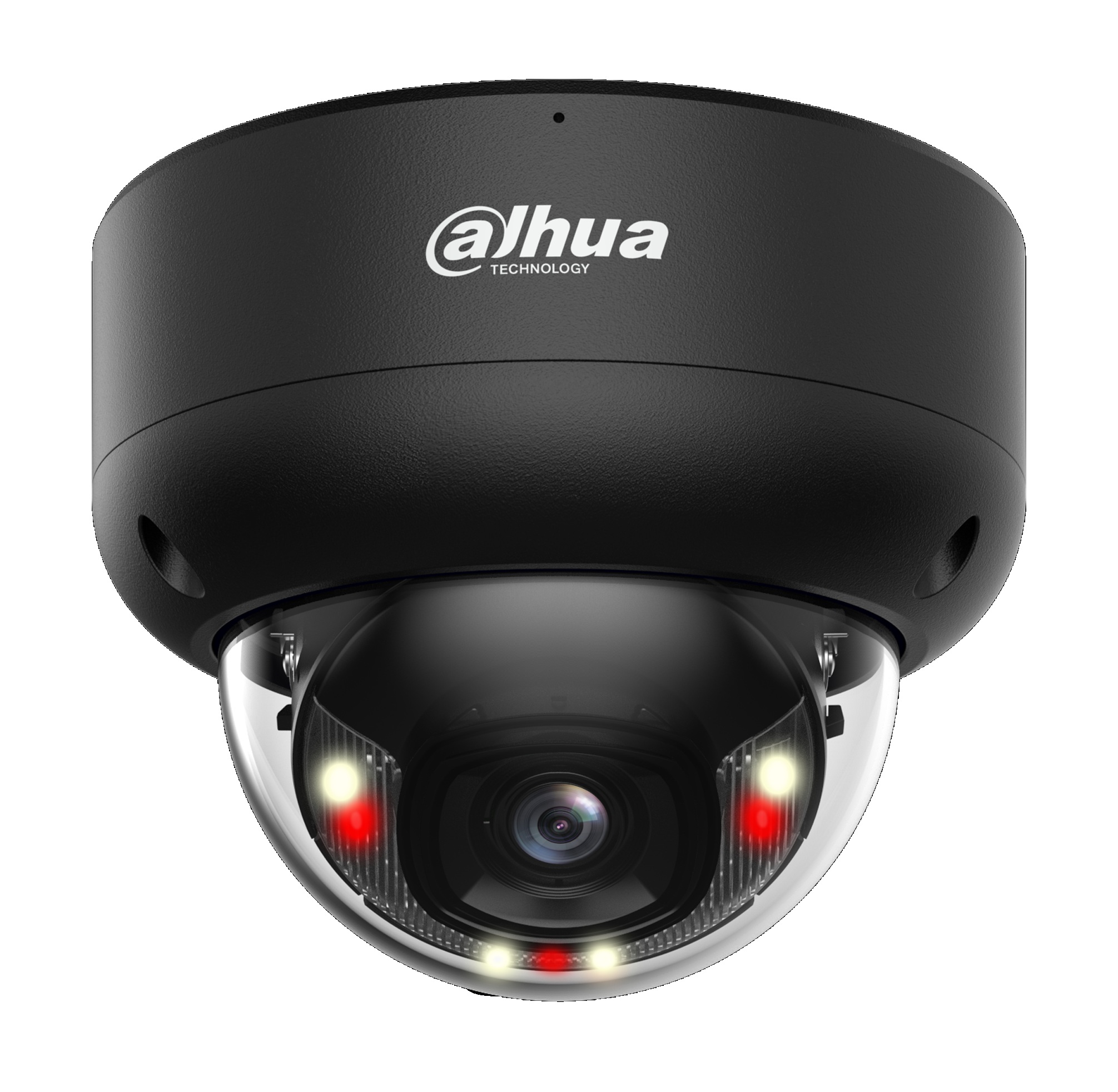

Note – Black is available in 2.8mm only.

Product SKU: IPC-HDBW3667E

Product Overview

The Dahua IPC-HDBW3667E 6MP WizSense Dome Camera combines high-resolution imaging, a wide 2.8mm fixed lens and Smart Dual Light technology for intelligent day-and-night surveillance. Its 1/2.7-inch progressive scan CMOS sensor records at up to 3288 × 1850 resolution at 25 or 30fps, while 120dB WDR and AI Scene Self-Adaptation help maintain useful detail across changing lighting conditions. Infrared and warm-white illumination reach up to 30m, with supported intelligent events able to activate colour lighting when required. SMD 4.0, human and vehicle classification, AcuPick support, a built-in microphone, audio and alarm interfaces, MicroSD storage up to 512GB, PoE, IP67 and IK10 protection suit demanding residential and commercial installations.

Key Capabilities

6MP High-Resolution Imaging

Records at up to 3288 × 1850 resolution for detailed live monitoring, playback and incident investigation.

Smart Dual Light

Combines infrared and warm-white illumination, each reaching up to 30m, for flexible monochrome or colour night monitoring.

SMD 4.0 Target Filtering

Uses deep-learning analysis to focus supported motion events on human and vehicle targets and reduce irrelevant alarms.

Intelligent Perimeter Protection

Tripwire and intrusion rules support accurate classification of people and vehicles in protected areas.

Built-In Microphone

Captures real-time audio and also provides separate audio input and output connections for compatible external devices.

IP67 and IK10 Protection

The metal dome housing is weather resistant and impact resistant for exposed and vandal-prone locations.

Best For

  • Retail Stores: Wide 2.8mm coverage, audio capture and intelligent search suit entrances, counters and customer areas.
  • Commercial Entrances: Human and vehicle classification helps monitor doors, loading points and access routes.
  • Warehouses: Smart Dual Light and perimeter analytics support aisles, loading areas and internal or external access points.
  • Schools and Offices: Detailed imaging and compact vandal-resistant construction suit foyers, corridors and shared spaces.
  • Residential Properties: Provides intelligent monitoring of driveways, entrances, garages and outdoor entertainment areas.

Why Choose the IPC-HDBW3667E

Choose the Dahua IPC-HDBW3667E when an installation needs detailed 6MP video, intelligent target filtering and flexible night illumination in a compact vandal-resistant dome. Smart Dual Light can use infrared for discreet monitoring and activate warm light for colour footage in supported event areas, while SMD 4.0 and perimeter protection distinguish people and vehicles from irrelevant movement. The built-in microphone, audio input/output, alarm input/output and 512GB edge-storage support make the camera suitable for integrated security applications. Security Wholesalers supplies this WizSense model for professional surveillance systems requiring reliable outdoor protection and intelligent event management.

Buyer Decision Tips

Buyer Tip: Choose the 2.8mm version for wide coverage of entrances, rooms, driveways and nearby activity areas. The available 3.6mm version provides a narrower view with more pixels on distant targets.

Buyer Tip: Pair the camera with a compatible Dahua AI recorder to access supported AcuPick searches, intelligent event filtering and refined event review.

Lighting Note: Warm light may be visible to occupants and neighbours. Configure Smart Dual Light areas, schedules and trigger rules to suit the site.

Key Features & Technical Specifications

Product Type 6MP WizSense Smart Dual Light fixed-lens dome network camera.
Model IPC-HDBW3667E.
Brand Dahua.
Product Series WizSense 3 Series.
Camera Style Fixed-focal vandal-resistant dome network camera.
Image Sensor 1/2.7-inch progressive scan CMOS.
Maximum Resolution 6MP, 3288 × 1850.
Maximum Frame Rate Up to 25fps in 50Hz mode or 30fps in 60Hz mode at 3288 × 1850.
Image Processor Memory 256MB ROM and 1GB RAM.
Minimum Illumination Colour: 0.005 lux at F1.4; black and white: 0.0005 lux at F1.4; 0 lux with illumination active.
Electronic Shutter Automatic or manual, 1/3 second to 1/100,000 second.
Signal-to-Noise Ratio Greater than 56dB.
Lens Type Fixed-focal lens.
Focal Length 2.8mm.
Maximum Aperture F1.4.
Lens Mount M12.
Horizontal Field of View 110°.
Vertical Field of View 58°.
Diagonal Field of View 132°.
Close Focus Distance Approximately 1.4m.
Reference DORI Distance Detection 84.8m, observation 33.9m, recognition 17m and identification 8.5m under reference conditions.
Camera Adjustment Pan 0°–355°, tilt 0°–75° and rotation 0°–355°.
Night Illumination Smart Dual Light with infrared and warm-white LEDs.
Infrared Range Up to 30m.
Warm-Light Range Up to 30m.
Illuminators 3 infrared LEDs and 4 warm-white LEDs.
Illuminator Control Automatic or manual with Smart Illumination support.
Wide Dynamic Range 120dB true WDR.
Image Enhancement BLC, HLC, 3D noise reduction, defog, lens distortion correction and Scene Self-Adaptation.
Video Compression H.265, H.264, H.264H, H.264B and MJPEG on the supported sub-stream.
Smart Compression Smart H.265+, Smart H.264+, AI H.265 and AI H.264.
Streaming Capability 3 configurable video streams.
Bitrate Control VBR, CBR and ABR.
Intelligent Perimeter Protection Tripwire and intrusion detection with human and vehicle classification.
Smart Motion Detection SMD 4.0.
AcuPick Support Works with compatible back-end equipment to locate people and vehicles across live and recorded video.
AI Scene Self-Adaptation Automatically adjusts supported image parameters according to scene conditions.
Smart Search Supports refined intelligent search and event extraction when used with a compatible Smart NVR.
Built-In Microphone Yes.
Audio Input 1 RCA audio input.
Audio Output 1 RCA audio output.
Audio Compression PCM, G.711A, G.711Mu, G.726 and G.723.
Alarm Input 1 wet-contact input, 5mA at 3–5V DC.
Alarm Output 1 wet-contact output, up to 300mA at 12V DC.
Abnormality Detection Supports video tampering, scene change, audio detection, storage faults, network disconnection, IP conflict, illegal access and voltage detection.
Edge Storage MicroSD card support up to 512GB.
Additional Storage FTP, SFTP and NAS storage support.
Network Interface RJ45 10/100 Base-T Ethernet port.
Interoperability ONVIF Profiles S, G, T and M, plus CGI and SDK/API support.
Compatible Software SmartPSS Lite, DSS, DMSS and DoLynk Care.
Power Supply 12V DC or PoE IEEE 802.3af.
Maximum Power Consumption Up to 6.4W using 12V DC or 7.5W using PoE.
Operating Temperature -40°C to 60°C.
Operating Humidity Up to 95%, non-condensing.
Weather Protection IP67.
Vandal Resistance IK10.
Housing Material Metal.
Dimensions 89.1mm × Ø111.7mm.
Net Weight Approximately 528g.
Camera Package Camera only; recorder, PoE equipment, power supply, MicroSD card, network cabling, external speaker and mounting accessories are supplied separately unless included in another package.

Ideal Use Cases

Retail Entrances

Wide-angle coverage, audio capture and human classification suit entrances and customer approach areas.

Driveways and Garages

Smart Dual Light and vehicle classification support night monitoring of residential and commercial access points.

Warehouses

Use intelligent events to monitor loading areas, roller doors, aisles and restricted internal spaces.

Schools and Offices

The IK10 dome housing suits foyers, corridors, entrances and shared areas where impact resistance is valuable.

Commercial Perimeters

Tripwire and intrusion detection support defined pedestrian and vehicle approach zones.

Covered Outdoor Areas

IP67 protection and dual illumination suit eaves, verandas, loading bays and sheltered building surrounds.

Choosing the Right Model

  • Choose this model if: You need 6MP imaging, a wide 2.8mm lens, 30m Smart Dual Light, built-in audio and alarm connections in an IK10 dome.
  • Choose the 2.8mm lens for: Entrances, rooms, driveways, foyers and broad nearby coverage.
  • Choose the 3.6mm lens for: A narrower view with increased target detail at a greater distance.
  • Check recorder compatibility: Confirm 6MP recording, SMD 4.0, AcuPick, audio, alarm and Smart Dual Light integration with the selected NVR.
  • Check audio requirements: The built-in microphone records sound, while two-way communication requires a compatible external amplified speaker.

FAQs

  1. What resolution does the IPC-HDBW3667E record?
    The camera records at up to 6MP resolution, measuring 3288 × 1850 pixels, at up to 25fps in 50Hz systems or 30fps in 60Hz systems. It also supports multiple lower-resolution streams for remote viewing and bandwidth management.
  2. How does Dahua Smart Dual Light work?
    Smart Dual Light combines infrared and warm-white illumination. The camera can monitor discreetly in infrared and activate warm light for colour footage in supported intelligent event areas, depending on the selected lighting mode and configuration.
  3. How far do the infrared and warm lights reach?
    Both the infrared and warm-white illumination are rated for distances up to 30m. Actual performance varies with the mounting angle, target size, surrounding surfaces, weather and available ambient light.
  4. What does SMD 4.0 detect?
    SMD 4.0 classifies human and vehicle targets in supported motion events. This helps reduce alarms generated by irrelevant movement such as changing light, vegetation, rain or small animals when the camera is correctly configured.
  5. Does the camera include a built-in microphone?
    Yes. The IPC-HDBW3667E includes a built-in microphone and also provides separate audio input and output connections. An external amplified speaker is required for supported two-way communication or audible responses.
  6. What is AcuPick?
    AcuPick works with compatible Dahua back-end devices to match and locate people or vehicles across live and recorded footage. Availability depends on the connected recorder, software, firmware and configured intelligent functions.
  7. Is this Dahua dome camera suitable for outdoor use?
    Yes. The metal housing carries IP67 weather protection and IK10 impact resistance. Correct cable sealing, weather-resistant mounting, surge protection and suitable installation accessories are still required.
  8. What should I check before purchasing this camera?
    Confirm the required field of view, target distance, NVR compatibility, PoE availability, lighting behaviour, audio requirements, alarm connections and storage capacity. Security Wholesalers can supply this model for compatible professional Dahua surveillance systems.

Additional Information

Dahua DH-IPC-HDBW3667E-Datasheet

SKU: IPC-​HDBW3667‌E-​AS-​IL-​ANZ Categories: , , ,
