Dahua DH-PFB203W Waterproof Wall Mount Bracket for Security Cameras, 1kg Load Capacity

Product SKU: DH-PFB203W

Product Overview

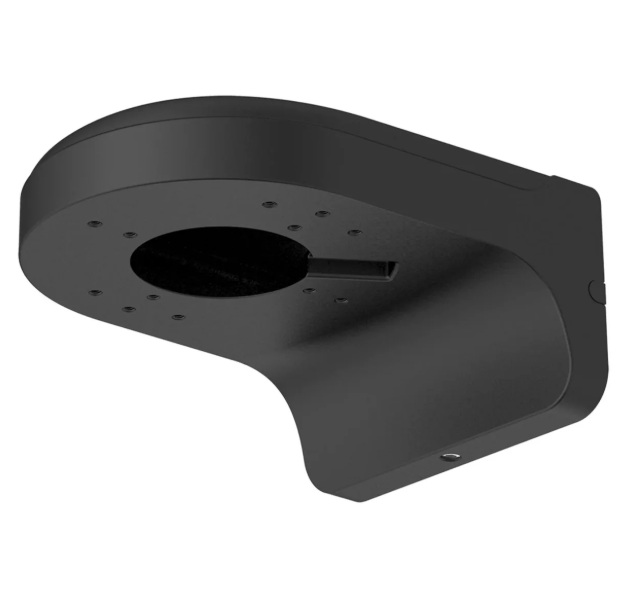

The Dahua DH-PFB203W is a compact waterproof wall-mount bracket designed for selected compatible Dahua security cameras. Its projecting design positions the camera beneath the mounting arm, providing additional clearance from the wall and an enclosed path for suitable cabling. The bracket is manufactured from aluminium and SECC, finished in white and rated to support a maximum camera assembly load of 1kg. Measuring 160 × 122 × 76mm, it offers several three-hole M4 camera-mounting patterns for compatible camera housings. The supplied installation hardware includes three M4 screws, four ST4 screws, four plastic anchors and a wrench. Dahua describes the bracket as waterproof, although the datasheet does not specify a formal IP rating. Camera compatibility, mounting-hole alignment, wall construction and cable sealing should therefore be confirmed before installation.

Key Capabilities

Best For

• Home Entrances: Positions a compatible camera away from the wall for improved coverage of doors, pathways and visitor approaches.
• Retail and Office Exteriors: Supports a clean camera installation above shopfronts, reception entrances and staff access points.
• Protected Outdoor Locations: Provides a waterproof bracket design for compatible cameras where the complete cable and camera assembly is sealed correctly.
• Compact Camera Installations: Suits supported camera assemblies weighing no more than the stated 1kg load capacity.
• Concealed Cable Routing: Helps route suitable camera cabling through the bracket rather than leaving it exposed along the wall.

Why Choose the DH-PFB203W

The DH-PFB203W provides a cleaner and more predictable camera installation than adapting a generic wall arm or fabricated bracket. Its dimensions, 1kg load capacity and multiple M4 mounting patterns are clearly defined, helping installers assess camera compatibility, wall clearance and structural loading before drilling. The aluminium and SECC construction provides a compact support with a coordinated white finish, while the included screws, anchors and wrench simplify installation preparation. Dahua also describes the unit as a waterproof wall-mount bracket, although correct camera and cable sealing remain essential. Available through Security Wholesalers, the PFB203W should be selected only after checking the exact camera model, mounting-hole alignment, wall material and complete supported weight.

Buyer Decision Tips

Key Features & Technical Specifications

Model	DH-PFB203W
Product Type	Waterproof wall-mount camera bracket
Material	Aluminium and SECC
Colour	White
Installation Type	Wall mount
Dimensions	160 × 122 × 76mm
Bracket Projection	76mm
Wall-Base Width	122mm
Wall-Base Height	160mm
Camera Mounting Patterns	Three M4 holes arranged equally at approximately Ø84mm, Ø98mm, Ø101mm and Ø110mm pitch-circle diameters
Wall Fixing Holes	Four approximately Ø5mm mounting holes
Additional Fixing	M6 fixing point shown in the dimensional drawing
Load Bearing	1kg
Bracket Weight	0.5kg
Weather Description	Described as a waterproof wall-mount bracket; no formal IP rating is stated
Operating Temperature	−40°C to +60°C
Operating Humidity	Less than 90% relative humidity
Applicable Cameras	Refer to the current accessory selection for confirmed model compatibility
Package Contents	1 × wall-mount bracket, 3 × M4 screws, 4 × ST4 screws, 4 × plastic anchors and 1 × wrench

Ideal Use Cases

Choosing the Right Model

• Choose the DH-PFB203W if: The confirmed camera matches one of the bracket’s mounting patterns and the complete supported assembly weighs no more than 1kg.
• Choose a higher-capacity bracket if: The camera and any required adapter exceed the stated 1kg load limit.
• Choose a larger wall bracket if: The camera housing requires more wall projection, a larger mounting interface or additional internal cable space.
• Choose another mounting type if: The installation requires ceiling, pole, corner or in-ceiling placement rather than a flat wall mount.

FAQs

1. What is the Dahua DH-PFB203W used for?
   The DH-PFB203W is a wall-mount bracket for selected compatible Dahua security cameras. It positions the camera beneath the projecting arm and provides an enclosed mounting surface for a cleaner wall installation. Compatibility is model-specific rather than universal, so the exact camera and mounting-hole pattern should be checked against the current accessory selection before the bracket is ordered or installed.
2. What is the maximum load capacity of the DH-PFB203W?
   The DH-PFB203W has a stated load-bearing capacity of 1kg. This limit applies to the supported camera and any adjoining hardware carried by the bracket. The wall, anchors and fixing method must also support the bracket’s own 0.5kg weight and the complete installed assembly. Do not determine suitability using the camera weight alone or exceed the stated bracket rating.
3. What are the dimensions of the DH-PFB203W?
   The bracket measures 160 × 122 × 76mm. Its dimensional drawing shows several three-hole M4 camera-mounting patterns arranged on approximate 84mm, 98mm, 101mm and 110mm pitch-circle diameters. The wall base also uses four approximately 5mm fixing holes. Check the complete camera footprint, cable route, wall clearance and mounting surface before drilling.
4. Is the DH-PFB203W waterproof?
   Dahua describes the DH-PFB203W as a waterproof wall-mount bracket. The supplied datasheet does not state a formal IP rating, so the description should not be treated as a universal enclosure rating for every completed installation. Outdoor performance still depends on compatible camera sealing, cable-entry protection, correctly fitted hardware and a suitable mounting surface.
5. What material and finish does the DH-PFB203W use?
   The DH-PFB203W is manufactured from aluminium and SECC and is finished in white. This construction provides a purpose-designed support for compatible Dahua cameras while keeping the bracket’s stated weight to 0.5kg. The white finish is intended to coordinate with matching camera housings, but the final appearance should be checked where darker equipment or architectural finishes are used.
6. What is included with the DH-PFB203W wall bracket?
   The listed package contains one DH-PFB203W wall-mount bracket, three M4 screws, four ST4 screws, four plastic anchors and one wrench. The camera and any additional model-specific hardware are not listed as included. Before ordering through Security Wholesalers, confirm that the supplied fixings are suitable for the actual wall material and that every required camera accessory is available.
7. What should be checked before ordering the DH-PFB203W?
   Confirm the exact camera model, accessory compatibility, 1kg load limit, mounting-hole pattern, wall material, fixing method, cable route and required weather protection before ordering. The bracket measures 160 × 122 × 76mm, weighs 0.5kg and is specified for operation from −40°C to +60°C at less than 90% relative humidity. Compatibility should be verified from the complete mounting arrangement.

Additional Information

Dahua DH-PFB203W Datasheet
