This 4-camera Dahua TIOC Advanced 2.0 turret kit is built for proactive deterrence and intelligent monitoring in homes and small businesses. Each DH-IPC-HDW3649H-AS-PV-ANZ camera delivers 6MP full-colour video around the clock, with red and blue warning lights, a built-in microphone and speaker for two-way audio, and IR plus warm light coverage up to 30m. Powered by WizSense and SMD 4.0 technology, the system filters false alarms with exceptional precision, ensuring alerts are meaningful and reliable. No HDD is included with this kit.

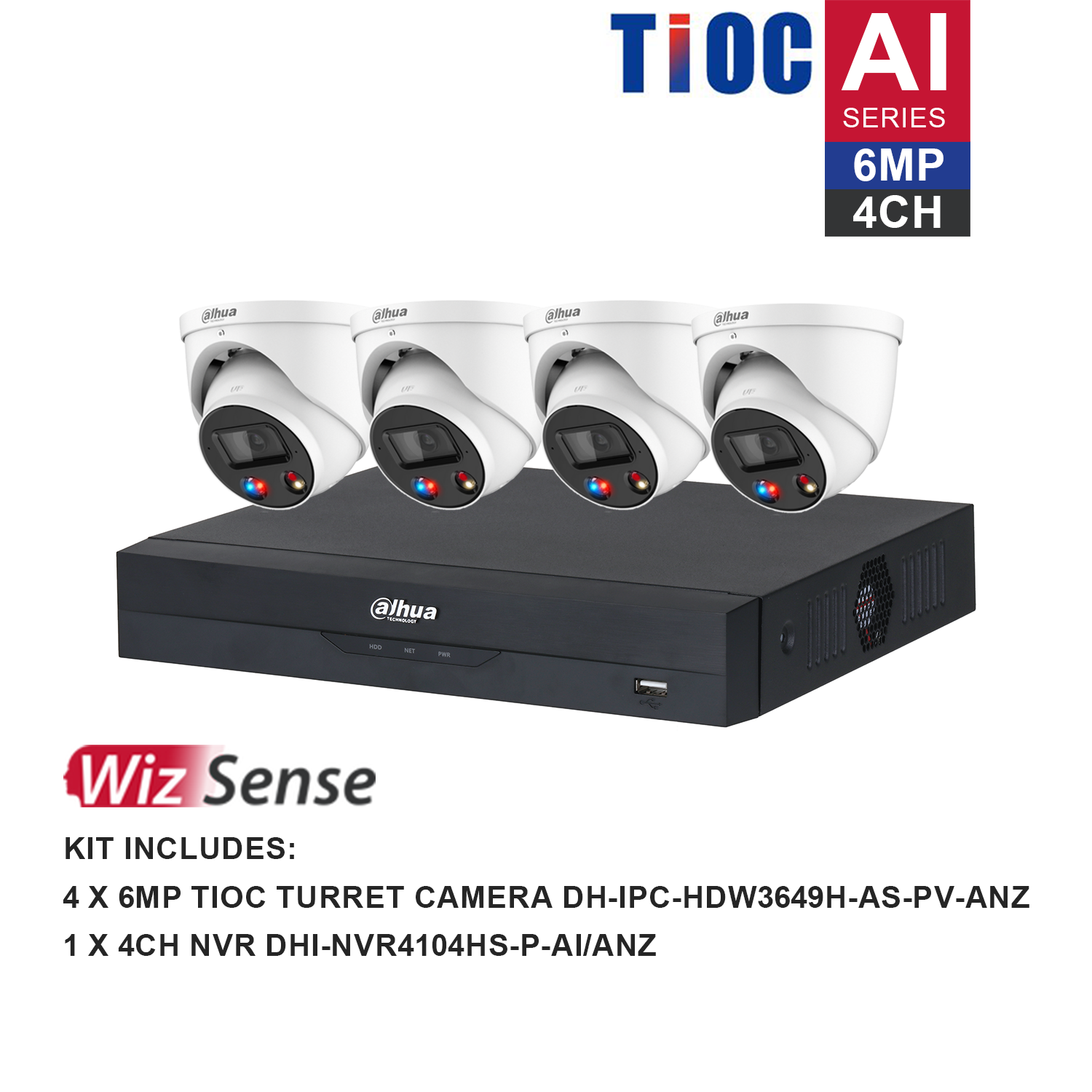

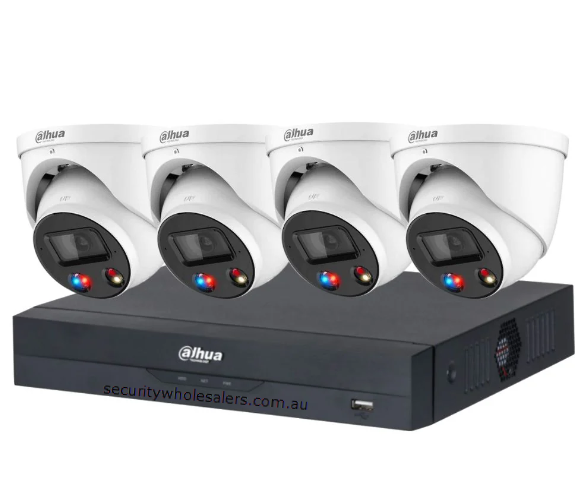

Kit Inclusions
4 x DH-IPC-HDW3649H-AS-PV-ANZ – 6MP TIOC 2.0 Active Deterrence Full Colour Turret Camera, 2.8mm fixed lens, built-in mic and speaker, 30m IR/warm light
1 x DHI-NVR4104HS-P-AI/ANZ – 4-channel 4-port PoE 4K WizSense NVR with SMD 4.0, no HDD included
Homeowners and small business operators who want proactive deterrence rather than passive recording will find a purpose-built solution in this Dahua 4-camera 6MP TiOC Advanced 2.0 turret kit. Each DH-IPC-HDW3649H-AS-PV-ANZ camera delivers 6MP full-colour video around the clock using smart dual illumination, switching from IR to warm white light when a person or vehicle is detected. Red and blue strobe lights combined with a 110dB built-in speaker and microphone confront potential intruders the moment they enter the detection zone. Dahua WizSense with SMD 4.0 keeps the false alarm rate below 2% by filtering out animals, foliage, and car headlights, targeting only people and vehicles as genuine threats. The bundled DHI-NVR4104HS-P-AI/ANZ 4-channel PoE NVR powers and records all 4 cameras over a single Cat5e or Cat6 cable per camera, making installation straightforward without separate power runs or additional switching equipment.
Key Capabilities
6MP Full-Colour Night Vision
Each camera captures 6MP footage in full colour at night using smart dual illumination. IR light runs by default and warm white light activates on detection, producing colour-accurate images of faces, clothing, and vehicles at the moment an event actually occurs rather than in monochrome.
Active Deterrence: Strobe Lights and Audio Alarm
The TiOC 2.0 cameras carry red and blue warning strobes that activate on detection and remain visible in rain, fog, and low-light conditions. A 110dB speaker alarm combined with two-way audio allows immediate verbal warnings, turning each camera into an active deterrent rather than a passive observer.
SMD 4.0 False Alarm Filtering
Dahua SMD 4.0 isolates people and vehicles as detection targets, keeping the false alarm rate under 2%. Animals, moving branches, and sweeping headlights that trigger conventional motion detection are ignored, so every notification pushed to your phone or NVR represents a genuine event worth reviewing.
Two-Way Audio on Every Camera
A built-in microphone and speaker on each DH-IPC-HDW3649H-AS-PV-ANZ allow real-time two-way voice communication through the Dahua app or NVR interface. This supports visitor greetings, delivery instructions, and verbal warnings to trespassers without requiring any additional audio hardware.
4-Channel PoE NVR Included
The DHI-NVR4104HS-P-AI/ANZ provides 4 built-in PoE ports, delivering power and data to each camera over a single Ethernet cable. The AI-enabled NVR supports WizSense and SMD 4.0 functions at the recorder level, provides centralised management, and supports up to 4K display output.
IP67 Weatherproof Construction
Each turret camera is rated IP67 for dust and water ingress, making the kit suitable for eave-mounted, wall-mounted, and exposed outdoor positions across Australian conditions. The rating covers sustained rain, humidity, and fine dust without requiring additional weatherproof housings or covers.
Best For
Residential Homes: Cover front entry, driveway, rear yard, and side gate with 4 cameras delivering full-colour night footage and active deterrence that responds before an incident escalates.
Small Business Premises: Retail stores, workshops, and small offices benefit from SMD 4.0 filtering that separates genuine after-hours intrusions from environmental triggers, reducing unnecessary alarm callouts.
Rental and Investment Properties: The self-contained PoE kit simplifies installation for landlords and property managers, with remote app access allowing monitoring from any location.
Properties with a Known Intruder Risk: The visible red and blue strobes and 110dB audio alarm make this kit a strong fit where active deterrence is the primary objective rather than footage-only recording.
Remote Monitoring Users: Anyone requiring real-time push notifications, live view, and two-way talk through a smartphone to manage their property without being on-site.
Why Choose the Dahua 4-Camera TiOC 2.0 6MP Kit
Where a standard IP camera kit records an event and leaves the response to the owner, the Dahua TiOC Advanced 2.0 system is engineered to intervene at the moment of detection. The four DH-IPC-HDW3649H-AS-PV-ANZ cameras combine full-colour 6MP imaging, red and blue warning strobes, a 110dB speaker alarm, and two-way audio into a single turret housing. No separate deterrence devices, no additional wiring, and no secondary audio equipment are required. SMD 4.0 keeps notification volume manageable by targeting only people and vehicles, which is a meaningful distinction when cameras are mounted in areas with trees, passing animals, or frequent vehicle movement. The DHI-NVR4104HS-P-AI/ANZ ties the system together over PoE, handling AI processing at the recorder level as well. Available through Security Wholesalers, this kit suits buyers who want a complete, proactive system in a single purchase rather than assembling components separately.
Package Inclusions
4 x DH-IPC-HDW3649H-AS-PV-ANZ – 6MP TIOC 2.0 Active Deterrence Full Colour Turret Camera, 2.8mm fixed lens, built-in mic and speaker, 30m IR/warm light, IP67
1 x DHI-NVR4104HS-P-AI/ANZ – 4-channel 4-port PoE 4K WizSense NVR with SMD 4.0, no HDD included
Buyer Tip – Hard Drive: This kit ships without a hard drive. The DHI-NVR4104HS-P-AI/ANZ accepts a single 3.5-inch surveillance-grade HDD. For 4 cameras recording continuously at 6MP, a 4TB drive provides a comfortable rolling window for most home installs, while a 6TB drive suits sites where longer retention is needed. Add a compatible WD Purple or Seagate Skyhawk drive at checkout using the product table below.
Buyer Tip – Lens Coverage: The 2.8mm fixed lens on the DH-IPC-HDW3649H-AS-PV-ANZ produces a wide field of view suited to covering open areas such as driveways, yards, and building entries at close to moderate range. If any camera position requires identification of faces or number plates at greater distances, a narrower lens option may be worth considering for those specific locations before purchasing.
Key Features & Technical Specifications
Camera Model
DH-IPC-HDW3649H-AS-PV-ANZ
NVR Model
DHI-NVR4104HS-P-AI/ANZ
Number of Cameras
4
Camera Resolution
6 Megapixel
Camera Type
IP Turret (Eyeball)
Lens
2.8mm fixed
Night Vision Range
Up to 30m (IR and warm white light)
Full-Colour Night Vision
Yes – 24/7 full colour via smart dual illumination
Active Deterrence
Red and blue warning strobes plus audio alarm up to 110dB
Two-Way Audio
Built-in microphone and speaker on each camera
AI / Smart Detection
WizSense with SMD 4.0 – people and vehicle detection
False Alarm Rate
Under 2%
Weatherproof Rating
IP67
NVR Channels
4 channels
PoE Ports
4 x PoE ports (built into NVR)
NVR Maximum Resolution Support
Up to 4K
Hard Drive Included
No HDD included – sold separately
Ideal Use Cases
Residential Homes
4 cameras is enough to cover the front door, driveway, backyard, and side access of a standard home. Full-colour night vision and active deterrence ensure that anyone approaching after dark is both recorded in colour and confronted with visible and audible warnings.
Retail and Small Shops
SMD 4.0 distinguishes between staff, customers, and genuine after-hours intrusions. Retailers benefit from fewer false callouts and more meaningful alerts, while two-way audio allows staff to communicate with visitors at entry points during and outside trading hours.
Driveways and Car Parks
The 2.8mm wide-angle lens and full-colour night vision are well suited to open spaces where vehicles and pedestrians are the primary subjects. The active deterrence strobes provide an immediate visible response when movement is detected in low-traffic after-hours periods.
Rental and Investment Properties
The self-contained PoE kit simplifies deployment at properties where the owner is not on-site. A single Cat5e or Cat6 cable per camera eliminates the need for separate power runs, and remote app access keeps landlords and property managers connected from anywhere.
Warehouses and Light Industrial Sites
IP67-rated turret cameras handle the dust and intermittent rain exposure common in industrial environments. SMD 4.0 keeps false alarm rates manageable on sites with regular forklift and vehicle movement, ensuring only genuine person or vehicle detections generate alerts.
After-Hours Business Premises
Businesses that close overnight benefit from the TiOC 2.0 approach: the red and blue strobes and 110dB audio alarm activate on detection, responding to an intrusion immediately rather than simply capturing footage that is reviewed the following morning.
Choosing the Right Model
Choose this kit if: You want a complete 4-camera 6MP system with full-colour night vision, active deterrence (strobes and audio alarm), two-way talk on every camera, and SMD 4.0 false alarm filtering all in a single PoE plug-and-play package without needing to source components separately.
Choose a different model if: You need more than 4 camera positions, require an NVR with multiple HDD bays for longer retention, or have specific locations where a varifocal lens is needed for longer-distance identification beyond what a 2.8mm fixed lens provides.
FAQs
Does this kit come with a hard drive?
No. The DHI-NVR4104HS-P-AI/ANZ supports a single internal 3.5-inch surveillance-grade HDD and ships without one. For 4 cameras recording continuously at 6MP, a 4TB drive suits most residential installs. A 6TB drive is worth considering if you want a longer rolling retention window or run motion-triggered recording on a busier site. Compatible drives are listed in the product table on this page.
What does TiOC Advanced 2.0 mean in practical terms?
TiOC stands for Three-in-One Camera, combining 24/7 full-colour imaging, active deterrence (red and blue strobes plus audio alarm), and AI-based smart detection in a single unit. The Advanced 2.0 generation adds improved illumination switching and SMD 4.0 for tighter false alarm control. Unlike a standard recording camera, a TiOC 2.0 camera actively responds to detections rather than simply logging them.
Can I expand beyond 4 cameras later?
The DHI-NVR4104HS-P-AI/ANZ has 4 PoE channels and supports a maximum of 4 cameras. Expanding to more cameras would require upgrading to an 8-channel or larger NVR. If you anticipate adding cameras within 12 to 24 months, it is worth factoring that into your NVR selection before purchasing this kit.
How does smart dual illumination work on the DH-IPC-HDW3649H-AS-PV-ANZ?
By default the cameras operate in Smart Illumination Mode: IR is used continuously for monitoring, and warm white light activates when a person or vehicle is detected to capture full-colour footage of that specific event. You can also configure each camera to use IR only (no white light ever activates) or white light only (continuous colour recording), depending on the site and your preferences.
How do I access two-way audio, and what can I do with it?
Two-way audio is accessible through the Dahua mobile app or via the NVR interface. Each camera has a built-in microphone and speaker, allowing real-time voice communication in both directions. Practical uses include greeting visitors, giving delivery instructions, and verbally warning trespassers. The speaker also supports configurable pre-recorded voice prompts and siren tones that trigger automatically on detection.
Will the red and blue strobes create issues with neighbours or passing traffic?
The strobes activate only when the camera detects a person or vehicle within the configured detection zone, not continuously. Because SMD 4.0 keeps false triggers very low, activations should be infrequent and targeted. If light output is a concern for adjacent properties, the camera can be configured to use audio-only alarm response while leaving the strobe lights inactive.
What cable is needed to connect the cameras to the NVR?
Each camera connects to the NVR via Cat5e or Cat6 Ethernet cable. Cat6 is recommended for new builds or longer runs. The NVR’s built-in PoE switch delivers both power and data over the same cable, so no separate power cabling is required at the camera end. Keep each individual cable run under 100 metres for reliable PoE performance.
Where can I purchase this kit and get assistance with my setup?
This kit is available through Security Wholesalers, which carries the full Dahua product range and can assist with pre-purchase questions, camera placement advice, and compatibility queries before you commit. The specification sheet and operational manual are also linked in the Additional Information section below for detailed technical reference.
Cabling Considerations
Cable Type: Cat5e or Cat6 Ethernet cable is required for each camera-to-NVR connection. Cat6 is recommended for all new installations to future-proof the cabling infrastructure.
Maximum Cable Run: Maximum 100 metres per camera run from the NVR’s PoE port. Runs beyond 100m will require a PoE extender or midspan injector to maintain power delivery and signal integrity.
PoE Considerations: All 4 cameras draw power directly from the NVR’s built-in PoE switch. No separate power adaptors are needed. Confirm the NVR’s total PoE power budget is not exceeded when all 4 cameras are connected and operating simultaneously.
Wiring Tips: Route cables through roof cavities or conduit wherever possible to protect against UV exposure, moisture, and physical damage. Label both ends of each cable during installation to simplify future troubleshooting or camera replacement.
Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0
Less false alarm, longer detection distance
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
AI Coding
AI H.265; AI H.264
Video Frame Rate
Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions
–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions
–40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade
IP67
Structure
Casing
Metal
Dimensions
110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
Net Weight
745 g (163.1 lb)
Gross Weight
915 g (200.6 lb)
Dahua Warranty
3-Year Manufacturer Warranty
All Dahua IP cameras and recording devices (NVRs/DVRs) are covered by a
3-year back-to-base manufacturer warranty.
Note: Disk drives are limited to a 3-year warranty.
Our warranty is limited to the replacement of faulty items or parts
and does not include damage caused by incorrect fitting of parts or accessories.
(a) Australian Consumer Law (ACL)
Certain legislation, including the Australian Consumer Law (ACL) in the Competition and Consumer Act 2010 (Cth), and similar consumer protection
laws and regulations may confer you with rights, warranties, guarantees, and remedies
relating to the provision of goods or services to you by us via the Site which cannot
be excluded, restricted, or modified. Our liability is governed solely by the ACL and
these Terms.
(b) Goods
If you are a consumer as defined in the ACL, the following notice applies to you:
“Our goods come with warranties and guarantees that cannot be excluded under the
Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or
a refund for a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major
failure.”
(c) Our Warranties
To the extent permitted by law, we exclude all express and implied warranties,
and all material and work is provided to you without warranties of any kind,
either express or implied. We expressly disclaim all warranties including but
not limited to implied warranties of merchantability and fitness for a particular
purpose.
(d) Manufacturer Warranties
Certain products, including particular models of IP security cameras and DVR/NVR
equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is
in addition to but may overlap with any rights and remedies you may have under
applicable law, including any Consumer Guarantees. If you are not considered a
“consumer” within the meaning of the ACL, the manufacturer’s warranty may be your
sole remedy. Many manufacturers’ warranties do not apply in a business or commercial
setting. Please contact the manufacturer if you would like to make a claim under
the manufacturer’s warranty.
(e) Repair, Replacement, or a Refund
If you wish to seek repair, replacement, or a refund for a product, please
contact us and we will explain the requirements to you. This may include you
providing evidence of the faulty product to us.
(f) Refund
You are not entitled to a refund for change of mind. If you are entitled to a
refund, we will only provide it once evidence of the faulty product is received
by us, or once we have received the product at our warehouse and inspected it
to assess whether it is eligible for a refund under these Terms. Any refund we
make will be by the same payment method used to purchase the product.
(g) Installed Products
Subject to this clause, we will not accept for return any product that has been
used, connected, installed, attempted to be connected or installed, or if your
product is custom-made or is a special buy product.
(h) Packaging
You must adequately package any product you are returning for our collection
to ensure that it is not damaged during return delivery to our warehouse. You
are also responsible for arranging the return delivery and the costs involved.
(i) Duty of Care
You have a duty of care for the product while it is in your possession. If
you damage products and then subsequently return them, you may be liable to pay
to repair the product to its original condition. In these circumstances, where
a repair is not economically viable, no refund will be made.
