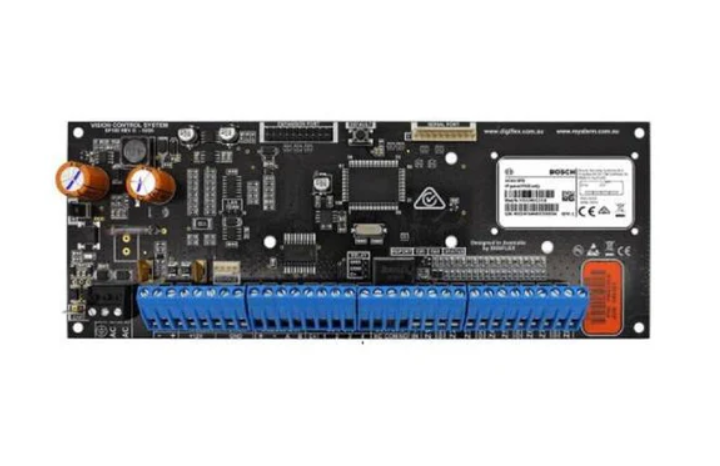

Bosch CC610P Solution 6000 Control Panel PCB only


Features :

  • 16 on-board zones (expandable to 144 wired or wireless),
  • partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
  • Integrated access control for up to 16 doors
  • Proximity key pads, Weather-proof external metal keypads, Internal & External
  • Comes with instructions, manuals.
  • Includes resistors, battery lead and phone lead

$390.00 inc GST +3 Year Warranty & Support

COMES WITH 3 YEAR WARRANTY
AUTHORIZED BOSCH DEALER

ALL BOSCH ALARM SYSTEMS MUST BE INSTALLED BY A LICENSED SECURITY INSTALLER



Model: CC610P

  • 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
  • Integrated access control for up to 16 doors
  • Proximity key pads, Weather-proof external metal keypads, Internal
ImageNamePriceBuy
Bosch Blue Line PIR Detector 12m BPR2-W12$36.40 inc GST +3 Year Warranty & Support
Bosch Blue Line PIR Detector 12m BPR2-WP12 Pet Friendly up to 20KG$48.00 inc GST +3 Year Warranty & Support
Bosch Blue Line Tritech PIR Detector 12m Pet Friendly up to 45KG BDL2-WP12G$77.00 inc GST +3 Year Warranty & Support
Bosch Blue Line Quad PIR Detector 12m BPQ2-W12$49.00 inc GST +3 Year Warranty & Support
Bosch Blue Line Tritech PIR Detector 12m BDL2-W12$68.00 inc GST +3 Year Warranty & Support
Premium Key Fob 4 Button HCT-4UL for Bosch B810 Wireless Receiver$60.00 inc GST +3 Year Warranty & Support
Bosch RADION Wireless Surface Mount Contact Magnetic Reed Switch RFDW-SM$112.00 inc GST +3 Year Warranty & Support
Bosch Blue Line Radion Wireless PIR Detector 12m Pet Friendly PFPR-12$119.00 inc GST +3 Year Warranty & Support
Bosch CM751B Solution Conettix IP Ethernet Module for Bosch 6000$185.00 $195.75 inc GST +3 Year Warranty & Support
Bosch Blue Line Radion Wireless Tritech PIR Detector Pet Friendly RFDL-11$238.00 inc GST +3 Year Warranty & Support
Bosch CP736B Graphic Keypad for Bosch 6000$320.00 inc GST +3 Year Warranty & Support

Bosch RADION Wireless Glass Break Detector Square RFGB$242.20 inc GST +3 Year Warranty & Support



Specifications

Voltage Input 16-18V A.C 50-60Hz 24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz 24VA Internal Transformer (Primary Power Source)
Continuous Power 1 Amp MAX (Combined power drawn from Accessory Power (+12V) LAN Power (Module LAN+) and Output Power (C+) terminals must not exceed 1 Amp.
Alarm Power 4 Amp (Total with primary and secondary power sources fitted)
Stand-by Battery 12 VDC, 7.2AH sealed rechargeable battery Panasonic LC-P127R2P or equivalent. (Secondary Power Source). Dispose of used batteries according to instructions.
Min Operating Voltage 10.2 VDC
Battery Charger Pulse by pulse charger. (Note: Charge voltage cannot be measured unless battery is fitted.)
Connections
Module Connection (RS485 LAN) Max. total LAN length using multi strand security cable = 300mMax. total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m.See the product installation manual for complete wiring instructions.
Telephone Connections RJ-12 Socket or 4-way terminal
Communications
Communications CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP
Environmental Considerations
Temperature 0o to 55oC
Relative Humidity 5 to 85% non-condensing



Enclosure Fixing Method CM720B Small EnclosureUsing appropriate fasteners capable of handling a minimum of 6kgs to fix the cabinet against a sturdy surface using the mounting holes provided.CM730B Large EnclosureUsing appropriate fasteners capable of handling a minimum of 12kgs to fix the cabinet against a sturdy surface using the mounting holes provided.
Enclosure Dimensions MW720B: 385(W), 260(H), 90(D)mmMW730B: 385(W), 520(H), 90(D)mm
PWA Dimensions 235(W), 85(H), 40(D)mm
Warranty 3 years
