Product SKU: M3057-PLVE
Product Overview

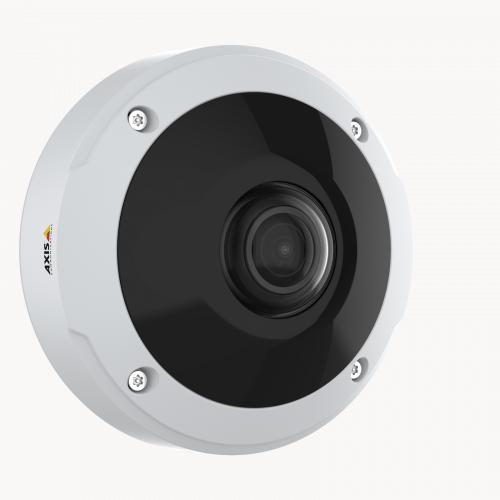

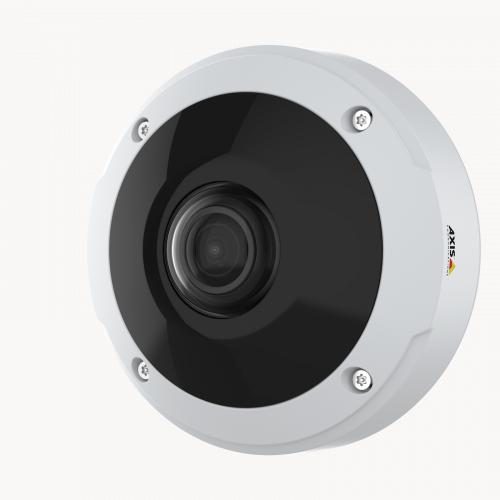

Wide-area monitoring across open spaces, lobbies, and outdoor courtyards becomes far more manageable with a single fisheye-style panoramic camera rather than multiple fixed units. The AXIS M3057-PLVE Mk II is a compact, outdoor-ready mini dome built around a 6 MP sensor that captures a complete 180° or 360° overview from a single ceiling or wall mount point. Equipped with Axis Lightfinder for colour imaging in low-light conditions, Axis Forensic WDR for balanced exposure across mixed-light scenes, and Axis OptimizedIR for round-the-clock coverage up to 20 m in total darkness, this model handles demanding lighting environments without additional lighting infrastructure. Incorporating digital PTZ, dewarped views, and the ability to stream panorama, quad, corner, and corridor views directly from the camera, a single unit can cover what would typically require 4 or more fixed cameras. The IK10 vandal-resistant, IP66-rated housing suits both indoor and outdoor deployment, and the repaintable dome body allows it to blend into architectural surroundings. Note: this product is sold as a clearance line and has been replaced by a newer model.
Key Capabilities
360° and 180° Panoramic Overview
A single camera placement delivers a complete 360° overhead or 180° wall-mounted overview, eliminating blind spots across large open areas. One video stream feeds all dewarped view outputs, reducing the number of camera positions and cabling runs required on site.
6 MP Sensor with Axis Lightfinder
The 6 MP imaging sensor captures high-resolution detail across the full panoramic field. Axis Lightfinder processes colour images in low-light conditions that would cause standard cameras to shift to monochrome, maintaining scene context for identification and review purposes.
Forensic WDR for Mixed-Light Scenes
Axis Forensic WDR manages scenes containing both bright and dark areas simultaneously, such as a lobby entrance with sunlight behind subjects, or a loading bay with overhead lighting. Detail is maintained across the full dynamic range without washout or underexposure.
OptimizedIR Night Coverage to 20 m
Axis OptimizedIR provides infrared illumination to 20 m in complete darkness, removing the need for supplementary lighting in outdoor areas or unlit spaces. Coverage remains consistent 24 hours a day without manual intervention or separate lighting circuits.
Digital PTZ Across Up to 4 Simultaneous Areas
Operators can digitally pan, tilt, and zoom into up to 4 regions of interest at the same time without any mechanical movement. Dewarped views including panorama, quad, corner, and corridor can be streamed directly from the camera to suit different monitoring layouts.
Axis Edge Vault and Cybersecurity Features
Axis Edge Vault protects the device ID and simplifies network authorisation. Signed firmware and secure boot prevent unauthorised firmware installation and ensure the camera is free of malware even after a factory reset, supporting network security compliance requirements.
Best For
- Open-Plan Interiors: The 360° panoramic field covers an entire room from a single ceiling mount, making it suited to large open-plan offices, retail floors, and reception areas where multiple fixed cameras would be needed to achieve the same coverage.
- Outdoor Courtyards and Perimeter Zones: The IP66 and IK10-rated housing allows direct outdoor installation on soffits, canopies, or external walls where both weather exposure and physical interference are concerns.
- Unlit or Poorly Lit Spaces: OptimizedIR coverage to 20 m and Lightfinder colour processing allow the camera to operate effectively in low-light or unlit areas such as car parks, walkways, and storage areas without added lighting infrastructure.
- Budget-Conscious Panoramic Projects: As a clearance line, the M3057-PLVE Mk II provides access to Axis panoramic imaging technology at a reduced price point, suited to projects where cost is a primary consideration and the newer replacement model is not required.
Why Choose the AXIS M3057-PLVE Mk II
The AXIS M3057-PLVE Mk II combines 360° panoramic coverage, a 6 MP sensor, Lightfinder, Forensic WDR, and OptimizedIR into a single compact mini dome body rated to IK10 and IP66. A basic fixed-lens dome cannot replicate the multi-view streaming capability of this unit: one camera simultaneously delivers panorama, quad, corner, and corridor dewarped outputs, reducing hardware and installation costs where multiple fixed cameras would otherwise be needed. The digital roll feature allows remote rotation adjustment post-installation, which saves time on large-scale deployments where physical access to each camera is impractical. Axis Zipstream with H.264 and H.265 support reduces bandwidth and storage demand without compromising recorded image quality. The repaintable housing is a practical benefit in architecturally sensitive environments. Available through Security Wholesalers as a clearance line, the M3057-PLVE Mk II represents a direct path to Axis-grade panoramic imaging at a reduced price for projects not requiring the latest generation model.
Buyer Decision Tips
Clearance Stock Availability: The M3057-PLVE Mk II is sold as a clearance line, which means stock is limited and will not be replenished once sold through. If you are planning a multi-camera installation or may need additional units at a later date, confirm available quantity before committing to this model. For ongoing projects where future expansion is likely, the replacement model may be the more practical long-term choice.
Fisheye Dewarping and NVR Compatibility: Panoramic fisheye cameras require a compatible NVR or VMS that supports Axis fisheye dewarping to make full use of the digital PTZ, quad, and corridor views. Confirm that your recording platform supports Axis ONVIF Profile S and fisheye dewarping before purchasing. If your recorder does not support dewarping, the camera will still record the full 360° circular image but dewarped views will not be available at the recorder level.
Key Features & Technical Specifications
| Model |
AXIS M3057-PLVE Mk II |
| Resolution |
6 MP |
| Panoramic Coverage |
360° (ceiling mount) and 180° (wall mount) |
| Housing Type |
Compact mini dome |
| Weather Rating |
IP66 |
| Vandal Rating |
IK10 |
| IR Range |
Up to 20 m (65 ft) via Axis OptimizedIR |
| Low-Light Technology |
Axis Lightfinder |
| WDR |
Axis Forensic WDR |
| Digital PTZ |
Yes, up to 4 simultaneous areas |
| Dewarped View Modes |
Panorama, quad, corner, corridor |
| Video Compression |
H.264, H.265 with Axis Zipstream |
| Cybersecurity |
Axis Edge Vault, signed firmware, secure boot |
| Digital Roll |
Yes, remotely adjustable post-installation |
| Repaintable Housing |
Yes |
| Product Status |
Clearance – limited stock, replaced by newer model |
Ideal Use Cases
Retail Floor Surveillance
A single ceiling-mounted M3057-PLVE Mk II covers a full retail floor with its 360° overview, streaming quad and corridor views simultaneously. The repaintable dome blends into ceiling finishes without drawing customer attention.
Corporate Lobby and Reception
Forensic WDR handles the mixed lighting typical of lobby environments, where daylight through glazing contrasts with interior overhead lights. Digital PTZ lets security staff zoom into points of interest without losing the full overview stream.
Outdoor Courtyards and Common Areas
The IP66 and IK10 ratings allow wall or ceiling mounting in covered outdoor areas such as school courtyards, university walkways, or shared residential spaces where weather and physical interference are both relevant risks.
Unlit Car Parks and Storage Areas
OptimizedIR to 20 m and Lightfinder colour imaging allow the M3057-PLVE Mk II to monitor unlit or low-light spaces around the clock, removing reliance on external lighting to maintain usable footage overnight.
Architecturally Sensitive Installations
The repaintable housing and compact mini dome form factor allow the camera to be finished to match ceilings or walls in environments where camera visibility is a concern, such as heritage buildings, hotels, or high-end commercial fitouts.
Choosing the Right Model
- Choose this model if: You need a cost-effective Axis panoramic fisheye camera for an immediate deployment and stock availability meets your project quantity. The M3057-PLVE Mk II delivers 6 MP, 360° coverage, Lightfinder, Forensic WDR, and OptimizedIR at a clearance price.
- Choose a different model if: You need to guarantee matching units for a future expansion, require the latest generation Axis imaging features, or your project depends on long-term product support and firmware updates. In those cases, the current replacement model is the more practical choice. The replacement product link is listed in the Additional Information section below.
- Choose a fixed-lens dome instead if: Your site requires detailed identification at a specific point rather than wide-area overview coverage. Panoramic cameras trade per-pixel resolution in zoomed views for overall coverage breadth, so a standard fixed-lens camera will outperform a fisheye camera in targeted identification scenarios.
FAQs
- What is the difference between 360° and 180° coverage on the M3057-PLVE Mk II?
When ceiling-mounted, the camera captures a full 360° circular overview of the space below. When wall-mounted, it produces a 180° hemispherical view covering the area in front of and below the mount point. The installation position determines which mode is applicable, and both are supported from a single camera unit without any hardware changes.
- Can the M3057-PLVE Mk II be used outdoors?
Yes. The IP66 weather rating protects against dust ingress and high-pressure water jets, making it suitable for outdoor installation under eaves, on soffits, or in covered external areas. The IK10 vandal rating also provides resistance to physical impact, which is relevant for publicly accessible outdoor locations.
- How does the digital PTZ work on a fisheye camera?
Digital PTZ on the M3057-PLVE Mk II is software-based. The full 360° image is captured by the sensor, and the camera’s processor crops, dewarps, and digitally zooms into selected regions of that image. Up to 4 regions can be displayed simultaneously. There is no mechanical pan or tilt movement, so there are no moving parts to maintain or fail.
- What does Axis Zipstream do for storage and bandwidth?
Axis Zipstream analyses each frame and reduces the bitrate in areas of low interest while preserving full detail in areas containing motion or important scene content. Combined with H.265 compression support, this significantly reduces the storage and network bandwidth required compared to standard H.264 recording at equivalent image quality settings.
- Does the M3057-PLVE Mk II have any built-in audio capability?
No built-in microphone or speaker is confirmed in the product specifications for this model. Audio capability is not a feature of the M3057-PLVE Mk II as supplied.
- What does Axis Edge Vault do and why does it matter?
Axis Edge Vault is a hardware-based security module that stores and protects the camera’s cryptographic device identity. It simplifies verification that a device on the network is a genuine, unmodified Axis unit, and it supports compliance with network security policies that require device authentication. Signed firmware and secure boot complement this by ensuring only verified firmware can be loaded onto the device.
- Is the M3057-PLVE Mk II still supported and can I buy more units later?
This product is listed as a clearance line and has been replaced by a current-generation model. Security Wholesalers is selling remaining stock at a clearance price. Once stock is exhausted, this model will no longer be available. If your project requires ongoing availability for future expansion or replacement units, the current replacement model listed in the Additional Information section is the recommended option.
