AXIS M4317-PLVE Panoramic Camera 6 MP dome with 360° view and deep learning

Product SKU: M4317-PLVE

Product Overview

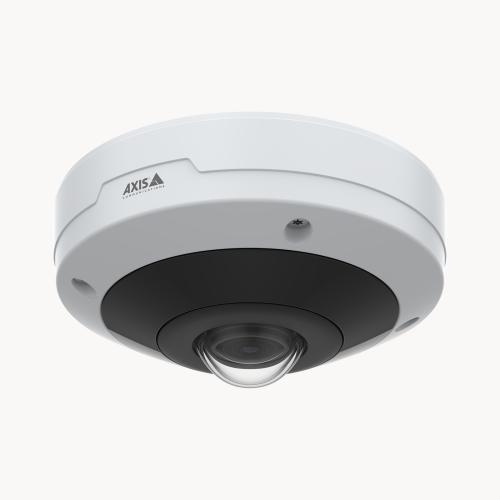

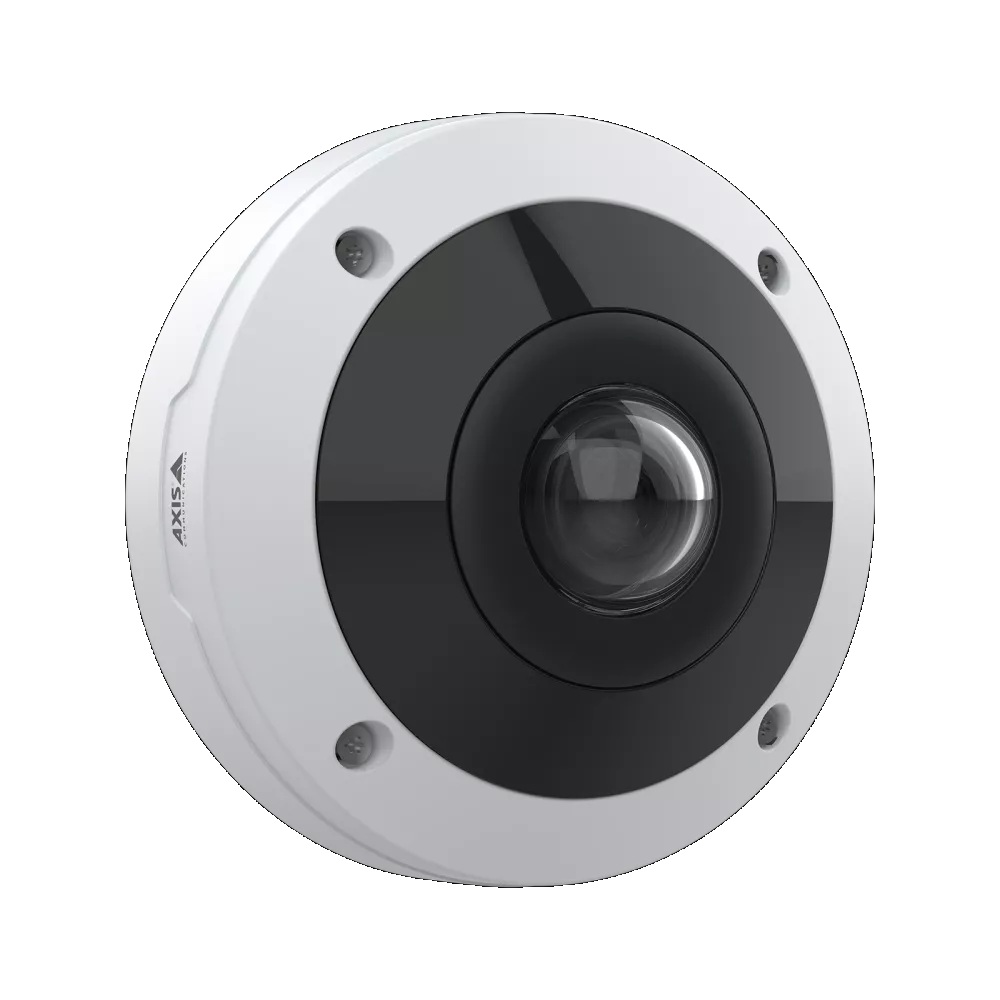

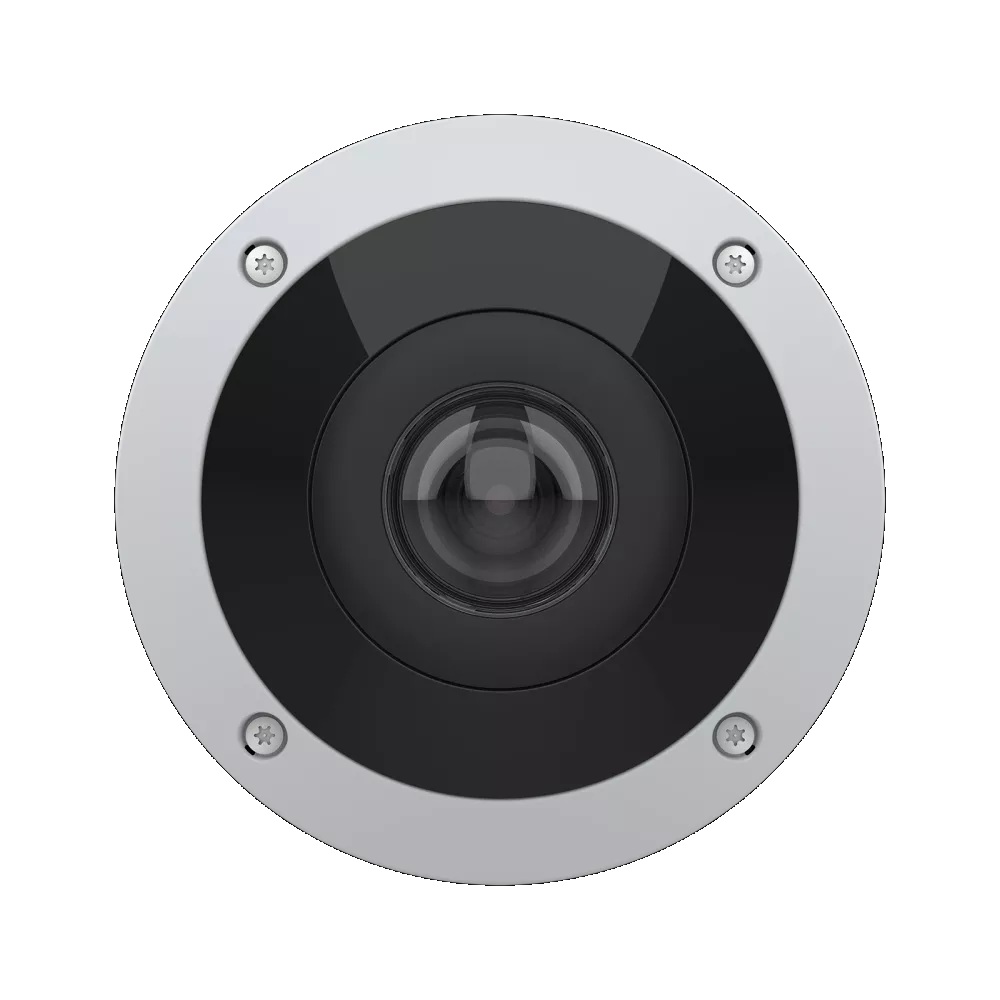

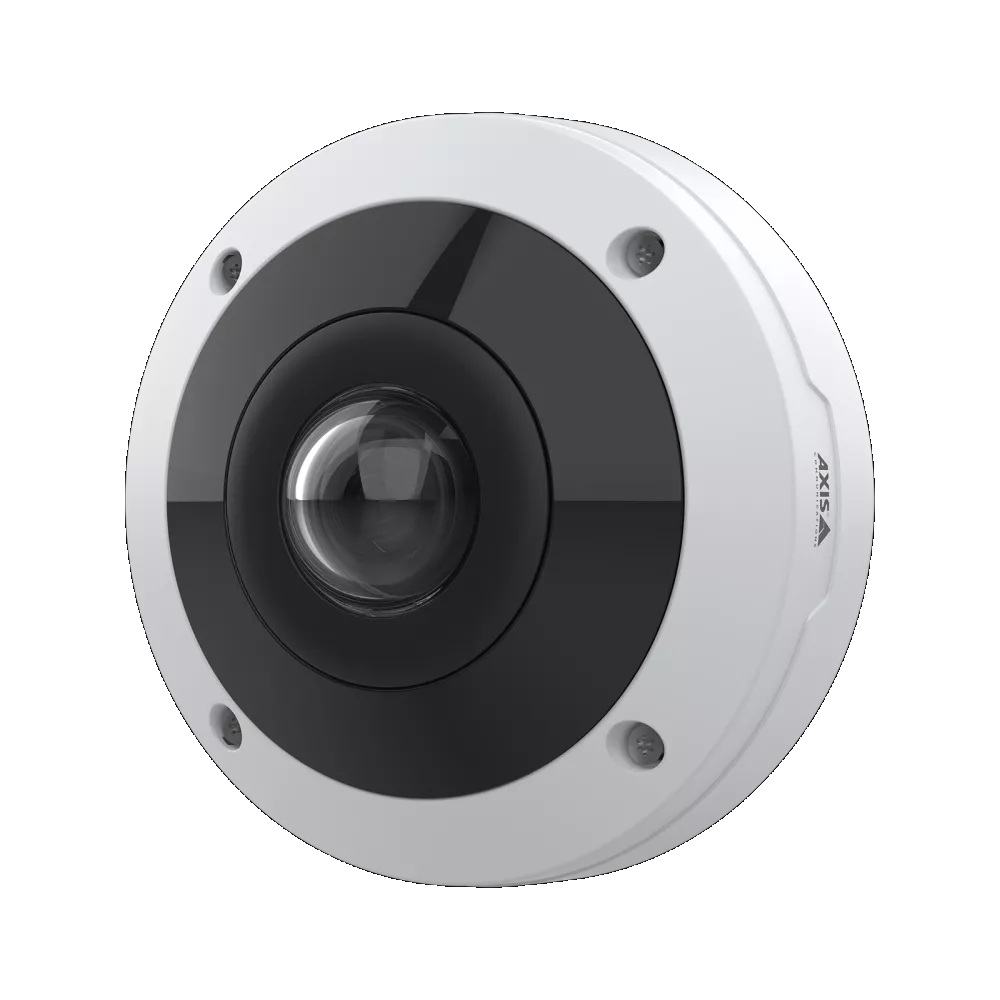

The AXIS M4317-PLVE is a discreet 6MP outdoor-ready panoramic dome camera designed to deliver complete 180° or 360° surveillance coverage from a single compact device. It features a 1.1mm stereographic lens, 2160 × 2160 maximum video resolution, Sharpdome 360, Lightfinder, Forensic WDR, built-in IR with individually controllable LEDs, and support for deep learning analytics on the edge. With IP66 weather protection, IK10 vandal resistance, digital roll, H.264/H.265 Zipstream, PoE support, local storage, and Axis Edge Vault cybersecurity, this camera is ideal for retail, schools, offices, public areas, entrances, corridors, and outdoor spaces requiring wide-area coverage with minimal blind spots.

Why Choose the AXIS M4317-PLVE

The AXIS M4317-PLVE is ideal for customers who need panoramic visibility, intelligent analytics, and reliable image quality from a compact dome camera. Its 6MP sensor and stereographic lens deliver sharp 180° or 360° overviews, while dewarped views such as panorama, quad, corner, and corridor make footage easier to monitor. Built-in IR supports visibility in low light and complete darkness, while AXIS Object Analytics can detect and classify humans, vehicles, and vehicle types directly on the camera. Digital roll also simplifies installation by allowing remote image rotation without physically adjusting the camera.

Key Capabilities

Key Features

• 6MP Panoramic Imaging: The AXIS M4317-PLVE captures up to 2160 × 2160 video resolution, providing detailed panoramic footage across a wide scene. This makes it suitable for monitoring rooms, entrances, corridors, open areas, public spaces, and outdoor access points where broad coverage is required.

• Complete 180° and 360° Overview: The camera can deliver a complete 360° overview when ceiling mounted or a 180° overview when wall mounted. This helps reduce blind spots and can minimise the number of cameras needed for wide-area monitoring across many commercial and public-space environments.

• Stereographic Lens with Sharpdome 360: The stereographic lens and Sharpdome 360 design help maintain greater sharpness toward the edges of the image. This improves practical image usability across the full panoramic view, which is especially important when monitoring wide scenes from a single camera position.

• Deep Learning Analytics: With a built-in deep learning processing unit, the camera supports analytics on the edge, including AXIS Object Analytics and AXIS Scene Metadata. This enables detection and classification of humans, vehicles, and vehicle types while supporting faster forensic search and more useful event data.

• Lightfinder and Forensic WDR: Lightfinder helps capture useful colour images in low-light conditions, while Forensic WDR improves visibility in scenes with high contrast. Together, these technologies support clearer evidence in spaces affected by windows, doorways, shadows, reflections, and changing lighting.

• Built-In IR with OptimizedIR: Built-in IR illumination with individually controllable LEDs helps provide clear, reflection-free footage in low light and complete darkness. OptimizedIR supports around-the-clock monitoring and helps the camera adapt illumination across wide panoramic scenes.

• Digital Roll for Easier Installation: Digital roll allows remote rotation adjustment of the camera overview, reducing the need to manually reposition the unit during installation. This helps installers fine-tune the view more efficiently, especially when cameras are mounted in difficult-to-access ceiling or wall locations.

• Zipstream with H.264 and H.265: Axis Zipstream works with H.264 and H.265 compression to significantly reduce bandwidth and storage requirements while preserving important image detail. This is especially useful for panoramic cameras, where wide coverage and continuous recording can otherwise increase storage demands.

Specifications Summary

Ideal Use Cases

• Retail Stores – Suitable for monitoring sales floors, entrances, aisles, queue areas, service counters, and checkout zones with wide panoramic visibility from one discreet dome.
• Schools and Education Facilities – Ideal for corridors, common areas, libraries, administration spaces, classrooms, and covered outdoor access points where broad coverage and analytics are useful.
• Office and Reception Areas – Useful for foyers, waiting areas, shared workspaces, internal entry points, lift lobbies, and meeting areas where full-room situational awareness is valuable.
• Public and Commercial Spaces – A strong option for shopping centres, public walkways, hospitality venues, building entrances, and high-traffic areas requiring discreet monitoring with minimal blind spots.
• Outdoor Entrances and Access Points – Suitable for building entries, covered walkways, external doors, and access-controlled zones where weather resistance, vandal protection, IR, and panoramic coverage are required.

Understanding the 180° / 360° Fixed Panoramic Lens

The AXIS M4317-PLVE uses a 1.1mm fixed stereographic lens instead of a traditional varifocal lens. This lens captures an ultra-wide fisheye image that can provide a complete 360° overview when ceiling mounted or a complete 180° overview when wall mounted. Dewarping converts the fisheye image into practical viewing layouts such as panorama, quad, corner, and corridor views, while digital PTZ allows users to zoom into areas of interest without moving mechanical parts.

Tip:
Use ceiling mounting when you need complete situational awareness across a room or open area. Use wall mounting when the camera needs to cover an entrance, corridor, shopfront, reception zone, or outdoor approach. Dewarped views help operators review panoramic footage in a more natural layout while still benefiting from the full recorded overview.

FAQs

1. What is the AXIS M4317-PLVE best suited for?
   The AXIS M4317-PLVE is best suited for wide-area surveillance where a single compact camera needs to cover a complete room, entrance, corridor, public space, or outdoor access point. It is suitable for retail, education, office, hospitality, public-space, and commercial environments where 180° or 360° panoramic coverage can help reduce blind spots.
2. Does the AXIS M4317-PLVE support 360° coverage?
   Yes, the AXIS M4317-PLVE can provide a complete 360° overview when ceiling mounted. It can also provide a complete 180° overview when wall mounted. This makes it flexible for different installation locations, and its dewarped viewing modes help convert fisheye footage into practical live and recorded views.
3. Does this camera support deep learning analytics?
   Yes, the AXIS M4317-PLVE includes a deep learning processing unit and supports advanced analytics on the edge. AXIS Object Analytics can detect and classify humans, vehicles, and vehicle types, while AXIS Scene Metadata can provide useful searchable event data. This helps improve alert relevance and makes forensic search more efficient.
4. Does the AXIS M4317-PLVE have built-in IR?
   Yes, the AXIS M4317-PLVE includes built-in IR with individually controllable LEDs and OptimizedIR. This helps provide clear footage in low-light conditions and complete darkness while reducing unwanted reflections. Combined with Lightfinder and Forensic WDR, it supports dependable day and night image quality across wide panoramic scenes.
5. Is the AXIS M4317-PLVE suitable for outdoor use?
   Yes, the AXIS M4317-PLVE is outdoor ready with an IP66 rating and IK10 vandal resistance. It is designed to withstand dust, powerful water jets, impact, and demanding environmental conditions. It also operates from -40 °C to 50 °C, making it suitable for both indoor and outdoor professional surveillance applications.
6. What are dewarped views and digital PTZ?
   Dewarped views convert the fisheye image into more natural viewing layouts such as panorama, quad, corner, and corridor views. Digital PTZ allows users to pan, tilt, and zoom within the panoramic image without moving mechanical parts. This gives operators flexibility to inspect areas of interest while still recording the complete overview.
