Sale!
, , , , , ,

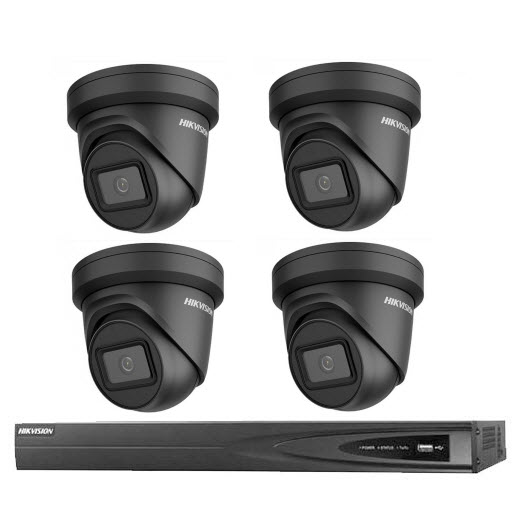

6MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Cameras + 4CH NVR


4 x  6 MP Hikvision Outdoor Turret Camera

Code/SKU: HIK-2CD2355FWDI or DS-2CD2355FWDI

Quick Specs: H.265+, 30m IR, 120dB WDR, IP67

Lens Options: 2.8mm / 4mm / 6mm / 8mm/ 12mm       IR Range: 30m



1 x 4 CH Hikvision PoE NVR

Code/SKU: HIK-7604NI-K1-4P or DS-7604NI-K1-4P

Quick Specs: 4ch PoE NVR, 40Mbps, 4 PnP Ports, 4K, VGA / HDMI, 1 HDD Bay + 3TB HARD DRIVE



Upgrades available:

+ $150 Upgrade to 8 CH NVR

+ $178 per additional camera

If you require different lens or IR range for each camera in this kit, please specify in the comments upon checkout. We will ship the right cameras to you.

$1,189.00 $1,550.59 inc GST

Please Select Lens Size *

Optional Upgrades

This must be a number!

This must be a number!

Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2355FWDI or DS-2CD2355FWDI is an IR turret camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8mm / 4mm / 6mm / 12mm lens, this camera provides a horizontal field of view of between 21 – 80 degrees (depending on your lens choice). Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Features:

  • Up to 6 megapixel high resolution
  • Max. 3072 × 2048 @20fps
  • 2.8 mm/4 mm/6 mm/ 8mm/ 12 mm fixed lens, optional
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • DC12V & PoE (802.3af)
  • IR range: up to 30 m
  • Support on-board storage, up to 128 GB
  • IP67



5MP Sample Videos

>NOTE If you’d like to experience full 5MP, you may have to click the gear icon and change the resolution to 2160px, otherwise youtube may stream at a lower quality resolution.
Side of a warehouse

Shopping Centre

Night Mode – Apartment building

Countryside

Playground

Camera
Image Sensor:|1/2.9″ Progressive Scan CMOS
Signal System:|PAL/NTSC
Min. Illumination:|Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time:|1/3 s to 1/100,000 s
Slow shutter:|Support
Lens:|2.8 mm, horizontal field of view: 97°
4 mm, horizontal field of view: 78°
6 mm, horizontal field of view: 60°
8 mm, horizontal field of view: 39.5°
12 mm, horizontal field of view: 19°
Lens Mount:|M12
Adjustment Range:|Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night:|IR cut filter with auto switch
Wide Dynamic Range:|120 dB
Digital noise reduction:|3D DNR
Compression Standard
Video Compression:|H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:|32Kbps~16Mbps
Triple Streams:|Yes
Max. Image Resolution:|1920 x 1080
Frame Rate:|50Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720)
60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720)
Sub Stream:|50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240)
Third Stream:|50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement:|BLC/3D DNR
Image Settings:|Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping:|Support
ROI:|Support 1 fixed region for each stream, and face dynamic tracking
Day/Night Switch:|Auto/Scheduled
Network
Protocols:|TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:|One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:|ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface:|1 RJ45 10M / 100M Ethernet interface
On-board storage:|Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:|Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:|Cross a pre-defined virtual line
Intrusion Detection:|Enter and loiter in a pre-defined virtual region
Unattended Baggage:|Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:|Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:|Face Detection
General
Operating Conditions:|-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:|12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:|12 VDC ± 25%, 5.5 W
PoE(802.3af, 42.5 – 57V, class 3), 7.5 W
Weather Proof:|IP67
IR Range:|Up to 30m
Dimensions:|Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight:|Camera: 620 g (1.37 lb.)



3 Year Manufacturer Warranty

All Hikvision IP cameras and recording device (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

(Note disk drives limited to 1 one year)

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories.
