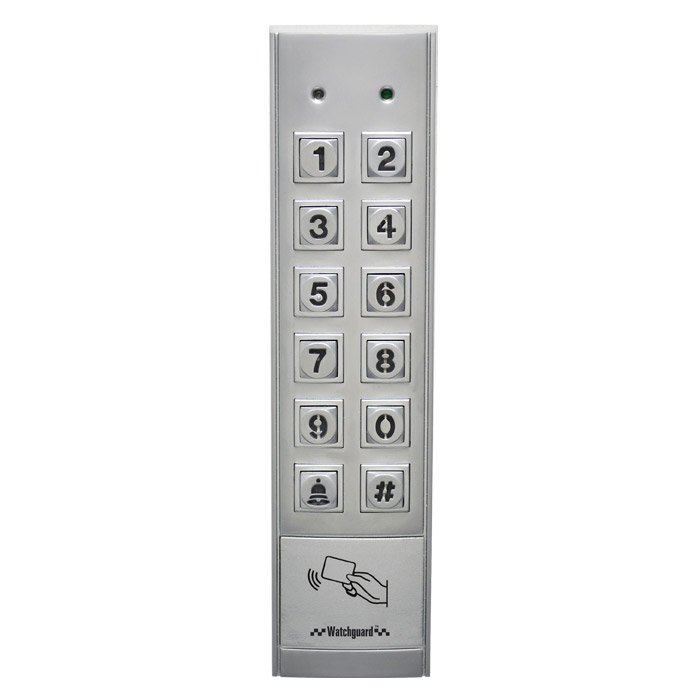

WatchGuard Standalone IP65 Access Reader/Keypad


The ACRDR103 is a vandal resistant, zinc-alloy die cast, selfcontained, dual-level backlit access control reader/keypad designed to directly drive electric door locks. It is capable of accommodating up to 1000 user codes & RFID cards/keyfobs and is compatible with both fail-safe and failsecure locks. Cards & codes can be combined for multi-level authentication, visitor access can be programmed, daily operational hours can be set and the door lock striking timer is programmable for access customisation.

Watchguard ACRDR103 Datasheet (PDF) (5)

Watchguard ACRDR103 Manual V1.1.pdf (2)

$293.60 inc GST +3 Year Warranty & Support

Cards / Fobs

The ACRDR103 is a vandal resistant, zinc-alloy die cast, selfcontained, dual-level backlit access control reader/keypad designed to directly drive electric door locks. It is capable of accommodating up to 1000 user codes & RFID cards/keyfobs and is compatible with both fail-safe and failsecure locks. Cards & codes can be combined for multi-level authentication, visitor access can be programmed, daily operational hours can be set and the door lock striking timer is programmable for access customisation.

The ACRDR103 uses a solid-state switch for long service life and has an available relay contact to operate an external low power door chime. It also features a tamper switch and unauthorised access lock for vandal protection.

The ACRDR103 has a bi-directional data I/O bus, enabling use of up to 3 additional readers & split-decoder to be used. It is compatible with all proximity keys & cards (incl. 2 cards).

Specifications

Warranty (Years) 1
Access Lock Modes No lock / 60s after 10 attempts / 15 mins after 10 attempts
Data I/O Bus Bi-directional: 3 additional readers / 1 split-decoder
Dimensions 180 x 46 x 25mm
Door Chime 1A / 24VDC (N.O. relay, dry contact)
Door Lock Control Toggle / Time: 1 ~ 99,999 seconds
Ingress Protection IP65 (dust tight & water ingress resistant)
Material & Finish Zinc-alloy die cast body & keys
Maximum User Access 1000 (user) codes, keyfobs, cards / 1 super-user code
Operating Current 60mA (standby) / 100mA (active)
Operating Environment -20°C ~ 70°C / RH95% (max)
Power Input 12VDC
Solid State Door Lock 2A / 24VDC
Tamper Switch 50mA / 24VDC (N.C. relay, dry contact)
Weight 0.47kg
SKU: SW-ACRDR103 Categories: ,
Weight 0.6 kg
Dimensions 115 × 53 × 200 cm

ACRDR103 Product Brochure (PDF)
