Key Features
- 5MP resolution up to 2560 × 1920 at 30fps for sharp video quality.
- Motorised 2.8-12mm varifocal lens with remote focus for flexible coverage.
- P-iris lens design for improved image consistency and exposure control.
- Dual light design with IR up to 40m and warm light up to 30m.
- Switchable dual-lighting modes for proactive nighttime deterrence.
- Built-in speaker and microphone with two-way audio.
- AI analytics including people detection, vehicle detection, intrusion, loitering, line crossing, face detection, unattended object, missing object and crowd detection.
- Supports microSD/SDHC/SDXC recording up to 1TB and NAS recording.
- PoE powered via IEEE 802.3af Class 3.
- IP66 weather rated and IK10 vandal resistant.
- Supports ONVIF Profiles G, S, T and M.
Full Product Description

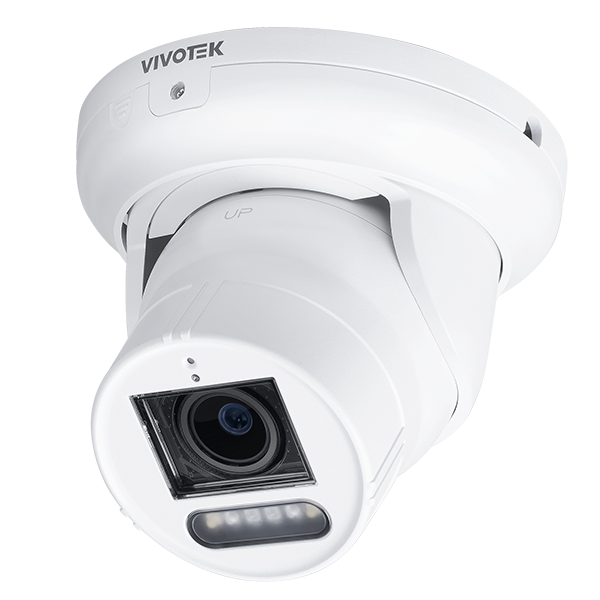

The VIVOTEK IT9389-HTVW-V3 is a smart 5MP outdoor turret camera built for users who want more than just recording. With a motorised varifocal 2.8-12mm lens, it gives you the flexibility to adjust the viewing angle for wide-area monitoring or tighter identification zones without needing to swap lenses. It records at up to 2560 x 1920 resolution at 30fps, helping capture clear video in demanding residential, commercial, and light industrial environments.
One of the standout features of this model is its dual-light design. It combines infrared illumination up to 40 metres with warm light up to 30 metres, allowing the camera to operate in different night modes depending on the application. This makes it suitable both for discreet night monitoring and for more visible, proactive deterrence where colour footage and an obvious warning presence are preferred.
For sites that want active deterrence, the camera also includes auto alarm deterrence and a real-time built-in speaker, plus a built-in microphone and support for full duplex two-way audio. That makes it useful for entry areas, shopfronts, driveways, small warehouses, offices, schools, and similar spaces where both surveillance and audio interaction matter.
On the analytics side, this model uses a built-in hardware deep learning accelerator and supports Smart Motion Detection and Smart VCA. It can identify people and vehicles, and supports functions such as intrusion detection, loitering detection, line crossing, face detection, unattended object detection, missing object detection, and crowd detection. VIVOTEK also lists additional licensed analytics such as running detection, parking violation detection, and restricted zone detection.
Installation is straightforward with PoE support, and the camera can record to microSD cards up to 1TB or to NAS storage. It also supports ONVIF Profiles G, S, T and M, which helps with integration into compatible third-party VMS and NVR platforms. The housing is rated IP66 for weather resistance and IK10 for vandal resistance, making it suitable for demanding outdoor conditions.
Ideal For
- Homes needing better perimeter coverage
- Shopfronts and small businesses
- Warehouses and loading areas
- Entry points and gates
- Schools and commercial sites
- Installations needing audio + deterrence + AI detection
Specifications
Model: VIVOTEK IT9389-HTVW-V3
Camera Type: Outdoor AI turret IP camera
Resolution: 5MP, 2560 x 1920
Image Sensor: 1/2.8″ Progressive CMOS
Lens: Motorised varifocal, remote focus
Focal Length: 2.8-12mm
Aperture: F1.6-F3.3
Iris: P-iris
Horizontal Field of View: 95.4° to 28.7°
WDR: WDR Pro
Night Illumination: IR up to 40m, warm light up to 30m
Video Compression: H.265, H.264, MJPEG
Max Frame Rate: 30fps at 5MP
Audio: Built-in microphone, built-in speaker, two-way audio
Storage: microSD/SDHC/SDXC up to 1TB, NAS recording
Network: 10/100 Ethernet RJ45
PoE: IEEE 802.3af PoE Class 3
ONVIF: Profiles G, S, T, M
Environmental Rating: IP66, IK10
Power Consumption: Max. 12.4W / 9.6W (IR on/off)
Dimensions: Ø 137.9 x 116.9 mm
Weight: 780g
FAQs
1. Is this camera fixed lens or varifocal?
This model uses a motorised 2.8-12mm varifocal lens with remote focus, so you can adjust the viewing angle to suit the area you want to cover.
2. Does it record in colour at night?
Yes. It is designed to provide clear colour nighttime footage and includes warm light illumination for colour night viewing. It also has IR for conventional night vision.
3. What is the night vision range?
According to VIVOTEK’s specifications, the camera has IR effective up to 40 metres and warm light effective up to 30 metres.
4. Does this camera have a built-in microphone and speaker?
Yes. It includes a built-in microphone and built-in speaker, and supports full duplex two-way audio.
5. Can it deter intruders?
Yes. This model supports switchable dual-lighting modes, auto alarm deterrence, and a real-time speaker, which can help make the camera more obvious and proactive at night.
6. What AI analytics does it support?
It supports people detection, vehicle detection, intrusion detection, loitering detection, line crossing detection, face detection, unattended object detection, missing object detection, and crowd detection. Some additional analytics are available with licence.
7. Is it compatible with third-party NVRs or VMS platforms?
It supports ONVIF Profiles G, S, T and M, which improves compatibility with ONVIF-compatible third-party systems. Actual functionality may still depend on the recorder or software being used.
8. Does it support edge recording?
Yes. It supports microSD/SDHC/SDXC cards up to 1TB and can also record to NAS.
9. Is this camera suitable for outdoor use?
Yes. It is rated IP66 for weather resistance and IK10 for vandal resistance.
10. Is it PoE powered?
Yes. It supports IEEE 802.3af PoE Class 3, so it can be powered over the network cable using a compatible PoE switch or injector.
In the Box
- VIVOTEK IT9389-HTVW-V3 camera
- Quick installation guide
- Alignment sticker
- Screw pack
- Cable gland
