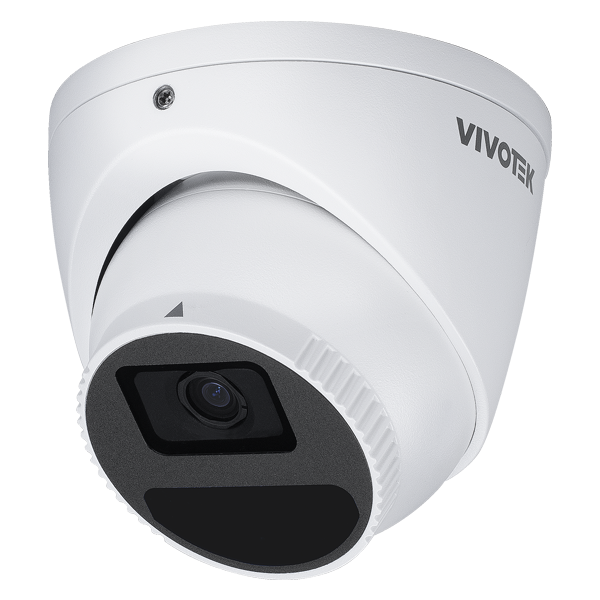

The VIVOTEK IT9380-HV-V2 is a professional 5MP outdoor turret AI camera built for general commercial and residential surveillance where you want strong image quality, useful analytics, and a compact vandal-resistant form factor. It records at up to 2880 x 1616 resolution and uses a 1/2.7″ progressive CMOS sensor for detailed video capture.
This model uses a 2.8mm fixed lens with a wide viewing angle, making it well suited to entries, walkways, driveways, yards, shopfronts, and general perimeter coverage. That suitability is an inference from the fixed wide-angle lens and turret design.
For night performance, the camera includes built-in IR illuminators effective up to 30 metres with Smart IR, helping maintain balanced exposure in low-light scenes. VIVOTEK also highlights WDR Pro for clearer images in challenging high-contrast conditions such as bright backgrounds and shaded foregrounds.
A major strength of the IT9380-HV-V2 is its built-in analytics. It supports Vision Object Analytics to detect and distinguish people and vehicles, while Smart VCA adds more accurate alarm handling and video analytics for targeted monitoring and event detection.
The camera supports two-way audio and includes a built-in microphone, external line input, and external line output. For storage, it supports microSD/SDHC/SDXC cards up to 1TB and NAS recording, giving you flexible edge and network storage options.
For durability, the housing is a metal housing with IK10 certification, and external listings for this exact model also indicate IP66/IP67 weather protection. The camera supports IEEE 802.3af PoE Class 3 as well as 12V DC power input.
On the cybersecurity side, VIVOTEK highlights Trend Micro IoT Security, and the technical spec snippet also lists protections including HTTPS, IEEE 802.1X, signed firmware, and account/access protections.
Key Features
- 5MP resolution up to 2880 x 1616
- 1/2.7″ progressive CMOS image sensor
- 2.8mm fixed lens
- Built-in IR up to 30m
- Smart IR
- WDR Pro
- Vision Object Analytics
- Smart VCA
- People and vehicle detection
- Two-way audio
- Built-in microphone
- MicroSD edge recording up to 1TB
- NAS recording support
- IEEE 802.3af PoE Class 3
- 12V DC power input
- IK10 metal housing
- Trend Micro IoT Security
Specifications
- Image Sensor: 1/2.7″ Progressive CMOS
- Maximum Resolution: 2880 x 1616
- Lens Type: Fixed-focal
- Focal Length: 2.8mm
- Aperture: F1.6
- IR Range: Up to 30m
- Video Compression: H.265, H.264, MJPEG
- Audio: Two-way audio, built-in microphone, external line input, external line output
- Storage: microSD/SDHC/SDXC up to 1TB, NAS
- Network: RJ-45 Ethernet
- Power Input: IEEE 802.3af PoE Class 3, 12V DC
- Power Consumption: Max. 5.87W on PoE, max. 5.76W on 12V DC
- Housing: Metal
- Impact Rating: IK10
- Dimensions: Ø105 x 82.8mm
- Weight: 537g
Ideal For
The VIVOTEK IT9380-HV-V2 is well suited to building entries, small business premises, shopfronts, walkways, driveways, school areas, and general perimeter coverage where you want a compact turret camera with AI-based people and vehicle filtering. This use-case fit is an inference based on the 2.8mm lens, 30m IR, turret form factor, and built-in analytics.
FAQs
What resolution is the VIVOTEK IT9380-HV-V2?
It is a 5MP network camera with a maximum resolution of 2880 x 1616.
Does the IT9380-HV-V2 have a fixed or motorised lens?
It has a 2.8mm fixed lens.
How far does the infrared night vision reach?
The built-in IR is rated for up to 30 metres and includes Smart IR.
Does this camera support AI detection?
Yes. It supports Vision Object Analytics for people and vehicle detection, plus Smart VCA for more accurate alarm handling and video analytics.
Can the camera record to a memory card?
Yes. It supports microSD/SDHC/SDXC cards up to 1TB, and also supports NAS recording.
Does it support audio?
Yes. It supports two-way audio and includes a built-in microphone, plus external line input and output.
Is the IT9380-HV-V2 suitable for outdoor use?
Yes. VIVOTEK presents it as an outdoor turret AI camera, and the model is described with IK10 metal housing; external specs for this model also list IP66/IP67 weather ratings.
How is the camera powered?
The camera supports IEEE 802.3af PoE Class 3 and 12V DC.
