Highlight Features
Auto Discovery
The VIVOCAM L2 series can automatically discover VIVOTEK’s devices, such as network cameras, video servers, and NVRs, with a simple click of the mouse.
Topology View
Auto-generated Topology View allows administrators to quickly view and export a complete network topology in SVG/PNG/ PDF format for easier inspection and planning.
Floor View
Upload custom floor images. Floor View allows for quick location of deployed surveillance devices and exporting this view in SVG/PNG/ PDF format for easier inspection and planning.
Google Map View
Locate surveillance devices on Google Maps to simplify multi-site management of any large-scale deployments.
Device Management
Easy network configuration, open camera Web UI, diagnose camera connection and cable status, display camera live stream, change camera network setting, restore default, PoE consumption, and PoE on/off control.
Traffic Monitor
An auto-generated comprehensive chart shows port-by-port network traffic status.
Product Specifications
| Model |
| Model |
AW-GEV-108A-130 |
| Product Description |

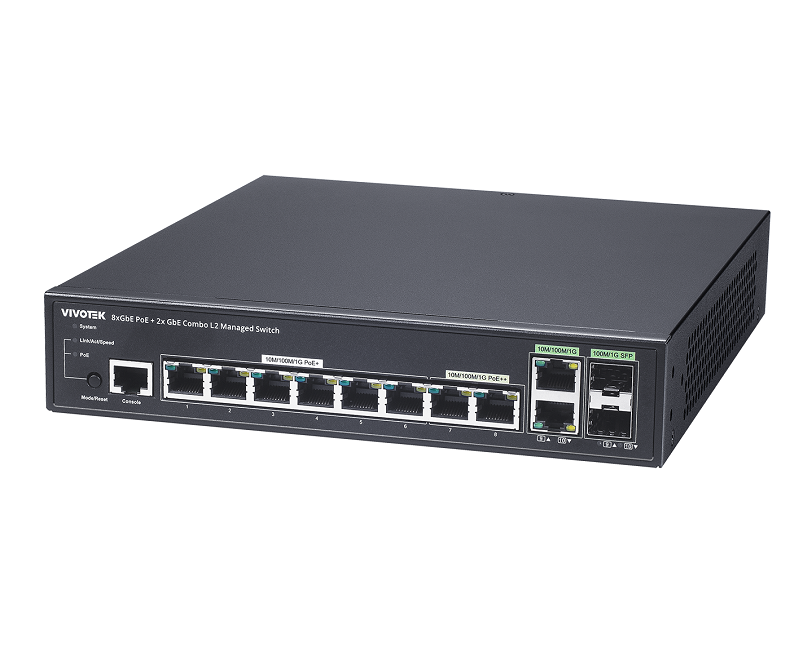

2xGbE bt 90W PoE + 6xGbE 30W PoE + 2xGbE Combo VIVOCAM L2 Managed PoE Switch |
Port Configuration
| Port Type |
Quantity |
| Gigabit RJ45 Port |
8 |
| Gigabit Combo Port |
2 |
| Total Ports |
10 |
| Console Port |
1 |
HW Performance
| Specification |
Value |
| Switching Bandwidth |
20 Gbps |
| Forwarding Capacity |
14.88 Mpps |
| MAC Address |
8 K |
| Jumbo Frames |
9216 Bytes |
Surveillance Features
| Feature |
Available |
| Auto Search VIVOTEK Device |
up to 256 pcs |
| PoE Reboot |
✔ |
| Surveillance Device Management List |
✔ |
| DHCP Server Function |
✔ |
| VIVOTEK Device Account/Password Setting |
✔ |
| VIVOTEK Device Grouping Setting for VLAN |
✔ |
| VIVOTEK Device Name Edit |
✔ |
| VIVOTEK Camera/Video Server Reboot/Restore Default |
✔ |
| VIVOTEK Device Re-direct Link |
✔ |
| VIVOTEK Device On/Off Line Status |
✔ |
| E-Map View |
✔ |
| Topology View |
✔ |
| Floor View |
✔ |
| Google Map View |
✔ |
| VIVOTEK Camera/Video Server Configuration File Export/Import |
✔ |
| Floor Image Management |
✔ |
| Export Surveillance Management Device List |
✔ |
| Cable Diagnostics |
✔ |
| Traffic Monitoring |
✔ |
L2 Managed Features
| Feature |
Supported |
| Spanning Tree |
✔ |
| IEEE802.1D (STP) |
✔ |
| IEEE802.1w (RSTP) |
✔ |
| IEEE802.1s (MSTP) |
✔ |
| Trunking |
✔ |
| IEEE802.1d (LACP) |
✔ |
| Static Aggregation |
✔ |
| VLAN |
✔ |
| 802.1Q Tag-based VLAN |
4096 VLAN IDs |
| Port-based VLAN |
✔ |
| Private VLAN Edge (PVE) |
✔ |
| GARP VLAN |
✔ |
| Q-in-Q (Double Tag) |
✔ |
| Protocol-based VLAN |
✔ |
| MAC-based VLAN |
✔ |
| Voice VLAN |
✔ |
| IP Subnet-based VLAN |
✔ |
| Multicast VLAN Registration (MVR) |
✔ |
| IGMP Snooping (v1/v2) |
✔ |
| DHCP Relay |
✔ |
| MLD v1/v2 Snooping |
✔ |
Network
| Feature |
Supported |
| IPv4/IPv6 |
✔ |
QoS Features
| Specification |
Value |
| Hardware Queues |
8 |
| Classification |
Port Based, 802.1p |
| Rate Limiting |
Ingress, Egress, Per Port |
| Priority Queue Scheduling |
WRR |
| DSCP & Class of Service |
✔ |
Security
| Feature |
Supported |
| IEEE802.1x |
✔ |
| RADIUS Authentication |
✔ |
| IGMP-RADIUS Based |
✔ |
| Secure Sockets Layer (SSL) |
✔ |
| Port Security |
✔ |
| IP Source Guard |
✔ |
| Storm Control |
✔ |
| Layer 2 Isolation Private VLAN Edge (PVE) |
✔ |
| RADIUS/TACACS+ |
✔ |
| Loop Detection |
✔ |
| DHCP Snooping |
✔ |
| ACLs |
Up to 384 Entries |
| Source and Destination MAC, VLAN ID or IP Address, Protocol, Port |
✔ |
| (DSCP) / IP Precedence |
✔ |
| TCP/ UDP source and destination ports |
✔ |
| 802.1p priority |
✔ |
| ICMP Packets |
✔ |
| Ethernet type |
✔ |
| TCP flag |
✔ |
Management
| Feature |
Supported |
| SNMP (v1, v2c, v3) |
✔ |
| RMON (1,2,3 & 9 groups) |
✔ |
| DHCP Server & Client |
✔ |
| Port Mirroring |
✔ |
| UPnP |
✔ |
| LLDP (IEEE802.1ab) |
✔ |
| LLDP-MED |
✔ |
| S-Flow |
✔ |
| Firmware Upgrade |
✔ |
| NTP |
✔ |
PoE Management
| Feature |
Supported |
| PoE On/Off Control |
✔ |
| PoE Alive Checking for PD |
✔ |
| PoE Scheduling |
✔ |
| Power Delay |
✔ |
| Non-Stop PoE |
✔ |
| Extended PoE Mode (up to 250m/10mbps) |
✔ |
| PoE Function |
IEEE 802.3af/at/bt PoE Standard Compliant |
| Number of PoE Output Port |
8 |
| PoE Output Power |
Port 1-6 at 30W, Port 7-8 bt 90W |
| Total PoE Power Budget |
130 W |
| PoE Pin Assignment |
Port 7-8 bt: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
Port 1-6 af/at: 2 pairs 1/2 (+), 3/6 (-) |
Environmental Specifications
| Specification |
Value |
| Operating Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature |
-20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity |
10 ~ 90% RH |
Mechanical Specifications
| Specification |
Value |
| Dimensions |
220 (W) x 44 (H) x 242 (D) mm |
| Weight |
1.95 kg |
| Power Source |
AC Input 100V ~ 240V |
| Frequency |
50 ~ 60 Hz |
Certifications
| Certification |
| UL, CE, UKCA, FCC, VCCI, LVD, ICES |
Warranty
Accessories
| Included Accessories |
| Power Cord, QIG, CD Manual, Rack Mount Kit |
