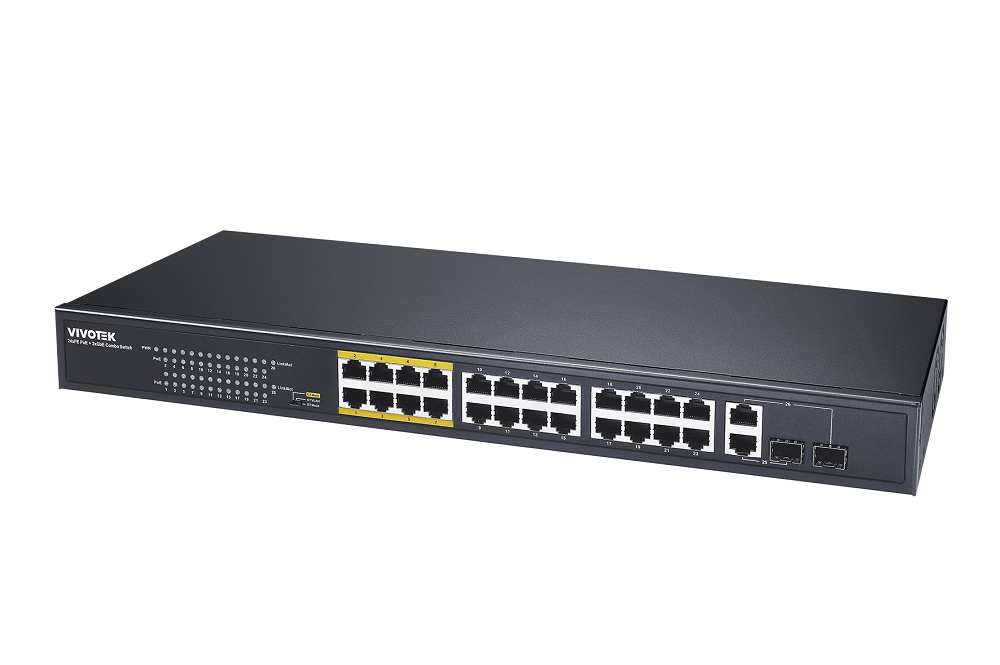

Vivotek AW-FGT-260F-380 AUN, 24xFE PoE + 2xGbE Combo Unmanaged Switch
, ,

Vivotek AW-FGT-260F-380 AUN, 24xFE PoE + 2xGbE Combo Unmanaged Switch

Extended PoE Mode Reaches 802.3af/at Camera up to 250m@10Mbps via EX PoE Ports

Key Features

  • 15.4W/30W 802.3af/802.3at compliant
  • 6KV PoE surge protection in each port
  • 4KV AC surge protection
  • 20% range of input voltage tolerance (280VAC for 4 hrs, 300VAC for 1 min)
  • Circuit protection prevents power interference between ports

AW-FGT-260F-380 Datasheet

$608.58 $621.00 inc GST +3 Year Warranty & Support

Technical Specifications

Category Details
Model AW-FGT-260F-380
Summary of Key Features Combination of 24xFE PoE + 2xGbE
Network Specifications
PoE RJ45 Ports (10/100Mbps) 24
Combo RJ45/SFP Gigabit Ports 2
PoE Mode EX (250M @ 10Mbps) 8
VLAN Mode Supported
Ethernet Performance
Switching Capacity 8.8 Gbps
MAC Table 16 K
Jumbo Frame 1536 bytes
Auto-MDI/MDI-X, Auto-Negotiation Supported
Power Specifications
Input Power Voltage 100 VAC ~ 240 VAC 280 VAC 4 hours, 300 VAC 1 min
Max. PoE Output Power per Port 54 VDC
PoE Output IEEE 802.3af (Max. 15.4 W) Supported
PoE+ Output IEEE 802.3at (Max. 30 W) Supported
Total PoE Power 380 W
Pin Assignment for Power 1/2(+), 3/6(-)
Automatic PD PoE Detection Supported
PoE Surge Protection 6 KV
AC Surge Protection 4 KV
General
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10% ~ 90% Non-condensing
MTBF CE, UKCA, FCC, VCCI, C-Tick Class A
Dimensions 440 (D) x 207 (W) x 44 (H) mm
Weight 3.25 kg
Warranty 24 months
Certifications
EMC CE, FCC, VCCI, LVD
Safety EN62368-1, IEC62368-1
SKU: AW-FGT-260F-380 AUN Categories: , , Tags: , , ,
