Mounting Kit, Vivotek, Vivotek Accessories

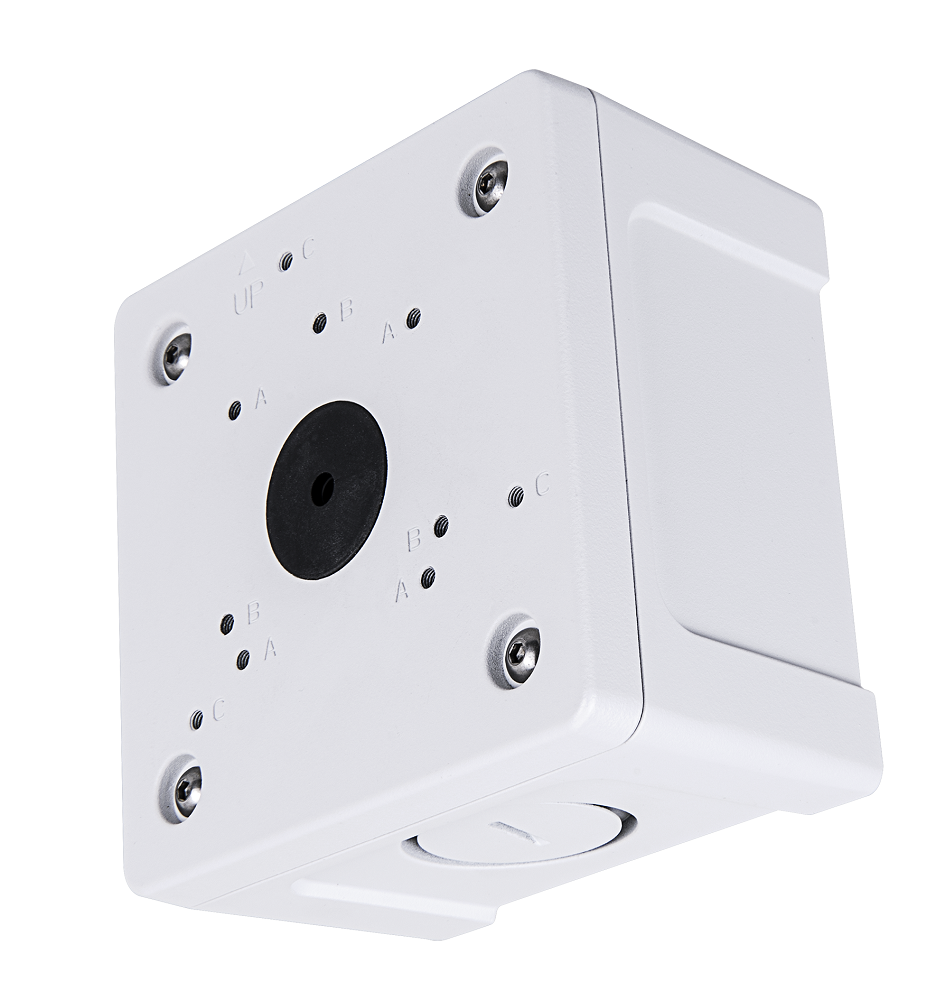

Vivotek AM-71C Waterproof Junction Box

The Vivotek AM-71C is an aluminum junction box designed to be used with select cameras, an AM-312 pole mount bracket, and an AM-412 corner mount bracket. This junction box is IP66 rated for safe outdoor use.

Key Features

Material: Aluminum Alloy
Color: White
Pipe Thread: PF 3/4”
Casing: IP66 (with supported cameras)
Dimensions: 122 (L) x 122 (W) x 76 (H) mm
Weight: 745 g

$91.00 inc GST +3 Year Warranty & Support

Description

Supported Models

FD9360-H, FD9380-H, IT9360-H, IT9380-H, IB9360-H, IB9368-HT, IB9380-H, IB9388-HT, IB9389-EH(T)-v2

Pole Mount Bracket: AM-312

Corner Mount Bracket: AM-412

Technical Specifications



Product Information
Model	AM-71C
P/N	100220500G
Material	Aluminum Alloy
Color	White
Pipe Thread	PF 3/4”
Casing	IP66 (with supported cameras)
Dimensions	122 (L) x 122 (W) x 76 (H) mm
Weight	745 g
Box Dimension	217 (L) x 174 (W) x 94 (H) mm (1pc)
Box Weight	948 g
Carton Dimension	490 (L) x 367 (W) x 252 (H) mm (10pcs)
Carton Weight	10,396 g
Note
This product is recommended for general outdoor environments, excluding coastal areas with high salinity.
