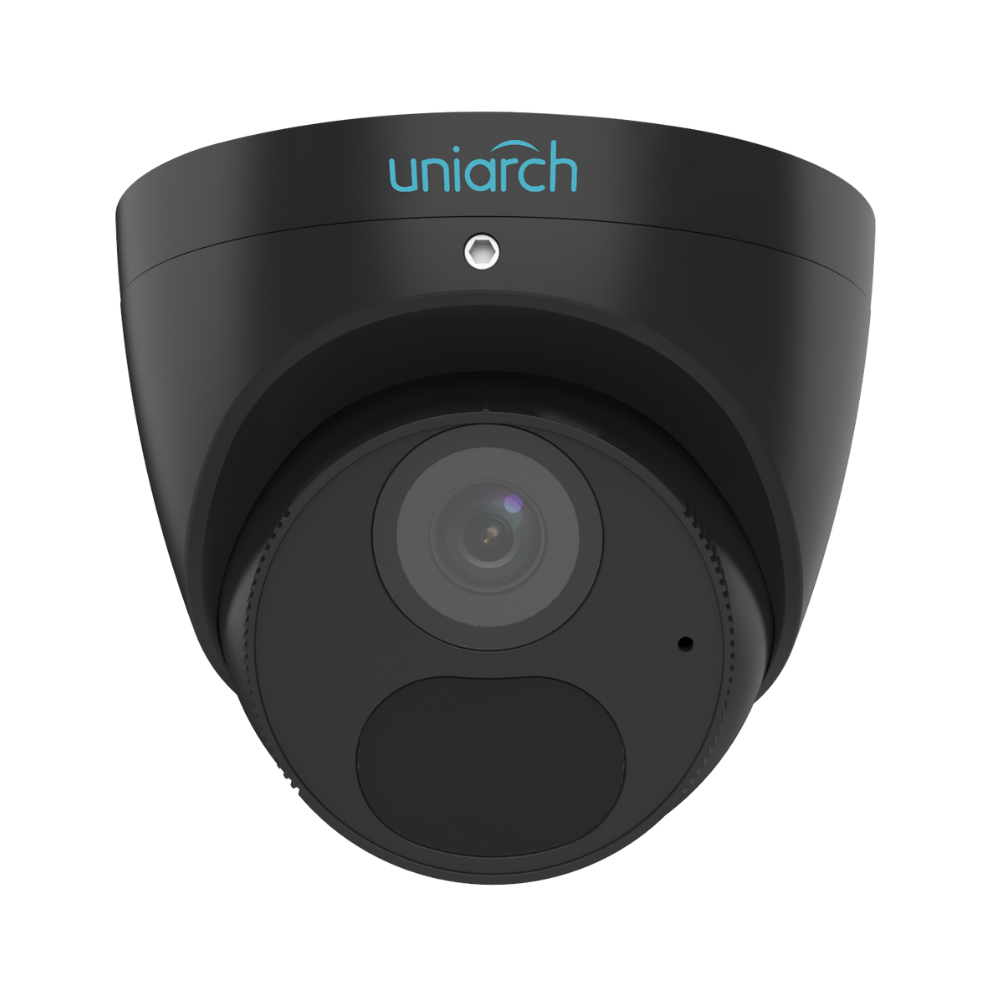

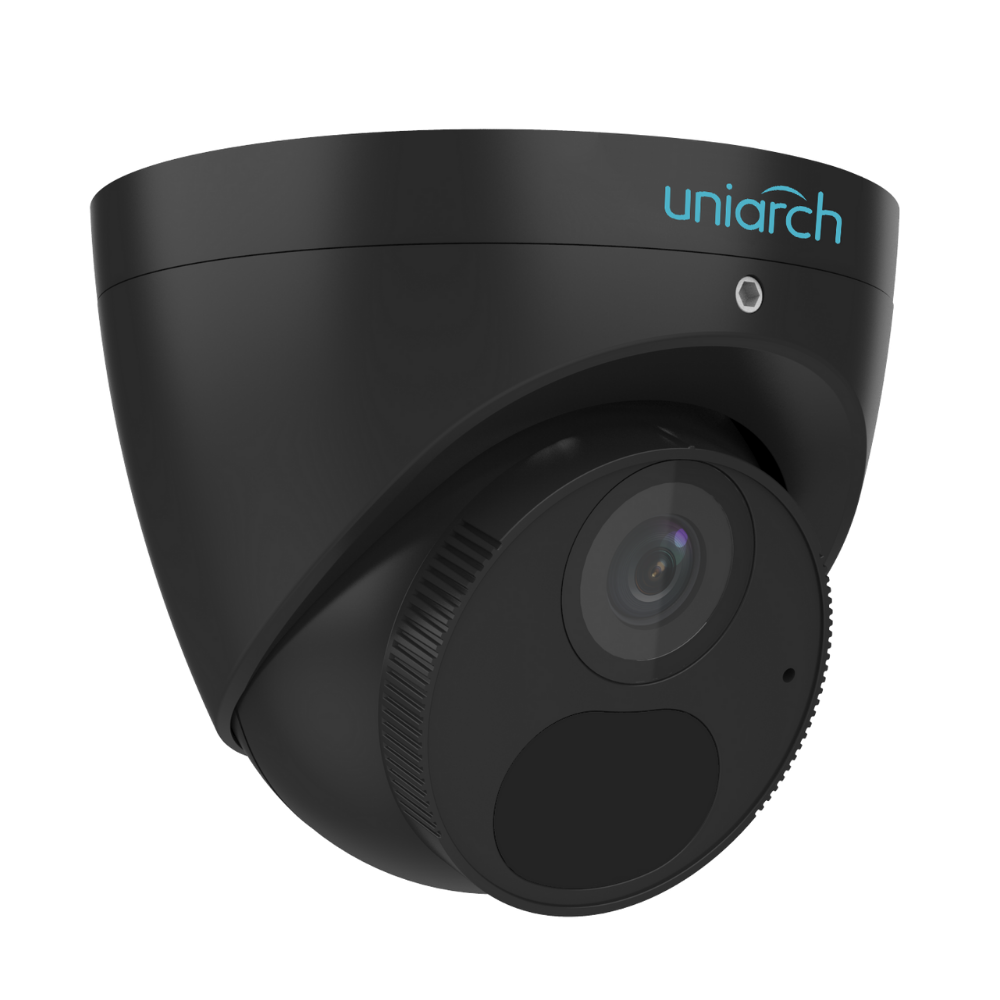

Uniarch powered by Uniview IPC-T1E4-AF28K-B 4MP Starlight Fixed Turret Network Camera w/ Human Detection [BLACK]


Uniarch 4MP Starlight Fixed Turret Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67







Uniarch_IPC-T1E4-AF28K_4MP_HD_Fixed_Turret_Network_Camera_Datasheet

Uniarch_Network_Camera_User_Manual-V1.00

$86.00 inc GST +3 Year Warranty & Support

High-quality image with 4MP, 1/2.7″CMOS sensor
4MP(2560*1440)@25/20fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in a low illumination environment
120dB true WDR technology enables clear image in the strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m IR distance
Supports 256G Micro SD card
IP67 protection
Support PoE power supply
3-Axis

Specifications
IPC-T1E4-AF28K-B
Camera
Sensor 1/2.7″, 4.0   megapixel, progressive scan, CMOS
Minimum   Illumination Colour: 0.003Lux   (F1.6, AGC ON)

0Lux with IR on

Day/Night IR-cut filter   with auto switch (ICR)
Shutter Auto/Manual, 1   ~ 1/100000s
Adjustment angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N >56dB
WDR 120dB
Lens
Lens Type 2.8mm @1.6, Fixed-focal
Lens Mount M12
Angle of View (H) 112.9°
Angle of View (V) 59.1°
Angle of View (O) 121.2°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
Illuminator
IR Range Up to 30m (98   ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video   Compression Ultra 265,   H.265, H.264, MJPEG
H.264 code   profile Baseline   profile, Main profile, High profile
Frame Rate Main Stream: 4MP   (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max   30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P   (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288),   Max 30fps; CIF (352*288), Max 30fps;

Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
9:16 Corridor   Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion   Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium   Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast,   sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Events
Basic Detection Intrusion(based on human   body detection)
motion detection,   tampering alarm, audio detection
General   Function Watermark, IP address   filtering, tampering alarm, access policy, ARP protection, RTSP authentication,   user authentication
Audio
Audio   Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP,   ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,   HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS,
Compatible   Integration ONVIF (Profile   S, Profile G, Profile T), API, SDK
User/Host Up to 32 users.   2 user levels: administrator and common user
Security Password   protection, Strong password, HTTPS encryption, Export operation logs, Basic   and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2,   WSSE and digest authentication for ONVIF
Client Uniarch Client

Uniarch APP

Web Browser Plug-in   required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free   live view: Chrome   57.0+, Firefox 58.0+, Edge 16+
Interface
Network 1 * RJ45   10M/100M Base-TX Ethernet
Built-in Mic Supported
General
Power DC 12V±25%, PoE   (IEEE 802.3af)
Power   consumption: Max 6.0W
Power Interface Ø 5.5mm coaxial   power plug
Dimensions (L ×   W × H) Φ111 x   95mm (Φ4.4” x 3.7”)
Weight 0.35kg (0.77lb)
Material Metal
Working   Environment -30°C ~ 60°C   (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F   ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
Ingress   Protection Ingression   protection: IP67
Whats in the box?
