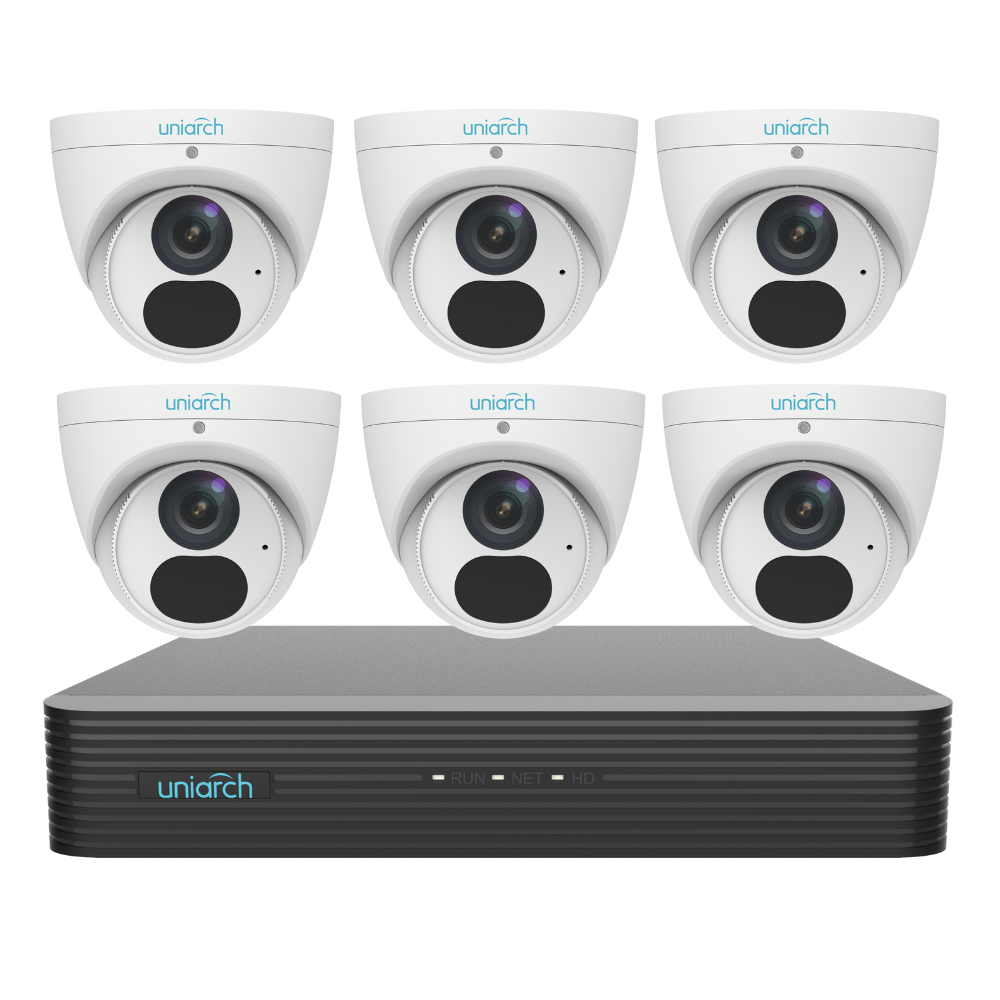

Uniarch by Uniview 8MP Starlight 6 x Fixed Turret Network Camera 8CH KIT


Uniarch 8MP Starlight 8ch Kit includes: 6 x IPC-T1E8-AF28K (8MP), 1 x PRO 8CH NVR NVR-108X-P8 No HDD












Uniarch_Network_Camera_User_Manual-V1.00

$1,164.00 inc GST +3 Year Warranty & Support

    • High quality image with 8MP, 1/2.7″CMOS sensor
    • 8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
    • Ultra 265, H.265, H.264, MJPEG
    • Easystar technology ensures high image quality in low illumination environment
    • 120dB true WDR technology enables clear image in strong light scene
    • Support 9:16 Corridor Mode
    • Built-in Mic
    • Smart IR, up to 30m (98ft) IR distance
    • Supports 256 G Micro SD card
    • IP67 protection
    • Support PoE power supply
ImageNamePriceBuy
UNIARCH TR-JB03-G-IN FIXED TURRET JUNCTION BOX$12.94 inc GST +3 Year Warranty & Support
UNIARCH TR-WM03-D-IN Fixed Dome Mount$24.00 inc GST +3 Year Warranty & Support




Specifications
IPC-T1E8-AF28K
Camera
Sensor 1/2.7″, 8.0   megapixel, progressive scan, CMOS
Minimum   Illumination Colour:   0.005Lux (F1.6, AGC ON)0Lux with IR on
Day/Night IR-cut filter   with auto switch (ICR)
Shutter Auto/Manual, 1   ~ 1/100000s
Adjustment angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N >56dB
WDR 120dB
Lens
Lens Type 2.8mm @1.6, Fixed-focal
Lens Mount M12
Angle of View (H) 112.9°
Angle of View (V) 59.1°
Angle of View (O) 121.2°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 84.0 33.6 16.8 8.4
Illuminator
IR Range Up to 30m (98   ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video   Compression Ultra 265,   H.265, H.264, MJPEG
H.264 code   profile Baseline   profile, Main profile, High profile
Frame Rate Main Stream: 8MP   (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps;   1080P (1920*1080), Max 30fps;Sub Stream:   1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max   30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max   30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
9:16 Corridor   Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion   Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium   Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast,   sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Events
Basic Detection Intrusion(based on human   body detection)
motion detection,   tampering alarm, audio detection
General   Function Watermark, IP address   filtering, tampering alarm, access policy, ARP protection, RTSP authentication,   user authentication
Audio
Audio   Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP,   ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,   HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS,
Compatible   Integration ONVIF (Profile   S, Profile G, Profile T), API, SDK
User/Host Up to 32 users.   2 user levels: administrator and common user
Security Password   protection, Strong password, HTTPS encryption, Export operation logs, Basic   and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2,   WSSE and digest authentication for ONVIF
Client Uniarch ClientUniarch APP
Web Browser Plug-in   required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free   live view: Chrome   57.0+, Firefox 58.0+, Edge 16+
Interface
Network 1 * RJ45   10M/100M Base-TX Ethernet
Built-in Mic Supported
General
Power DC 12V±25%, PoE   (IEEE 802.3af)
Power   consumption: Max 4.5W
Power Interface Ø 5.5mm coaxial   power plug
Dimensions (L ×   W × H) Φ111 x   95mm (Φ4.4” x 3.7”)
Weight 0.36kg (0.79lb)
Material Metal
Working   Environment -30°C ~ 60°C   (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F   ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
Ingress   Protection Ingression   protection: IP67
SKU: Kit-UNA-8MPT860W Categories: ,
