Product Overview

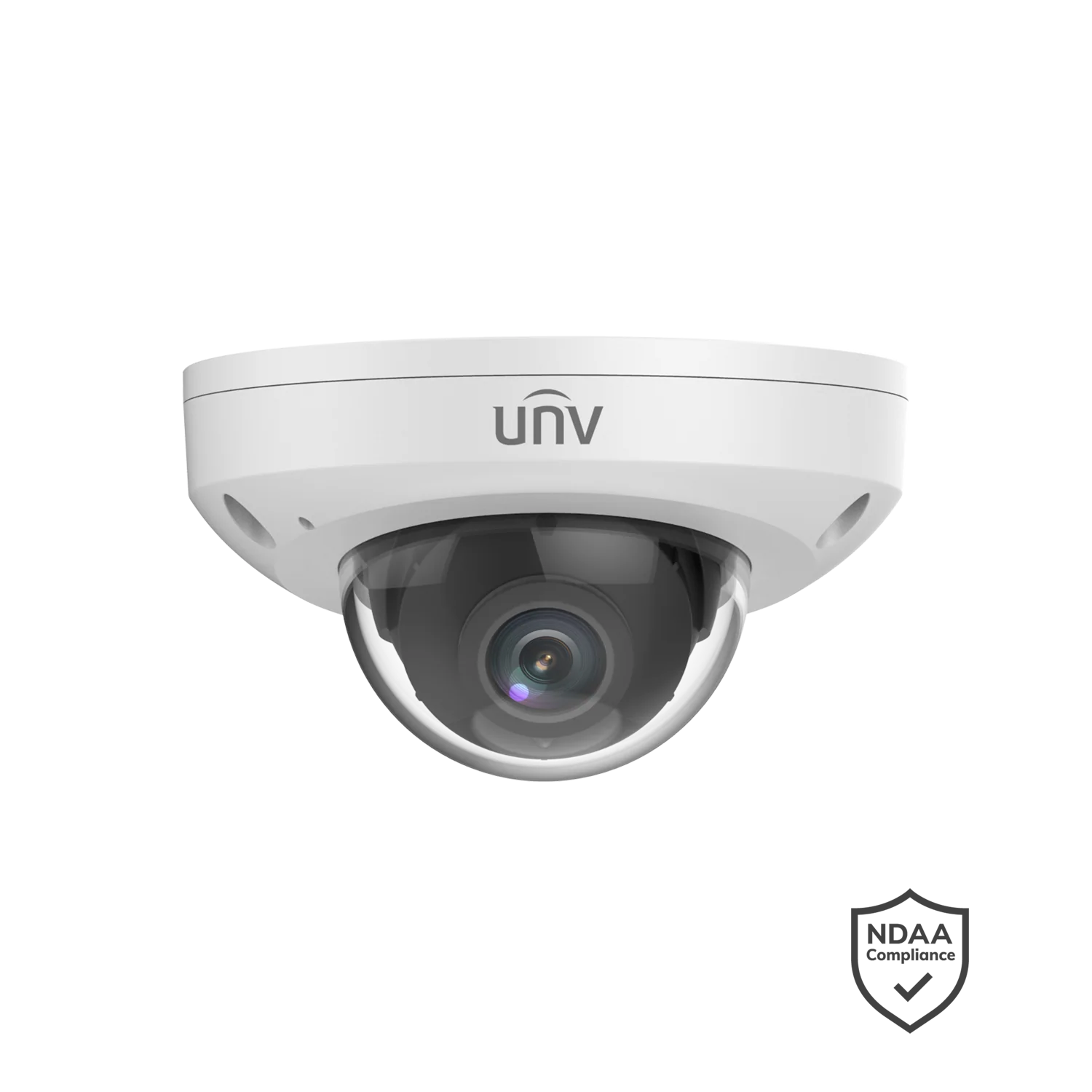

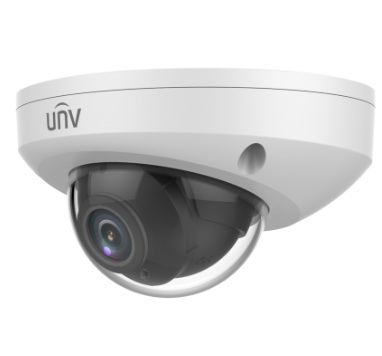

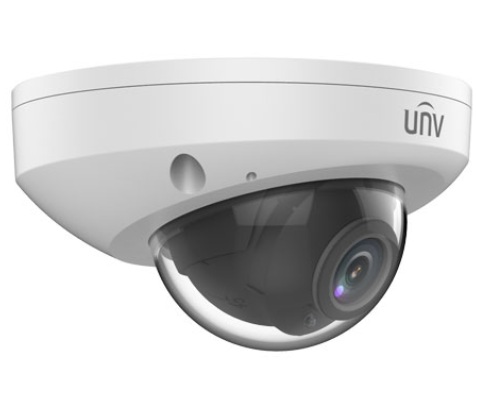

The UNV IPC314SB-ADF28K-I0 4MP Fixed IR Dome Network Camera is a compact Prime I Series fixed mini dome camera designed for professional indoor and outdoor surveillance. It captures up to 4MP resolution using a 1/3.0″ CMOS sensor, with Ultra 265, H.265, H.264 and MJPEG compression to help manage bandwidth and storage. LightHunter technology supports improved low-light image quality, while 120dB true WDR helps maintain clearer detail in strong backlight scenes. With a fixed 2.8mm lens, Smart IR up to 30m, built-in microphone, audio I/O, MicroSD support up to 512GB, smart intrusion prevention, human, vehicle and non-motor vehicle classification, people counting, IP67 weather protection, IK10 vandal resistance and PoE power, the IPC314SB-ADF28K-I0 is a strong choice for entrances, corridors, retail, offices, warehouses and general commercial CCTV applications.
Key Capabilities
4MP High-Resolution Video
Captures up to 2688 x 1520 resolution at up to 30fps for detailed everyday surveillance.
LightHunter Low-Light Imaging
LightHunter technology helps maintain useful image quality in low illumination environments.
Fixed 2.8mm Lens
The fixed 2.8mm lens provides wide-angle coverage for entrances, rooms, corridors and general monitoring areas.
Smart IR up to 30m
Smart IR supports night monitoring up to 30m with automatic or manual light control.
Smart Intrusion Prevention
Cross line, intrusion, enter area and leave area detection support smarter event-based monitoring.
Built-In Microphone
Integrated microphone and audio I/O support audio capture and compatible two-way audio applications.
Best For
- Commercial CCTV Installations: Suitable for shops, offices, reception areas and small business surveillance systems needing 4MP detail and smart detection.
- Indoor and Outdoor Entrances: IP67 protection, IK10 vandal resistance and compact dome design suit entryways, external doors and covered approaches.
- Retail and Office Monitoring: The 2.8mm fixed lens, built-in microphone and wide field of view suit counters, corridors, foyers and customer-facing spaces.
- Warehouse and Back-of-House Areas: Smart IR, WDR and smart intrusion prevention help monitor stockrooms, storage areas and internal access points.
- People Flow Monitoring: People counting and crowd density detection support sites requiring movement or occupancy insights.
Why Choose the IPC314SB-ADF28K-I0
Choose the UNV IPC314SB-ADF28K-I0 when the installation needs a compact 4MP fixed dome camera with LightHunter imaging, smart detection and vandal-resistant outdoor protection. Its 2.8mm fixed lens provides wide coverage, while 120dB true WDR, Smart IR up to 30m and 0.002 lux colour sensitivity help maintain useful footage across mixed lighting conditions. Smart intrusion prevention with target classification helps reduce nuisance alarms by focusing on humans, vehicles and non-motor vehicles, while the built-in microphone and audio I/O support audio-aware surveillance setups. This model, supplied by Security Wholesalers, is a practical Uniview option for commercial sites needing a compact dome camera with clear imaging, intelligent alerts and reliable PoE installation.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a compact 4MP fixed dome camera with 2.8mm wide-angle coverage, LightHunter, 30m Smart IR, built-in microphone, MicroSD support, IK10 and IP67 protection.
Buyer Tip: Confirm the viewing angle, mounting surface, PoE switch capacity, audio recording compliance, MicroSD recording needs, bracket compatibility and NVR support before installation.
Key Features & Technical Specifications
| Product Type |
4MP LightHunter fixed IR mini dome network camera. |
| Model |
IPC314SB-ADF28K-I0. |
| Brand |
Uniview / UNV. |
| Camera Series |
Prime I Series. |
| Image Sensor |
1/3.0″ CMOS sensor. |
| Maximum Resolution |
4MP, 2688 x 1520. |
| Frame Rate |
4MP 2688 x 1520, 4MP 2560 x 1440, 3MP 2304 x 1296 and 1080p up to 30/25fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Video Streams |
Triple streams. |
| Lens |
2.8mm fixed lens. |
| Iris |
Fixed iris, F1.6. |
| Horizontal Field of View |
101.1°. |
| Vertical Field of View |
55.3°. |
| Diagonal Field of View |
111.1°. |
| Minimum Illumination |
Colour: 0.002 lux at F1.6, AGC on; 0 lux with IR. |
| Day/Night |
IR-cut filter with auto switch. |
| LightHunter |
Supported for improved image quality in low illumination environments. |
| Wide Dynamic Range |
120dB true WDR. |
| IR Distance |
Smart IR up to 30m. |
| IR Wavelength |
850nm. |
| Light Control |
Auto or manual. |
| Adjustment Angle |
Pan 0° to 90°, tilt 0° to 68°, rotate 0° to 360°. |
| Corridor Mode |
Supports 9:16 corridor mode. |
| DORI Distance |
Detect 63.0m, observe 25.2m, recognise 12.6m, identify 6.3m. |
| Image Enhancement |
2D/3D DNR, BLC, digital defog, ROI, privacy mask and flip support. |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection and leave area detection. |
| Target Classification |
False alarm filtering and classification of human, vehicle and non-motor vehicle targets. |
| People Counting |
People flow counting and crowd density detection supported. |
| Basic Detection |
Motion detection, Ultra Motion Detection, tampering alarm and audio detection. |
| Built-In Microphone |
Supported. |
| Audio I/O |
1 input and 1 output. |
| Two-Way Audio |
Supported. |
| Built-In Speaker |
Not built in. |
| Audio Compression |
G.711U, G.711A and AAC-LC. |
| Alarm I/O |
Not supported. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Storage |
ANR and NAS support. |
| Network Interface |
1 x RJ45 10M/100M Base-TX Ethernet. |
| Integration |
ONVIF Profile S, G, T and M; API and SDK support. |
| Power |
12VDC ±25% or PoE IEEE 802.3af. |
| Power Consumption |
Maximum 6.0W. |
| Power Interface |
Ø5.5mm coaxial power plug. |
| IP Rating |
IP67. |
| Vandal Rating |
IK10. |
| Surge Protection |
4kV. |
| Operating Environment |
-30°C to 60°C, humidity up to 95% RH non-condensing. |
| Dimensions |
Ø110mm x 61mm. |
| Weight |
0.37kg. |
| Material |
Metal. |
| Reset Button |
Not supported. |
Ideal Use Cases
Retail Stores
Use for entrances, counters, aisles and stockrooms requiring 4MP video with built-in audio capture.
Office Buildings
Suitable for lobbies, corridors, reception areas and shared internal spaces needing compact dome coverage.
External Entrances
IP67 protection, IK10 vandal resistance and 30m IR suit doors, gates and covered exterior approaches.
Warehouse Areas
Use for back-of-house zones, stock areas, corridors and internal access points requiring smart monitoring.
Low-Light Sites
LightHunter, Smart IR and 120dB true WDR support clearer monitoring across mixed and low-light conditions.
People Counting Applications
People flow counting and crowd density detection support analytics-focused business and safety use cases.
Choosing the Right Model
- Choose this model if: You need a compact 4MP fixed mini dome camera with 2.8mm wide-angle coverage, LightHunter, 30m Smart IR, built-in microphone, two-way audio support, MicroSD storage, IK10 and IP67 protection.
- Choose a turret camera if: The site needs easier directional adjustment or a more common surface-mounted eyeball camera style.
- Choose a motorised varifocal model if: The installation needs remote zoom adjustment or a narrower field of view than the fixed 2.8mm lens provides.
- Check audio requirements: This model includes a built-in microphone and audio I/O, so confirm local audio recording requirements before enabling audio capture.
- Check mounting accessories: Confirm whether a junction box, wall mount, pendant mount, pole mount or corner mount is needed for the installation surface.
FAQs
- What is the UNV IPC314SB-ADF28K-I0 used for?
The UNV IPC314SB-ADF28K-I0 is used for professional CCTV monitoring where a compact fixed dome camera is preferred. It suits entrances, shops, offices, corridors, stockrooms, exterior doors and general commercial surveillance applications requiring 4MP video and smart detection.
- What resolution does this camera record?
The camera records up to 4MP resolution at 2688 x 1520 and supports up to 30/25fps. It can also stream 4MP at 2560 x 1440, 3MP, 1080p, 720p and lower resolutions depending on system settings.
- What lens does the IPC314SB-ADF28K-I0 use?
This model uses a fixed 2.8mm F1.6 lens with a 101.1° horizontal field of view. It is suitable for wide overview coverage at entrances, rooms, corridors and general monitoring locations.
- Does it work at night?
Yes. The camera supports Smart IR up to 30m and can capture images at 0 lux with IR on. LightHunter technology also helps improve image quality in low illumination environments.
- Does this model include a microphone?
Yes. The IPC314SB-ADF28K-I0 includes a built-in microphone and supports audio I/O. Before enabling audio recording or two-way audio, confirm local privacy, signage and workplace requirements.
- What smart detection features are included?
The camera supports cross line, intrusion, enter area and leave area detection with false alarm filtering and target classification for humans, vehicles and non-motor vehicles. It also supports people flow counting and crowd density detection.
- Is the camera suitable for outdoor installation?
Yes. The camera has IP67 weather protection and IK10 vandal resistance, making it suitable for outdoor installation when correctly mounted, sealed and connected with appropriate cable protection.
- What should I check before buying the IPC314SB-ADF28K-I0?
Before buying, confirm the required viewing angle, mounting location, PoE or 12VDC power, audio recording requirements, MicroSD or NVR storage needs, bracket compatibility and whether a fixed 2.8mm lens suits the site. Security Wholesalers can supply this Uniview camera for compatible CCTV systems.
Additional Information
Uniview IPC314SB-ADF28K-I0 4MP Fixed Mini Dome Camera
