Product Overview

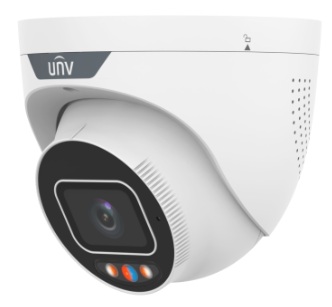

The Uniview UNV IPC3636SS-ADF28KMC-I1 6MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera is a Tri-Guard dual-light turret camera designed for high-quality surveillance with active deterrence. It captures up to 6MP resolution using a 1/2.7″ CMOS sensor, with Ultra 265, H.265, H.264 and MJPEG compression to help manage bandwidth and storage. The fixed 2.8mm F1.0 lens provides wide-angle coverage, while 130dB true WDR, Smart IR, warm light support and very low-light colour performance help deliver clearer images across day, night and difficult lighting conditions. With red and blue warning light, built-in microphone and speaker, two-way audio, alarm I/O, audio I/O, intelligent perimeter protection, target classification, people counting, crowd density monitoring, MicroSD support, IP67 protection and IK10 vandal resistance, the IPC3636SS-ADF28KMC-I1 is a strong choice for commercial entrances, retail sites, warehouses, perimeters and deterrence-focused CCTV applications.
Key Capabilities
6MP High-Resolution Video
Captures up to 2880 x 1620 resolution at up to 30fps for detailed security footage.
F1.0 Low-Light Lens
The fixed 2.8mm F1.0 lens supports wide scene coverage and improved low-light image performance.
Dual-Light Night Coverage
Smart IR and warm light support night monitoring up to 30m in suitable installation conditions.
Light and Audible Warning
Red and blue warning light plus built-in speaker support active deterrence at the camera point.
Smart Intrusion Prevention
Cross line, intrusion, enter area and leave area detection support smarter event-based monitoring.
Built-In Mic and Speaker
Built-in microphone, built-in speaker and two-way audio support audio-aware surveillance applications.
Best For
- Commercial CCTV Installations: Suitable for businesses needing 6MP video, active deterrence, audio capture and intelligent analytics.
- Entrances and Perimeters: Red and blue warning light, speaker support and smart intrusion prevention suit areas requiring visual and audible alerts.
- Retail and Shopfront Monitoring: Wide 2.8mm coverage, built-in microphone and people counting support entry, aisle and customer-facing monitoring.
- Warehouse and Yard Surveillance: Dual-light night coverage and target classification help monitor operational areas, loading zones and external approaches.
- Low-Light and Backlit Scenes: F1.0 aperture, 130dB true WDR, Smart IR and warm light support clearer footage across difficult lighting conditions.
Why Choose the IPC3636SS-ADF28KMC-I1
Choose the Uniview IPC3636SS-ADF28KMC-I1 when the installation needs a 6MP fixed turret camera with smart analytics, active deterrence and dual-light night performance in one compact unit. Its 2.8mm F1.0 lens, 130dB true WDR, Smart IR, warm light, built-in microphone and speaker help capture useful evidence while supporting on-site warning functions. Smart intrusion prevention with target classification, people flow counting, crowd density monitoring, alarm I/O, audio I/O and MicroSD support make it a capable choice for professional CCTV systems. This model, supplied by Security Wholesalers, is a strong Uniview option for commercial sites needing intelligent detection, audio capability and deterrence-focused monitoring.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a 6MP fixed turret camera with 2.8mm wide-angle coverage, dual-light night viewing, warning light, built-in speaker, built-in microphone, alarm I/O and smart intrusion prevention.
Buyer Tip: Confirm the viewing angle, deterrence requirements, alarm integration, audio recording compliance, PoE power capacity, MicroSD storage needs and mounting accessories before installation.
Key Features & Technical Specifications
| Product Type |
6MP intelligent light and audible warning fixed eyeball / turret network camera. |
| Model |
IPC3636SS-ADF28KMC-I1. |
| Brand |
Uniview / UNV. |
| Camera Type |
Tri-Guard fixed dual-light eyeball / turret network camera. |
| Image Sensor |
1/2.7″ 6MP progressive scan CMOS. |
| Maximum Resolution |
6MP, 2880 x 1620. |
| Frame Rate |
6MP at up to 30/25fps; 4MP, 3MP and 2MP at up to 30/25fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Lens |
2.8mm fixed lens. |
| Iris |
Fixed iris, F1.0. |
| Horizontal Field of View |
95.8°. |
| Vertical Field of View |
65.7°. |
| Diagonal Field of View |
118°. |
| Minimum Illumination |
Colour: 0.001 lux; 0 lux with IR or warm light. |
| Day/Night |
IR-cut filter with auto switch. |
| Wide Dynamic Range |
130dB true WDR. |
| Supplemental Light |
Dual light with Smart IR and warm light. |
| IR Distance |
Smart IR up to 30m. |
| Warm Light Distance |
Warm light up to 30m. |
| Warning Light |
Red and blue warning light supported. |
| Corridor Mode |
Supports 9:16 corridor mode. |
| Adjustment |
3-axis adjustment. |
| Auto Scene Match |
Supported with WDR. |
| DORI Distance |
Detect 63.0m, observe 25.2m, recognise 12.6m, identify 6.3m. |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection and leave area detection. |
| Target Classification |
False alarm filtering and classification of human, motor vehicle and non-motor vehicle targets. |
| People Counting |
Intelligent people flow counting and crowd density monitoring supported. |
| Built-In Microphone |
Supported. |
| Built-In Speaker |
Supported. |
| Audio I/O |
1 input and 1 output. |
| Alarm I/O |
1 input and 1 output. |
| Two-Way Audio |
Supported. |
| Audio Compression |
G.711U and G.711A. |
| Edge Storage |
MicroSD card support up to 256GB. |
| Power |
12VDC ±25% or PoE IEEE 802.3af. |
| Power Consumption |
Maximum 10W. |
| IP Rating |
IP67. |
| Vandal Rating |
IK10. |
| Operating Environment |
-30°C to 60°C, humidity up to 95% RH non-condensing. |
| Dimensions |
Ø129mm x 118mm. |
| Weight |
Approximately 690g. |
| Typical Use |
Indoor and outdoor surveillance requiring 6MP video, active deterrence, audio capture, smart analytics and dual-light night viewing. |
Ideal Use Cases
Retail Stores
Use for entrances, aisles, stockrooms and customer-facing areas needing 6MP video, audio and deterrent alerts.
Commercial Entrances
Suitable for doors, lobbies and access points where light and audible warning can support incident prevention.
Warehouses and Logistics
Smart intrusion prevention and dual-light viewing support loading bays, storage zones and restricted areas.
Outdoor Perimeters
IP67 protection, IK10 impact resistance, target classification and warning lights suit gates, walkways and external approaches.
Low-Light Sites
F1.0 aperture, Smart IR and warm light help improve monitoring in darker areas and after-hours conditions.
People Flow Applications
People counting and crowd density monitoring support analytics-focused business and safety use cases.
Choosing the Right Model
- Choose this model if: You need a 6MP fixed turret camera with 2.8mm wide-angle coverage, dual-light night viewing, warning light, built-in speaker, built-in microphone, alarm I/O and smart intrusion prevention.
- Choose a non-deterrent turret if: The site only needs discreet monitoring and does not require warning lights or audible alerts.
- Choose a motorised varifocal model if: The installation needs remote zoom adjustment or a narrower field of view than the fixed 2.8mm lens provides.
- Check audio and deterrence requirements: This model includes a built-in mic, speaker and warning light, so confirm site policy, signage and recording requirements before enabling audio or warning functions.
- Check storage and bandwidth: Confirm NVR, MicroSD, PoE and network capacity for 6MP recording, especially across multiple cameras.
FAQs
- What is the Uniview IPC3636SS-ADF28KMC-I1 used for?
The Uniview IPC3636SS-ADF28KMC-I1 is used for indoor and outdoor CCTV monitoring where 6MP video, intelligent analytics, dual-light night viewing and active deterrence are required. It suits entrances, shopfronts, warehouses, gates, external approaches and restricted areas.
- What resolution does this camera record?
The camera records up to 6MP resolution at 2880 x 1620 and supports up to 30/25fps. It can also stream lower resolutions such as 4MP, 3MP and 2MP depending on storage, bandwidth and recording requirements.
- What lens does the IPC3636SS-ADF28KMC-I1 use?
This model uses a fixed 2.8mm F1.0 lens with a wide field of view. It is suitable for entrances, rooms, external approaches and general monitoring points where broad coverage is preferred.
- Does this camera support active deterrence?
Yes. The camera supports red and blue warning light, built-in speaker output and two-way audio. These features can help provide visual and audible warnings when used with suitable event rules and system configuration.
- Does it work at night?
Yes. The camera supports Smart IR up to 30m and warm light up to 30m. The F1.0 lens and low-light colour sensitivity also help maintain useful image quality in low-light environments.
- What smart detection features are included?
The camera supports cross line, intrusion, enter area and leave area detection with false alarm filtering and target classification for humans, motor vehicles and non-motor vehicles. It also supports people flow counting and crowd density monitoring.
- Is the camera suitable for outdoor installation?
Yes. The IPC3636SS-ADF28KMC-I1 has IP67 weather protection and IK10 impact resistance, making it suitable for outdoor installation when correctly mounted, sealed and connected with appropriate cable protection.
- What should I check before buying the IPC3636SS-ADF28KMC-I1?
Before buying, confirm the required viewing angle, active deterrence requirements, PoE power, alarm integration, audio recording policy, MicroSD or NVR storage needs and whether 6MP resolution suits the site’s bandwidth and storage capacity. Security Wholesalers can supply this Uniview camera for compatible commercial CCTV systems.
Additional Information
Uniview_IPC3636SS-ADF28_40_KMC-I1_6MP_Fixed_Eyeball_Network_Camera Datasheet
