Product Overview

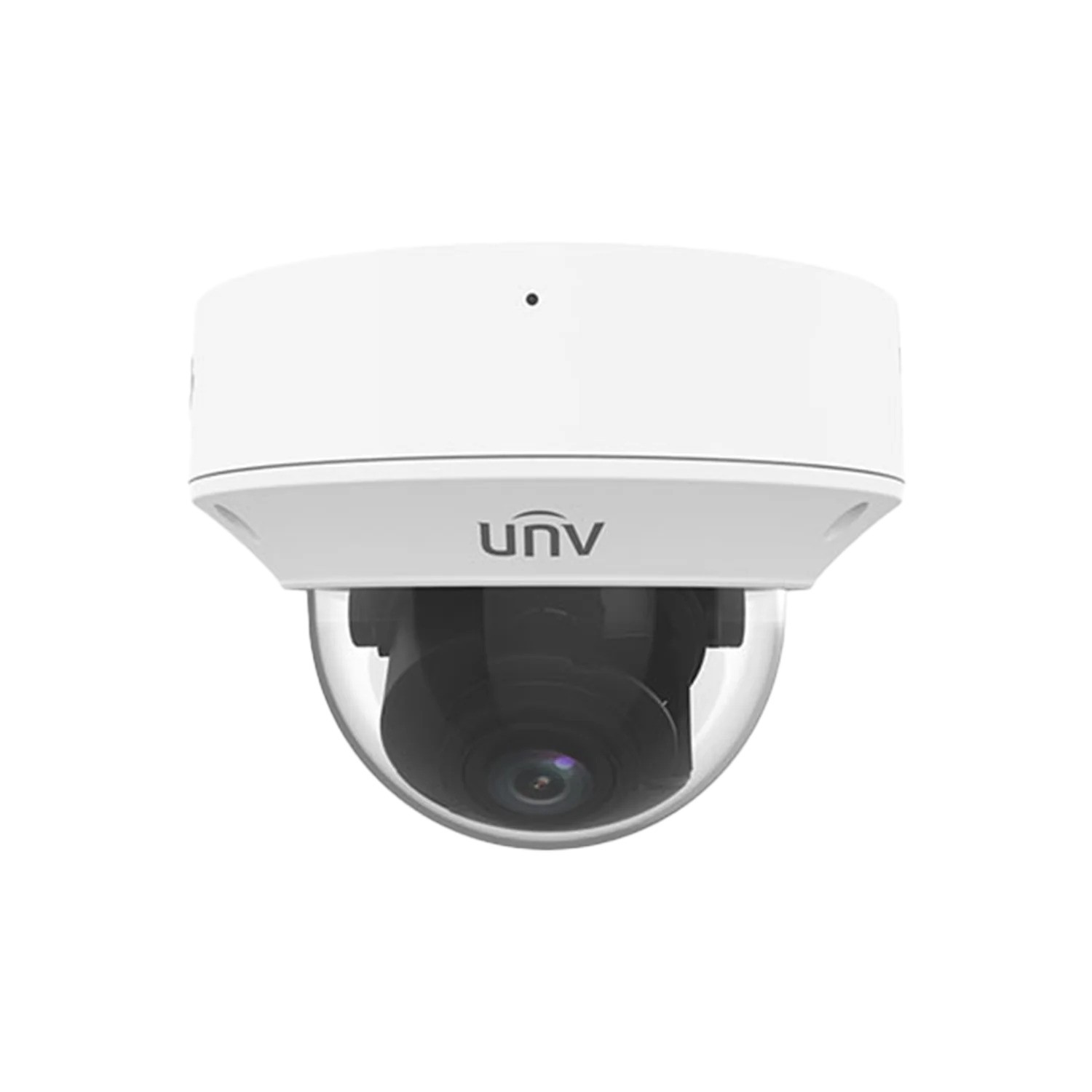

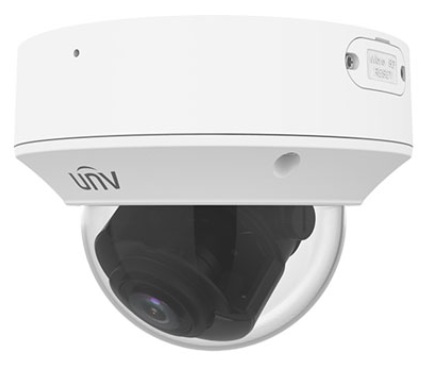

The Uniview UNV IPC3235SB-ADZK-I0 5MP HD Intelligent LightHunter IR VF Dome Network Camera is a professional Prime I Series dome camera designed for high-quality indoor and outdoor CCTV surveillance. It captures up to 5MP resolution at 30fps using a 1/2.7″ CMOS sensor, with LightHunter technology for improved image quality in low illumination and 120dB true WDR for clearer images in strong backlight. The 2.7–13.5mm motorised varifocal lens provides flexible scene adjustment, while Smart IR delivers up to 40m night visibility. With intelligent perimeter protection, human, vehicle and non-motor vehicle classification, people counting, crowd density monitoring, built-in microphone, audio I/O, alarm I/O, MicroSD support up to 512GB, IK10 vandal resistance and IP67 weather protection, the IPC3235SB-ADZK-I0 is a strong choice for commercial, retail, warehouse, entrance and outdoor security applications.
Key Capabilities
5MP High-Resolution Video
Captures up to 2880 x 1620 resolution at 30fps for detailed surveillance footage.
LightHunter Low-Light Imaging
LightHunter technology helps maintain high image quality in low illumination environments.
Motorised Varifocal Lens
The 2.7–13.5mm motorised lens allows flexible adjustment from wide overview to narrower detail views.
Smart IR up to 40m
Smart IR provides up to 40m night illumination with automatic or manual light control.
Intelligent Perimeter Protection
Cross line, intrusion, enter area and leave area detection support smarter event-based monitoring.
Built-In Mic, Audio and Alarm I/O
Built-in microphone, two-way audio support, 1/1 audio I/O and 1/1 alarm I/O support wider integration options.
Best For
- Commercial CCTV Installations: Suitable for businesses needing 5MP video, intelligent event detection, built-in audio and vandal-resistant dome protection.
- Outdoor Security: IP67 weather protection, IK10 vandal resistance and Smart IR up to 40m suit exposed camera positions.
- Retail and Shopfront Monitoring: Motorised varifocal adjustment, built-in mic and people counting support make it practical for entrances, counters and aisles.
- Warehouse and Yard Surveillance: Smart IR, perimeter protection and flexible lens adjustment help monitor larger operational areas.
- People Flow Monitoring: People flow counting and crowd density detection support sites that need occupancy or movement insights.
Why Choose the IPC3235SB-ADZK-I0
Choose the Uniview IPC3235SB-ADZK-I0 when the installation needs a durable 5MP dome camera with flexible lens adjustment, low-light image enhancement, vandal resistance and integrated audio capability. Its LightHunter technology, 120dB true WDR, Smart IR, 2.7–13.5mm motorised varifocal lens and target classification help deliver more useful footage across mixed lighting and outdoor environments. Built-in microphone support, two-way audio via audio I/O, alarm I/O, MicroSD storage up to 512GB, Ultra 265 compression, IP67 protection and IK10 vandal resistance make it suitable for professional CCTV systems. This model, supplied by Security Wholesalers, is a strong Uniview option for commercial sites needing reliable video, audio capture and smarter detection in a vandal-resistant dome camera.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a 5MP LightHunter dome camera with motorised varifocal lens, 40m IR, built-in mic, audio I/O, alarm I/O and intelligent perimeter protection.
Buyer Tip: Confirm the required field of view, PoE switch capacity, MicroSD recording needs, audio recording compliance, alarm integration and mounting accessories before installation.
Key Features & Technical Specifications
| Product Type |
LightHunter IR motorised varifocal dome network camera. |
| Model |
IPC3235SB-ADZK-I0. |
| Brand |
Uniview / UNV. |
| Camera Series |
Prime I Series. |
| Image Sensor |
1/2.7″ CMOS. |
| Maximum Resolution |
5MP, 2880 x 1620. |
| Frame Rate |
5MP, 4MP, 3MP and 1080p up to 30fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Lens |
2.7–13.5mm motorised varifocal lens. |
| Iris |
Fixed iris, F1.2. |
| Horizontal Field of View |
106.3° to 32.5°. |
| Vertical Field of View |
53.5° to 18.0°. |
| Diagonal Field of View |
126.0° to 38.5°. |
| Minimum Illumination |
Colour: 0.002 lux; 0 lux with IR. |
| Day/Night |
IR-cut filter with auto switch. |
| LightHunter |
Supported for ultra-high image quality in low illumination environments. |
| Wide Dynamic Range |
120dB true WDR. |
| IR Distance |
Smart IR up to 40m. |
| IR Wavelength |
850nm. |
| Adjustment Angle |
Pan 0° to 355°, tilt 0° to 80°, rotate 0° to 355°. |
| Corridor Mode |
Supports 9:16 corridor mode. |
| Image Enhancement |
2D/3D DNR, HLC, BLC, digital defog, ROI and privacy mask support. |
| DORI Distance |
Detect 60.8m to 303.8m, observe 24.3m to 121.5m, recognise 12.2m to 60.8m, identify 6.1m to 30.4m. |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection and leave area detection. |
| Target Classification |
Supports false alarm filtering and classification of human, vehicle and non-motor vehicle targets. |
| People Counting |
Supports people flow counting and crowd density detection. |
| Basic Detection |
Motion detection, Ultra Motion Detection, tampering alarm and audio detection. |
| Built-In Microphone |
Supported. |
| Audio I/O |
1 input and 1 output. |
| Alarm I/O |
1 input and 1 output. |
| Two-Way Audio |
Supported through compatible audio I/O devices. |
| Audio Compression |
G.711U, G.711A and AAC-LC. |
| Built-In Speaker |
Not built in. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Storage |
ANR and NAS support. |
| Network Interface |
1 x RJ45 10M/100M Base-TX Ethernet. |
| Integration |
ONVIF Profile S, G, T and M; API and SDK support. |
| Power |
12VDC ±25% or PoE IEEE 802.3af. |
| Power Consumption |
Maximum 7.0W. |
| Power Interface |
Ø5.5mm coaxial power plug. |
| IP Rating |
IP67. |
| Vandal Rating |
IK10. |
| Surge Protection |
6kV. |
| Operating Environment |
-30°C to 60°C, humidity up to 95% RH non-condensing. |
| Dimensions |
Ø148.0mm x 111.4mm. |
| Weight |
0.97kg. |
| Material |
Metal. |
| Reset Button |
Supported. |
Ideal Use Cases
Retail Stores
Use for entrances, checkout areas, stockrooms and aisles needing 5MP detail and built-in audio capture.
Commercial Buildings
Suitable for offices, lobbies, corridors and reception areas requiring reliable daytime and night surveillance.
Warehouses and Logistics
Motorised varifocal adjustment and 40m IR make it useful for larger indoor spaces and loading areas.
Outdoor Perimeters
IP67, IK10 and smart intrusion prevention suit building edges, yards, gates and external pathways.
Low-Light Sites
LightHunter, F1.2 aperture and Smart IR support clearer monitoring in low illumination environments.
People Counting Applications
People flow counting and crowd density detection support analytics-focused business and security use cases.
Choosing the Right Model
- Choose this model if: You need a 5MP LightHunter dome camera with motorised 2.7–13.5mm lens, 40m IR, built-in mic, audio I/O, alarm I/O and intelligent perimeter protection.
- Choose a turret camera if: The site needs a lower-profile, easier-to-adjust camera style for general entrances, corridors or commercial areas.
- Choose a bullet camera if: The site needs a more visible deterrent appearance or longer external mounting reach.
- Check audio requirements: This model includes a built-in microphone and audio I/O, so confirm local audio recording and signage requirements before enabling audio capture.
- Check storage and bandwidth: Confirm MicroSD, NVR, PoE and network capacity for 5MP recording, especially when using multiple streams or analytics.
FAQs
- What is the Uniview IPC3235SB-ADZK-I0 used for?
The Uniview IPC3235SB-ADZK-I0 is used for professional indoor and outdoor CCTV monitoring where 5MP resolution, motorised lens adjustment, vandal resistance, built-in audio and intelligent detection are required. It suits entrances, warehouses, retail stores, commercial sites, car parks and perimeter monitoring.
- What resolution does this camera record?
The camera records up to 5MP resolution at 2880 x 1620 and supports up to 30fps. It can also stream lower resolutions such as 4MP, 3MP, 1080p and 720p depending on recording and bandwidth requirements.
- What lens does the IPC3235SB-ADZK-I0 use?
The camera uses a 2.7–13.5mm motorised varifocal lens with F1.2 aperture. This gives installers flexible adjustment from a wide overview to a narrower zoomed view without replacing the camera.
- Does it work at night?
Yes. The camera includes Smart IR with up to 40m illumination distance and can capture images at 0 lux with IR. LightHunter technology also helps improve image quality in low illumination environments.
- Does this model include a microphone?
Yes. The IPC3235SB-ADZK-I0 includes a built-in microphone. It also provides audio I/O and supports two-way audio with compatible external audio devices.
- What smart detection features are included?
The camera supports cross line, intrusion, enter area and leave area detection with false alarm filtering and target classification for humans, vehicles and non-motor vehicles. It also supports people flow counting and crowd density detection.
- Is the camera suitable for outdoor installation?
Yes. The camera has IP67 weather protection and IK10 vandal resistance, making it suitable for outdoor surveillance when installed correctly with appropriate mounting, cable sealing and power/network protection.
- What should I check before buying the IPC3235SB-ADZK-I0?
Before buying, confirm the required field of view, mounting position, PoE or 12VDC power, audio recording requirements, alarm integration needs, MicroSD recording, NVR compatibility and analytics requirements. Security Wholesalers can supply this Uniview camera for compatible commercial CCTV systems.
Additional Information
Uniview IPC3235SB-ADZK-I0 5MP Dome Network Camera Datasheet
