Product Overview

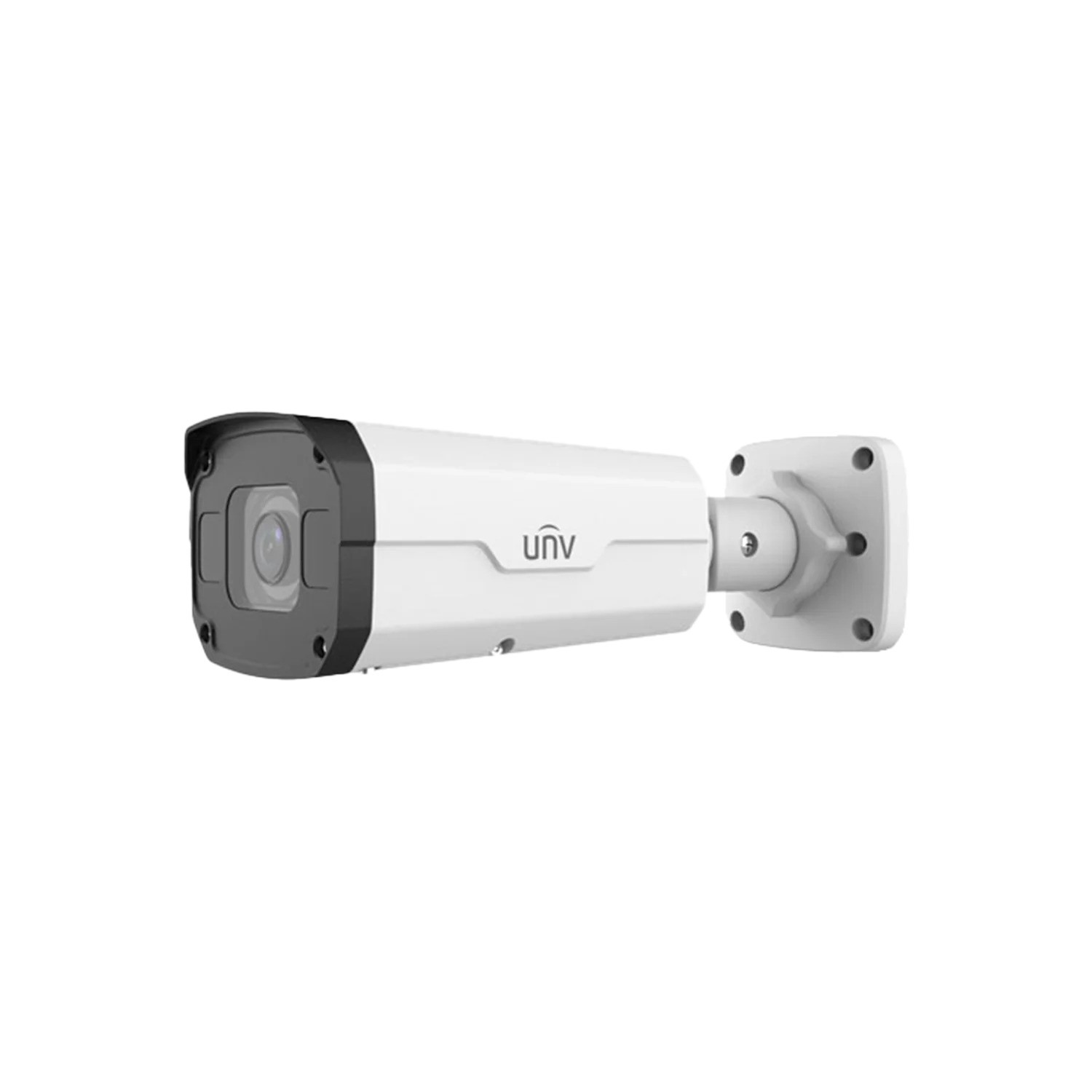

The Uniview IPC2325SB-DZK-I0 5MP LightHunter IR Motorised Varifocal Bullet Camera is a professional Prime I Series bullet network camera designed for high-quality indoor and outdoor surveillance. It captures up to 5MP resolution at 30fps using a 1/2.7″ CMOS sensor, with LightHunter technology for improved image quality in low illumination and 120dB true WDR for clearer images in strong backlight. The motorised 2.7–13.5mm varifocal lens allows flexible scene adjustment, while Smart IR provides up to 50m night visibility. With intelligent perimeter protection, human, vehicle and non-motor vehicle classification, people counting, crowd density monitoring, alarm I/O, audio I/O, MicroSD support up to 512GB, IK10 vandal resistance and IP67 weather protection, the IPC2325SB-DZK-I0 is a strong choice for commercial perimeters, warehouses, entrances, yards and professional CCTV installations.
Key Capabilities
5MP High-Resolution Video
Captures up to 2880 x 1620 resolution at 30fps for detailed surveillance footage.
LightHunter Low-Light Imaging
LightHunter technology helps maintain high image quality in low illumination environments.
Motorised Varifocal Lens
The 2.7–13.5mm motorised lens allows flexible adjustment from wide overview to narrower detail views.
Smart IR up to 50m
Smart IR provides up to 50m night illumination with automatic or manual light control.
Intelligent Perimeter Protection
Cross line, intrusion, enter area and leave area detection support smarter event-based monitoring.
Audio and Alarm I/O
1/1 audio I/O and 1/1 alarm I/O support integration with compatible audio and alarm devices.
Best For
- Commercial CCTV Installations: Suitable for businesses needing 5MP video, long-range IR and intelligent event detection.
- Outdoor Perimeter Security: IP67 weather protection, IK10 vandal resistance and 50m IR support exposed external camera positions.
- Warehouse and Yard Monitoring: Motorised varifocal adjustment and Smart IR help cover loading areas, driveways, fences and operational spaces.
- Entry and Gate Surveillance: The bullet design and adjustable lens suit entrances, gateways, roller doors and vehicle access points.
- People Flow Monitoring: People counting and crowd density detection support sites requiring movement or occupancy insights.
Why Choose the IPC2325SB-DZK-I0
Choose the Uniview IPC2325SB-DZK-I0 when the installation needs a durable 5MP bullet camera with flexible lens adjustment, advanced low-light imaging and strong night performance. Its LightHunter technology, 120dB true WDR, Smart IR up to 50m, 2.7–13.5mm motorised varifocal lens and target classification help produce more useful footage across outdoor and mixed-light environments. Alarm I/O, audio I/O, MicroSD storage up to 512GB, Ultra 265 compression, IP67 protection and IK10 vandal resistance make it suitable for professional CCTV systems. This model, supplied by Security Wholesalers, is a strong Uniview option for commercial sites needing reliable bullet camera coverage with intelligent detection and flexible installation control.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a 5MP LightHunter bullet camera with a motorised varifocal lens, Smart IR up to 50m, alarm I/O and intelligent perimeter protection.
Buyer Tip: Confirm the required field of view, PoE switch capacity, MicroSD recording needs, audio or alarm integration requirements and mounting accessories before installation.
Key Features & Technical Specifications
| Product Type |
LightHunter IR motorised varifocal bullet network camera. |
| Model |
IPC2325SB-DZK-I0. |
| Brand |
Uniview. |
| Camera Series |
Prime I Series. |
| Image Sensor |
1/2.7″ CMOS. |
| Maximum Resolution |
5MP, 2880 x 1620. |
| Frame Rate |
5MP, 4MP, 3MP and 1080p up to 30fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Lens |
2.7–13.5mm motorised varifocal lens. |
| Iris |
Fixed iris, F1.2. |
| Horizontal Field of View |
106.3° to 32.5°. |
| Vertical Field of View |
53.5° to 18.0°. |
| Diagonal Field of View |
126.0° to 38.5°. |
| Minimum Illumination |
Colour: 0.002 lux; 0 lux with light. |
| Day/Night |
IR-cut filter with auto switch. |
| LightHunter |
Supported for ultra-high image quality in low illumination environments. |
| Wide Dynamic Range |
120dB true WDR. |
| IR Distance |
Smart IR up to 50m. |
| IR Wavelength |
850nm. |
| Adjustment Angle |
Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360°. |
| Corridor Mode |
Supports 9:16 corridor mode. |
| Image Enhancement |
2D/3D DNR, HLC, BLC, digital defog, ROI and privacy mask support. |
| DORI Distance |
Detect 60.8m to 303.8m, observe 24.3m to 121.5m, recognise 12.2m to 60.8m, identify 6.1m to 30.4m. |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection and leave area detection. |
| Target Classification |
Supports false alarm filtering and classification of human, vehicle and non-motor vehicle targets. |
| People Counting |
Supports people flow counting and crowd density detection. |
| Basic Detection |
Motion detection, Ultra Motion Detection, tampering alarm and audio detection. |
| Audio I/O |
1 input and 1 output. |
| Alarm I/O |
1 input and 1 output. |
| Built-In Microphone |
Not built in. |
| Built-In Speaker |
Not built in. |
| Two-Way Audio |
Supported via audio I/O. |
| Audio Compression |
G.711U, G.711A and AAC-LC. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Storage |
ANR and NAS support. |
| Network Interface |
1 x RJ45 10M/100M Base-TX Ethernet. |
| Integration |
ONVIF Profile S, G, T and M; API and SDK support. |
| Power |
12VDC ±25% or PoE IEEE 802.3af. |
| Power Consumption |
Maximum 8.0W. |
| Power Interface |
Ø5.5mm coaxial power plug. |
| IP Rating |
IP67. |
| Vandal Rating |
IK10. |
| Surge Protection |
6kV. |
| Operating Environment |
-30°C to 60°C, humidity up to 95% RH non-condensing. |
| Dimensions |
245mm x 86mm x 72mm. |
| Weight |
0.92kg. |
| Material |
Metal. |
| Reset Button |
Not supported. |
Ideal Use Cases
Building Perimeters
Use for external walls, boundaries and building approaches requiring 5MP detail and long-range IR.
Warehouses and Logistics
Suitable for loading docks, roller doors, storage yards, driveways and operational zones.
Retail and Commercial Sites
Practical for shopfronts, car parks, entries, service lanes and after-hours security monitoring.
Gate and Driveway Monitoring
Motorised zoom adjustment helps tune coverage for vehicle lanes, entrances and access points.
Low-Light Sites
LightHunter, F1.2 aperture and Smart IR support clearer monitoring in low illumination environments.
People Counting Applications
People flow counting and crowd density detection support analytics-focused business and security use cases.
Choosing the Right Model
- Choose this model if: You need a 5MP LightHunter bullet camera with motorised 2.7–13.5mm lens, 50m IR, alarm I/O, audio I/O and intelligent perimeter protection.
- Choose a turret camera if: The site needs a lower-profile camera style for entrances, lobbies or areas where a less directional appearance is preferred.
- Choose a fixed-lens bullet if: The viewing angle is already known and does not require motorised zoom or remote lens adjustment.
- Check audio requirements: This model has audio I/O but no built-in microphone or speaker, so external audio devices are required for audio capture or two-way audio.
- Check storage and bandwidth: Confirm MicroSD, NVR, PoE and network capacity for 5MP recording, especially when using multiple streams or analytics.
FAQs
- What is the Uniview IPC2325SB-DZK-I0 used for?
The Uniview IPC2325SB-DZK-I0 is used for professional indoor and outdoor CCTV monitoring where 5MP resolution, motorised lens adjustment, long-range IR and intelligent detection are required. It suits perimeters, entrances, warehouses, commercial sites, car parks and gate monitoring.
- What resolution does this camera record?
The camera records up to 5MP resolution at 2880 x 1620 and supports up to 30fps. It can also stream lower resolutions such as 4MP, 3MP, 1080p and 720p depending on recording and bandwidth requirements.
- What lens does the IPC2325SB-DZK-I0 use?
The camera uses a 2.7–13.5mm motorised varifocal lens with F1.2 aperture. This gives installers flexible adjustment from a wide overview to a narrower zoomed view without replacing the camera.
- Does it work at night?
Yes. The camera includes Smart IR with up to 50m illumination distance and can capture images at 0 lux with IR. LightHunter technology also helps improve image quality in low illumination environments.
- Does this model include a microphone?
No. The IPC2325SB-DZK-I0 does not include a built-in microphone. It includes 1 input and 1 output for audio devices, so external audio equipment is required where audio capture or two-way audio is needed.
- What smart detection features are included?
The camera supports cross line, intrusion, enter area and leave area detection with false alarm filtering and target classification for humans, vehicles and non-motor vehicles. It also supports people flow counting and crowd density detection.
- Is the camera suitable for outdoor installation?
Yes. The camera has IP67 weather protection and IK10 vandal resistance, making it suitable for outdoor surveillance when installed correctly with appropriate mounting, cable sealing and power/network protection.
- What should I check before buying the IPC2325SB-DZK-I0?
Before buying, confirm the required field of view, mounting position, PoE or 12VDC power, external audio or alarm integration needs, MicroSD recording, NVR compatibility and analytics requirements. Security Wholesalers can supply this Uniview camera for compatible commercial CCTV systems.
Additional Information
Uniview IPC2325SB-DZK-I0 5MP Bullet Network Camera Datasheet
