Product Overview

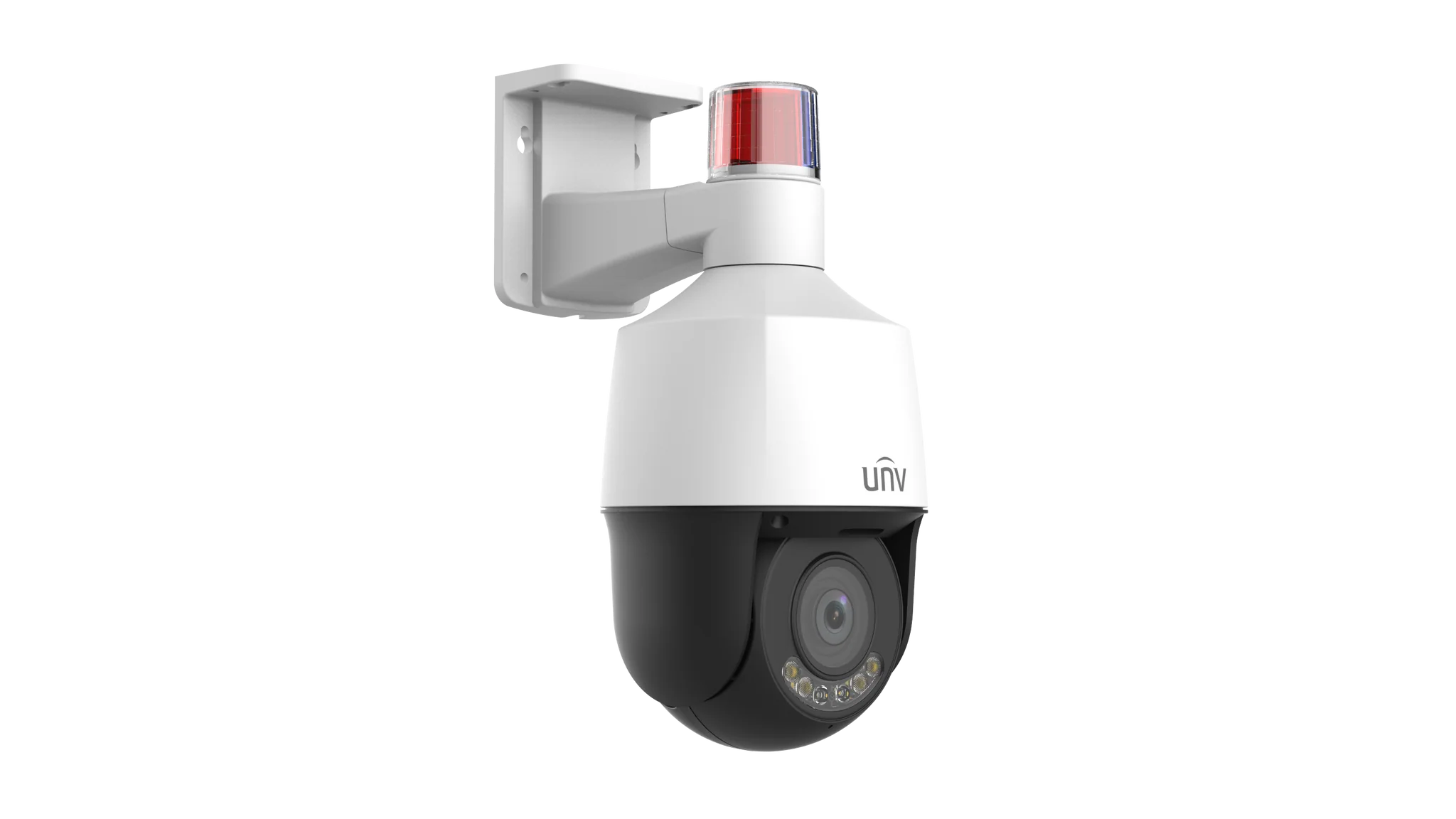

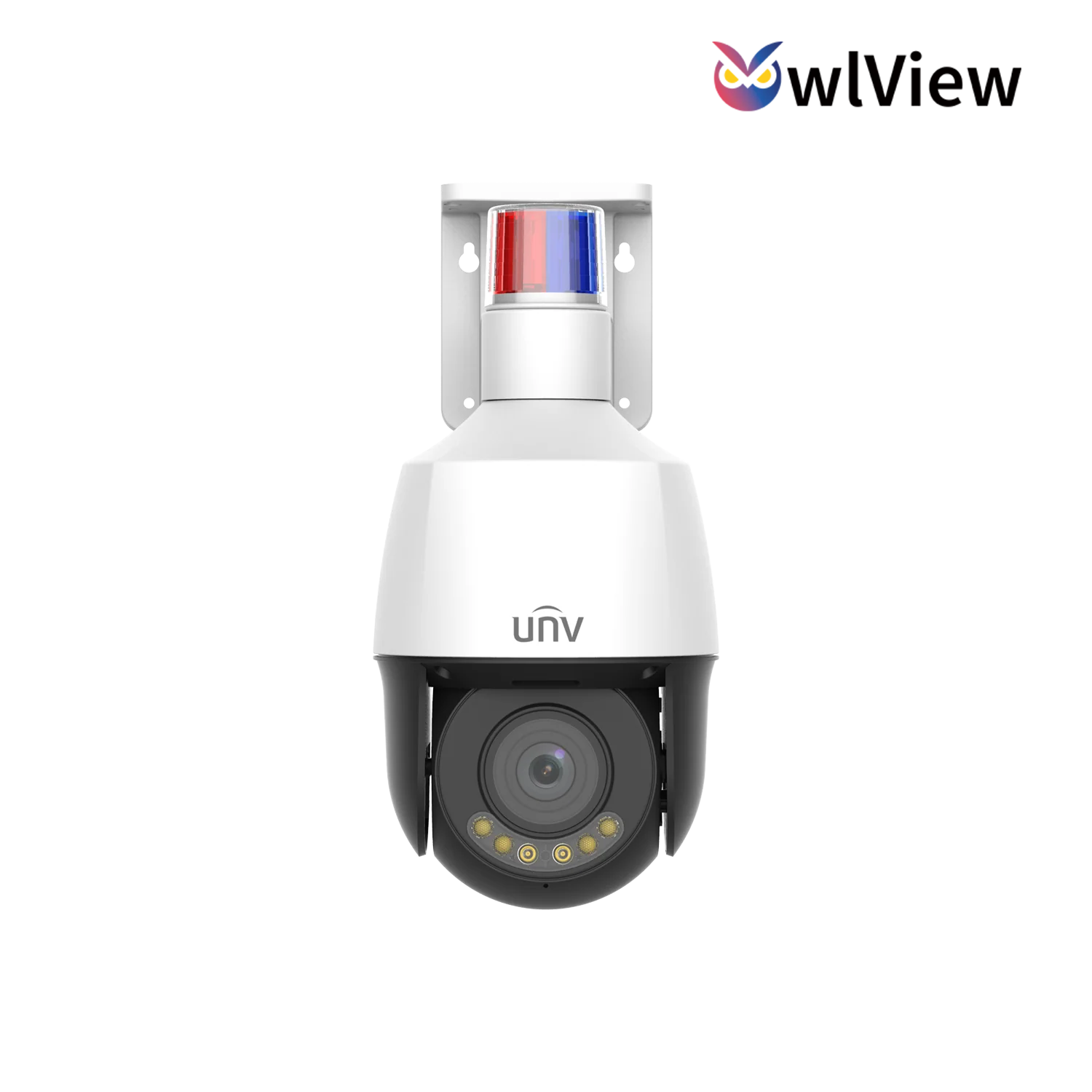

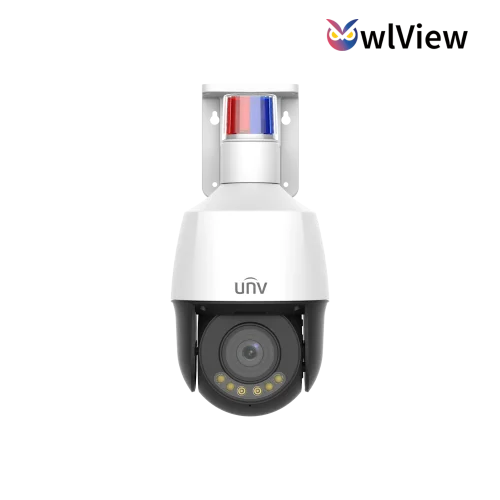

The Uniview IPC6324LWH-AX5C-VG2 4MP 5× Tri-Guard PTZ Network Camera with Warm Light, Two-Way Audio and ColorHunter is a compact Owlview Series PTZ camera designed for flexible surveillance in commercial, retail, warehouse and perimeter applications. It captures up to 4MP video at 2688 x 1520 resolution using a 1/1.8″ CMOS sensor, with Wise-ISP and ColorHunter technology helping optimise colour, detail and smear control in extremely low-light scenes. The 2.7–13.5mm lens provides 5× optical zoom, while the PTZ mechanism supports pan, tilt, presets and patrols for flexible scene coverage. With 120dB WDR, warm light up to 40m, built-in microphone and speaker, two-way audio, smart intrusion prevention, human auto tracking, MicroSD support up to 512GB, IP66 protection, heater support and PoE power, the IPC6324LWH-AX5C-VG2 is a strong option for sites needing compact PTZ control with colour night performance and audio interaction.
Key Capabilities
4MP PTZ Video
Captures up to 2688 x 1520 resolution at 30fps for detailed PTZ surveillance.
5× Optical Zoom
The 2.7–13.5mm lens provides flexible wide-to-zoomed viewing for closer scene detail.
ColorHunter with Wise-ISP
Optimises colour, detail and smear performance in extremely low-light scenes.
40m Warm Light
Warm light illumination supports colour night viewing up to 40m in suitable conditions.
Smart Intrusion Prevention
Supports false alarm filtering, cross line detection and intrusion detection based on human and vehicle detection.
Two-Way Audio
Built-in microphone, built-in speaker and audio I/O support interactive audio communication.
Best For
- Commercial Entrances: Suitable for entry points, loading areas and access paths needing PTZ movement, colour night viewing and audio support.
- Retail and Shopfront Security: 4MP video, warm light, two-way audio and smart detection suit after-hours monitoring and customer-facing areas.
- Warehouse and Logistics Sites: 5× optical zoom and PTZ control help monitor loading docks, yards, roller doors and operational spaces.
- Low-Light Monitoring: ColorHunter with Wise-ISP, F1.2 optics and warm light support clearer colour detail in darker scenes.
- Interactive CCTV Applications: Built-in microphone and speaker support two-way communication where audio use is appropriate and permitted.
Why Choose the IPC6324LWH-AX5C-VG2
Choose the Uniview IPC6324LWH-AX5C-VG2 when the installation needs a compact PTZ camera with 4MP image quality, 5× optical zoom, colour-focused low-light performance and two-way audio. Its Wise-ISP and ColorHunter technology help improve useful image detail in extremely low-light scenes, while warm light up to 40m supports colour night monitoring. Smart intrusion prevention, human auto tracking, PTZ presets, patrols, MicroSD support up to 512GB, IP66 protection and PoE support make it suitable for professional CCTV systems. This model, supplied by Security Wholesalers, is a strong Uniview Owlview PTZ option for sites needing flexible monitoring, audio interaction and visible warm-light coverage.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a compact 4MP PTZ camera with 5× optical zoom, ColorHunter with Wise-ISP, 40m warm light, built-in microphone, built-in speaker and two-way audio.
Buyer Tip: Confirm PTZ viewing range, mounting height, PoE+ capacity, audio recording compliance, warm light suitability, MicroSD storage needs and bracket requirements before installation.
Key Features & Technical Specifications
| Product Type |
4MP 5× Wise-ISP Tri-Guard warm light network PTZ camera. |
| Model |
IPC6324LWH-AX5C-VG2. |
| Brand |
Uniview / UNV. |
| Camera Series |
Owlview Series, Owlview PTZ. |
| Image Sensor |
1/1.8″ CMOS sensor. |
| Maximum Resolution |
4MP, 2688 x 1520. |
| Frame Rate |
4MP at up to 30fps; default 2560 x 1440 at 25fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Video Streams |
Triple streams. |
| Lens |
2.7–13.5mm motorised zoom lens. |
| Optical Zoom |
5× optical zoom. |
| Minimum Illumination |
Colour: 0.0005 lux at F1.2, AGC on. |
| ColorHunter / Wise-ISP |
Supported, optimising colour, detail and smear effects in extremely low-light scenes. |
| Wide Dynamic Range |
120dB WDR. |
| Horizontal Field of View |
113.69° to 50.29°. |
| Vertical Field of View |
59.46° to 28.45°. |
| Diagonal Field of View |
156.23° to 59.34°. |
| DORI Distance |
Detect 98.6m to 209.9m, observe 39.4m to 84.0m, recognise 19.7m to 42.0m, identify 9.9m to 21.0m. |
| Warm Light Distance |
Up to 40m. |
| Light Control |
Auto or manual light control. |
| Smart Intrusion Prevention |
False alarm filtering, cross line detection and intrusion detection based on human body and vehicle detection. |
| Auto Tracking |
Supported, with human target filtering. |
| Ultra Motion Detection |
Supported. |
| Basic Detection |
Motion detection, audio detection and tampering alarm. |
| Image Enhancement |
2D/3D DNR, HLC, BLC, digital defog, ROI, privacy mask and flip support. |
| PTZ Presets |
1024 presets. |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol. |
| Pan Range |
0° to 345°. |
| Tilt Range |
-10° to 100°. |
| Pan Speed |
1°/s to 50°/s. |
| Tilt Speed |
1°/s to 40°/s. |
| Built-In Microphone |
Supported. |
| Built-In Speaker |
Supported. |
| Two-Way Audio |
Supported. |
| Audio I/O |
1 input and 1 output. |
| Alarm I/O |
1 input and 1 output. |
| Audio Compression |
G.711U and G.711A. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Interface |
1 x RJ45 10M/100M Base-TX Ethernet. |
| Integration |
ONVIF Profile S, G and T; API support. |
| Power |
12VDC ±25% or PoE IEEE 802.3at. |
| Power Consumption |
Maximum 25.4W. |
| IP Rating |
IP66. |
| Heater |
Supported. |
| Surge Protection |
2kV. |
| Operating Environment |
-30°C to 60°C, humidity up to 95% RH non-condensing. |
| Weight |
1.33kg. |
| Material |
Metal. |
| Reset Button |
Supported. |
Ideal Use Cases
Commercial Entrances
Use for doors, lobbies, service entries and access points needing PTZ coverage with two-way audio.
Retail Sites
Suitable for shopfronts, after-hours monitoring, customer-facing areas and stockroom approaches.
Warehouse and Logistics
5× optical zoom, PTZ presets and warm light support monitoring of docks, yards and operational zones.
Outdoor Pathways
IP66 protection and PTZ movement suit suitable outdoor walkways, driveways and external approaches.
Low-Light Sites
ColorHunter, Wise-ISP and warm light help provide colour monitoring in extremely low-light scenes.
Interactive Security Points
Built-in mic, speaker and two-way audio suit sites that need remote talk-down or communication.
Choosing the Right Model
- Choose this model if: You need a compact 4MP PTZ camera with 5× optical zoom, ColorHunter with Wise-ISP, warm light up to 40m, built-in microphone, built-in speaker and two-way audio.
- Choose a fixed camera if: The scene does not require PTZ movement, presets, patrols or zoom control.
- Choose a higher-zoom PTZ if: The site needs longer-distance identification beyond the 5× optical zoom range.
- Check audio requirements: This model includes built-in mic and speaker, so confirm audio recording, signage and talk-down requirements before enabling these functions.
- Check power requirements: This camera supports 12VDC and PoE IEEE 802.3at, so confirm switch or injector capacity before installation.
FAQs
- What is the Uniview IPC6324LWH-AX5C-VG2 used for?
The Uniview IPC6324LWH-AX5C-VG2 is used for CCTV applications where PTZ movement, 5× optical zoom, colour low-light viewing and two-way audio are required. It suits commercial entrances, retail spaces, warehouses, external approaches and interactive security monitoring points.
- What resolution does this camera record?
The camera records up to 4MP resolution at 2688 x 1520 and supports up to 30fps in the main stream. It uses a 16:9 aspect ratio, making it suitable for modern wide-screen surveillance display and review.
- What zoom range does the IPC6324LWH-AX5C-VG2 provide?
The camera uses a 2.7–13.5mm lens with 5× optical zoom. This allows the operator or installer to move from a wide scene overview to a closer view of the monitored area without changing the camera.
- Does this PTZ camera support colour night viewing?
Yes. The camera supports ColorHunter with Wise-ISP technology and includes warm light illumination up to 40m. This helps deliver colour detail in low-light scenes where standard monochrome night vision may not provide enough context.
- Does it support two-way audio?
Yes. The IPC6324LWH-AX5C-VG2 includes a built-in microphone and built-in speaker, and it supports two-way audio. Before using audio functions, confirm local privacy, signage and workplace requirements for the installation site.
- What smart detection features are included?
The camera supports smart intrusion prevention with false alarm filtering, cross line detection and intrusion detection based on human body and vehicle detection. It also supports human-only auto tracking, Ultra Motion Detection, audio detection and tampering alarm.
- Is the camera suitable for outdoor installation?
Yes. The camera has IP66 protection, metal construction, heater support and an operating temperature range from -30°C to 60°C. Outdoor installation should still use suitable mounting, sealing, cable protection and power/network design.
- What should I check before buying the IPC6324LWH-AX5C-VG2?
Before buying, confirm the PTZ viewing range, zoom distance, mounting position, PoE+ or 12VDC power capacity, warm light suitability, audio usage requirements, MicroSD storage needs and NVR compatibility. Security Wholesalers can supply this Uniview PTZ camera for compatible commercial CCTV systems.
Additional Information
Uniview IPC6324LWH-AX5C-VG2 4MP Network PTZ Camera Datasheet
