Product SKU: IPC3636SE-ADZKMC-WP-I1
Product Overview

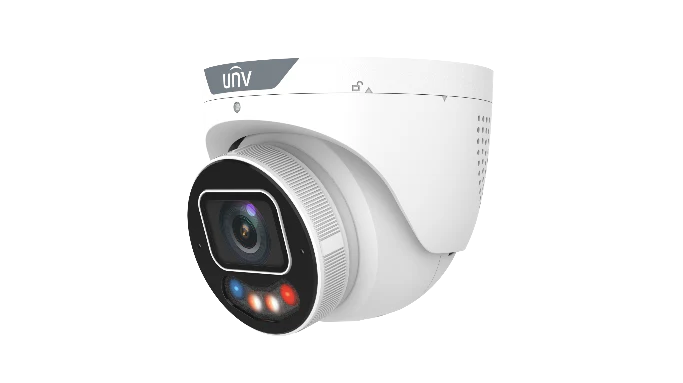

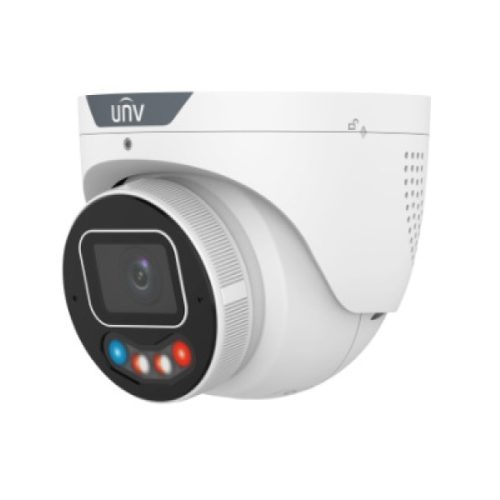

The Uniview IPC3636SE-ADZKMC-WP-I1 6MP AI Tri-Guard Turret Camera with Varifocal Dual-Light and Active Deterrence is an OwlView Plus turret network camera designed for professional surveillance sites needing full-colour imaging, intelligent detection and proactive event response. It captures up to 6MP resolution at 3072 x 2048 using a 1/1.8″ CMOS sensor, with Ultra 265, H.265, H.264 and MJPEG compression to help manage storage and bandwidth. ColorHunter with Wise-ISP technology supports 24-hour full-colour imaging, while 130dB true WDR helps maintain clear detail in strong backlight scenes. With a 2.8–12mm motorised varifocal F1.2 lens, Smart IR up to 30m, warm light up to 30m, built-in dual microphone, built-in speaker, two-way audio, audio I/O, alarm I/O, MicroSD storage up to 512GB, smart intrusion prevention, target classification, people counting, IP67, IK10 and PoE power, the IPC3636SE-ADZKMC-WP-I1 is a strong choice for commercial, retail, warehouse, perimeter and active-deterrence CCTV applications.
Key Capabilities
6MP Full-Colour Video
Captures up to 3072 x 2048 resolution at up to 30fps for detailed full-colour surveillance footage.
Motorised Varifocal Lens
The 2.8–12mm motorised lens allows flexible adjustment from wide overview to tighter detail views.
ColorHunter with Wise-ISP
Supports 24-hour full-colour imaging with improved detail in extremely low-light environments.
Dual-Light Night Coverage
Smart IR and warm light both support up to 30m illumination for flexible night monitoring.
Tri-Guard Active Deterrence
Built-in speaker, dual microphone, light output and alarm I/O support deterrence-focused event response.
Smart Intrusion Prevention
Human, motor vehicle and non-motor vehicle classification help reduce false alarms from irrelevant motion.
Best For
- Active Deterrence CCTV: Suitable for areas needing visible light response, speaker output, dual-mic audio capture and alarm-triggered event handling.
- Commercial Perimeters: Motorised varifocal coverage, IP67 protection, IK10 impact resistance and smart detection suit external approaches and restricted zones.
- Retail and Shopfront Monitoring: Full-colour imaging, built-in dual microphone and wide-to-zoom lens adjustment suit entrances, counters and customer-facing areas.
- Warehouse and Logistics Sites: Dual-light night coverage, people counting and smart intrusion prevention support loading docks, yards and storage zones.
- Low-Light Evidence Capture: ColorHunter, Wise-ISP, F1.2 optics and 130dB true WDR help capture clearer detail across challenging lighting conditions.
Why Choose the IPC3636SE-ADZKMC-WP-I1
Choose the Uniview IPC3636SE-ADZKMC-WP-I1 when the installation needs a 6MP turret camera with motorised varifocal coverage, full-colour low-light imaging and active deterrence capability. Its 2.8–12mm F1.2 lens, ColorHunter with Wise-ISP, dual-light illumination, Smart IR up to 30m, warm light up to 30m and 130dB true WDR help capture useful evidence across day, night and high-contrast environments. Smart intrusion prevention with target classification helps reduce nuisance alerts, while colour retrieval, people counting, built-in dual microphone, built-in speaker, alarm I/O, audio I/O and MicroSD support up to 512GB add value for professional surveillance systems. This model, supplied by Security Wholesalers, is a strong Uniview OwlView Plus Tri-Guard option for commercial sites needing intelligent monitoring, audio interaction and deterrence-focused event response.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a 6MP Tri-Guard turret camera with motorised 2.8–12mm lens, ColorHunter, Wise-ISP, dual-light night coverage, built-in dual microphone, built-in speaker, alarm I/O, audio I/O, IK10 and IP67 protection.
Buyer Tip: Confirm the required field of view, warm light suitability, active deterrence rules, audio recording compliance, PoE budget, alarm integration and MicroSD or NVR storage requirements before installation.
Key Features & Technical Specifications
| Product Type |
6MP OwlView Plus Tri-Guard motorised varifocal dual-light turret network camera. |
| Model |
IPC3636SE-ADZKMC-WP-I1. |
| Brand |
Uniview / UNV. |
| Camera Series |
OwlView Plus, Tri-Guard. |
| Image Sensor |
1/1.8″ CMOS sensor. |
| Maximum Resolution |
6MP, 3072 x 2048. |
| Frame Rate |
6MP up to 30fps; 4MP, 3MP and 1080p up to 30/25fps depending on stream settings. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Video Streams |
Triple streams. |
| Lens |
2.8–12mm motorised varifocal lens. |
| Iris |
Fixed iris, F1.2. |
| Minimum Illumination |
Colour: 0.0005 lux at F1.2, AGC on. |
| ColorHunter / Wise-ISP |
Supported, helping ensure 24-hour full-colour images. |
| Wide Dynamic Range |
130dB true WDR. |
| Supplemental Light |
Dual light with Smart IR and white / warm light. |
| IR Distance |
Smart IR up to 30m. |
| Warm Light Distance |
White / warm light up to 30m. |
| Light Control |
Auto or manual. |
| Corridor Mode |
Supports 9:16 corridor mode. |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection and leave area detection. |
| Target Classification |
False alarm filtering and classification of human, motor vehicle and non-motor vehicle targets. |
| People Counting |
People flow counting and crowd density monitoring supported. |
| Attribute Collection |
Smart intrusion prevention with colour retrieval. |
| Image Enhancement |
2D/3D DNR, HLC, BLC, digital defog, ROI, privacy mask and Auto Scene Match support. |
| Basic Detection |
Motion detection, Ultra Motion Detection, tampering alarm, audio detection, object removed and object left behind. |
| Built-In Microphone |
Built-in dual microphones. |
| Built-In Speaker |
Supported. |
| Two-Way Audio |
Supported. |
| Audio I/O |
1 input and 1 output. |
| Alarm I/O |
1 input and 1 output. |
| Audio Compression |
G.711U and G.711A. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Storage |
ANR and NAS support. |
| Network Interface |
1 x RJ45 10M/100M Base-TX Ethernet. |
| Integration |
ONVIF Profile S, G, T and M; API and SDK support. |
| Power |
12VDC ±25% or PoE IEEE 802.3af. |
| IP Rating |
IP67. |
| Vandal Rating |
IK10. |
| NDAA Listing |
Listed in Uniview NDAA-ANZ camera model listings. |
| Operating Environment |
Designed for indoor and outdoor CCTV applications when installed correctly. |
| Housing |
Turret / eyeball camera housing. |
Ideal Use Cases
Commercial Entrances
Use for doors, lobbies, car park entries and access points needing colour footage and deterrence response.
Retail and Shopfronts
Full-colour imaging, dual microphone and speaker support customer-facing and after-hours monitoring areas.
Warehouses and Loading Areas
Motorised varifocal adjustment and dual-light night coverage suit loading docks, storage yards and access paths.
Outdoor Perimeters
IP67 and IK10 protection suit suitable exposed camera locations when correctly installed and sealed.
Low-Light Evidence Capture
ColorHunter, Wise-ISP, F1.2 optics and dual light help capture colour details that support event review.
Analytics-Focused Sites
People counting, crowd density monitoring, colour retrieval and target classification support smarter workflows.
Choosing the Right Model
- Choose this model if: You need a 6MP Tri-Guard turret camera with motorised varifocal lens, ColorHunter, Wise-ISP, dual-light night coverage, built-in dual microphone, built-in speaker, alarm I/O, audio I/O, IK10 and IP67 protection.
- Choose a fixed-lens model if: The viewing angle is already known and does not require motorised zoom adjustment.
- Choose an 8MP model if: The site needs higher image resolution for wider review or more detailed footage capture.
- Check audio and deterrence requirements: This model includes built-in dual microphone, built-in speaker and two-way audio, so confirm signage, privacy and talk-down requirements before enabling audio functions.
- Check warm light suitability: Confirm that visible white / warm light is appropriate for neighbours, customers, signage and the monitored area.
FAQs
- What is the Uniview IPC3636SE-ADZKMC-WP-I1 used for?
The Uniview IPC3636SE-ADZKMC-WP-I1 is used for professional CCTV monitoring where 6MP resolution, motorised zoom adjustment, full-colour low-light imaging and active deterrence are required. It suits commercial entrances, perimeters, shopfronts, warehouses, car parks and restricted areas.
- What resolution does this camera record?
The camera records up to 6MP resolution at 3072 x 2048 and supports high-quality video for commercial and residential CCTV applications. It also supports efficient Ultra 265, H.265, H.264 and MJPEG compression to help manage storage and bandwidth requirements.
- What lens does the IPC3636SE-ADZKMC-WP-I1 use?
This model uses a motorised 2.8–12mm varifocal lens with an F1.2 large-aperture design. This allows installers to adjust the scene from wider overview coverage to a tighter monitoring angle without changing the camera.
- Does this camera support full-colour night vision?
Yes. The camera uses ColorHunter with Wise-ISP technology and includes white / warm light illumination up to 30m for full-colour monitoring. It also supports Smart IR up to 30m where IR night viewing is preferred.
- Does this model include audio and speaker functions?
Yes. The IPC3636SE-ADZKMC-WP-I1 includes built-in dual microphones, a built-in speaker, audio I/O and two-way audio support. These features can be used for audio capture, talk-down and compatible deterrence workflows where permitted.
- What smart detection features are included?
The camera supports cross line, intrusion, enter area and leave area detection with false alarm filtering and classification of human, motor vehicle and non-motor vehicle targets. It also supports people flow counting, crowd density monitoring and colour retrieval for smart intrusion prevention events.
- Is the camera suitable for outdoor installation?
Yes. The camera supports IP67 weather protection and IK10 vandal resistance, making it suitable for outdoor CCTV use when installed correctly with suitable mounting, cable sealing and power/network protection.
- What should I check before buying the IPC3636SE-ADZKMC-WP-I1?
Before buying, confirm the required lens range, mounting position, warm light suitability, audio and speaker policy, alarm integration, PoE or 12VDC power capacity, storage needs and whether the NVR supports the required 6MP recording and smart events. Security Wholesalers can supply this Uniview camera for compatible CCTV systems.
Additional Information
Uniview_IPC3636SE-ADZKMC-WP-I1_Turret_Network_Camera_Datasheet
