Product Overview

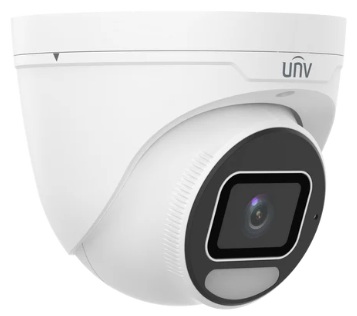

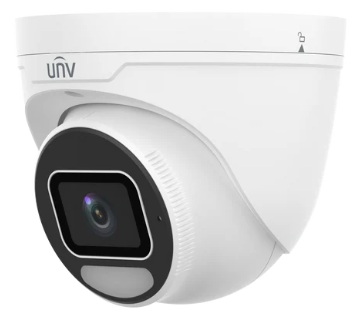

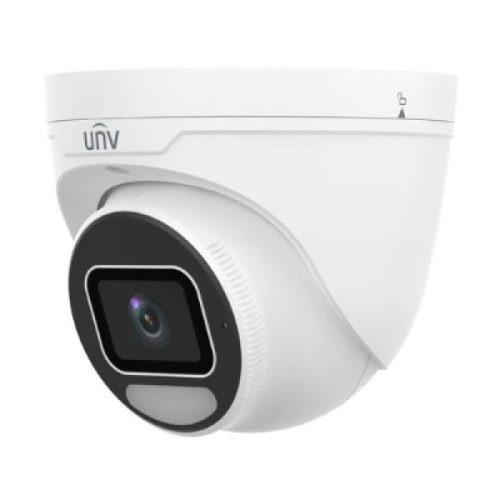

The Uniview IPC3636SE-ADF28K-WP-I1 6MP ColorHunter Turret Owlview Plus Turret Camera with Warm Light is a professional fixed turret network camera designed for full-colour surveillance in low-light environments. It captures up to 6MP resolution at 3072 x 2048 using a 1/1.8″ CMOS sensor, with Ultra 265, H.265, H.264 and MJPEG compression to help manage storage and bandwidth. ColorHunter with Wise-ISP technology supports 24-hour full-colour imaging, while 130dB true WDR helps maintain clear detail in strong backlight scenes. With a fixed 2.8mm F1.0 lens, warm light up to 30m, built-in microphone, audio I/O, alarm I/O, two-way audio support, MicroSD storage up to 512GB, smart intrusion prevention, target classification, colour retrieval, IP67 protection, IK10 vandal resistance and PoE power, the IPC3636SE-ADF28K-WP-I1 is a strong choice for commercial, retail, warehouse, entrance and low-light CCTV applications.
Key Capabilities
6MP Full-Colour Video
Captures up to 3072 x 2048 resolution at up to 30fps for detailed full-colour surveillance footage.
ColorHunter with Wise-ISP
Supports 24-hour full-colour images with improved detail in extremely low-light environments.
Large 1/1.8″ CMOS Sensor
The large sensor and F1.0 lens help improve low-light sensitivity and colour image performance.
Warm Light up to 30m
Warm light illumination supports full-colour night monitoring up to 30m in suitable conditions.
Smart Intrusion Prevention
Cross line, intrusion, enter area and leave area detection support smarter event-based monitoring.
Built-In Mic and Audio I/O
Built-in microphone, audio I/O and two-way audio support flexible audio-aware CCTV applications.
Best For
- Full-Colour Night Surveillance: Suitable for sites needing colour video detail after dark rather than standard black-and-white IR footage.
- Commercial CCTV Installations: Ideal for businesses needing 6MP detail, smart analytics, audio capture and strong low-light performance.
- Retail and Shopfront Monitoring: Wide 2.8mm coverage, full-colour imaging and built-in microphone support entrances, counters and customer-facing spaces.
- Warehouse and Logistics Sites: Warm light, WDR and smart intrusion prevention help monitor loading areas, stock zones and external approaches.
- Outdoor Perimeters: IP67 protection and IK10 vandal resistance suit exposed camera positions when installed correctly.
Why Choose the IPC3636SE-ADF28K-WP-I1
Choose the Uniview IPC3636SE-ADF28K-WP-I1 when the installation needs a 6MP turret camera with full-colour night vision, warm light illumination and advanced Owlview Plus imaging. Its F1.0 2.8mm lens, ColorHunter with Wise-ISP, 0.0003 lux colour sensitivity, warm light up to 30m and 130dB true WDR help capture usable detail across very low-light and high-contrast environments. Smart intrusion prevention with human, vehicle and non-motor vehicle classification helps reduce nuisance alerts, while colour retrieval, people counting, alarm I/O, audio I/O and MicroSD support up to 512GB add value for professional surveillance systems. This model, supplied by Security Wholesalers, is a strong Uniview option for commercial sites needing colour evidence, smart detection and rugged outdoor protection.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a 6MP full-colour turret camera with ColorHunter, Wise-ISP, F1.0 lens, 30m warm light, built-in microphone, alarm I/O, audio I/O, IK10 and IP67 protection.
Buyer Tip: Confirm whether warm light is suitable for the location, as full-colour night performance depends on visible illumination rather than invisible IR lighting.
Key Features & Technical Specifications
| Product Type |
6MP OwlView Plus ColorHunter with Wise-ISP fixed warm light turret network camera. |
| Model |
IPC3636SE-ADF28K-WP-I1. |
| Brand |
Uniview / UNV. |
| Camera Series |
Owlview Plus. |
| Image Sensor |
1/1.8″ CMOS sensor. |
| Maximum Resolution |
6MP, 3072 x 2048. |
| Frame Rate |
6MP at up to 30fps; 4MP, 3MP, 1080p and 720p up to 30fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Video Streams |
Triple streams. |
| Lens |
2.8mm fixed lens. |
| Iris |
Fixed iris, F1.0. |
| Horizontal Field of View |
110.4°. |
| Vertical Field of View |
60.5°. |
| Diagonal Field of View |
115.2°. |
| Minimum Illumination |
Colour: 0.0003 lux at F1.0, AGC on. |
| ColorHunter / Wise-ISP |
Supported, helping ensure 24-hour full-colour images. |
| Wide Dynamic Range |
130dB true WDR. |
| Supplemental Light |
Warm light / white light. |
| Warm Light Distance |
Up to 30m. |
| Light Control |
Auto or manual. |
| Adjustment Angle |
Pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360°. |
| Corridor Mode |
Supports 9:16 corridor mode. |
| DORI Distance |
Detect 43.4m, observe 17.4m, recognise 8.7m, identify 4.3m. |
| Image Enhancement |
2D/3D DNR, HLC, BLC, digital defog, ROI, privacy mask, Auto Scene Match and flip support. |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection and leave area detection. |
| Target Classification |
False alarm filtering and classification of human, vehicle and non-motor vehicle targets. |
| People Counting |
People flow counting and crowd density monitoring supported. |
| Attribute Collection |
Smart intrusion prevention with colour retrieval. |
| Basic Detection |
Motion detection, Ultra Motion Detection, tampering alarm, audio detection, object removed and object left behind. |
| Built-In Microphone |
Supported. |
| Audio I/O |
1 input and 1 output. |
| Alarm I/O |
1 input and 1 output. |
| Two-Way Audio |
Supported. |
| Built-In Speaker |
Not built in. |
| Audio Compression |
G.711U and G.711A. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Storage |
ANR and NAS support. |
| Network Interface |
1 x RJ45 10M/100M Base-TX Ethernet. |
| Integration |
ONVIF Profile S, G, T and M; API and SDK support. |
| Power |
12VDC ±25% or PoE IEEE 802.3af. |
| Power Consumption |
Maximum 4.5W. |
| Power Interface |
Ø5.5mm coaxial power plug. |
| IP Rating |
IP67. |
| Vandal Rating |
IK10. |
| Surge Protection |
4kV. |
| Operating Environment |
-30°C to 60°C, humidity up to 95% RH non-condensing. |
| Dimensions |
Ø129mm x 110mm. |
| Weight |
0.67kg. |
| Material |
Metal. |
| Reset Button |
Supported. |
Ideal Use Cases
Retail Entrances
Use for shopfronts, entry points and counters needing 6MP full-colour footage after dark.
Commercial Buildings
Suitable for foyers, external doors, corridors and reception areas needing colour detail in low light.
Warehouses and Loading Areas
Warm light, WDR and smart analytics support stock zones, loading docks and external access paths.
Outdoor Perimeters
IP67 protection and IK10 vandal resistance suit suitable exposed installation points when correctly mounted.
Low-Light Evidence Capture
ColorHunter, Wise-ISP and F1.0 optics help capture colour details that support event review.
Analytics-Focused Sites
People counting, crowd density monitoring and smart intrusion prevention support smarter security workflows.
Choosing the Right Model
- Choose this model if: You need a 6MP fixed turret camera with ColorHunter, Wise-ISP, full-colour night performance, 30m warm light, built-in microphone, alarm I/O, audio I/O, IK10 and IP67 protection.
- Choose an 8MP Owlview Plus model if: The site needs higher image resolution than 6MP for wider review or more detailed image capture.
- Choose an IR camera if: The site needs discreet night vision without visible warm light illumination.
- Check audio requirements: This model includes a built-in microphone and audio I/O but no built-in speaker, so an external speaker is required for two-way audio output.
- Check warm light suitability: Confirm that visible white / warm light is appropriate for neighbours, customers, signage and the monitored area.
FAQs
- What is the Uniview IPC3636SE-ADF28K-WP-I1 used for?
The Uniview IPC3636SE-ADF28K-WP-I1 is used for professional CCTV monitoring where 6MP resolution and full-colour low-light footage are required. It suits retail entrances, commercial buildings, warehouses, outdoor approaches and sites that need colour detail after dark.
- What resolution does this camera record?
The camera records up to 6MP resolution at 3072 x 2048 and supports up to 30fps. It can also stream 4MP, 3MP, 1080p and 720p depending on system settings, bandwidth and storage requirements.
- What lens does the IPC3636SE-ADF28K-WP-I1 use?
This model uses a fixed 2.8mm F1.0 lens with a 110.4° horizontal field of view. It is suitable for wide-area coverage at entrances, external approaches, rooms, stock areas and general monitoring points.
- Does this camera provide full-colour night vision?
Yes. The camera uses ColorHunter with Wise-ISP technology and a 1/1.8″ sensor to support full-colour images in very low-light scenes. It also includes warm light illumination up to 30m for colour monitoring after dark.
- Does this model include a microphone?
Yes. The IPC3636SE-ADF28K-WP-I1 includes a built-in microphone and supports audio I/O. It does not include a built-in speaker, so an external speaker is required if two-way audio output is needed.
- What smart detection features are included?
The camera supports cross line, intrusion, enter area and leave area detection with false alarm filtering and classification of human, vehicle and non-motor vehicle targets. It also supports people flow counting, crowd density monitoring and colour retrieval for smart intrusion prevention.
- Is the camera suitable for outdoor installation?
Yes. The camera supports IP67 weather protection and IK10 vandal resistance and operates from -30°C to 60°C. Outdoor installation should still use suitable mounting, cable sealing and power/network protection.
- What should I check before buying the IPC3636SE-ADF28K-WP-I1?
Before buying, confirm whether visible warm light is suitable, whether the 2.8mm field of view matches the scene, and whether the NVR supports the required 6MP recording, smart events, audio and storage functions. Security Wholesalers can supply this Uniview camera for compatible CCTV systems.
Additional Information
Uniview_IPC3636SE-ADF28K-WP-I1_6MP_Turret_Network_Camera_Datasheet
