| Feature |
Specification |
| Model |
IPC3616LE-ADF28KM-DL |
| Camera Type |
Dual Light Eyeball Network Camera |
| Resolution |
6MP |
| Sensor |
1/2.4″ CMOS |
| Lens |
2.8mm fixed lens |
| Aperture |
F1.6 |
| Field of View |
Horizontal 102.73°, Vertical 53.95°, Diagonal 106.97° |
| Minimum Illumination |
Colour 0.003 Lux, 0 Lux with light |
| WDR |
120dB |
| Night Vision |
Smart IR and warm light |
| IR Distance |
Up to 30m |
| Warm Light Distance |
Up to 30m |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Main Stream |
6MP up to 25fps, 4MP/3MP/1080p up to 30fps |
| Audio |
Built-in microphone |
| Smart Events |
Cross line, intrusion, motion, ultra motion, tampering, audio detection |
| Edge Storage |
microSD up to 512GB |
| Network |
RJ45 10/100M Ethernet |
| ONVIF |
Profile S, G, T |
| Power |
12V DC or PoE IEEE 802.3af |
| Power Consumption |
Max 5.1W |
| Protection |
IP67 |
| Operating Temperature |
-30°C to 60°C |
| Dimensions |
Ø110.5mm × 98.0mm |
| Weight |
0.46kg |
| Material |
Metal + plastic |

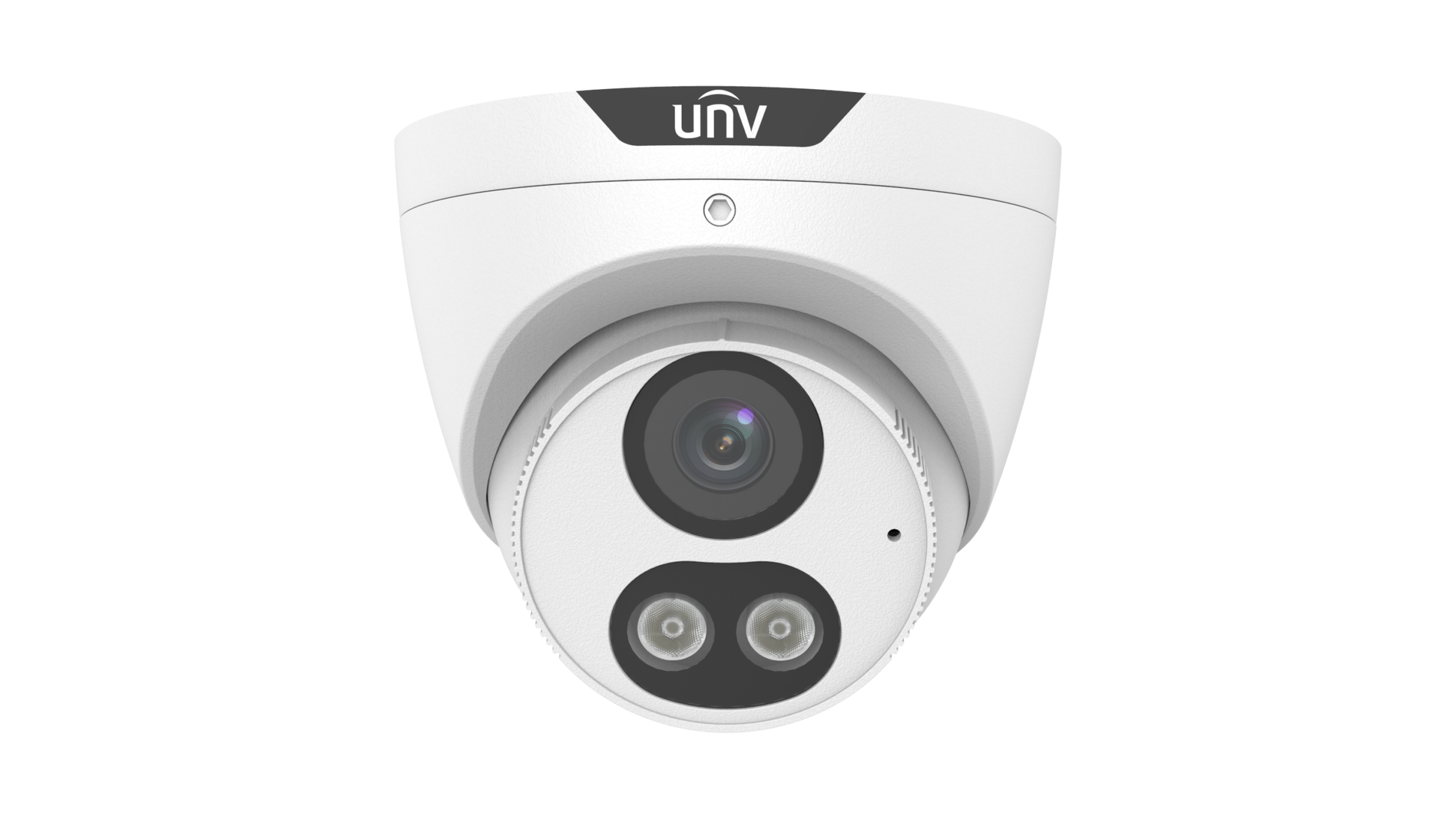

The Uniview IPC3616LE-ADF28KM-DL is a strong choice for homes, driveways, side paths, garages and entry points. The 6MP resolution and 2.8mm wide-angle lens help cover a broad area, while the built-in microphone can capture useful audio context where permitted. Uniview lists the camera with a 102.73° horizontal field of view and built-in mic.
Retail Shops
This camera is well suited to small retail stores, counters, aisles, stock rooms and shopfronts. The dual-light function allows the camera to use IR or warm light at night, while human-body based line crossing and intrusion detection can help reduce unnecessary event alerts.
Office and Business Premises
For offices, workshops and small commercial buildings, the IPC3616LE-ADF28KM-DL provides clear 6MP video, PoE installation and smart motion features. It is useful for monitoring reception areas, entrances, corridors, rear exits and shared workspaces.
Outdoor CCTV Coverage
With IP67 weather protection, this camera can be installed outdoors in suitable exposed locations such as walls, eaves, entry points and perimeters. It supports both 12V DC and PoE power, with maximum power consumption listed at 5.1W.
Night-Time Monitoring
The camera supports Smart IR up to 30m and warm light up to 30m, making it useful for night coverage around homes, shops, car parks, loading areas and building entrances.
FAQs
Is the Uniview IPC3616LE-ADF28KM-DL suitable for outdoor use?
Yes. The camera has an IP67 weather-resistant rating, making it suitable for outdoor CCTV installations when installed correctly.
Does this camera have audio?
Yes. The IPC3616LE-ADF28KM-DL has a built-in microphone for audio recording. Audio recording laws vary by location, so customers should check local requirements before enabling audio.
Does this camera support PoE?
Yes. The camera supports PoE IEEE 802.3af, so it can be powered through a compatible PoE NVR or PoE switch. It can also be powered by 12V DC.
What is dual light?
Dual light means the camera has both infrared light and warm visible light. IR is useful for discreet black-and-white night vision, while warm light can help provide clearer colour detail in suitable scenes.
How far can the night vision reach?
Uniview lists both the IR distance and warm light distance as up to 30 metres. Actual performance will depend on mounting height, scene layout, reflectivity, lighting and weather conditions.
What lens does this camera have?
This model has a 2.8mm fixed lens with a wide 102.73° horizontal field of view, making it suitable for broad area coverage rather than long-distance zoom.
Does this camera support smart detection?
Yes. It supports ultra motion detection, cross line detection and intrusion detection. Uniview notes that cross line and intrusion detection are based on human body detection, and ultra motion detection is based on human and vehicle detection.
Can I record directly to a microSD card?
Yes. The camera supports microSD card storage up to 512GB. This can be useful for edge recording or backup recording, although most CCTV systems will use an NVR for central recording.
Is this camera compatible with Uniview NVRs?
Yes. This is a Uniview IP network camera and is designed to work with Uniview NVR systems. It also supports ONVIF Profile S, G and T for compatible third-party integrations.
Is this a Wi-Fi camera?
No. This model is a wired network camera. Uniview lists Wi-Fi as N/A, and the camera uses an RJ45 Ethernet network connection.
Does this camera have a speaker or two-way audio?
No. The camera has a built-in microphone, but Uniview lists built-in speaker and two-way audio as N/A.
