Product Overview

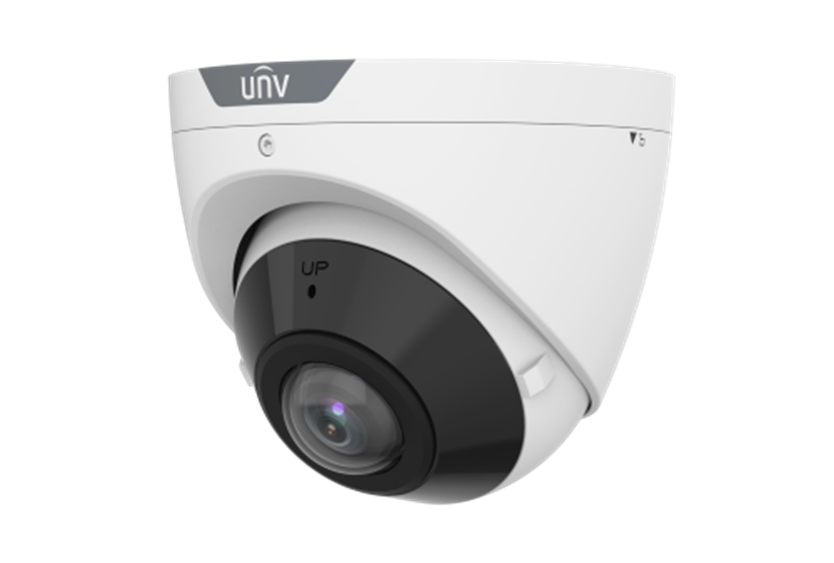

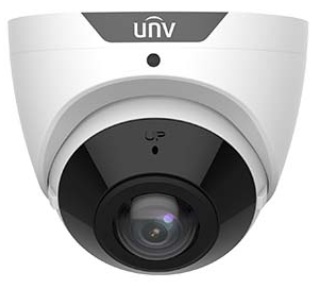

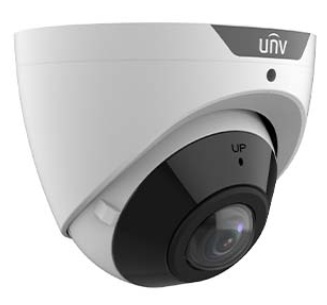

The Uniview IPC3608SB-ADF16KM-I0 8MP OmniView 180° Super Wide Angle IP Turret Camera is a Prime I Series fixed IR turret camera designed to capture ultra-wide surveillance coverage from a single camera position. It records up to 8MP resolution at 3840 x 2160 and supports Ultra 265, H.265, H.264 and MJPEG compression to help manage storage and bandwidth. Its 1.68mm fixed lens delivers a 180° horizontal field of view, with configurable dewarping levels from 1 to 9 for more practical image review. With 120dB true WDR, Smart IR up to 20m, built-in microphone, MicroSD support up to 512GB, smart intrusion prevention, target classification, colour retrieval, IP67 weather protection, IK10 vandal resistance and PoE power, the IPC3608SB-ADF16KM-I0 is a strong choice for entrances, corridors, retail, warehouses, foyers and wide-area monitoring where blind spots need to be reduced.
Key Capabilities
8MP 4K Video
Captures up to 3840 x 2160 resolution at up to 30fps for high-detail wide-area surveillance.
180° OmniView Coverage
The 1.68mm wide-angle lens provides a 180° horizontal field of view to help reduce blind spots.
Dewarping Support
Configurable dewarping levels from 1 to 9 help make ultra-wide footage easier to view and review.
Smart IR up to 20m
Smart IR supports night monitoring up to 20m with automatic or manual IR control.
Smart Intrusion Prevention
Cross line, intrusion, enter area and leave area detection support smarter event-based monitoring.
Built-In Microphone
Integrated microphone support allows audio capture for compatible surveillance applications.
Best For
- Wide-Area Surveillance: Suitable for areas where a 180° field of view can reduce the need for multiple fixed cameras.
- Retail and Commercial Entrances: Wide coverage, built-in microphone and 8MP resolution support monitoring across doors, counters and customer-facing zones.
- Corridors and Foyers: OmniView coverage helps capture broad scenes in hallway intersections, reception areas and shared building spaces.
- Warehouse and Back-of-House Areas: Smart IR, WDR and smart intrusion prevention help monitor stockrooms, work zones and access paths.
- Outdoor Wall or Ceiling Positions: IP67 protection, IK10 vandal resistance and metal construction suit suitable external installations.
Why Choose the IPC3608SB-ADF16KM-I0
Choose the Uniview IPC3608SB-ADF16KM-I0 when the installation needs an 8MP turret camera with a 180° horizontal field of view for broad situational awareness. Its 1.68mm fixed lens, configurable dewarping, 120dB true WDR and Smart IR up to 20m help deliver practical monitoring across entrances, foyers, corridors and open areas where blind spots can be a concern. Smart intrusion prevention with target classification helps focus alerts on humans, vehicles and non-motor vehicles, while colour retrieval supports more useful event review. This model, supplied by Security Wholesalers, is a practical Uniview OmniView option for commercial sites needing ultra-wide coverage, built-in audio capture and rugged indoor or outdoor installation.
Buyer Decision Tips
Buyer Tip: Choose this model when you need an 8MP fixed turret camera with 180° horizontal coverage, dewarping support, 20m Smart IR, built-in microphone, MicroSD support, IK10 and IP67 protection.
Buyer Tip: Confirm whether the site needs ultra-wide overview coverage or longer-distance detail, as the 1.68mm lens is designed for broad scene monitoring rather than narrow identification views.
Key Features & Technical Specifications
| Product Type |
8MP OmniView fixed IR turret network camera. |
| Model |
IPC3608SB-ADF16KM-I0. |
| Brand |
Uniview / UNV. |
| Camera Series |
Prime I Series. |
| Image Sensor |
1/2.7″ CMOS sensor. |
| Maximum Resolution |
8MP, 3840 x 2160. |
| Frame Rate |
8MP, 5MP, 4MP and 1080p up to 30/25fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Video Streams |
Triple streams. |
| Lens |
1.68mm fixed lens. |
| Iris |
Fixed iris, F2.0. |
| Horizontal Field of View |
180°. |
| Vertical Field of View |
100°. |
| Diagonal Field of View |
180°. |
| Dewarping |
Supported, with configurable dewarp level from 1 to 9. |
| Minimum Illumination |
Colour: 0.01 lux at F2.0, AGC on; 0 lux with IR on. |
| Day/Night |
IR-cut filter with auto switch. |
| Wide Dynamic Range |
120dB true WDR. |
| IR Distance |
Smart IR up to 20m. |
| IR Wavelength |
850nm. |
| Light Control |
Auto or manual IR control. |
| Adjustment Angle |
Pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360°. |
| DORI Distance |
Detect 37.8m, observe 15.1m, recognise 7.6m, identify 3.8m. |
| Image Enhancement |
2D/3D DNR, HLC, BLC, digital defog, ROI, privacy mask, flip and Auto Scene Match support. |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection and leave area detection. |
| Target Classification |
False alarm filtering and classification of human, vehicle and non-motor vehicle targets. |
| Attribute Collection |
Smart intrusion prevention with colour retrieval. |
| Basic Detection |
Motion detection, Ultra Motion Detection, tampering alarm, audio detection, object removed and object left behind. |
| Built-In Microphone |
Supported. |
| Audio I/O |
Not supported. |
| Built-In Speaker |
Not supported. |
| Two-Way Audio |
Not supported. |
| Audio Compression |
G.711U, G.711A and AAC-LC. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Storage |
ANR and NAS support. |
| Network Interface |
1 x RJ45 10M/100M Base-TX Ethernet. |
| Integration |
ONVIF Profile S, G, T and M; API and SDK support. |
| Power |
12VDC ±25% or PoE IEEE 802.3af. |
| Power Consumption |
Maximum 5.5W. |
| Power Interface |
Ø5.5mm coaxial power plug. |
| IP Rating |
IP67. |
| Vandal Rating |
IK10. |
| Surge Protection |
4kV. |
| Operating Environment |
-30°C to 60°C, humidity up to 95% RH non-condensing. |
| Dimensions |
Ø111mm x 93mm. |
| Weight |
0.48kg. |
| Material |
Metal. |
| Reset Button |
Supported. |
Ideal Use Cases
Entrances and Reception Areas
Use for broad coverage across doors, foyers, waiting areas and customer-facing entry points.
Retail Stores
Wide-angle coverage helps monitor aisles, counters, shopfronts and stockroom approaches from fewer camera positions.
Corridors and Intersections
180° horizontal coverage is useful for corridor junctions, hallways and shared building spaces.
Warehouse Overview
Suitable for wide overview coverage across loading zones, stock areas and internal access paths.
Outdoor Approaches
IP67 protection, IK10 impact resistance and Smart IR support suitable outdoor wall or ceiling positions.
Blind Spot Reduction
OmniView coverage helps reduce blind spots in open areas where standard fixed lenses may be too narrow.
Choosing the Right Model
- Choose this model if: You need an 8MP turret camera with 180° horizontal coverage, dewarping support, 20m Smart IR, built-in microphone, smart intrusion prevention, MicroSD support, IK10 and IP67 protection.
- Choose a standard fixed turret if: The scene needs a narrower, more traditional field of view with better distance detail.
- Choose a motorised varifocal camera if: The field of view needs to be adjusted remotely or focused on a narrower target area.
- Check dewarping needs: Ultra-wide footage may require dewarping support in the camera, NVR or viewing software for easier review.
- Check audio requirements: This model includes a built-in microphone but does not support two-way audio or built-in speaker output.
FAQs
- What is the Uniview IPC3608SB-ADF16KM-I0 used for?
The Uniview IPC3608SB-ADF16KM-I0 is used for wide-area CCTV monitoring where a 180° field of view is required from a single turret camera. It suits entrances, foyers, corridors, retail areas, warehouses and open spaces where reducing blind spots is important.
- What resolution does this camera record?
The camera records up to 8MP resolution at 3840 x 2160 and supports up to 30/25fps. It also supports 5MP, 4MP and 1080p recording at up to 30/25fps depending on system settings.
- What lens does the IPC3608SB-ADF16KM-I0 use?
This model uses a 1.68mm fixed lens with a 180° horizontal field of view, 100° vertical field of view and 180° diagonal field of view. It is designed for super wide-angle overview coverage rather than narrow long-distance identification.
- Does the camera support dewarping?
Yes. The camera supports dewarping, and the dewarp level can be configured from 1 to 9. This helps make ultra-wide footage easier to view, search and review in compatible systems.
- Does it work at night?
Yes. The camera supports Smart IR up to 20m and can capture images at 0 lux with IR on. Its wide-angle design is best suited to broad overview monitoring rather than long-range night identification.
- Does this model include a microphone?
Yes. The IPC3608SB-ADF16KM-I0 includes a built-in microphone for audio capture. It does not include audio I/O, a built-in speaker or two-way audio support.
- What smart detection features are included?
The camera supports smart intrusion prevention including cross line, intrusion, enter area and leave area detection, with false alarm filtering and classification of humans, vehicles and non-motor vehicles. It also supports colour retrieval for smart intrusion prevention events.
- What should I check before buying the IPC3608SB-ADF16KM-I0?
Before buying, confirm that the site needs 180° overview coverage, that the mounting location provides the right perspective, and that your NVR or viewing software supports the required dewarping and event functions. Security Wholesalers can supply this Uniview camera for compatible CCTV systems.
Additional Information
Uniview IPC3608SB-ADF16KM-I0 8MP Fixed Eyeball Network Camera
