Universal Roller Door Reed Switch RSRDM


  • Internal magnetic reed switch contact
  • Universal reed switch made for roller doors
  • Suitable for large gap – 65mm

$36.40 inc GST +3 Year Warranty & Support

The RSRDM is a universal roller shutter door reed switch that can be used in a variety of applications.

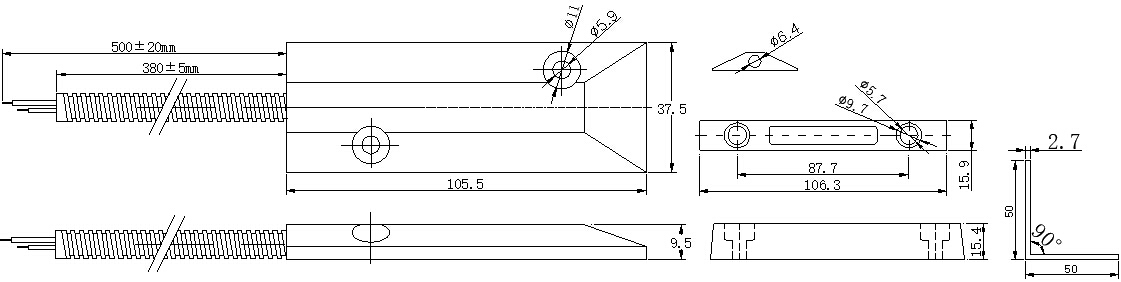

• Reed switch 106 x 36.5 x 10mm
• Magnet 106 x 15.5 x 16mm
• Bracket 107 x 50 x 50mm
• Gap 65mm
• Extra wide gap
• 350mm armoured cable (stainless)
• Robust constructed and epoxy sealed to ensure that there is no corrosion
• Universal mounting with L bracket

SKU: RSRDM Categories: ,

Properties
Dimensions: Transmitter 19.5 mm x 82.55 mm x 12.8 mm (0.76 in x 3.25 in x 0.50 in)
Dimensions: Magnet 18.5 mm x 24.5 mm x 12.5 mm (0.72 in x 0.97 in x 0.49 in)
Weight: 0,073 kg (0.160 lb)

Power
Power/Voltage: 1.5 VDC
Battery type: AAA Lithium
Battery life: Up to 5 years
Upon power-up, factory test mode lasts approximately 10 sec.

Environmental Considerations
Temperature: Functional range: -10゚C to +55゚
UL only: 0゚C to +49゚C
EN 50130-5 Class II only: -10゚C to 55゚C
IP30/IK04
Environment Complies with EN50130-5 Class II
Relative Humidity: Up to 93% non-condensing

Cover and Wall Tamper Switch: Transmits a tamper switch signal when the detector is removed from its base, or the unit is pulled away from the ceiling.
Frequency: 433.42 MHz
Use: Intended for indoor use.
