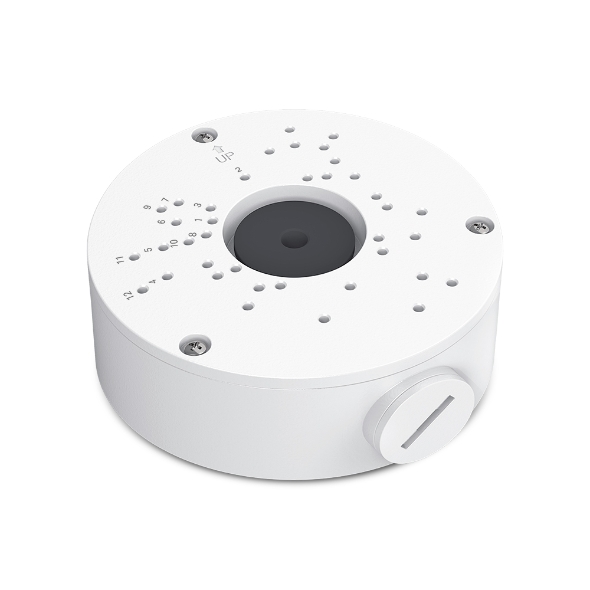

TP-Link VIGI VJB-305 Network Camera Junction Box
The TP-Link VIGI VJB-305 is a dedicated junction box for compatible VIGI network cameras. It provides a neat mounting solution for CCTV installations where camera cables need to be protected, concealed, and presented professionally.
Instead of leaving cable joins, plugs, or connectors exposed behind the camera, the VJB-305 allows installers to house and manage cabling inside the junction box. This is especially useful for outdoor camera installations, commercial CCTV projects, warehouse sites, car parks, retail premises, schools, offices, and other locations where a tidy and durable installation is important.
Clean Cable Management
The VJB-305 is designed to help hide camera cables and create a cleaner installation. This reduces visible wiring around the camera mounting point and helps protect cable connections from being left exposed.
For professional CCTV installations, a junction box is often recommended when the camera cannot be mounted directly over a clean cable entry point, or when the installer needs extra space behind the camera for cable termination.
Aluminium Alloy Construction
The VIGI VJB-305 is made from aluminium alloy, giving it a strong and durable body suitable for supported camera installations. The VIGI white finish is designed to match the appearance of many VIGI camera models for a more consistent final look.
Waterproof Design for Indoor or Outdoor Use
The VJB-305 features a waterproof design and is suitable for both indoor and outdoor wall or ceiling mounting. This makes it useful for a wide range of CCTV applications, including exposed outdoor walls, covered entries, warehouses, car parks, driveways, loading areas, and commercial premises.

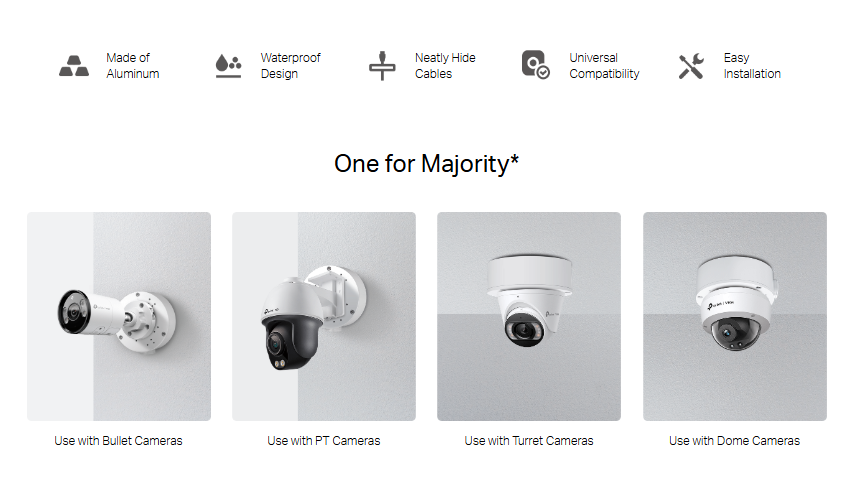

Compatible with Most VIGI Cameras
The VJB-305 is designed for use with most VIGI cameras, including compatible bullet, PT, turret, and dome cameras. TP-Link recommends using VIGI mounting accessories with VIGI cameras to reduce the risk of compatibility issues, overloading, or incorrect installation.
Please note that the VJB-305 is not compatible with every VIGI camera model, so compatibility should always be checked before installation.
Typical Applications
- Mounting compatible VIGI cameras on walls or ceilings
- Hiding and protecting camera cable connections
- Outdoor CCTV installations where cable joins need protection
- Commercial CCTV installations requiring a clean finish
- Retail, office, warehouse, school, and car park surveillance
- Installations where the cable entry point does not sit directly behind the camera
Key Features
- Network camera junction box for compatible VIGI cameras
- Practical design for hiding cables
- Aluminium alloy construction
- Waterproof design
- Suitable for indoor or outdoor wall/ceiling mounting
- Compatible with most VIGI bullet, PT, turret, and dome cameras
- Easy to install
- VIGI white finish
Specifications
| Model |
VJB-305 |
| Product Type |
VIGI Network Camera Junction Box |
| Appearance |
VIGI White |
| Material |
Aluminium Alloy |
| Compatible Camera Types |
Selected VIGI bullet, PT, turret, and dome cameras |
| Mounting Type |
Indoor or outdoor wall/ceiling mounting |
| Product Dimensions |
Ø125 × 130.47 × 45.7mm |
| Weight |
416g |
| Package Contents |
Junction box, mounting accessories, waterproof accessories |
Important Compatibility Note
The TP-Link VIGI VJB-305 is designed for use with compatible VIGI cameras, but it is not compatible with every VIGI camera model. Always confirm compatibility before ordering or installation.
The mounting surface should also be strong enough to support at least three times the combined weight of the camera and the mount.
FAQs
What is the TP-Link VIGI VJB-305 used for?
The VJB-305 is a junction box used to mount compatible VIGI network cameras while hiding and protecting camera cable connections.
Can the VJB-305 be used outdoors?
Yes. The VJB-305 has a waterproof design and is suitable for indoor or outdoor wall and ceiling mounting.
Which cameras does the VJB-305 support?
It is designed for most compatible VIGI cameras, including selected bullet, PT, turret, and dome cameras. It is not compatible with every VIGI camera model, so compatibility should be checked first.
What material is the VJB-305 made from?
The VJB-305 is made from aluminium alloy.
What colour is the junction box?
The VJB-305 has a VIGI white finish.
What is included in the box?
The package includes the junction box, mounting accessories, and waterproof accessories.
Why use a junction box with a CCTV camera?
A junction box helps hide and protect cable connections, creates a cleaner installation, and gives the camera a proper mounting base when cables cannot be neatly brought directly through the wall or ceiling behind the camera.
