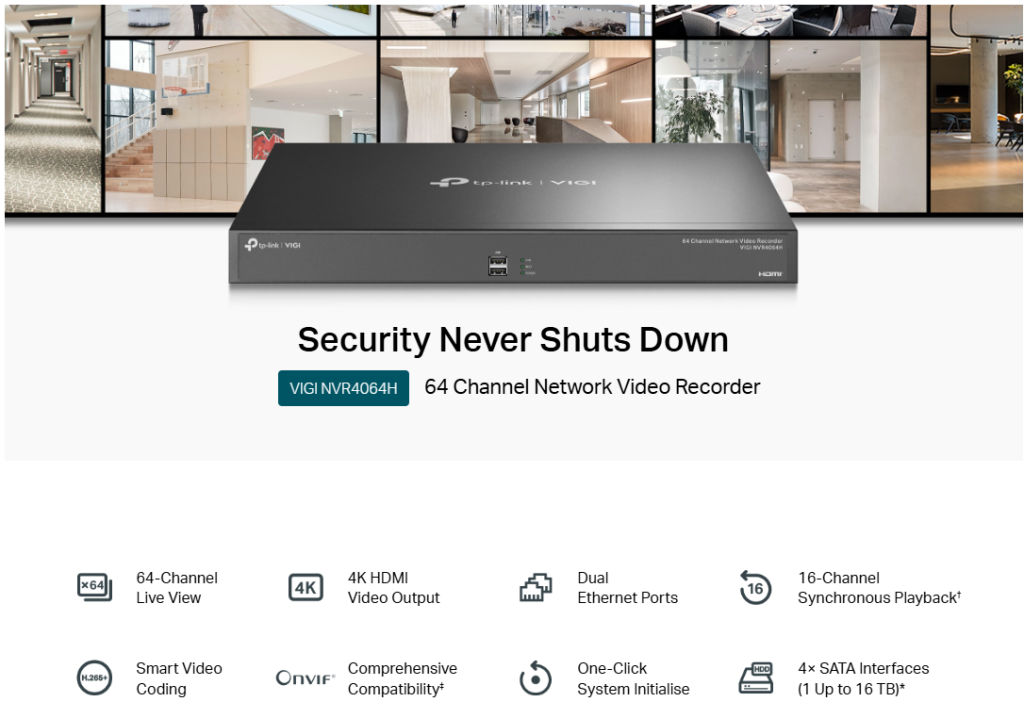

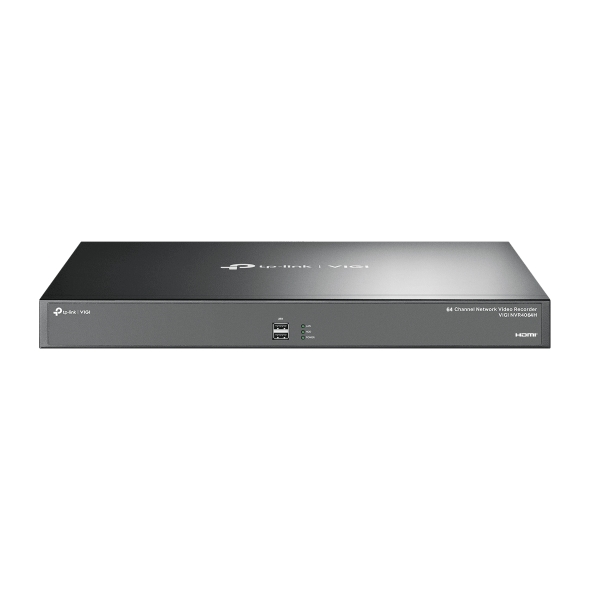

TP-Link VIGI NVR4064H – 64-Channel Network Video Recorder
The TP-Link VIGI NVR4064H is a robust 64-channel Network Video Recorder (NVR) designed to meet the comprehensive surveillance needs of businesses. It offers extensive monitoring capabilities, high-definition video output, and advanced features to ensure reliable and efficient security management.
Key Features:
-
64-Channel Live View and 4K HDMI Video Output:
Monitor up to 64 camera feeds simultaneously with crisp, clear visuals, enhancing situational awareness across extensive areas.
-
High Decoding Capability:
Supports up to 16 channels at 2MP resolution (25fps) or 8 channels at 4MP resolution (30fps), ensuring smooth and detailed video playback.
-
16-Channel Synchronous Playback:
Review footage from multiple cameras concurrently, facilitating efficient event analysis and investigation.
-
High Bandwidth Capacity:
Handles up to 320 Mbps for both incoming and outgoing data, accommodating high-resolution video streams without compromising performance.
-
Ample Storage Options:
Equipped with four SATA interfaces, each supporting up to 16 TB, providing extensive storage for prolonged recording periods.
-
Advanced Video Compression:
Utilizes H.265+ compression technology to reduce storage requirements and optimize bandwidth usage without sacrificing video quality.
-
Multiple Video Outputs:
Features two HDMI and one VGA output, allowing flexible display configurations to suit various monitoring setups.
-
Remote Monitoring:
Access live views and recorded footage remotely via the VIGI app or web interface, ensuring continuous surveillance management from any location.
Enhanced Functionality:
-
Dual Ethernet Ports Design:
Offers multi-address mode for implementing two different gateways, network fault-tolerance for data redundancy, and port aggregation for increased bandwidth and backup capabilities.
-
One-Click System Initialization:
Simplifies setup with quick camera additions, hard drive initialization, and storage scheduling, reducing installation time and effort.
-
Comprehensive Compatibility:
Supports ONVIF Profile S and CGI protocols, ensuring seamless integration with a wide range of IP cameras and third-party devices.
Specifications:
-
Video & Audio Input:
64-channel IP video input with default incoming bandwidth of 260 Mbps, extendable to 320 Mbps.
-
Decoding Capacity:
At 25fps: 16 channels at 2MP, 32 channels at 720P, or 64 channels at D1;
At 30fps: 4 channels at 8MP, 6 channels at 5MP, or 8 channels at 4MP.
-
Storage:
Four SATA interfaces supporting up to 16 TB each, accommodating extensive video archives.
-
Network Interface:
Two RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces for reliable network connectivity.
-
USB Ports:
Two front USB 2.0 ports and one rear USB 3.0 port for peripheral connections such as a mouse, keyboard, or external storage devices.
-
Alarm Interfaces:
16 alarm inputs and 4 alarm outputs for integrating with external alarm devices like smoke detectors and alarm bells.
The VIGI NVR4064H is engineered to provide a scalable and dependable surveillance solution, making it an ideal choice for businesses seeking to enhance their security infrastructure with advanced monitoring and management capabilities.
